Specifications
• Brand: OriPure
• Series Model: TSF558 Series.

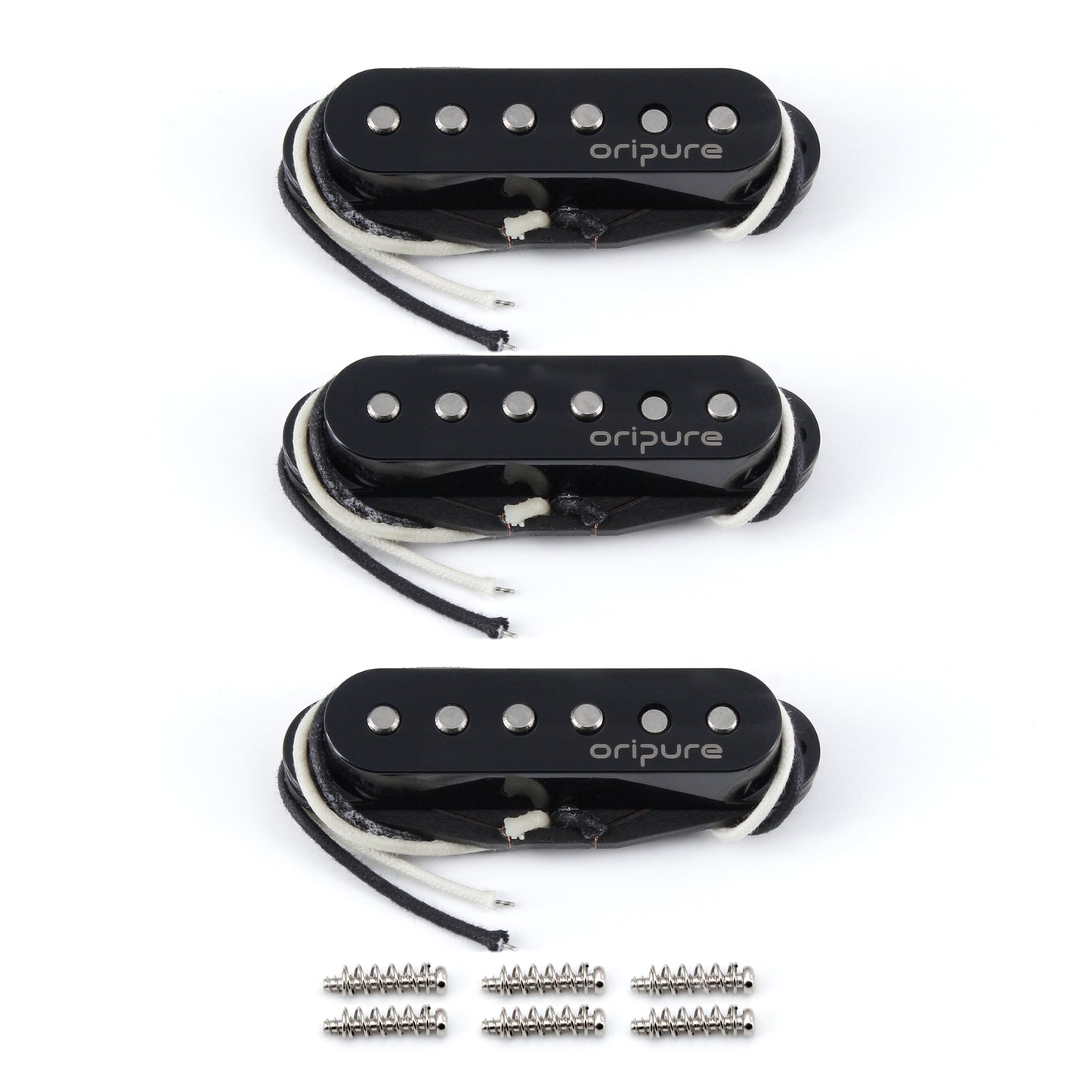

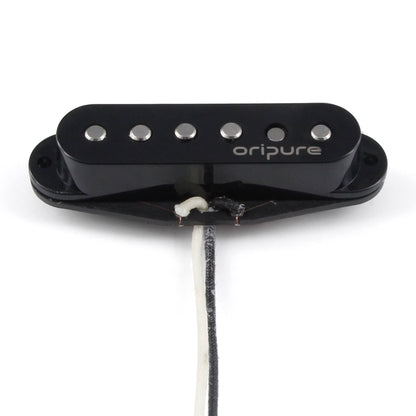

• Product Name: ST Style Vintage Staggered Single-Coil Pickup
for Electric Guitar.
• Magnet Type: Alnico 5 (Alnico V) Staggered Poles.
• Coil Structure: Hand-Wound / Vulcanized Fiber Bobbin /
AWG42 Wire.
• Lead Wire Material: Cloth Braided Wire.

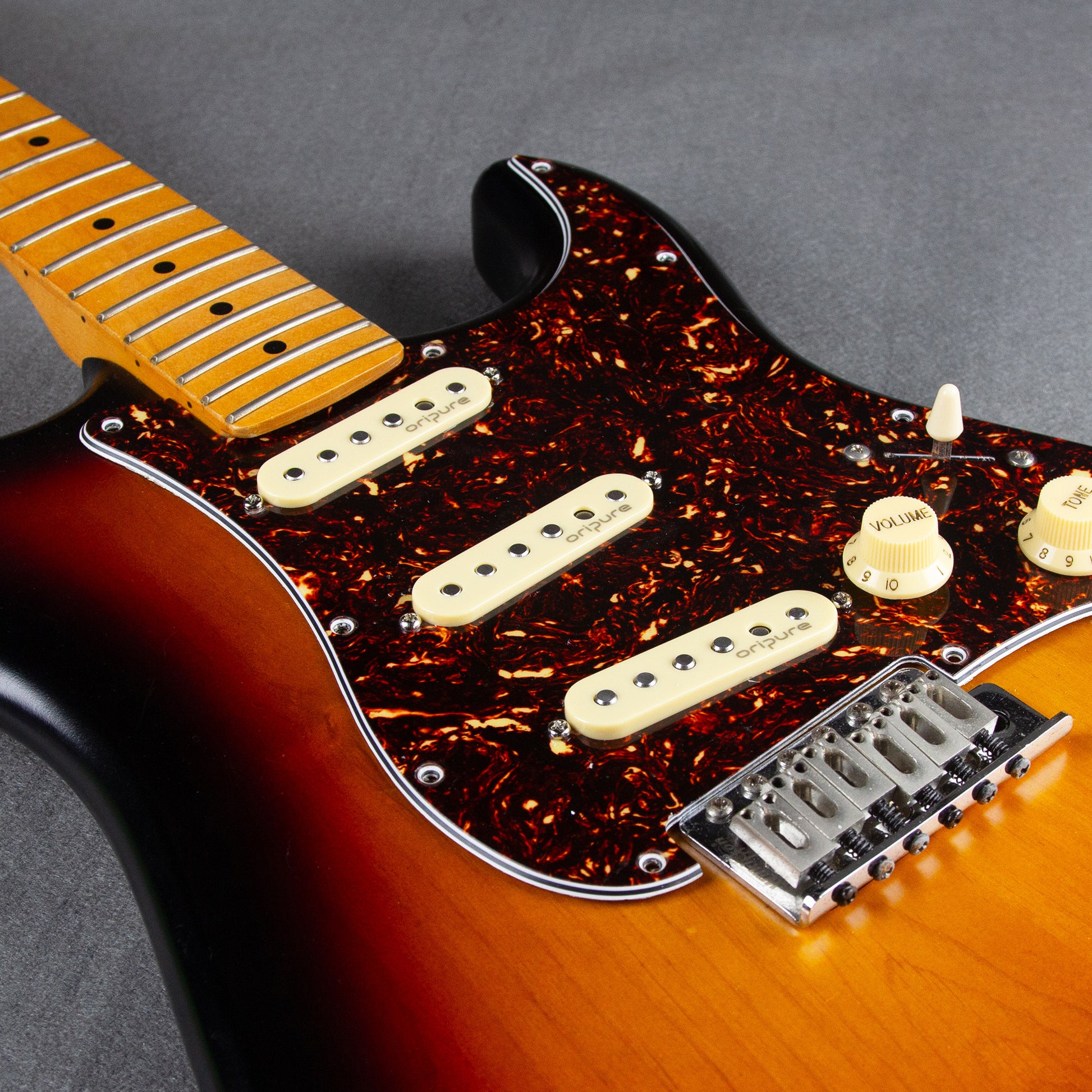

• Pickup Position: Neck / Middle / Bridge.

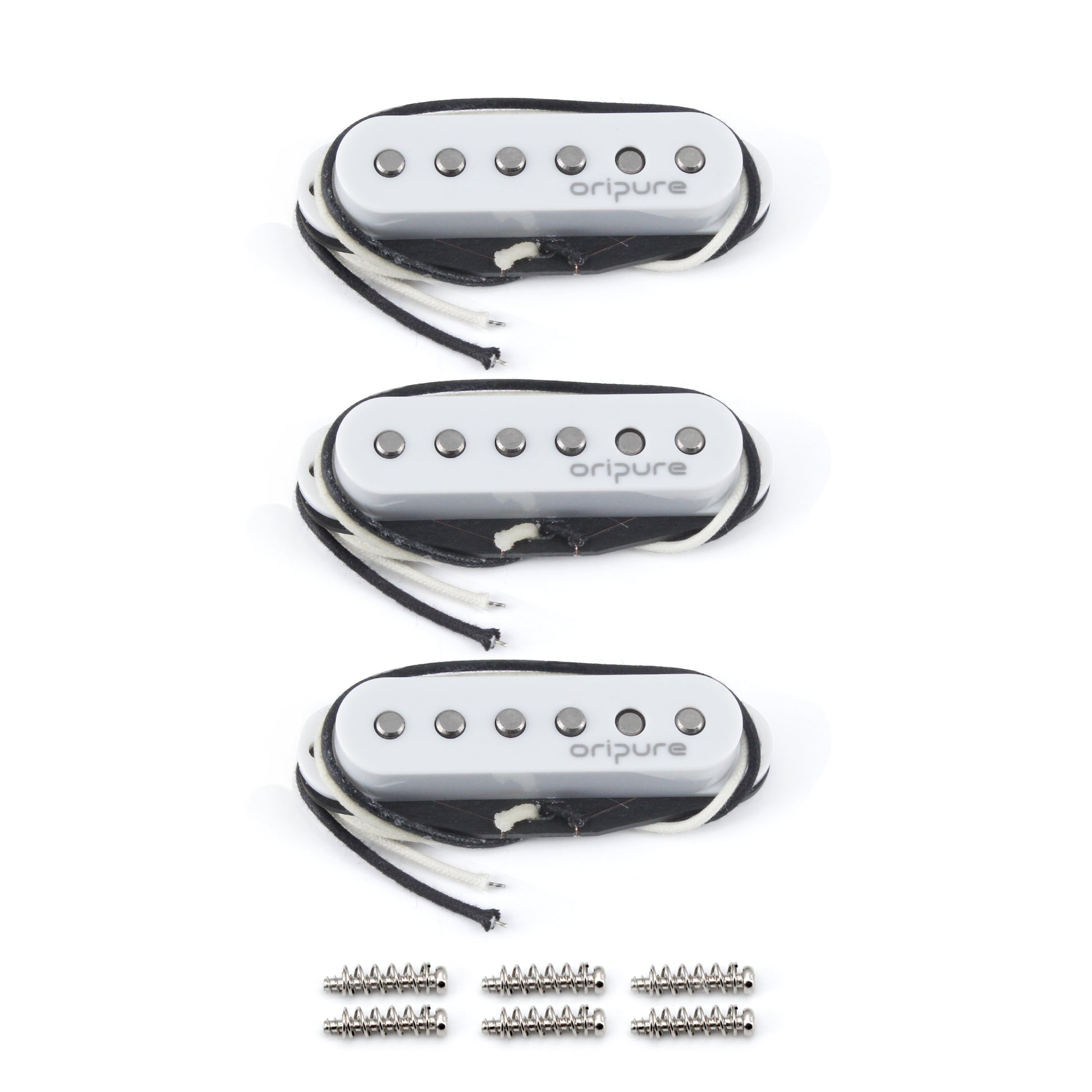

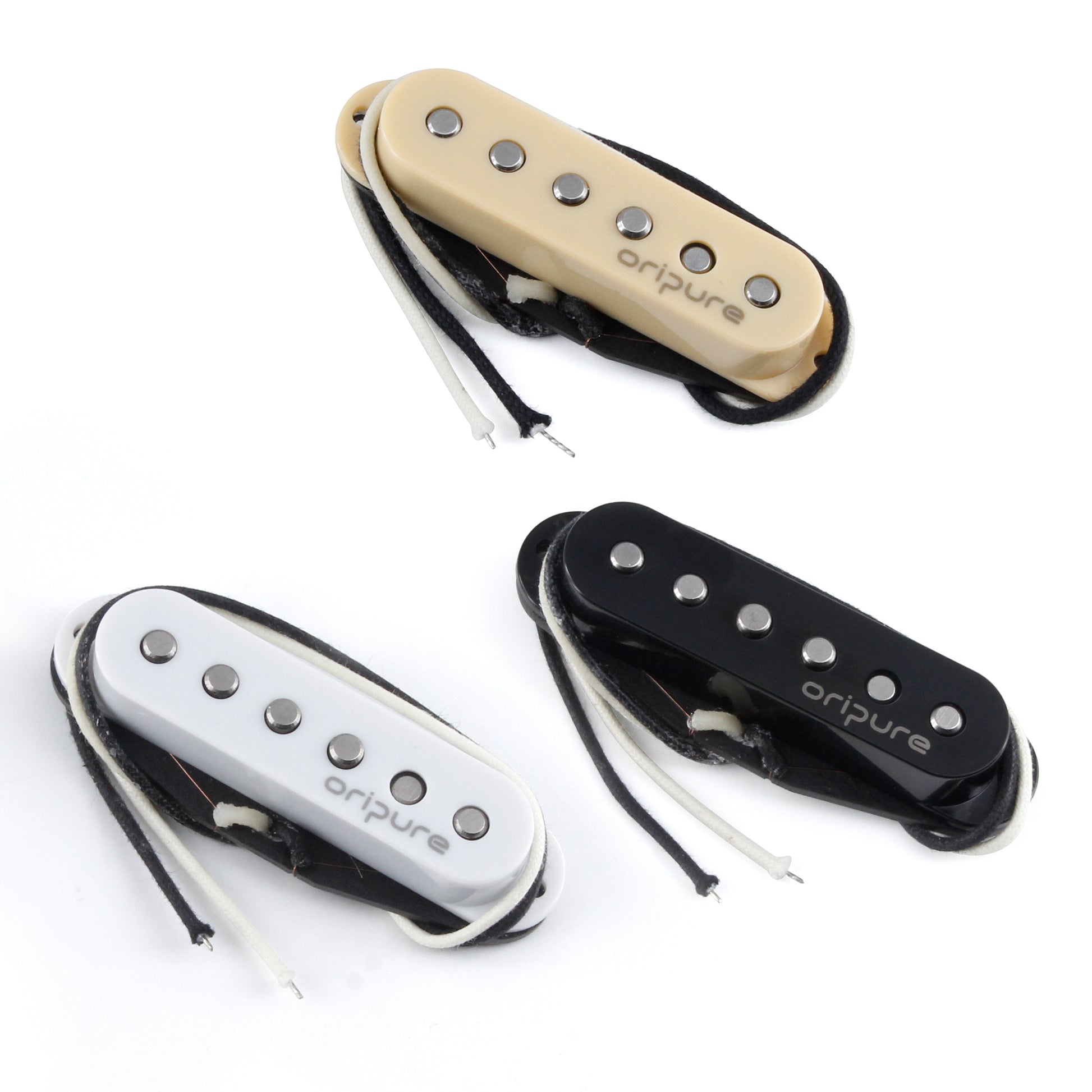

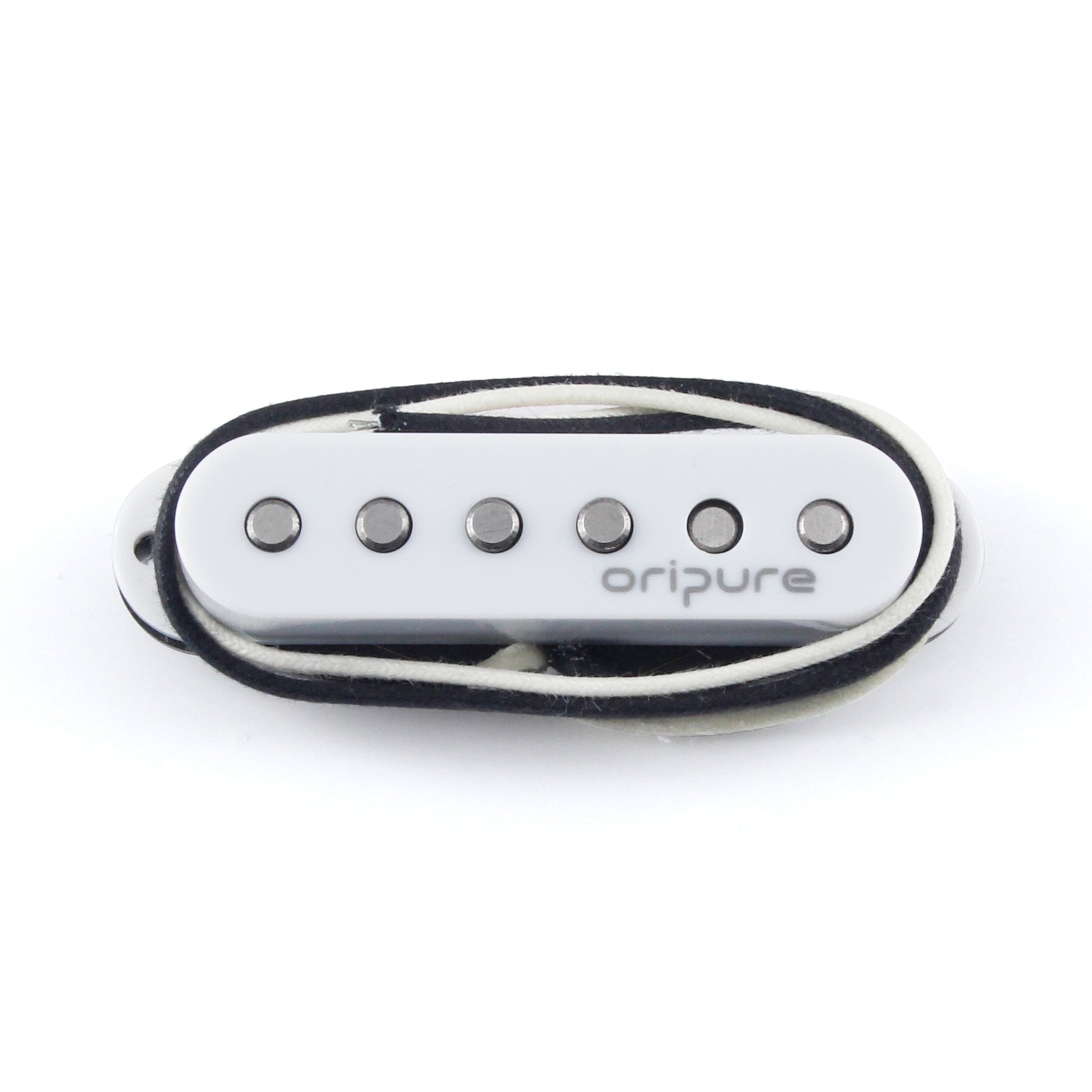

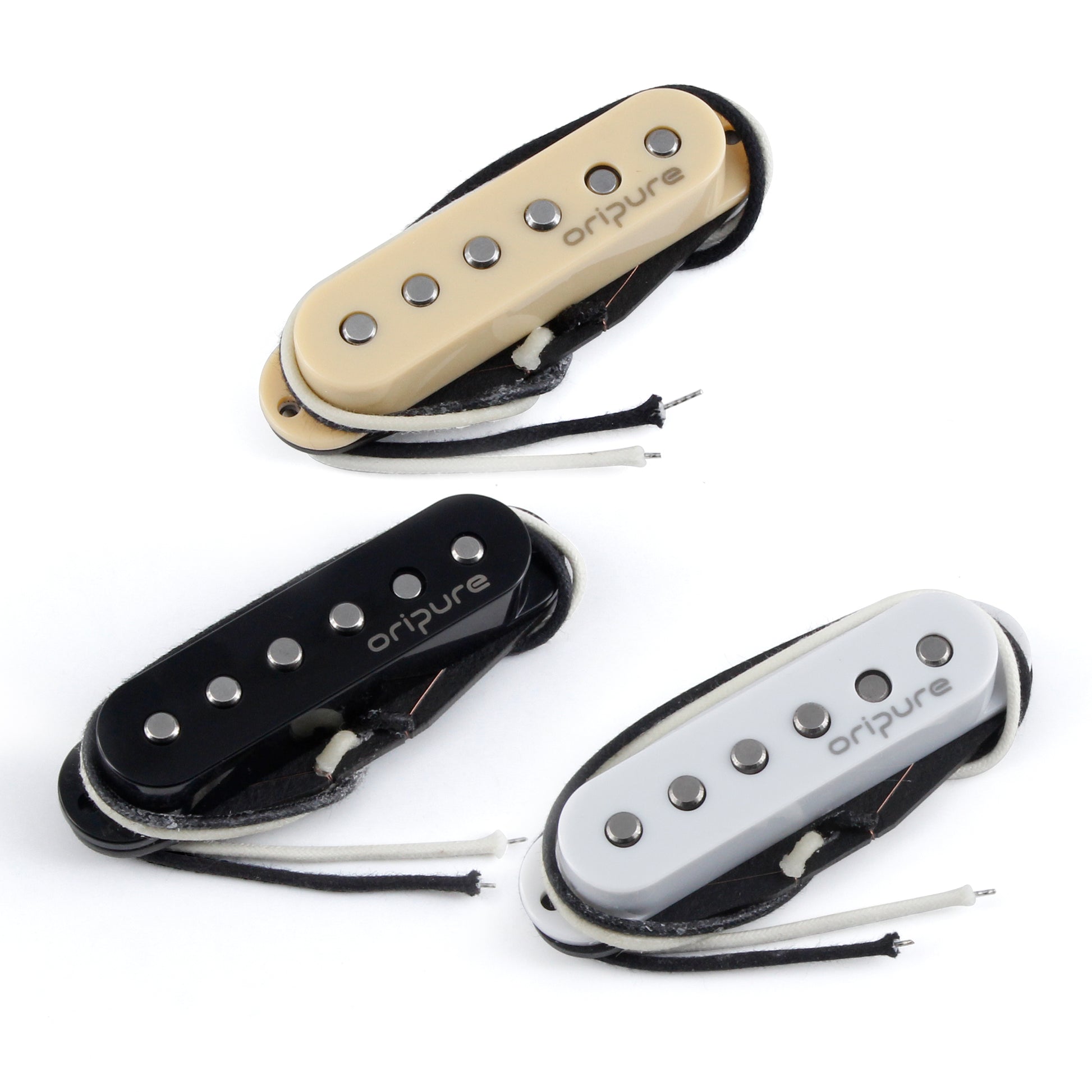

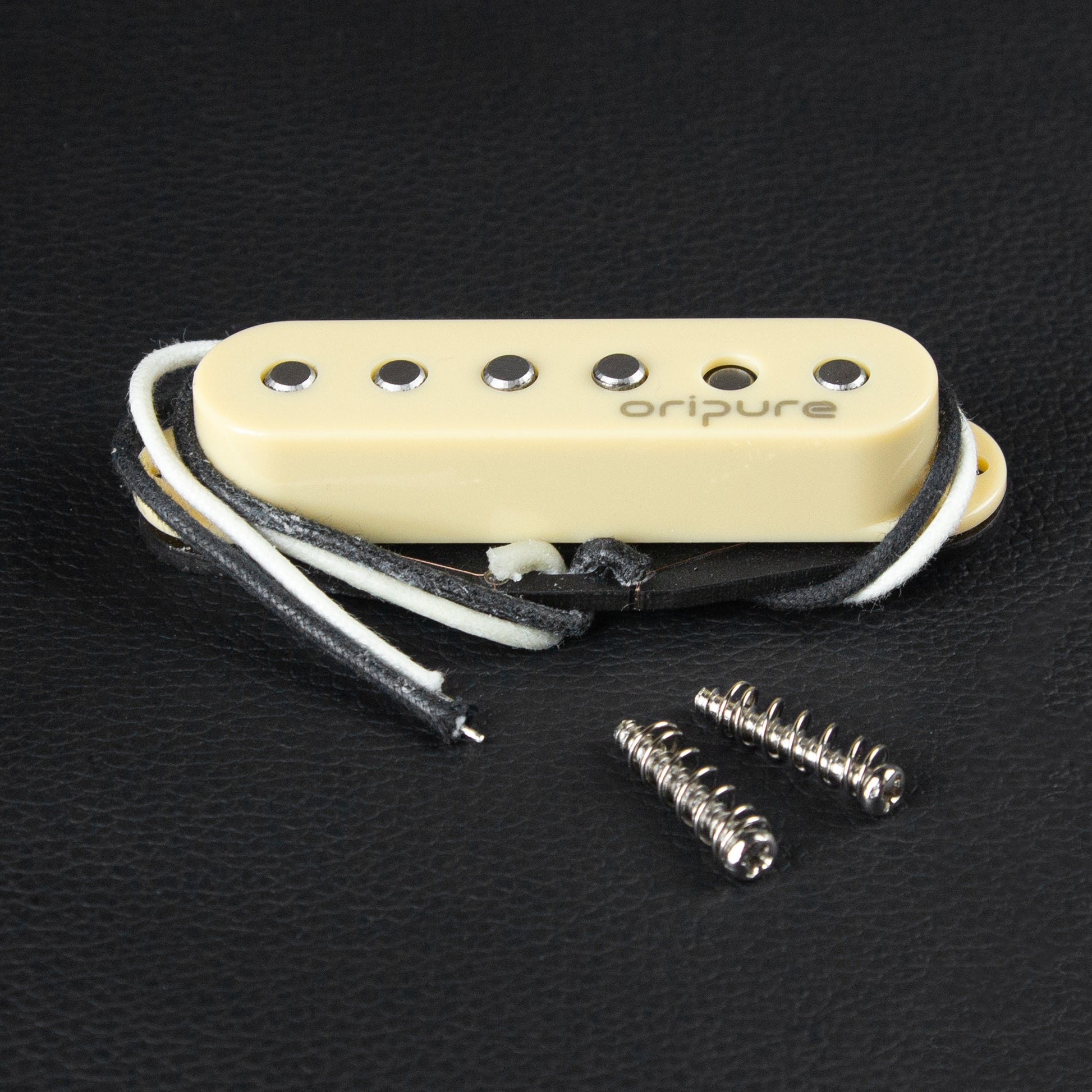

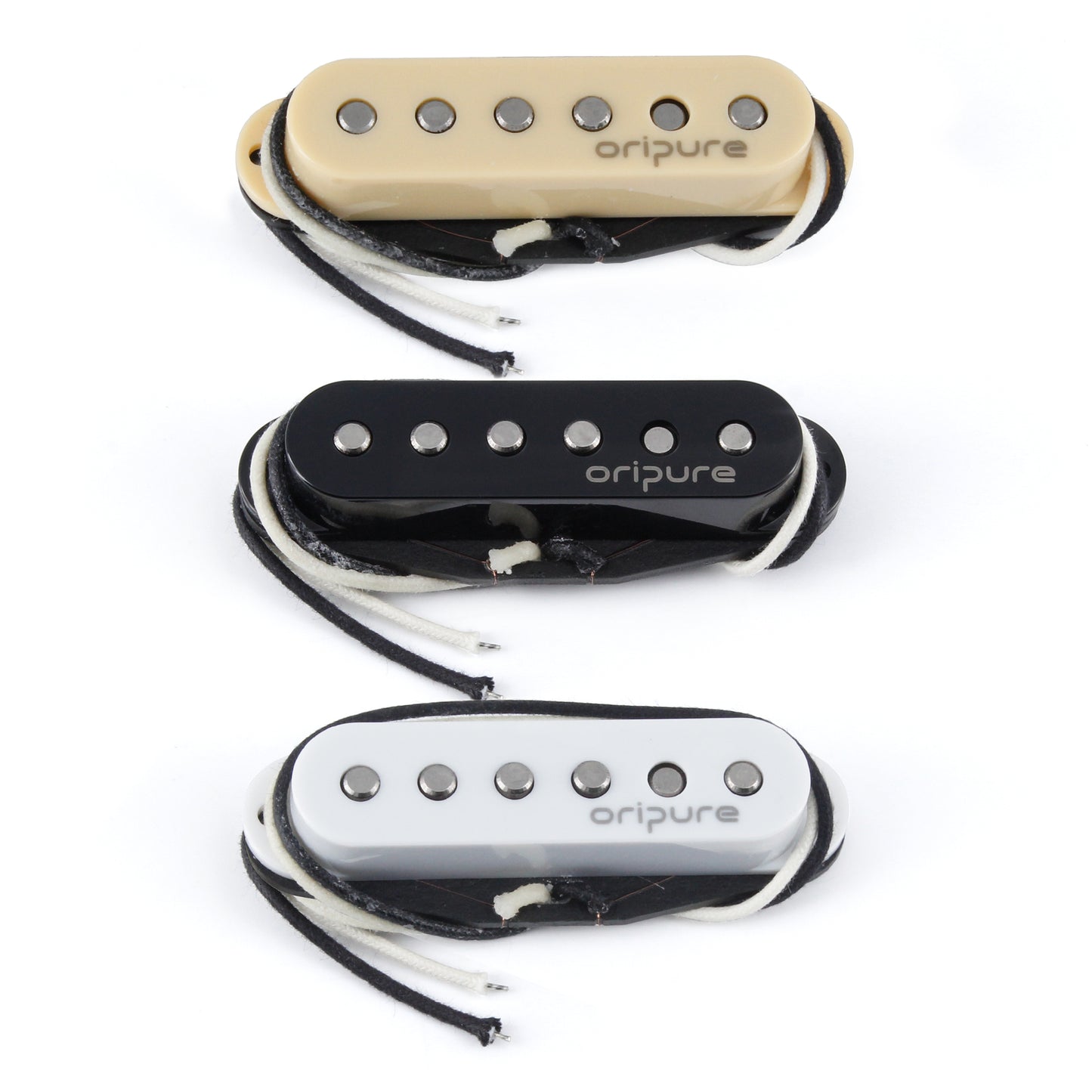

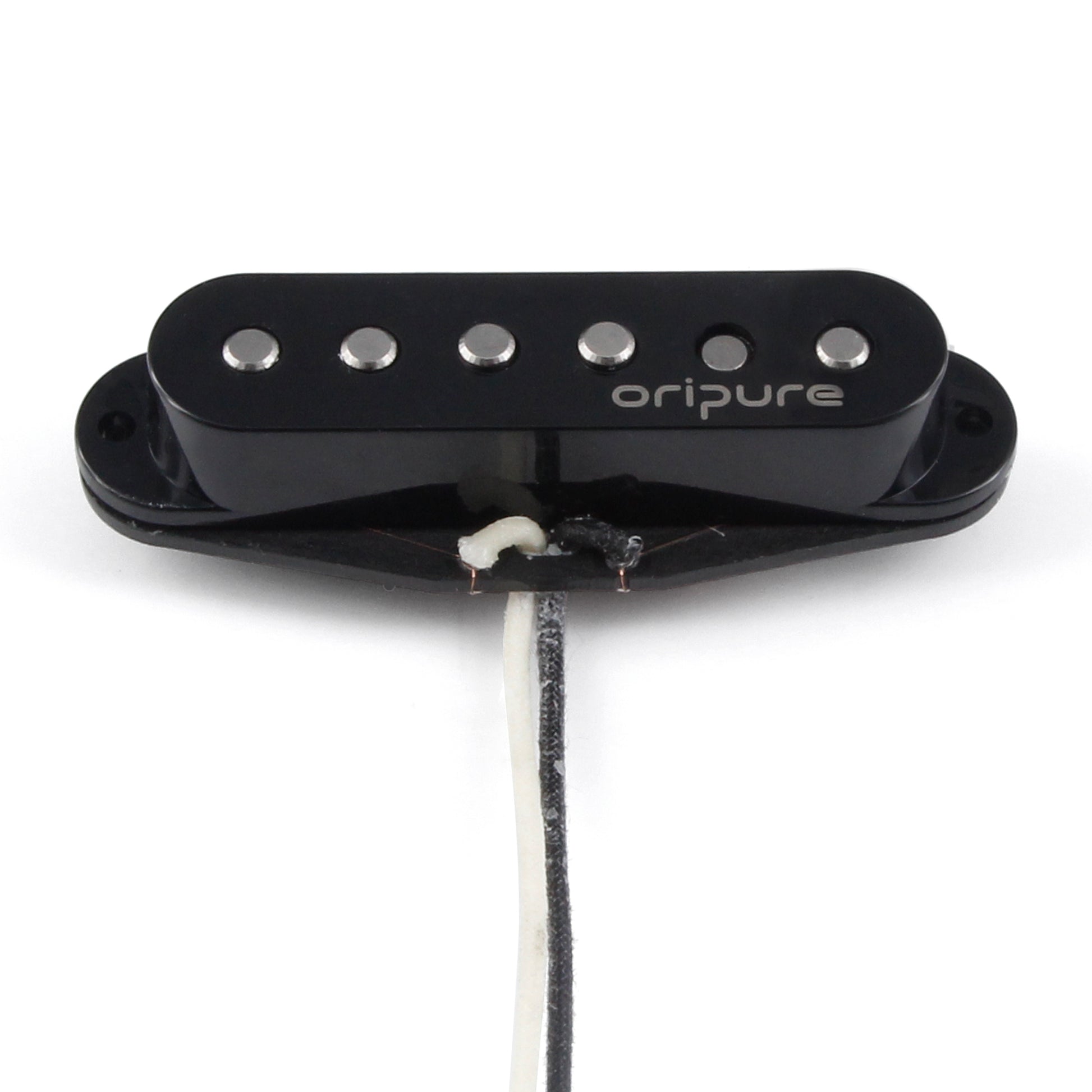

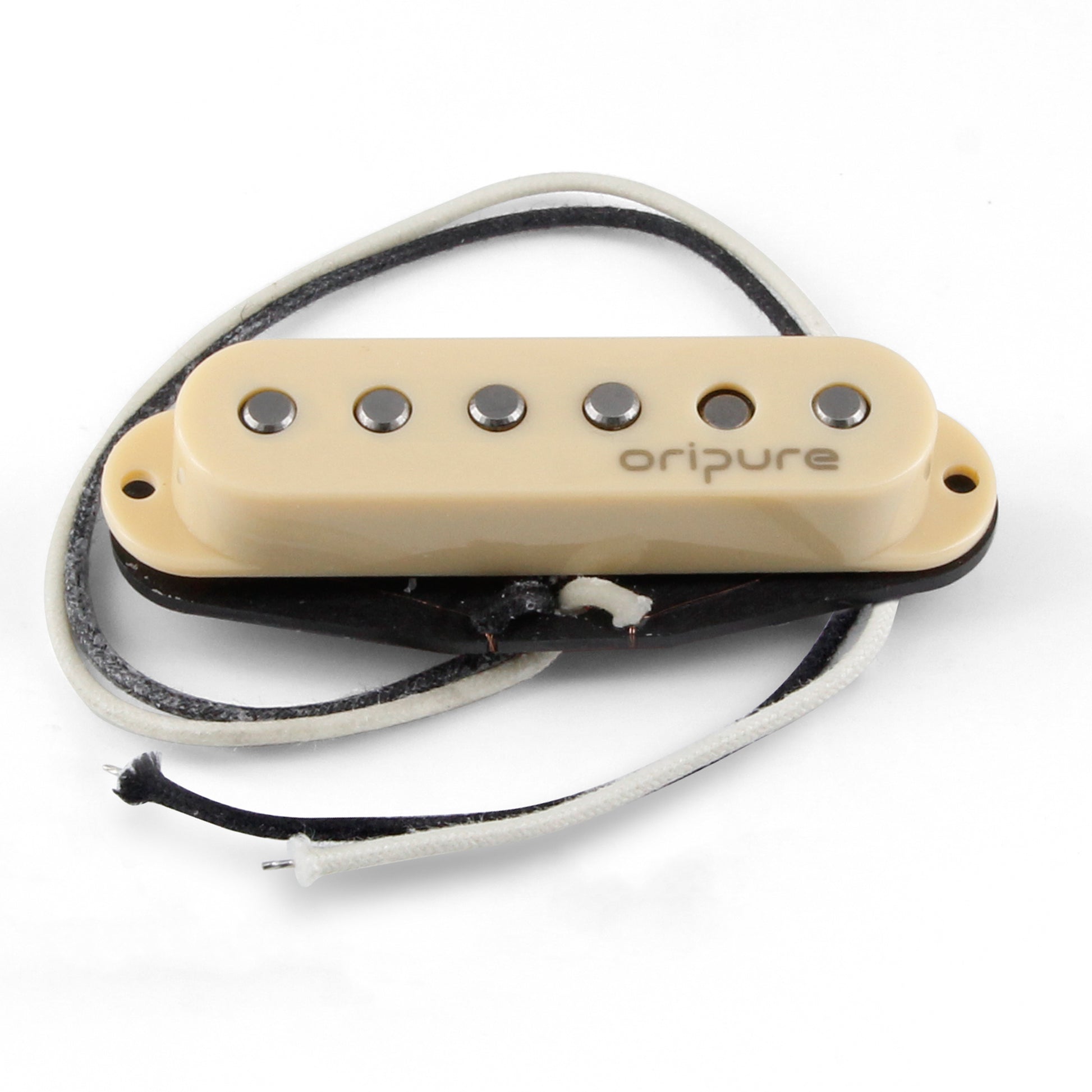

• Color Options: Black / White / Yellow.

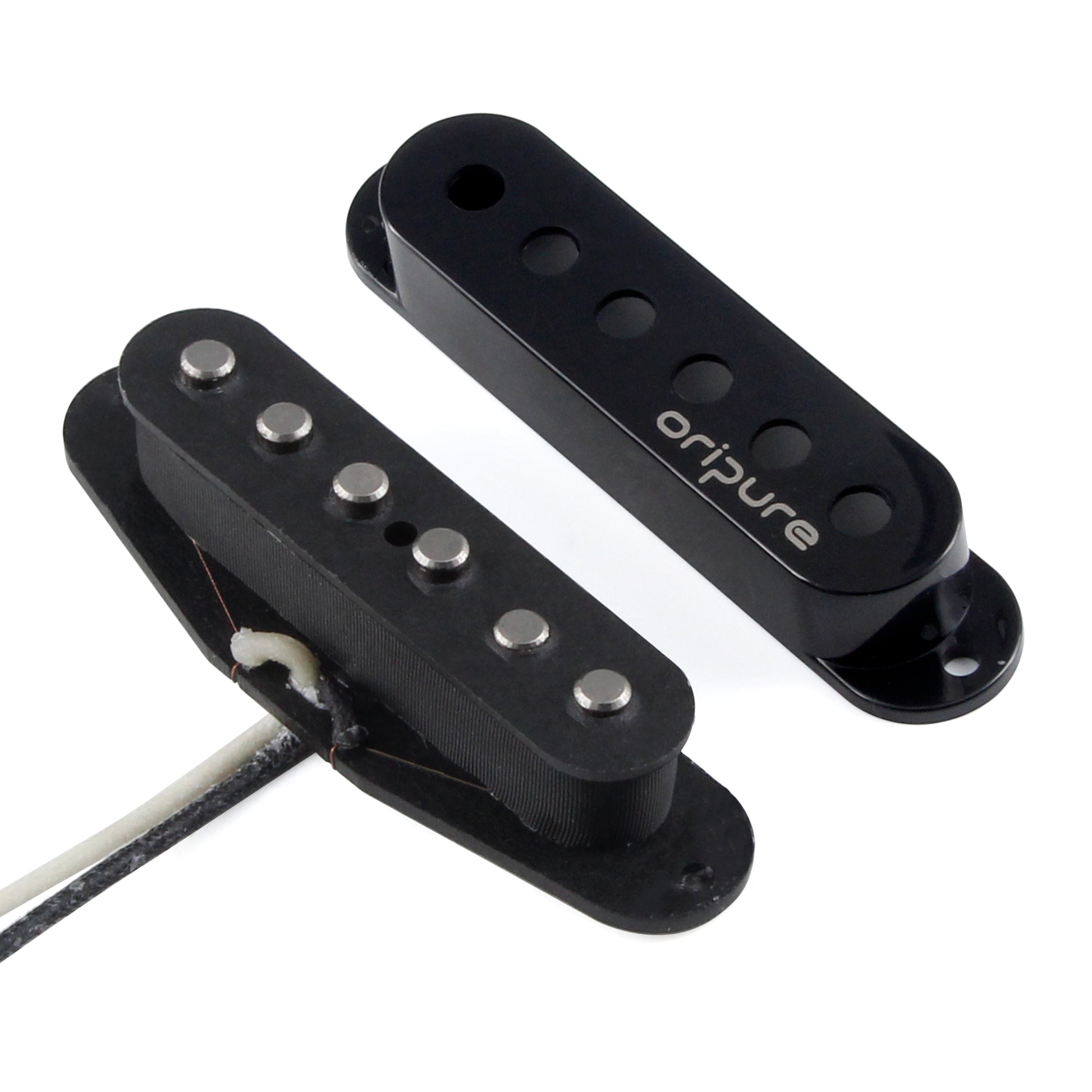

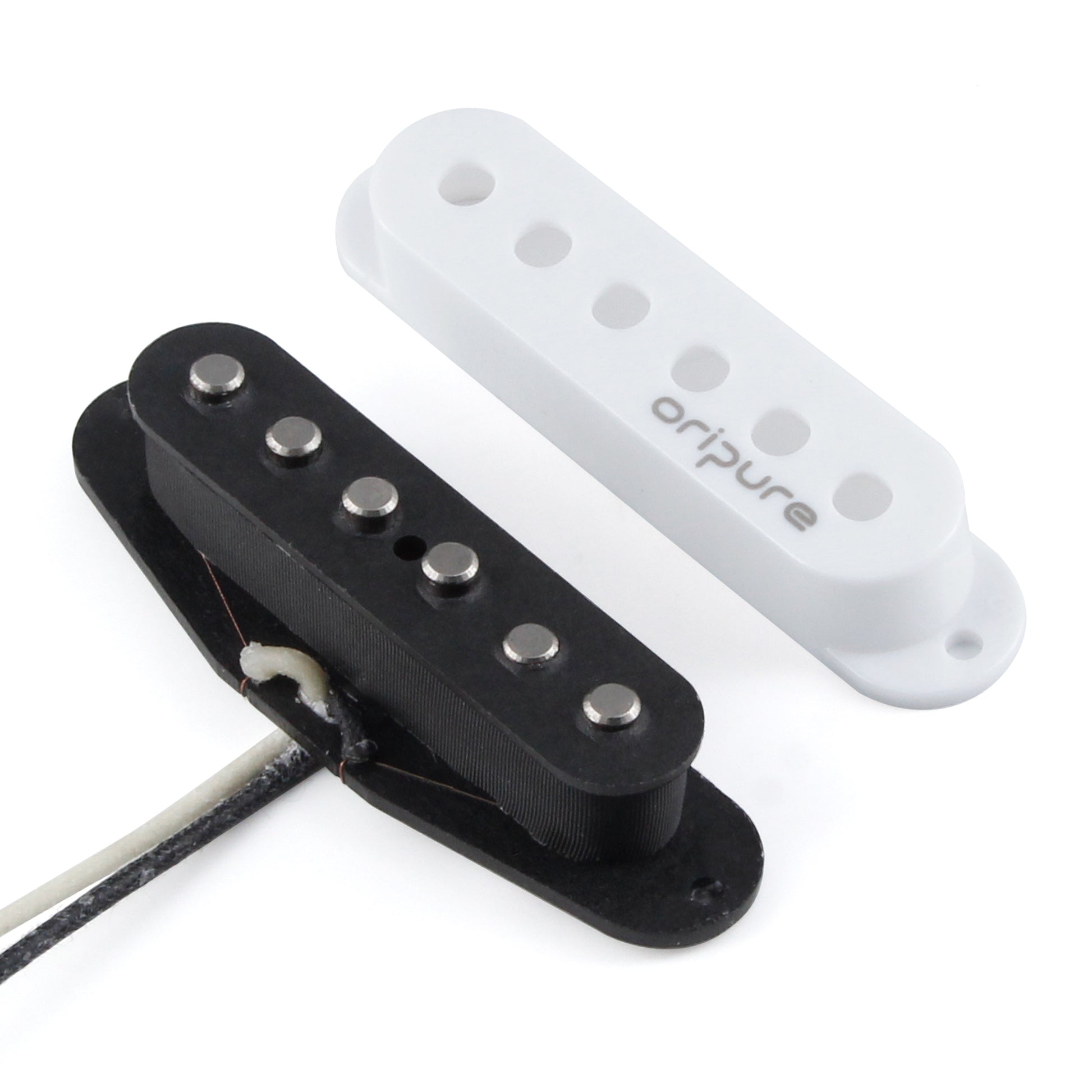

• Cover Material: ABS Plastic Cover with OriPure LOGO.
Parameter List
| Parameter |
Neck |
Middle |
Bridge |
| DC Resistance (DCR) |
5.8KΩ |
6.1KΩ |
7.2KΩ |
| Inductance |
2.2H |
2.4H |
3H |
| Pole Spacing (mm) |
50mm |
50mm |
52mm |
| Polarity |
N |
RwRP |
S |
| Tone Ratio (High/Mid/Low) |
35% / 20% / 45% |
50% / 15% / 35% |
60% / 30% / 10%
|
Features:
• Vintage Tone Revival:
Based on the 60s–70s ST structure design, restoring the dynamics
and layers of classic single coils.
• Alnico 5 Magnets：
Provide higher magnetic flux density and penetration power for
bright and dynamic tones.

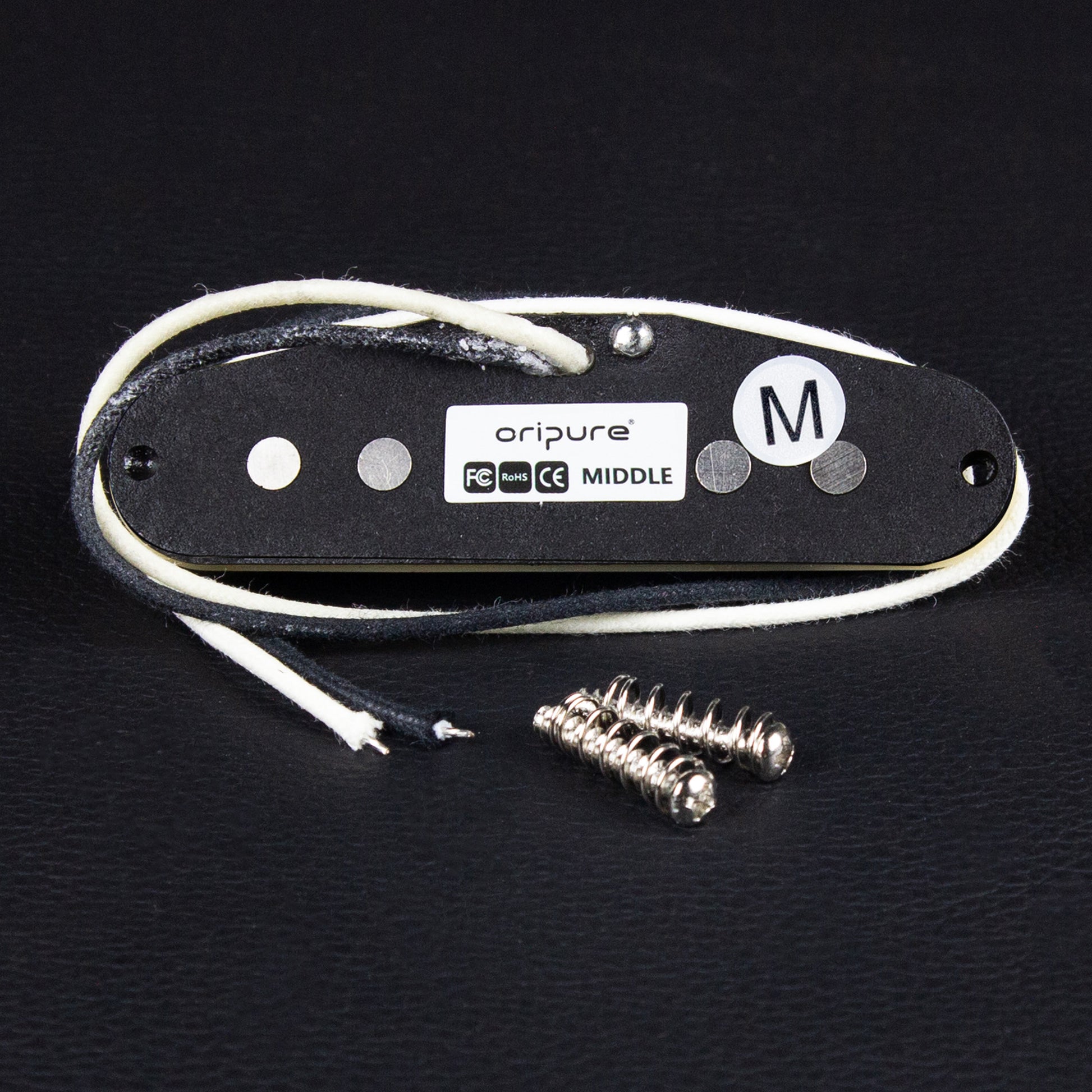

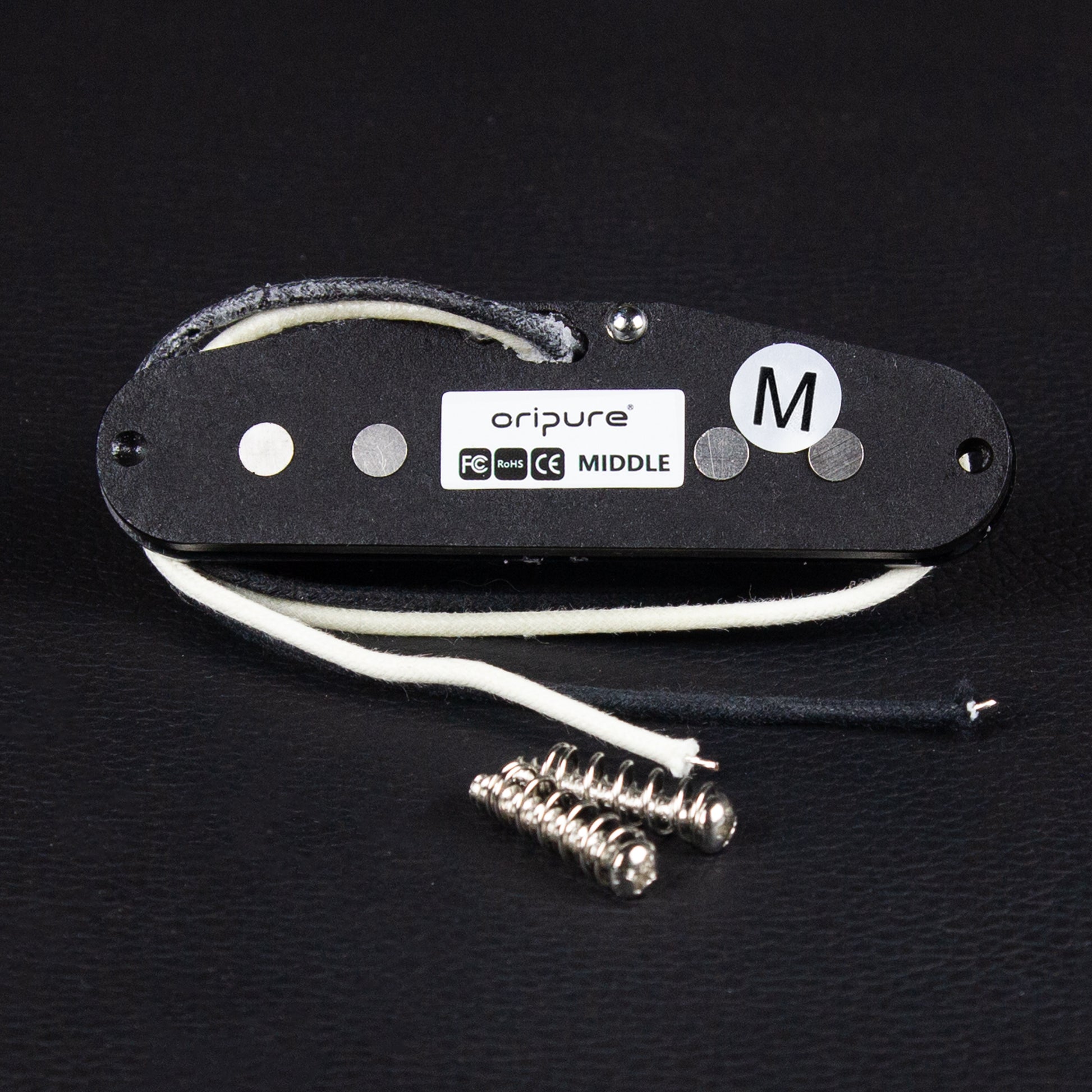

• RwRP Middle Design:
Reverse wound and reverse polarity middle pickup effectively
cancels hum in positions 2 and 4.
• Low-Capacitance Hand Winding:
Ensures transparent highs with crisp, non-harsh tones while
preserving natural harmonics.
• Vacuum Wax Potting:
Prevents feedback and vibration, ensuring stability under
high-gain performance.
• Accurate Three-Band Tuning:
Warm and full neck tone, balanced middle tone,
bright and sharp bridge tone.
• Vintage Aesthetics Meets Modern Craftsmanship:
Paper bobbins and cloth wiring for a classic look and
pure tone.
Tone Profiles
OriPure TSF558 Series is a set of single-coil pickups emphasizing
the reproduction of vintage tones from the 60s–70s.
Using Alnico 5 magnets and vulcanized fiber bobbins,
with low-capacitance hand winding and full manual wiring,
it revives the classic tones of the golden ST era.
• Neck Tone
• Tone Character: Bright, transparent, sweet, and warm with a
chime-like tone quality.
• Frequency Response: High 35% / Mid 20% / Low 45%
• Suitable Genres: Jazz, Vintage Rock, Blues, Soft Pop
• Performance: Long sustain, stable sound field, clear layers —
perfect for melodic solos and clean tones.
• Middle Tone
• Tone Character: Bright, rounded, rich, and full-bodied with
balanced frequency response.
• Frequency Response: High 50% / Mid 15% / Low 35%
• Suitable Genres: Funk, Neo Soul, Indie Pop, City Pop, Math Rock
• Performance: Highly dynamic response, crisp strumming,
nostalgic jazzy and funky vibe.
• Bridge Tone
• Tone Character: Clean, crisp, sweet, and highly penetrating.
• Frequency Response: High 60% / Mid 30% / Low 10%
• Suitable Genres: Britpop, Garage Rock, J-Rock, Noise Pop
• Performance: Strong attack, defined layers, focused and
expressive tone.

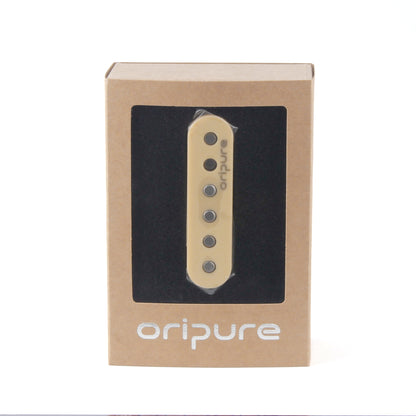

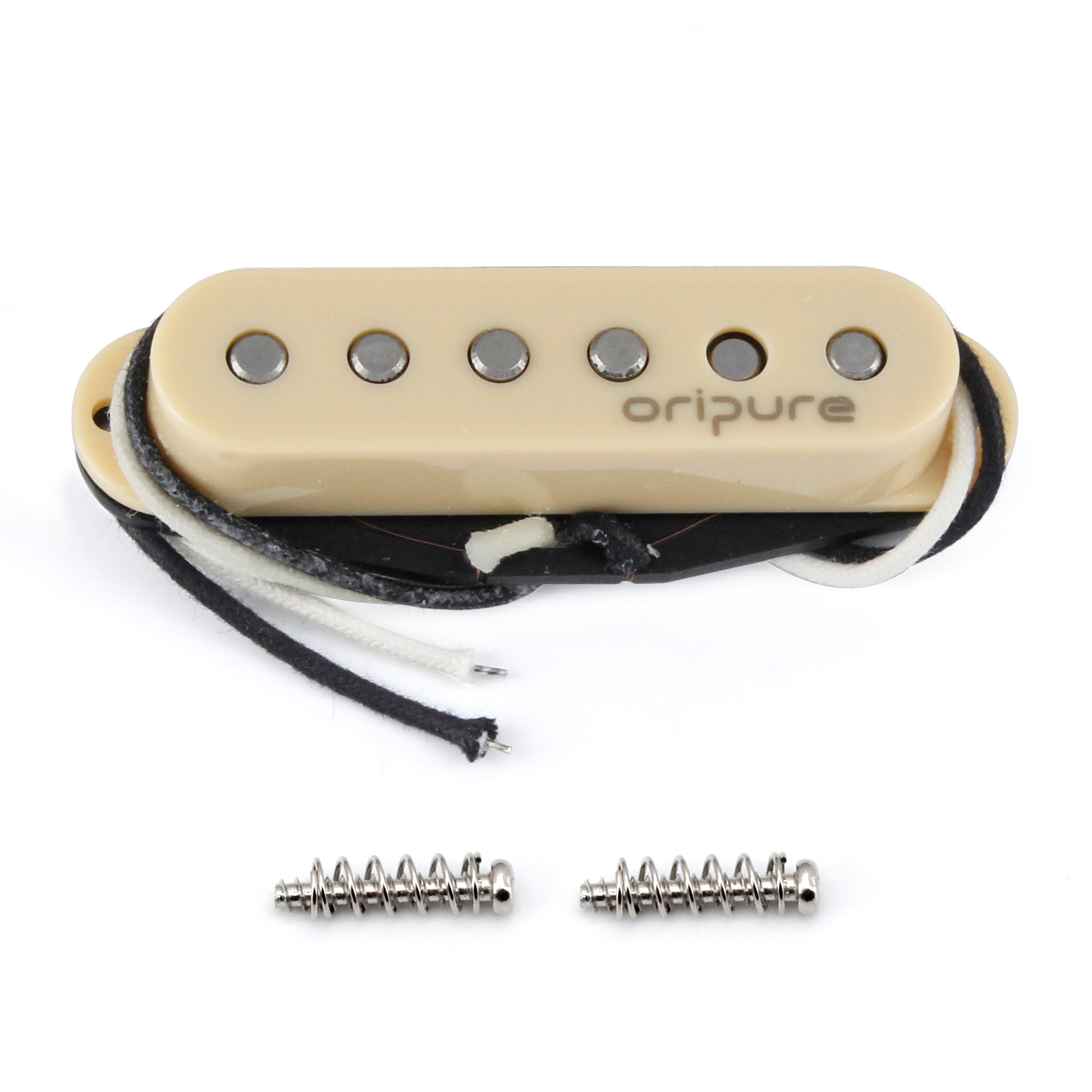

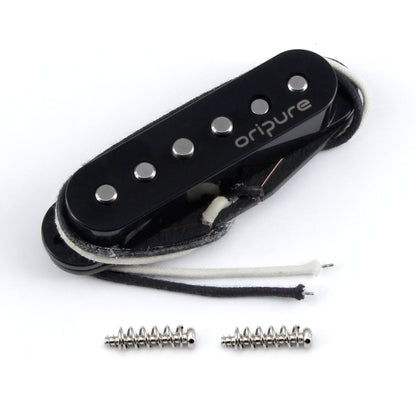

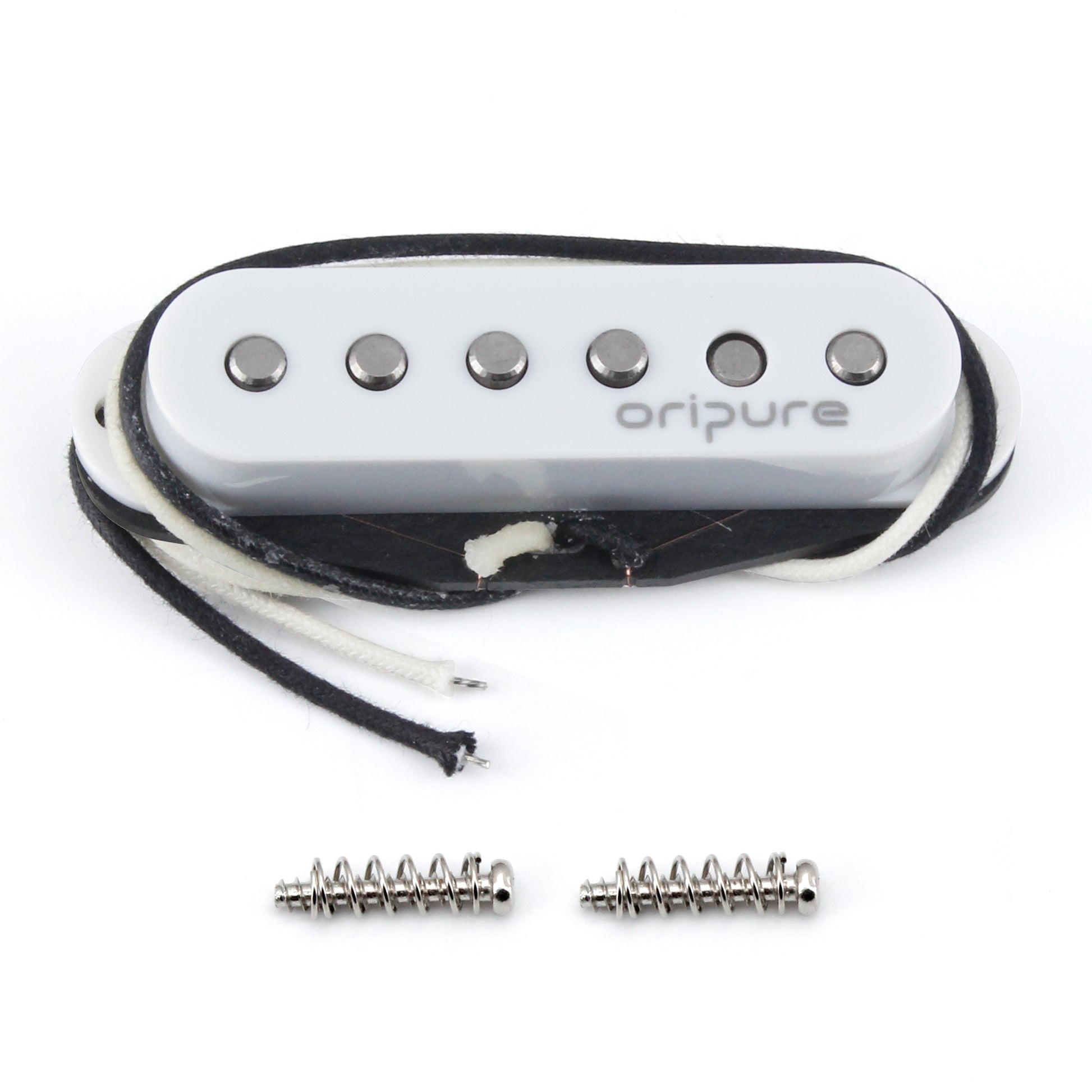

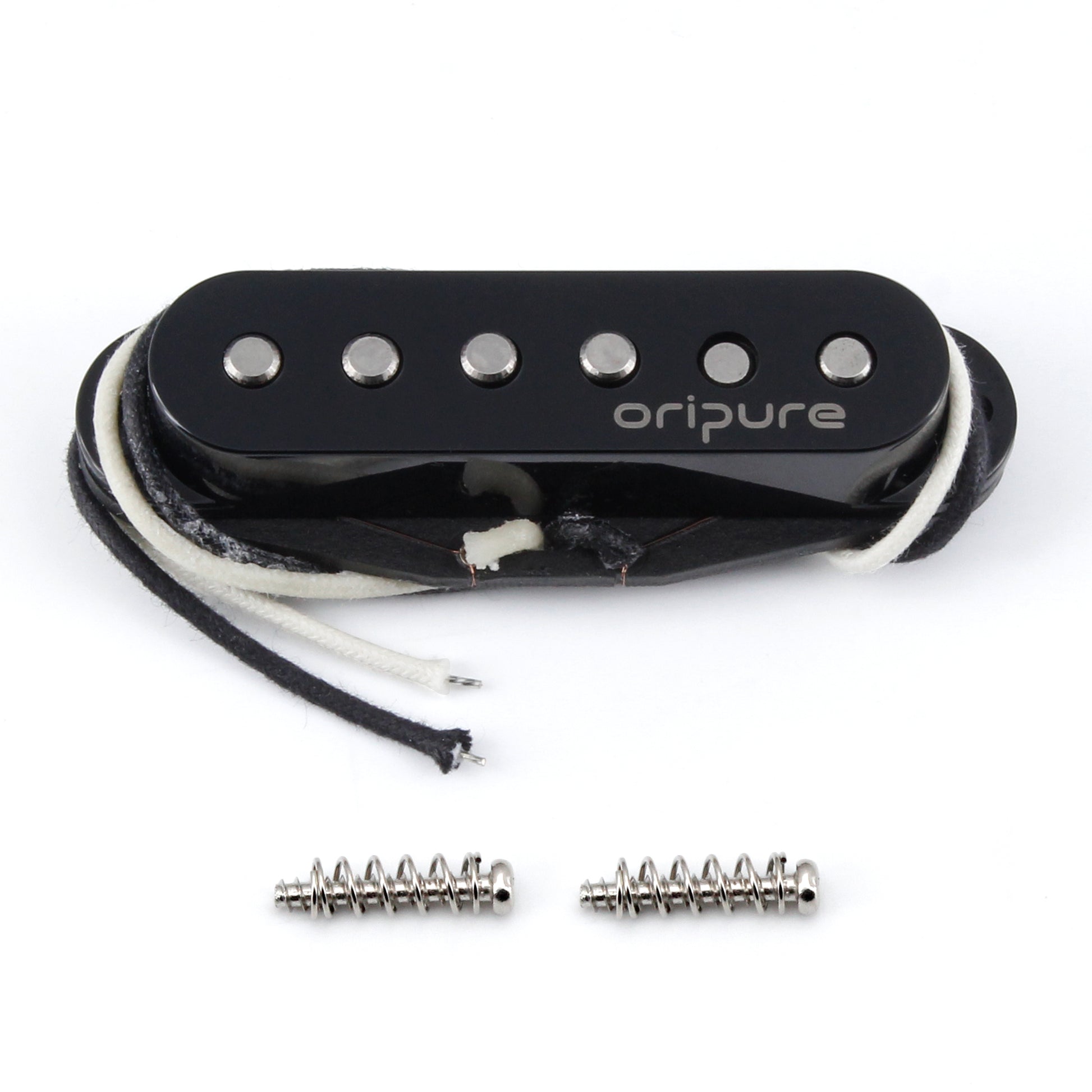

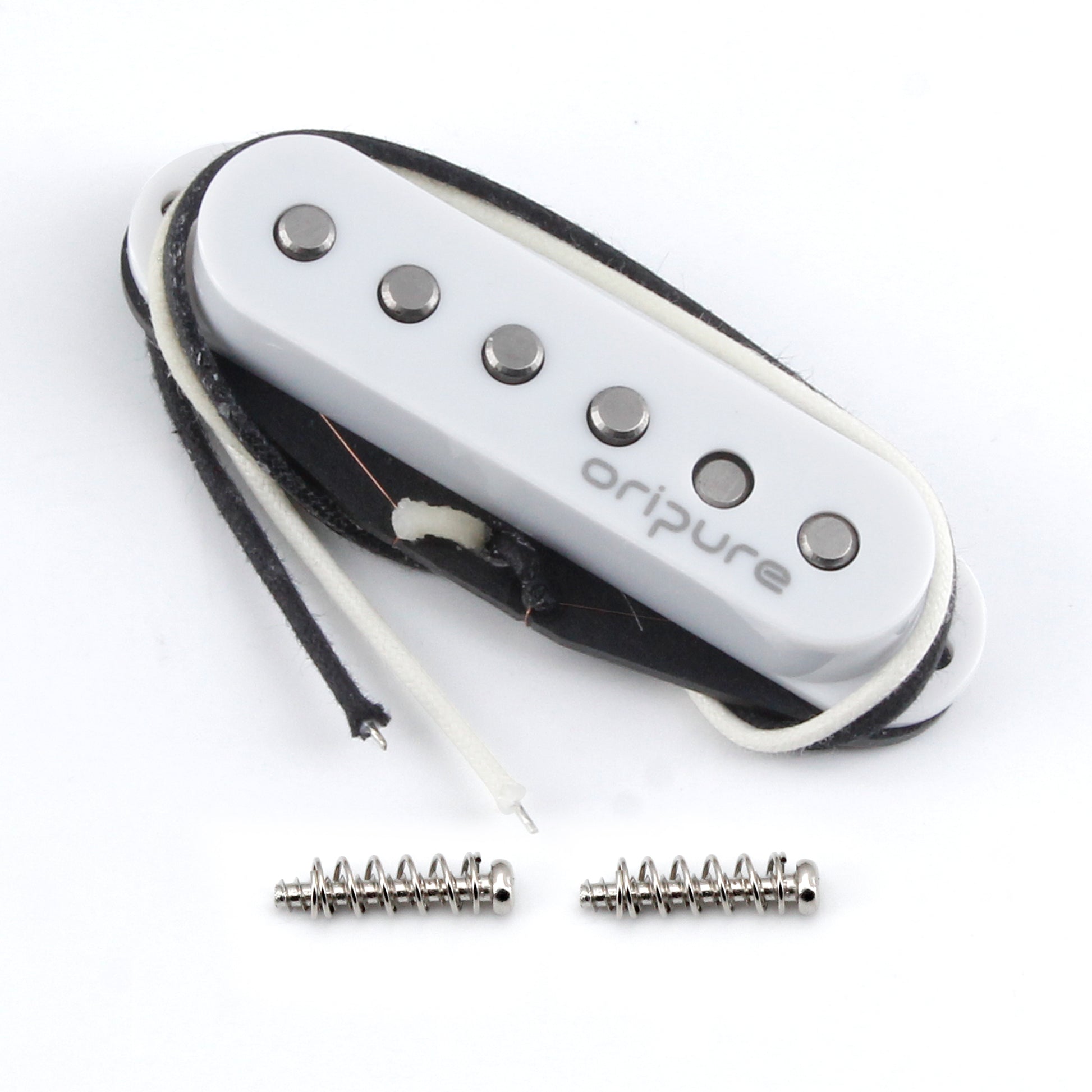

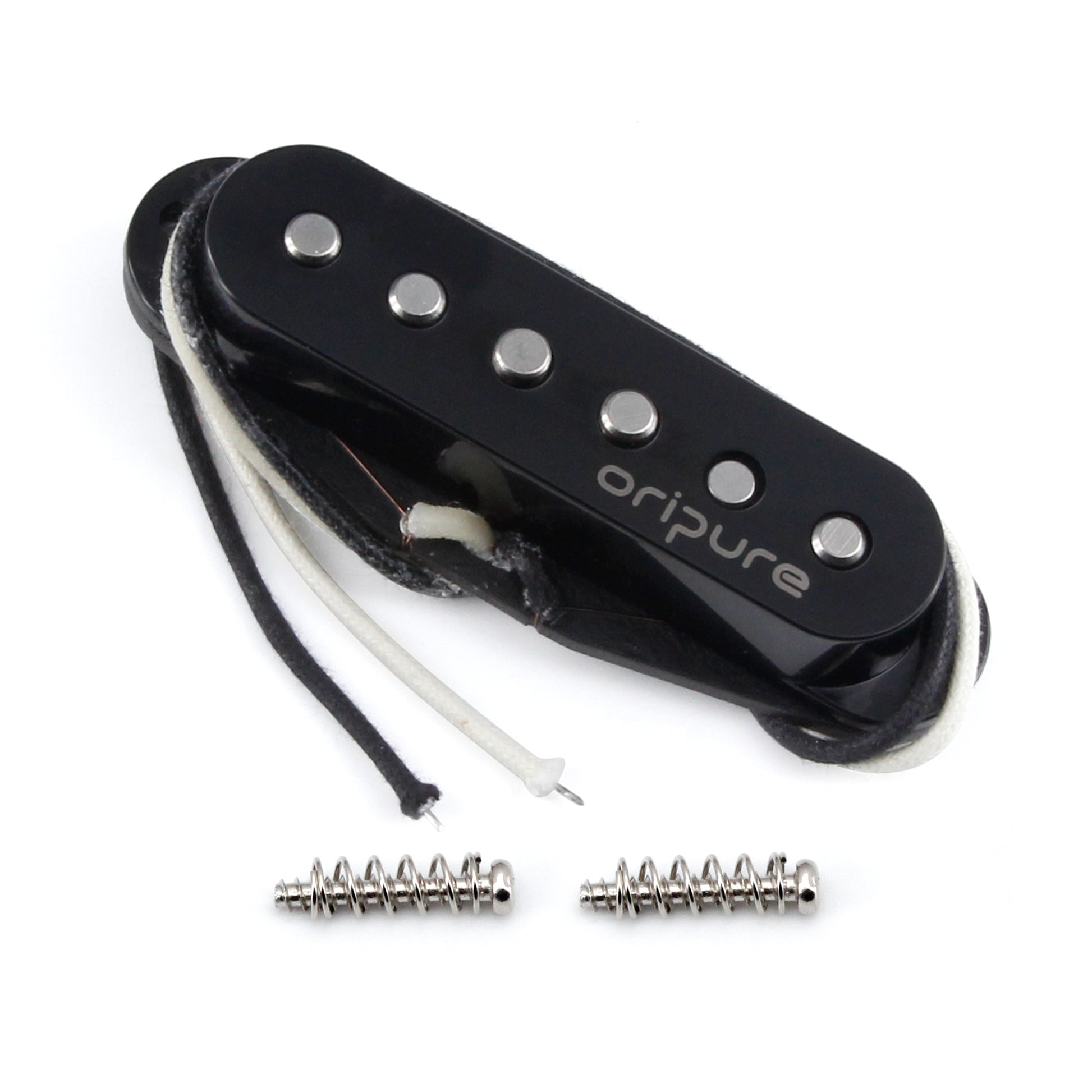

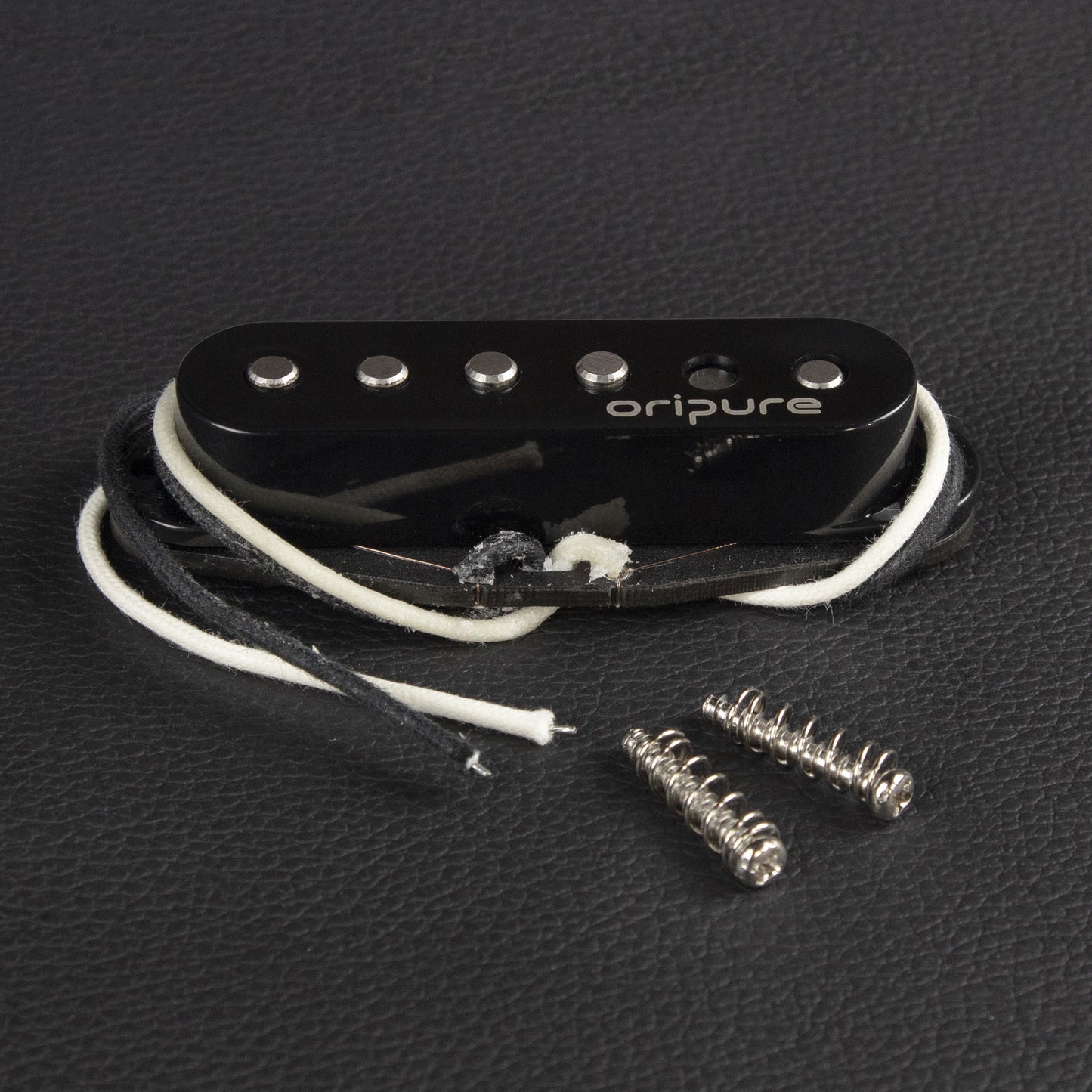

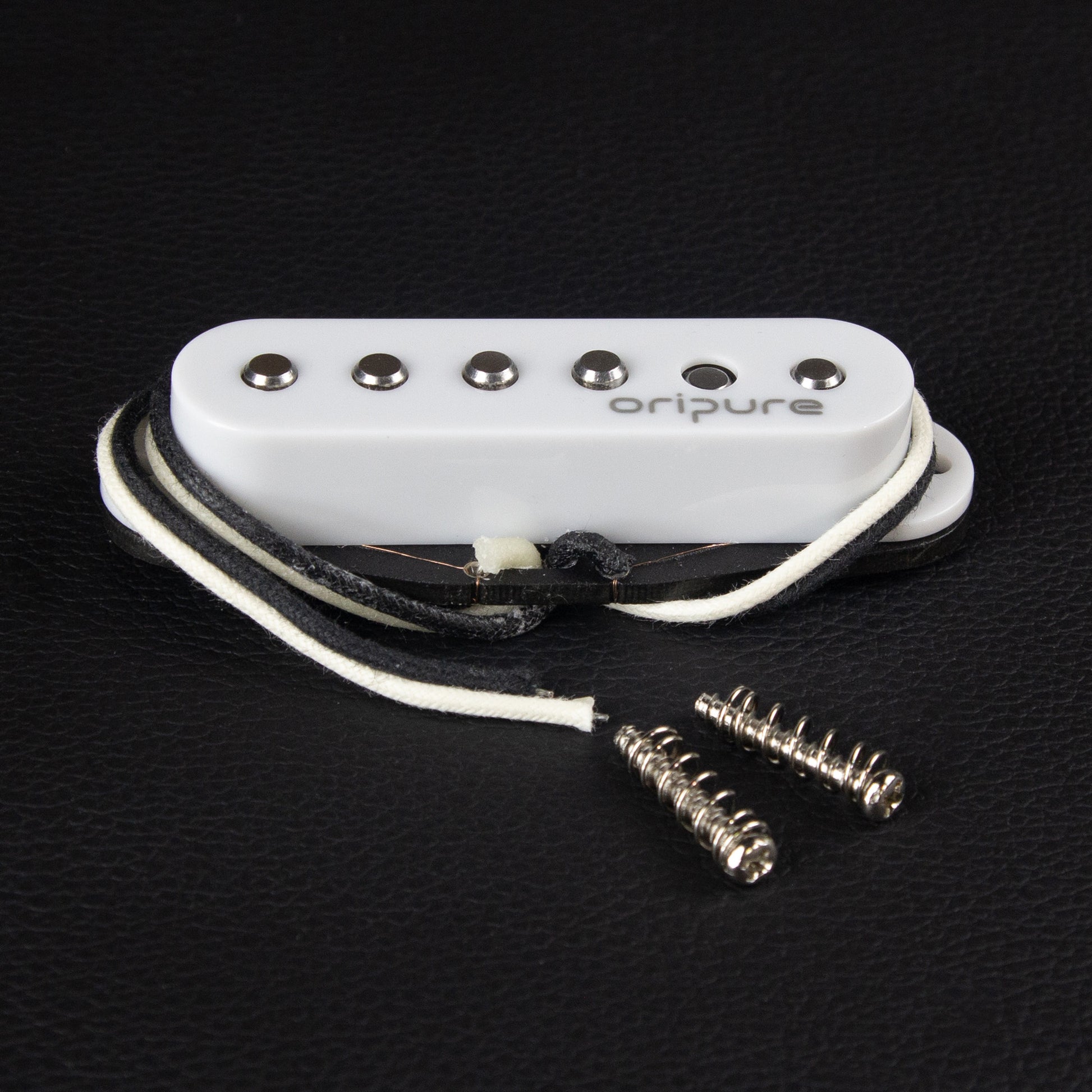

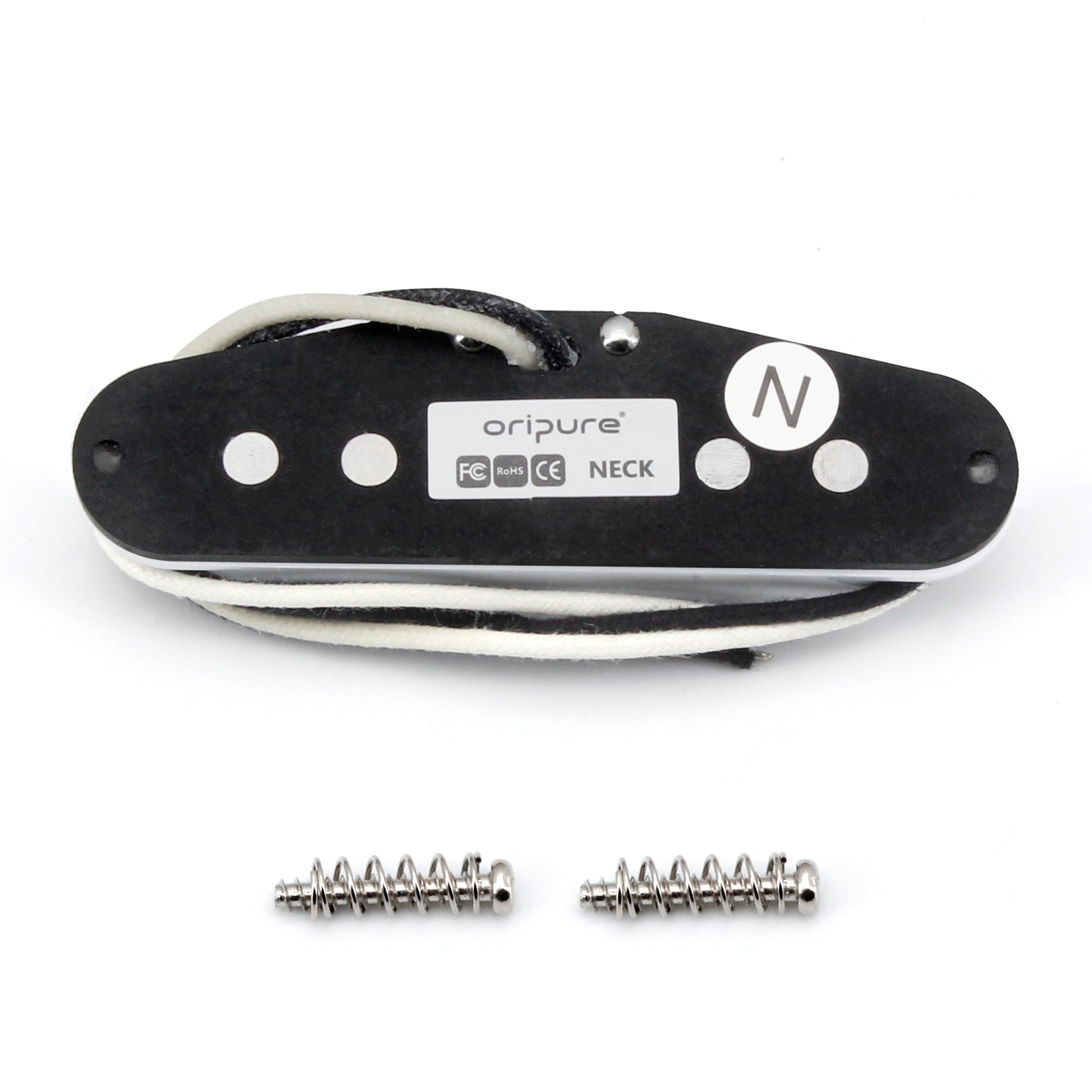

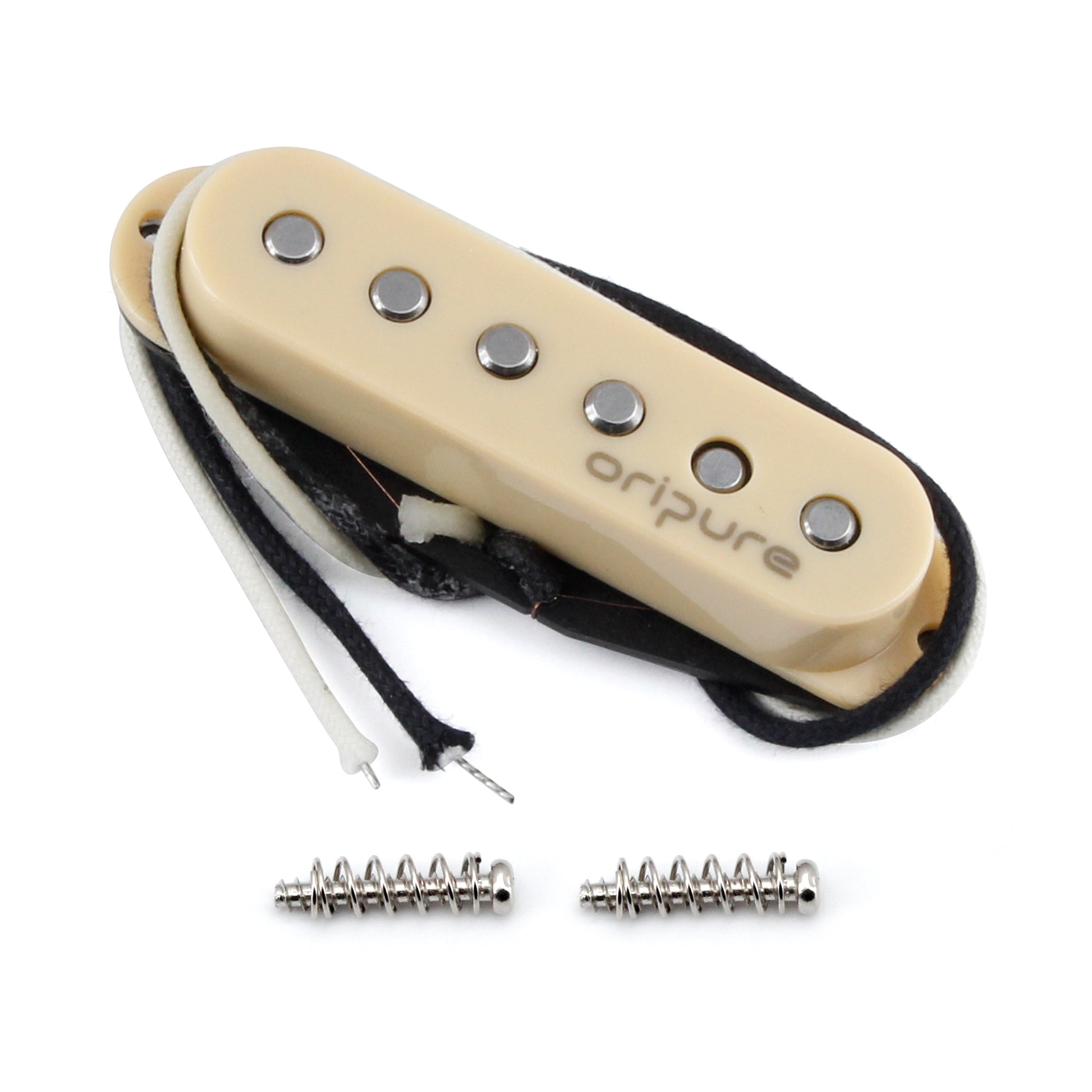

Package Contents:
1 × Single-Coil Pickup,
2 × Mounting Screws,
2 × Springs
