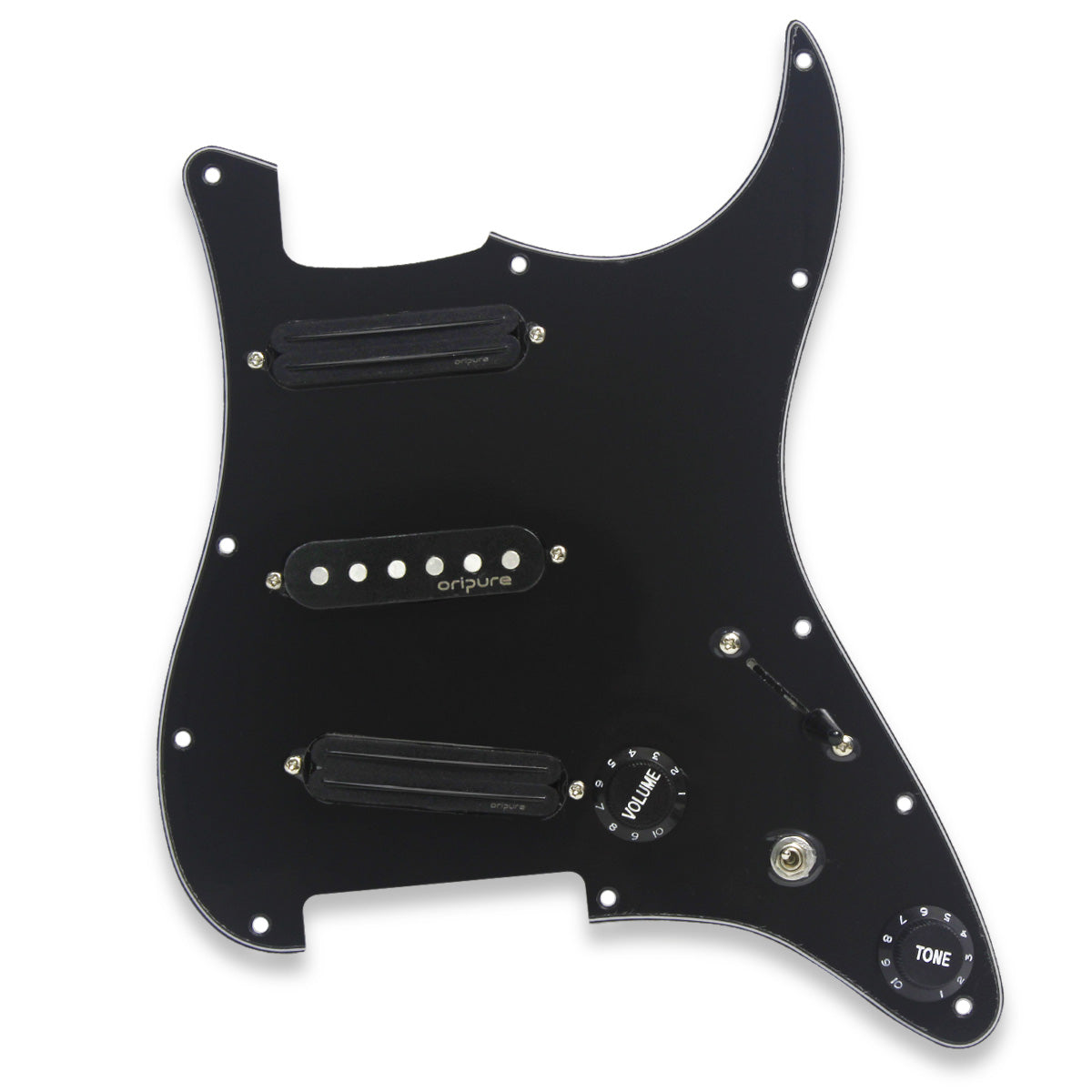

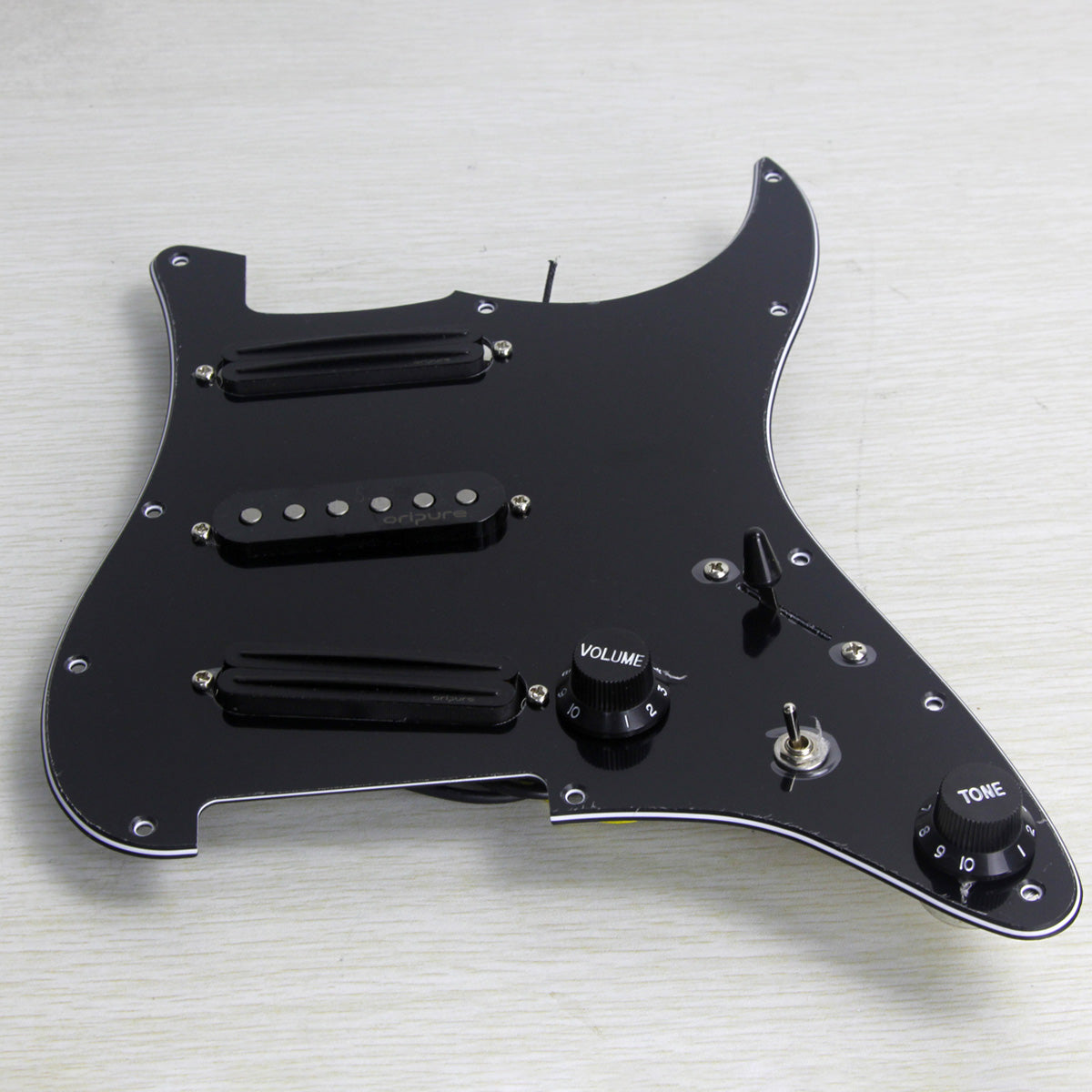

OriPure SSS Prewired Pickguard Set Loaded Alnico 5 Pickups fit FD Strat Guitar

OriPure SSS Prewired Pickguard Set Loaded Alnico 5 Pickups fit FD Strat Guitar

icon
Display Area for Options
No option or configuration is disabled
Regular price $210.99 USD
Regular price Sale price $210.99 USD
Sale Sold out
Pickguard Color

Features:

  • OriPure SSS Guitar Prewired Pickguard Set.

  • Fit FD Strat SSS Style Electric Guitar and Similar Custom Building.

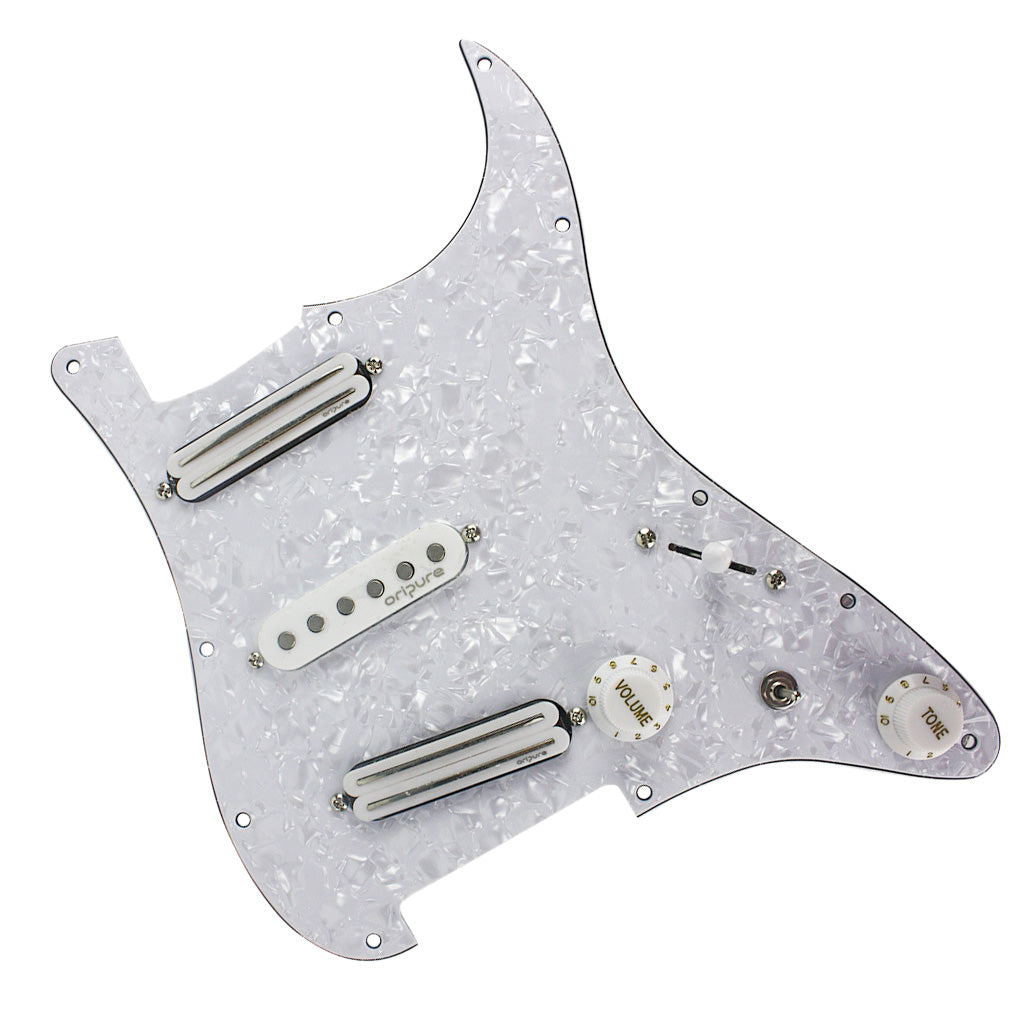

  • SSS pickguard (11-hole) with 3 Oripure Alnico-5 pickups, 5-way pickup switch, 2-way coil split witch, 1T 1V pots.

  • Alnico 5 Hot Rail Humbucker Pickups for neck & bridge position, and staggered Single Coil pickup for middle.

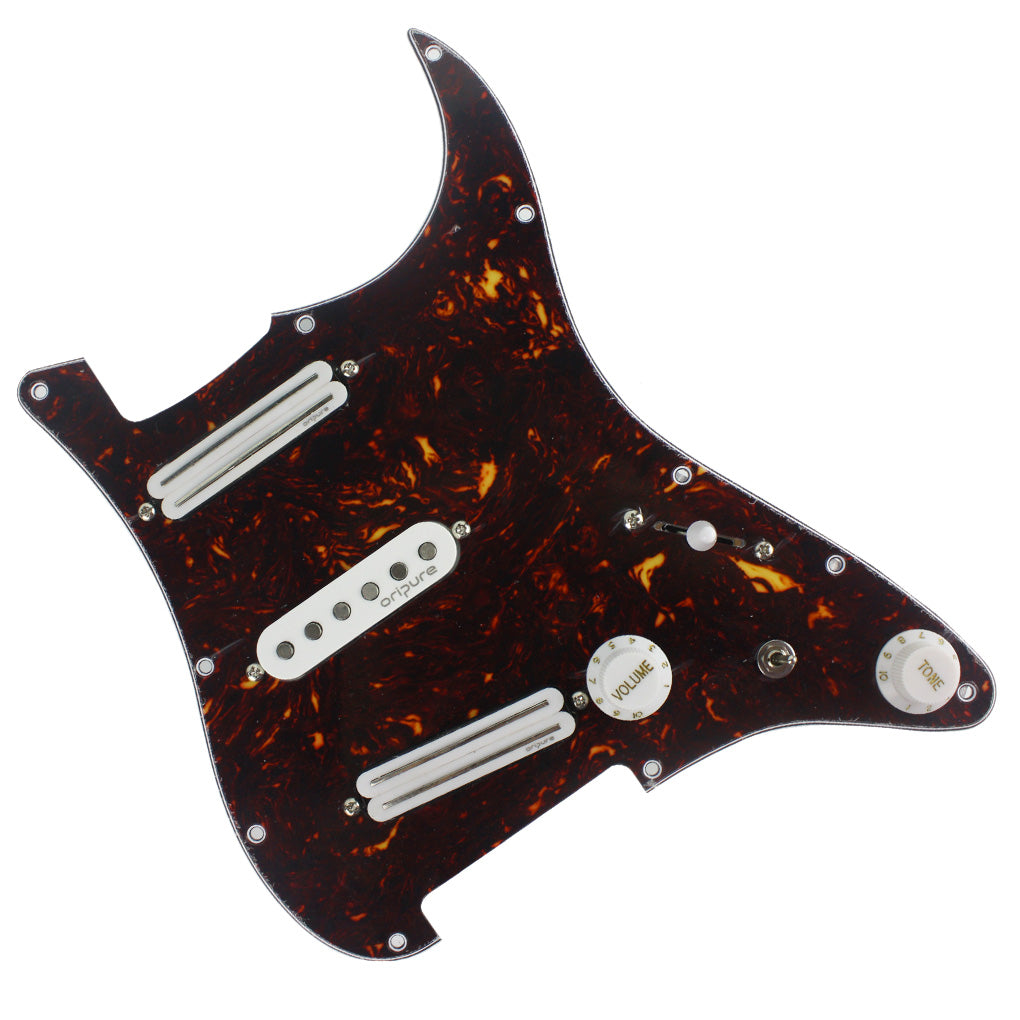

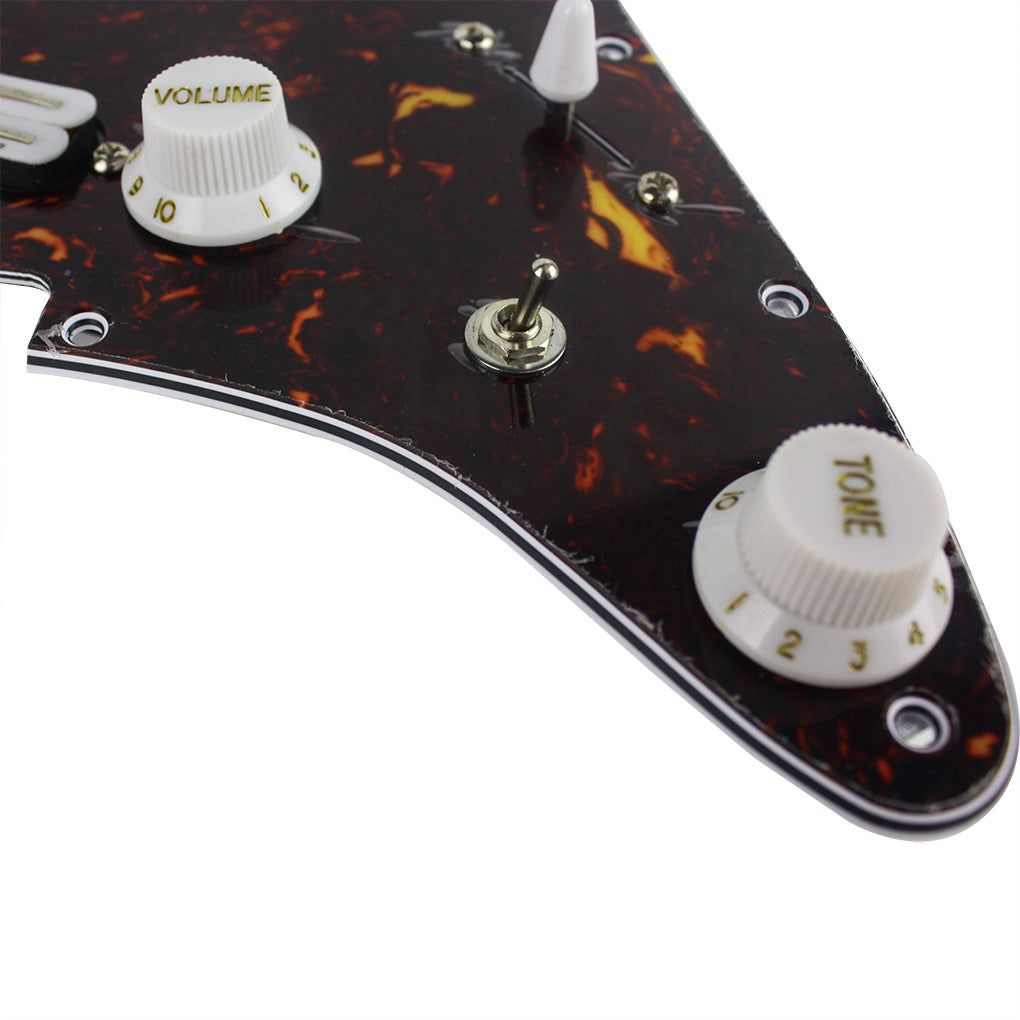

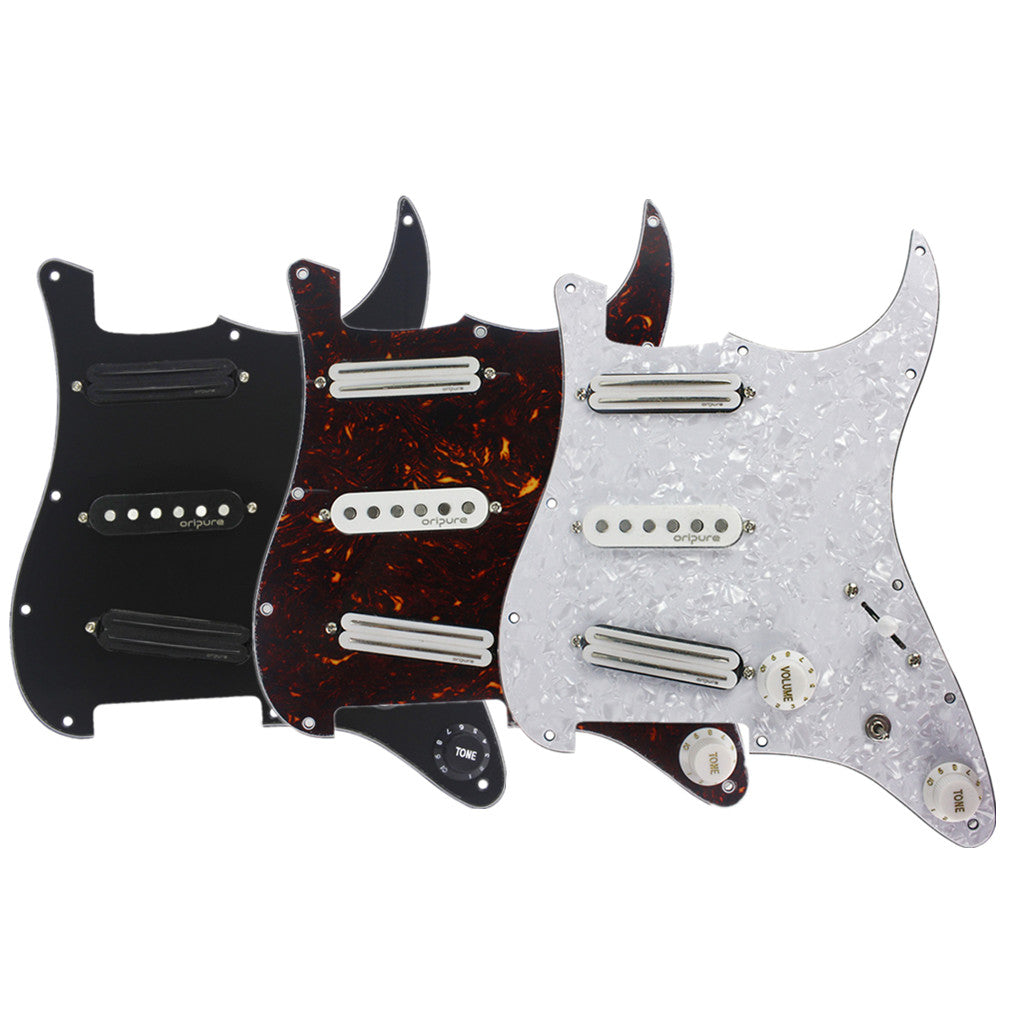

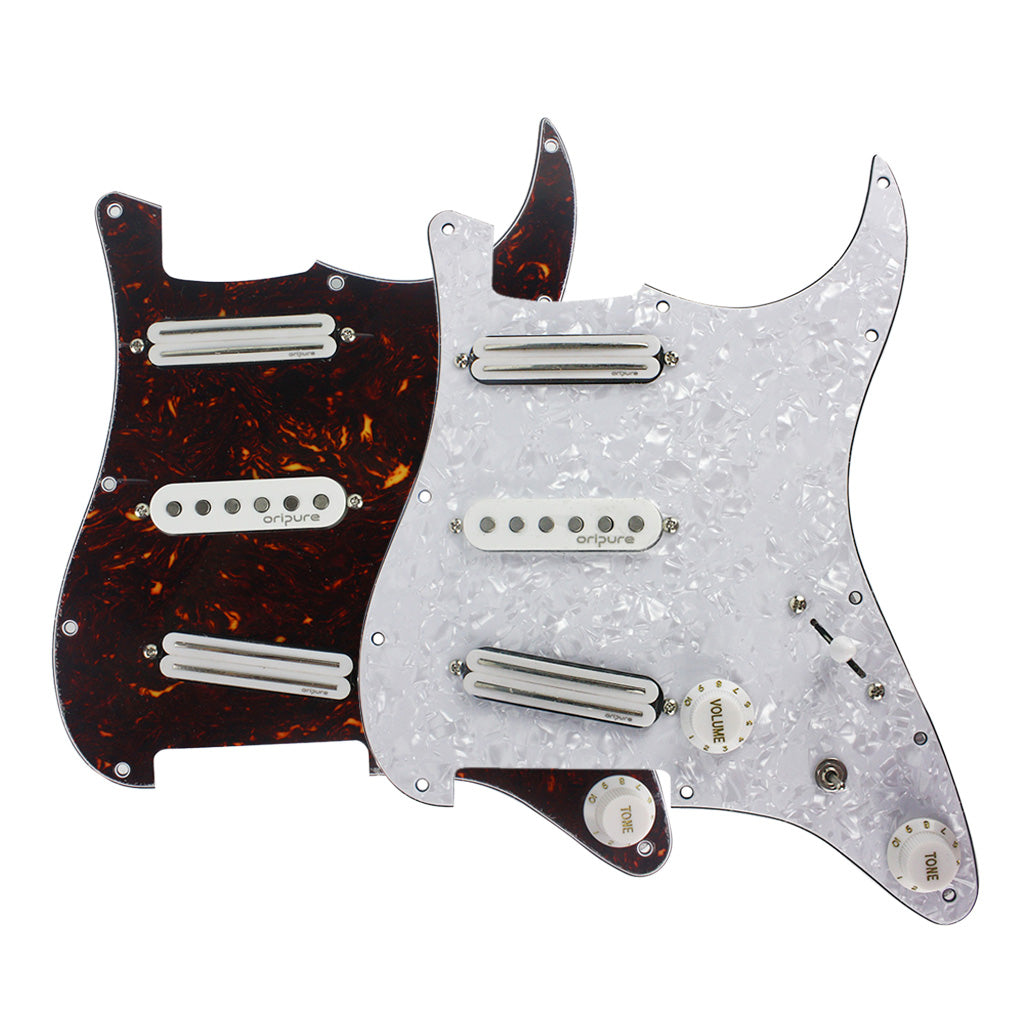

  • Pickguard Color: Black, White Pearl, or Brown Tortoise Color for Choosing!!!


Specifications:

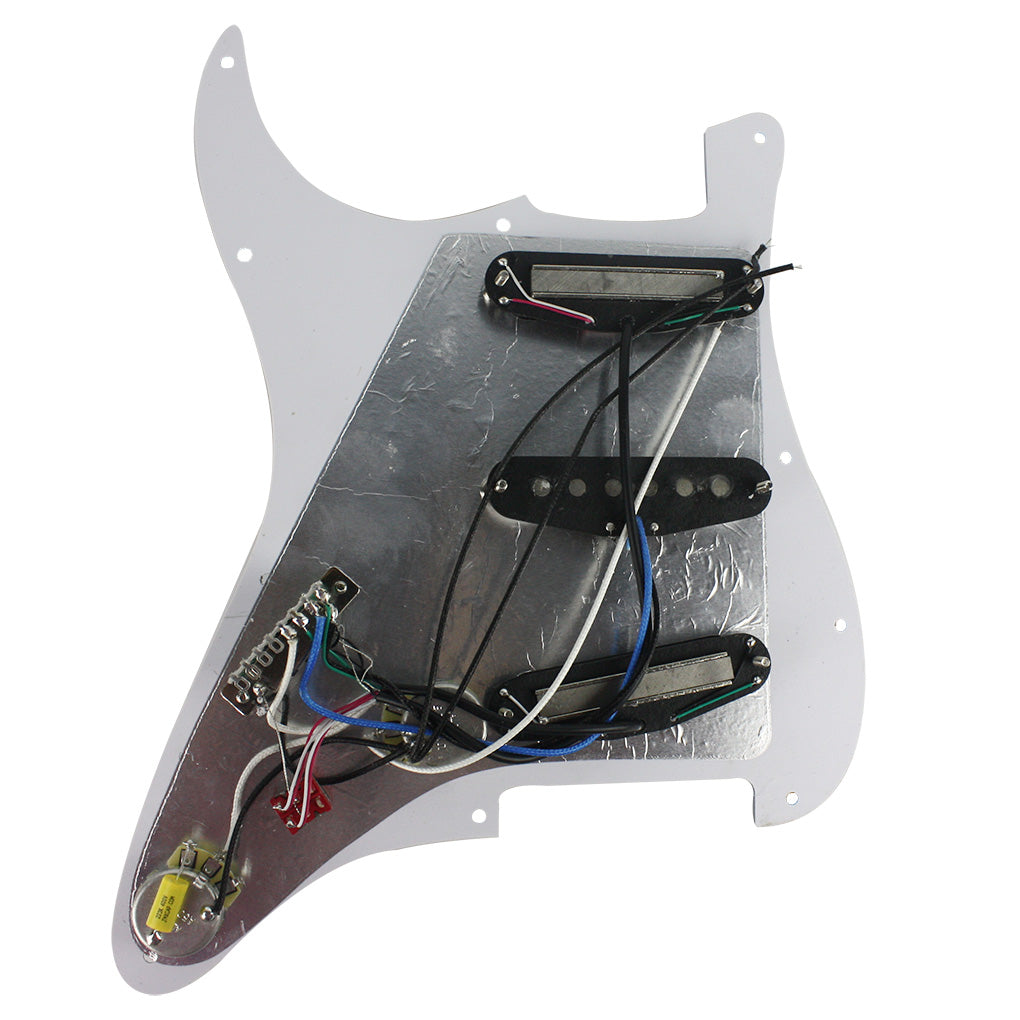

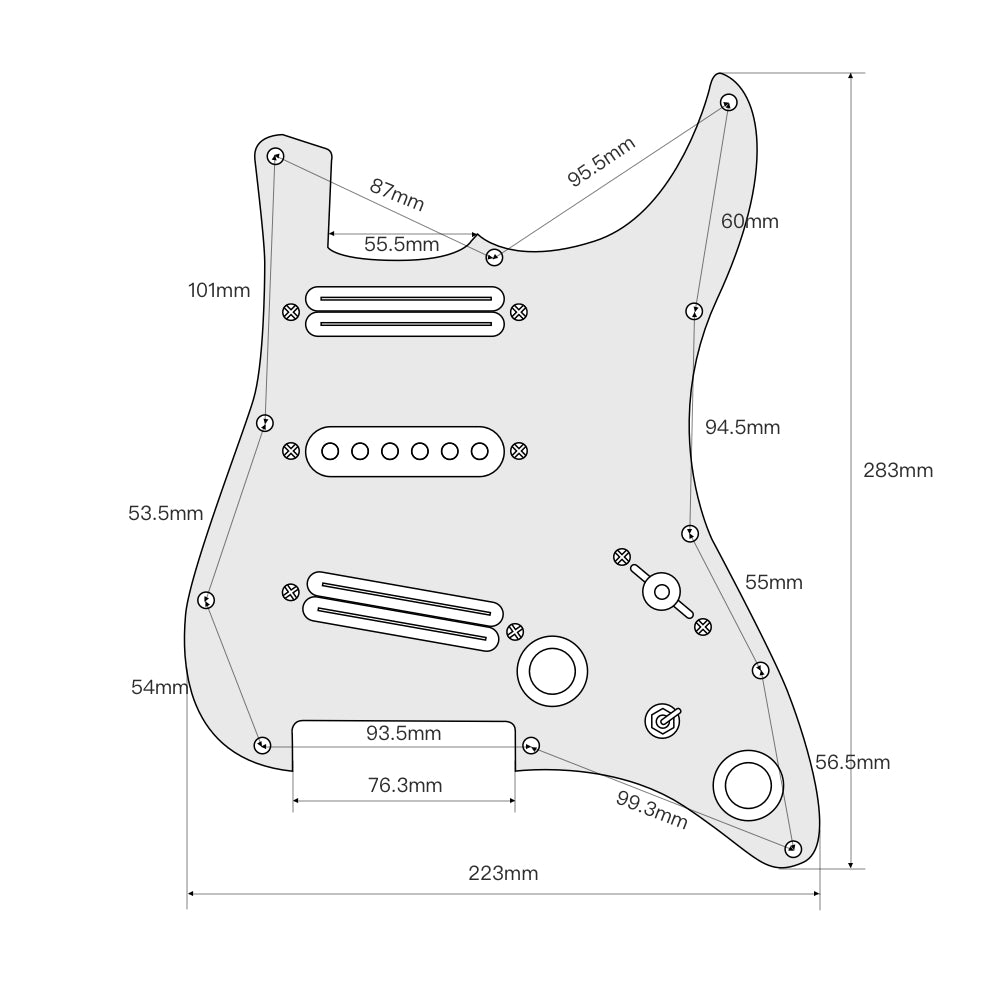

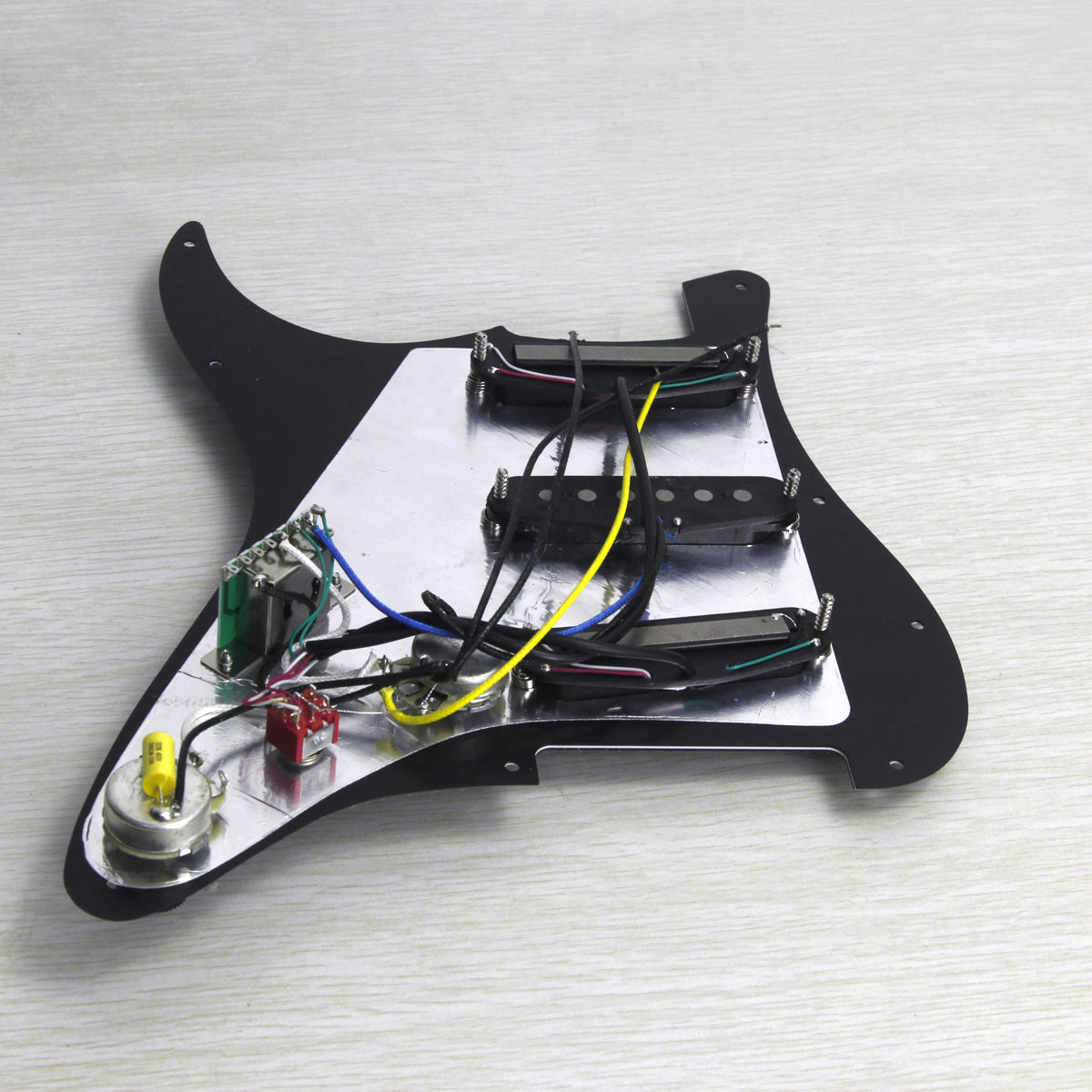

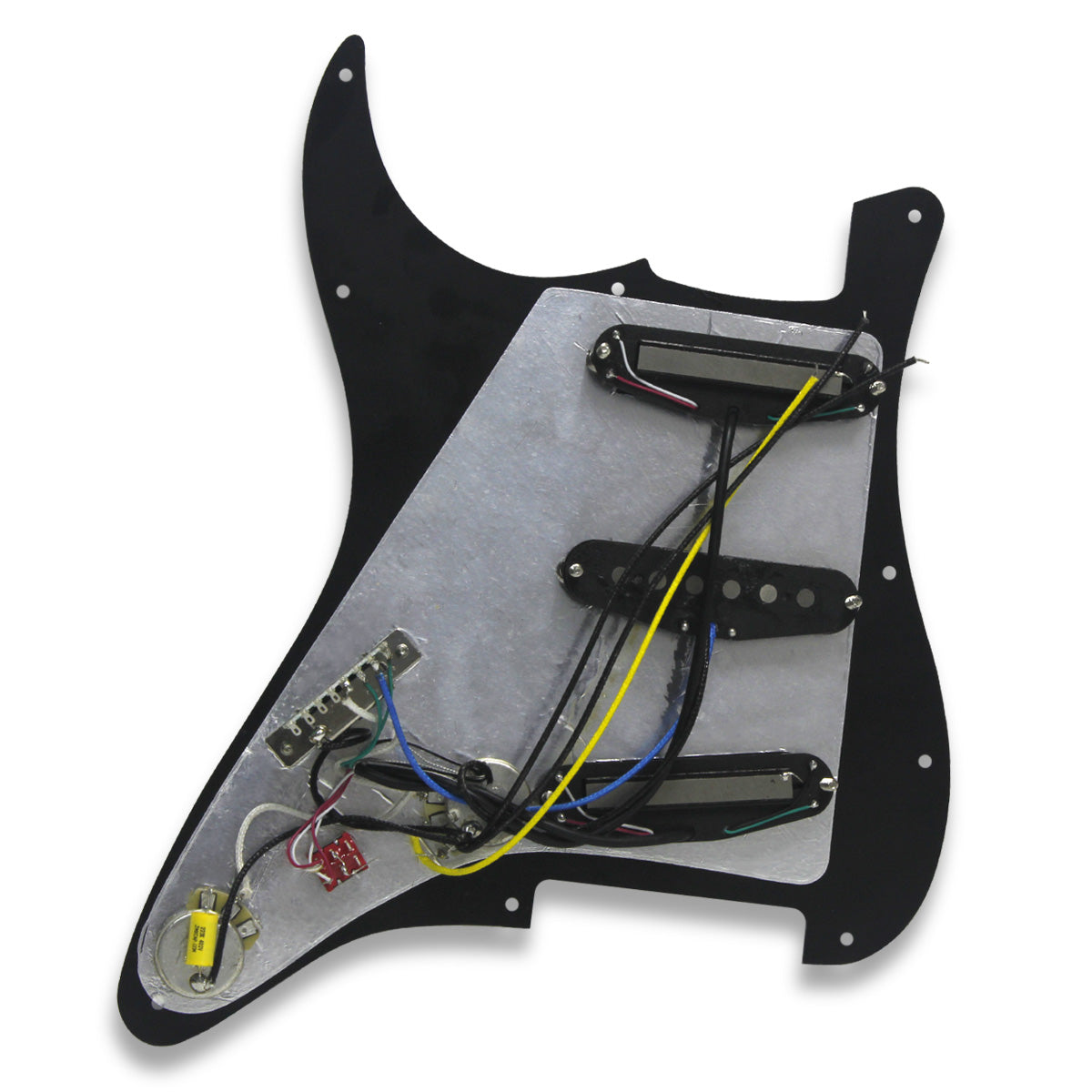

  • Pickguard: SSS type; with 11 screw mounting holes; with full pure aluminum foil on back.

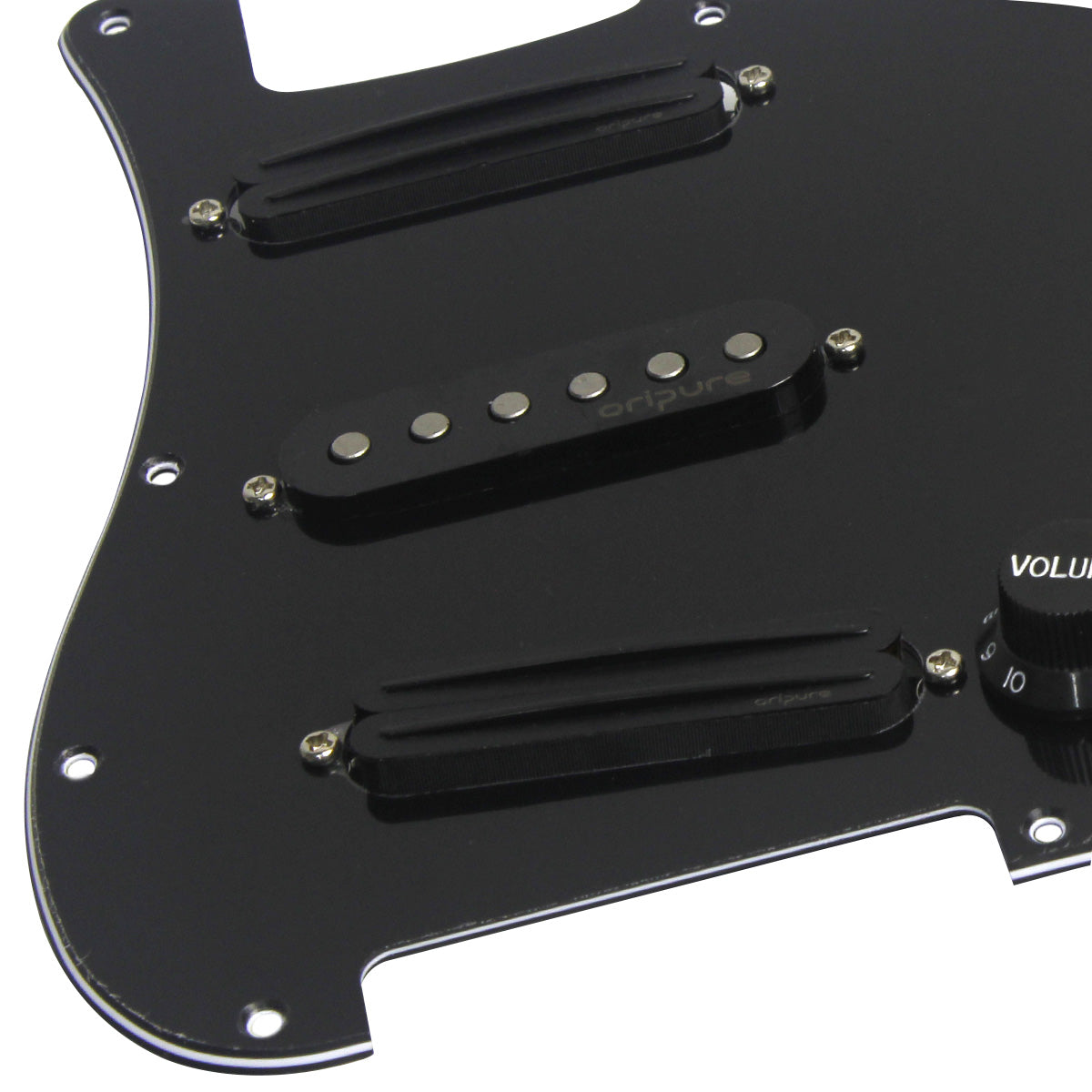

  • Neck Position: Oripure Hot Rail Humbucker Pickup, Alnico 5 Magnet, Resistance 10-11k ohm.

  • Middle Position: Oripure Alnico 5 Single Coil Pickup, Resistance: 5.7-6k ohm, 52mm Pole Pieces Spacing.

  • Bridge Positions: Oripure Hot Rail Humbucker Pickup, Alnico 5 Magnet, Resistance: 15-16k ohm.

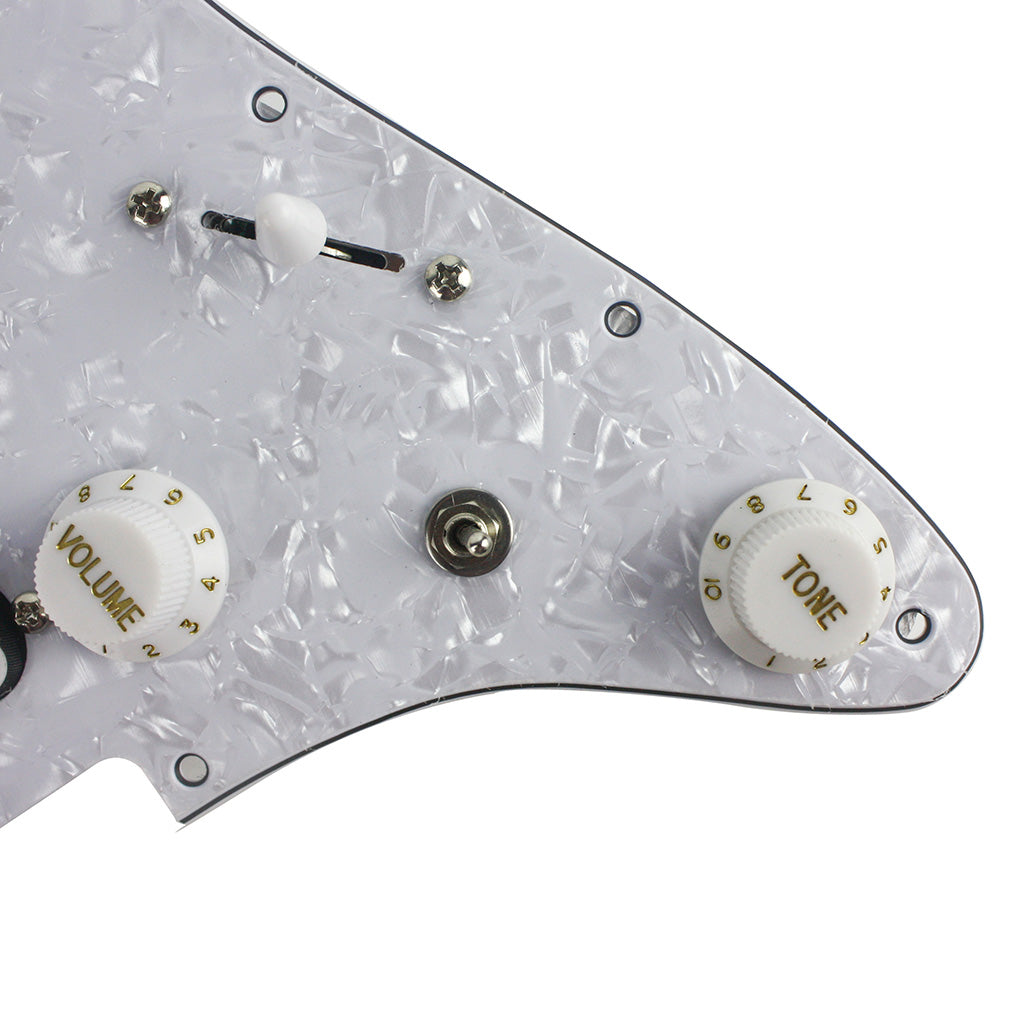

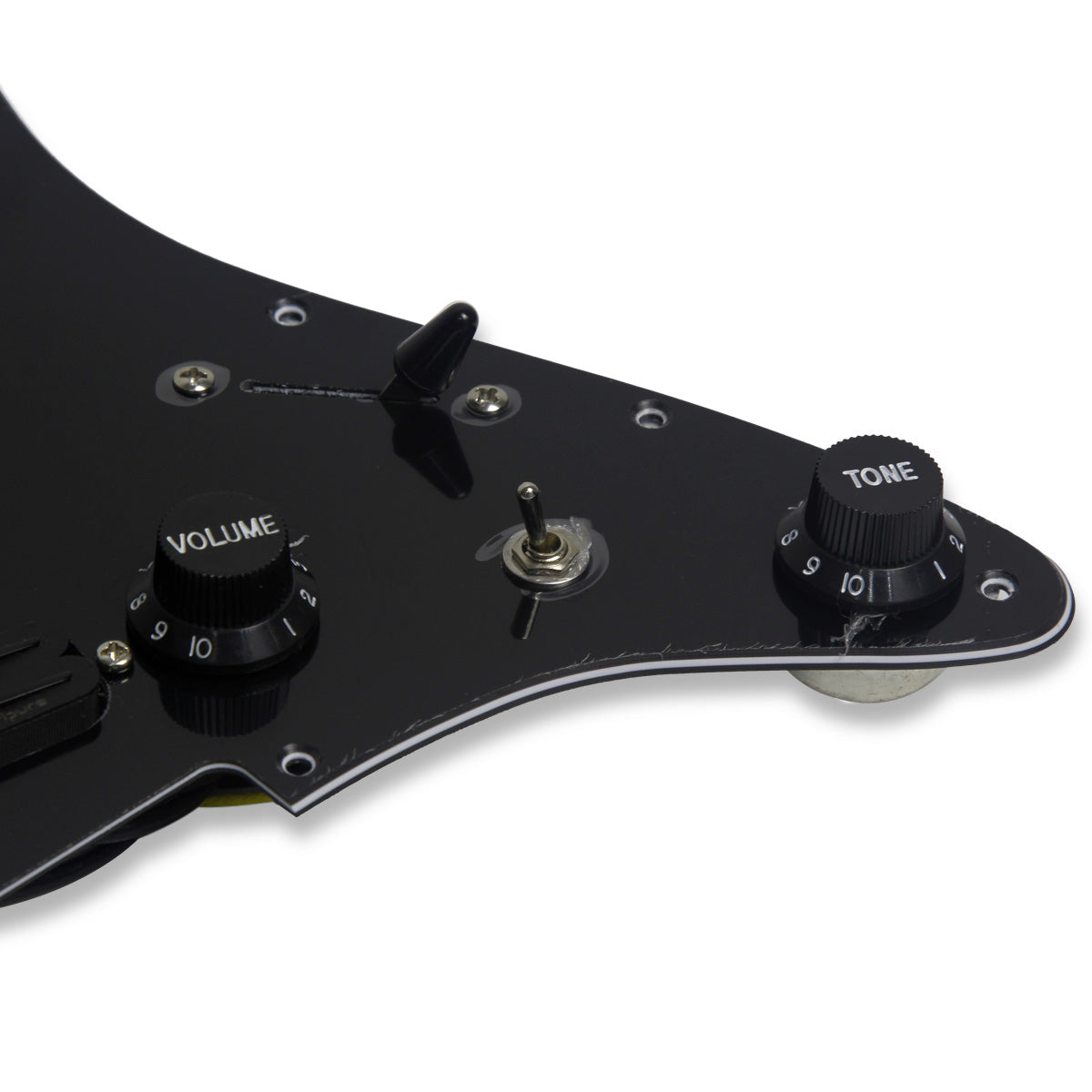

  • Main Switch: 5-Way Pickup Selector Toggle Switch.

  • Mini Switch: 2-Way Mini Switch, to control the coil split for neck & bridge pickup.

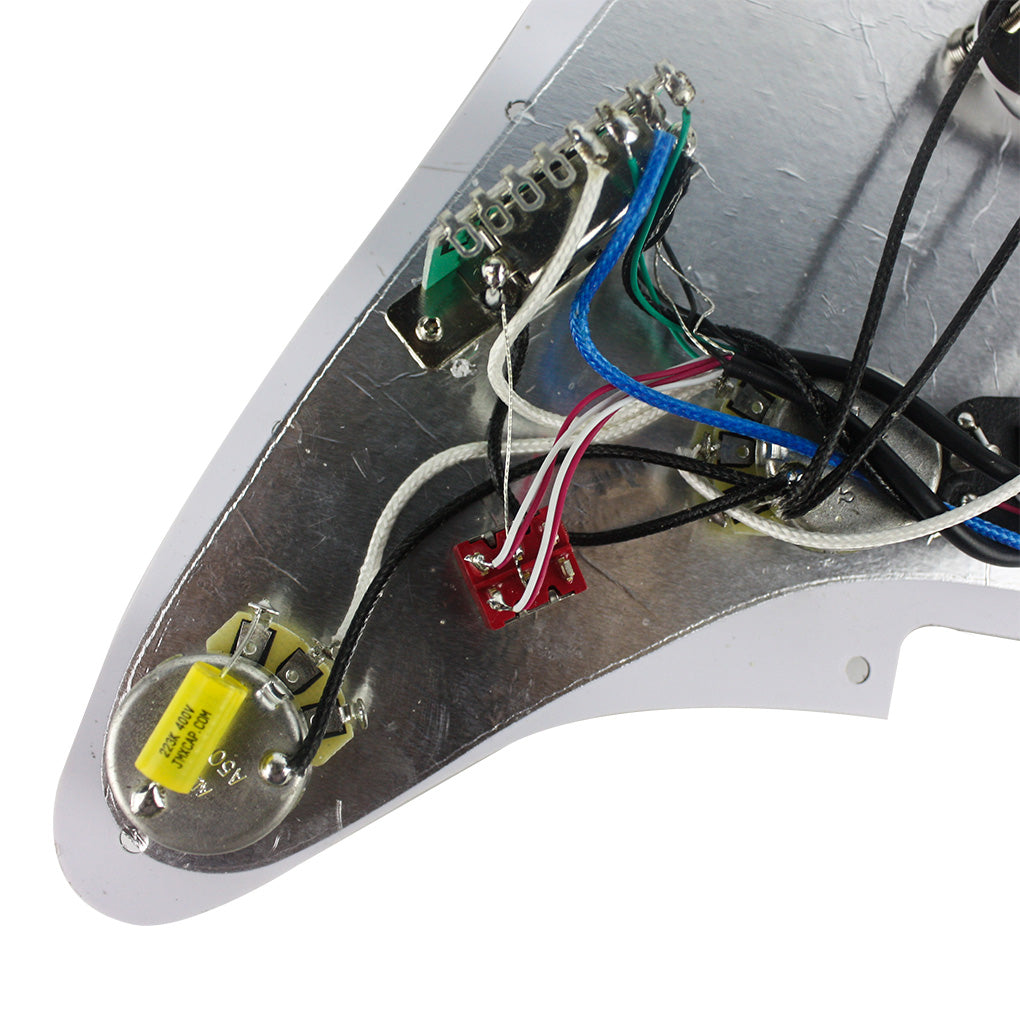

  • Capacitor: 223K 400V.

  • Pots: Korean Alpha Pots, 1 A500k for Tone and 1 B500k for Volume control.
