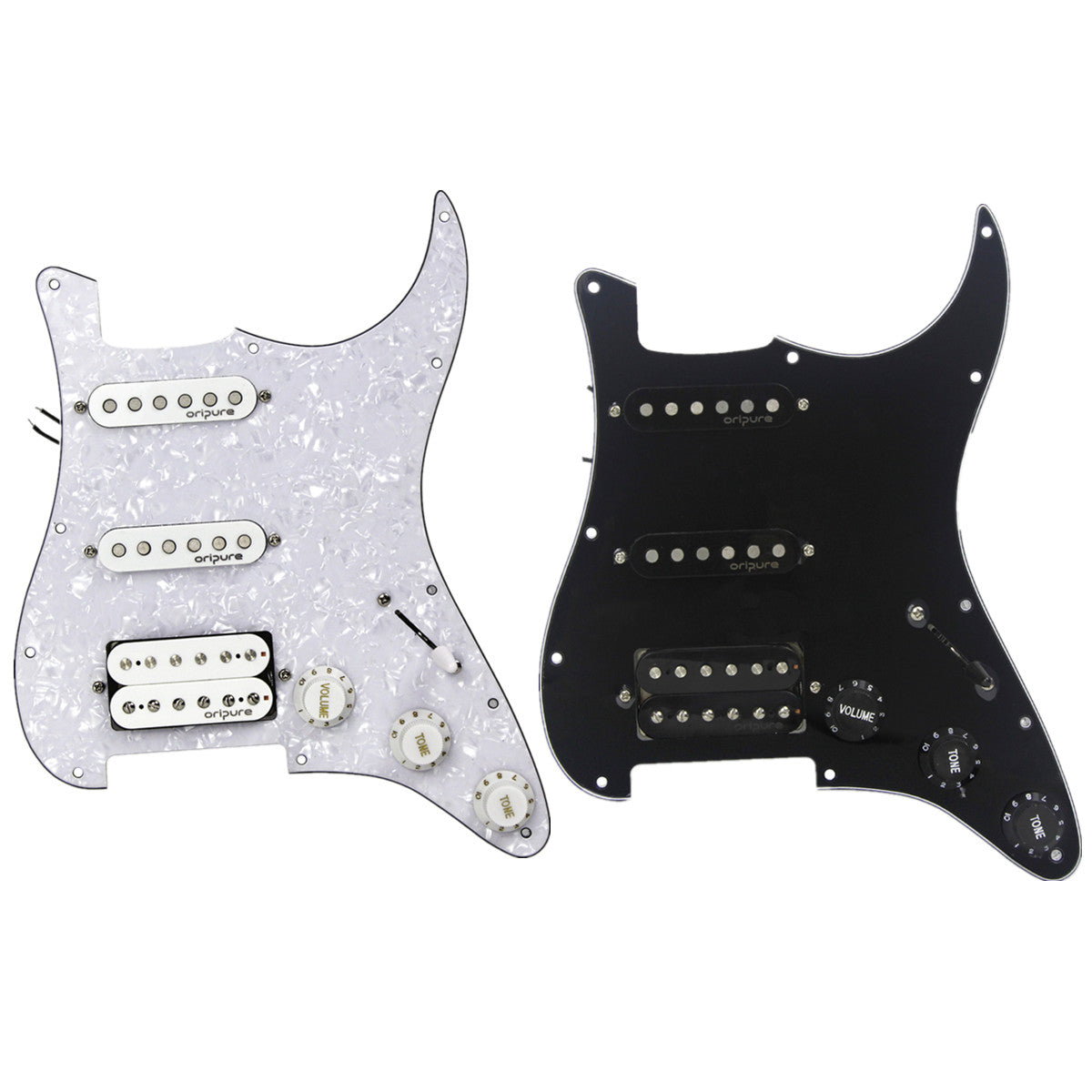

OriPure HSS Prewired Pickguard Set Loaded Alnico 5 Pickups fit FD Strat Guitar

OriPure HSS Prewired Pickguard Set Loaded Alnico 5 Pickups fit FD Strat Guitar

Features:

  • Loaded Prewired HSS Guitar Pickguard.

  • Fit FD Strat HSS Style Guitar and Similar Custom Building.

  • HSS Pickguard 11-Hole with 3 Alnico-5 Pickups, 5-Way Switch, 2T 1V Pots.

  • Oripure Alnico 5 pickups, 1 humbucker for bridge position, 12 single coil for neck & middle position.

  • With thin films covered on the pickguard, please take them off when using it.

  • Pickguard Color: White Pearl or Black Color !


Specifications:

  • Pickguard: White Pearl Color HSS type; with 11 screw mounting holes; with full pure aluminum foil on back.

  • Neck & Middle Position: Alnico 5 Single Coil Pickup, Resistance: 6-7k ohm; Pole Pieces Spacing 52/52mm (N/M).

  • Bridge Position: Alnico 5 Humbucker Pickup, Resistance: 8-9k ohm; 6 Fixed & 6 Adjustable Pole Pieces.

  • Switch: 5-Way Pickup Selector Toggle Switch.

  • Pots: Korean Alpha Pots, 2 A500k for Tone and 1 B500k for Volume.

  • Capacitor: 223K 400V.
View full details

OriPure Custom STD-TL Prewired circuit

OriPure STD-TL Alnico 5 Loaded Prewired Guitar TL Pickguard 3 Way Super Switch.

Pickguard Color: Black 3ply, White 3ply, Cream 3ply,White Pearl 4ply, Red Tortoise 4ply colors for choose.

More Information

The Wiring

The Pickups

  • OriPure TSF558 Vintage Staggered Single Coil Pickups for Strat/SQ Style Electric Guitar Parts Replacement.Use Alnico 5 magnets, vulcanized fiber bobbin, AWG42 wire, and braided cloth cables, exquisite craftsmanship brings a great sound to your guitar.The middle pickup is reverse wound and reverses polarity (RwRP) so that it cancels the hum as a 'humbucker' would when playing in positions 2 & 4 on a traditional 5-way set-up. The bridge pickup is slightly hotter to give it a higher output and balance the pickups as a set.Suitable for Post-rock, Garage Rock, J-Rock, J-Pop, Funk music, British rock, Grunge, Math-rock, Noise rock, Shoegazing style music.Each pickup is fully wax potted for squeal-free performance.The iconic electric guitar sound of the golden age of rock and roll. Jazz, funk, British style, psychedelic, let people return to the crisp, sweet and delicate in the 90s.

  • OriPure TFF566 Vintage Alnico 5 Single Coil Pickup for Strat/SQ Style Electric Guitar Parts Replacement.Alnico 5 magnets and AWG42 enameled wires provides a more penetrating sound.Flat-pole pickups do retain string volume balance.Uses vintage style black fiber cardboard and vintage style hookup wire surrounded by a wax coated cloth insulation.The middle pickup is reverse wound and reverses polarity (RwRP), noise-free and dynamic sound can be obtained in the 2nd and 4th gears.The pickup adopts a low-capacitance winding method. The distributed capacitance is sufficiently low. This processing method means that a crisper and brighter sound can be obtained on this pickup.Create a pioneering and avant-garde temperament for jazz, blues and modern guitar playing atmosphere. It can give you the unique aloofness and freshness of Fusion Jazz and Free Jazz in the new century.Each pickup is fully wax potted for squeal-free performance.A strict quality inspection method control the minimized error,to ensure the quality of each pickup is consistent.Perfect for Strats with maple fretboards and warm Alder and Ash bodies.Suitable for BLUES;COUNTRY;JAZZ;FUNK;Post-rock;Reggae;Indie;Math-rock;Britpop;Classic Rock;Shoegazing style music.
