OriPure Prewired HSS Guitar Pickguard Alnico 5 Pickup Set fit FD Strat Guitar

Features:

• HSS Style Prewired Guitar Pickguard Set.

• For FD Strat HSS Style Electric Guitar Replacement or Similar Custom Building.

• HSS pickguard 11-hole, 3 Alnico-5 pickups, 5-way switch, 2-way coil split switch, 1T 1V pots.

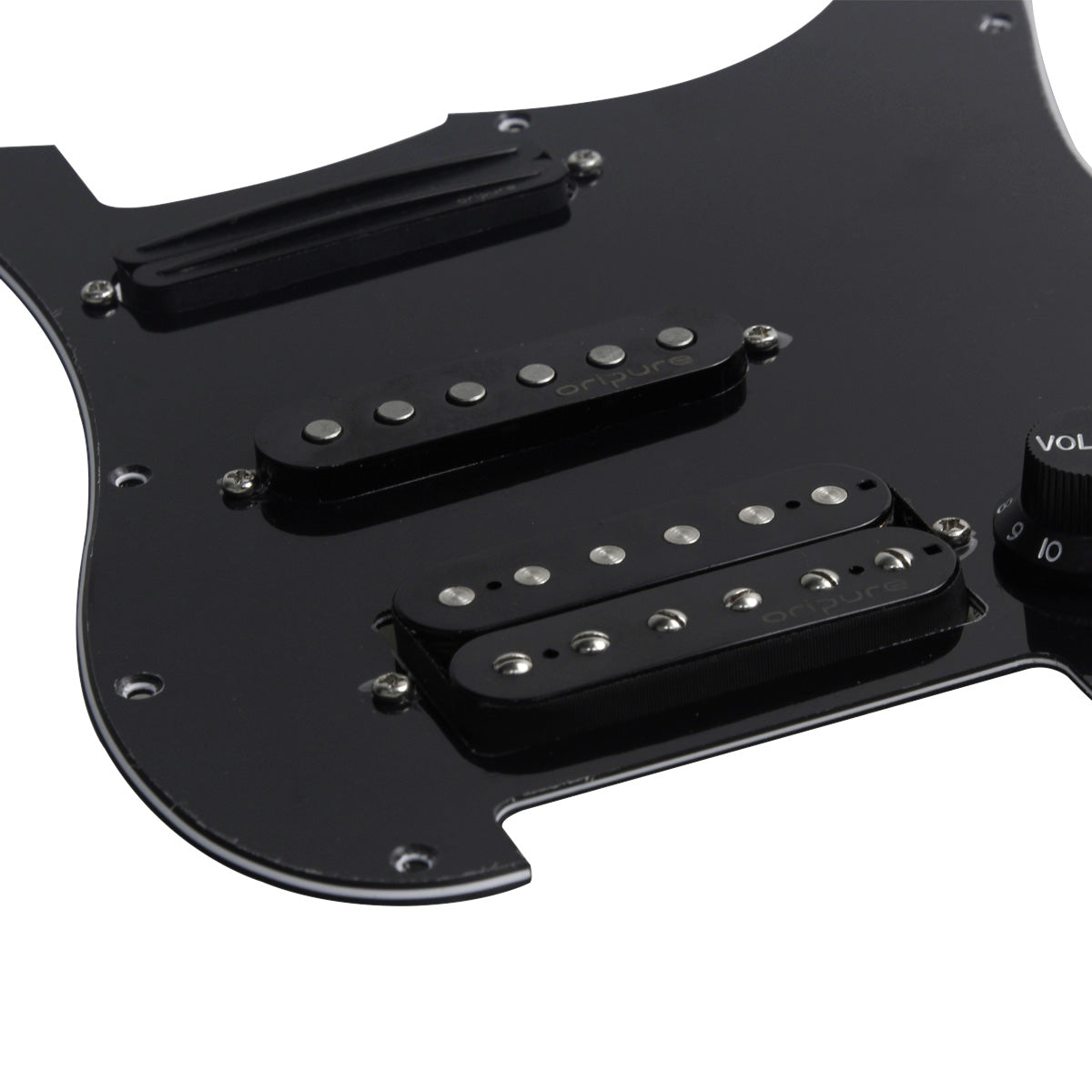

• Hot Rail Small Humbucker pickup (N), Single Coil pickup (M), Humbucker pickup (B).

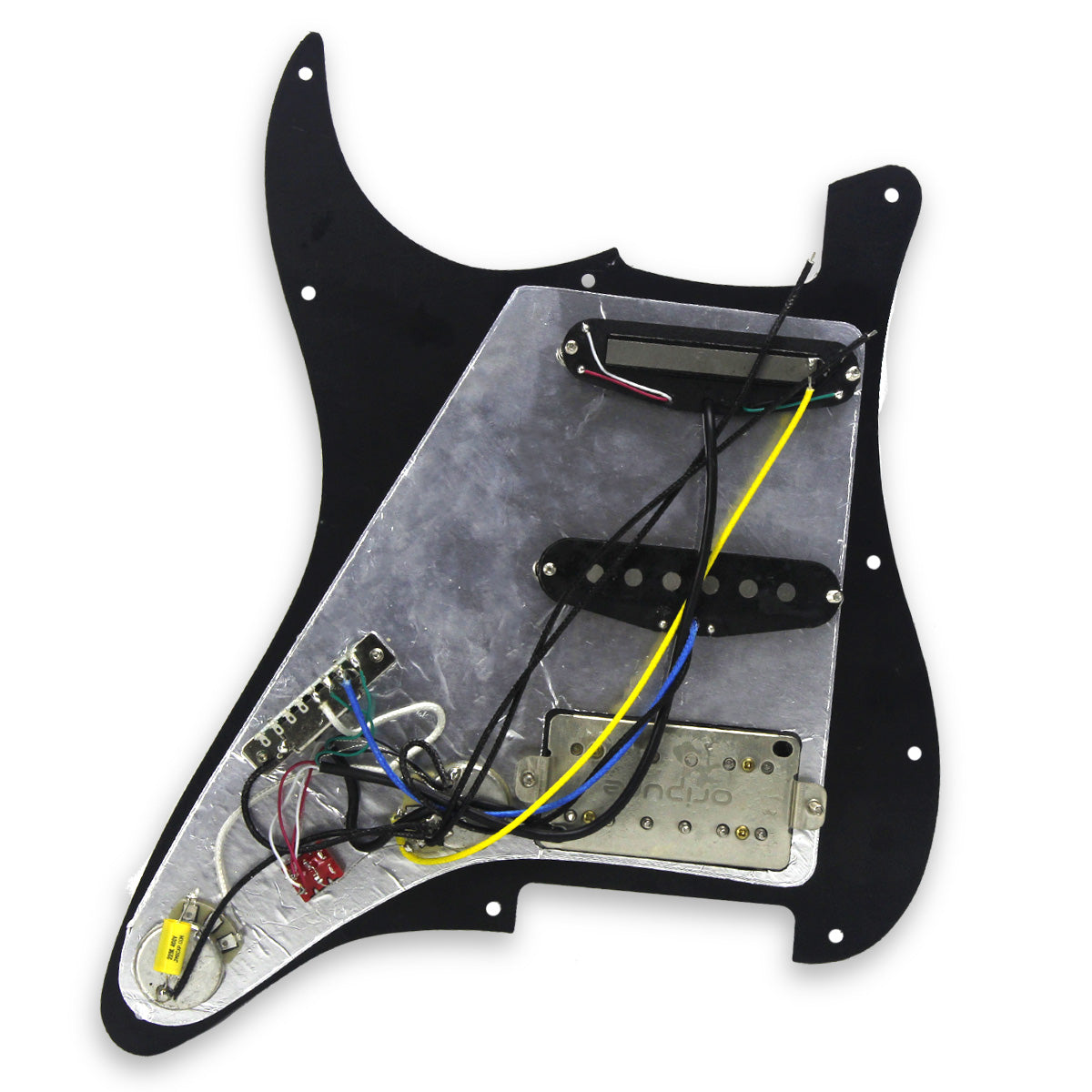

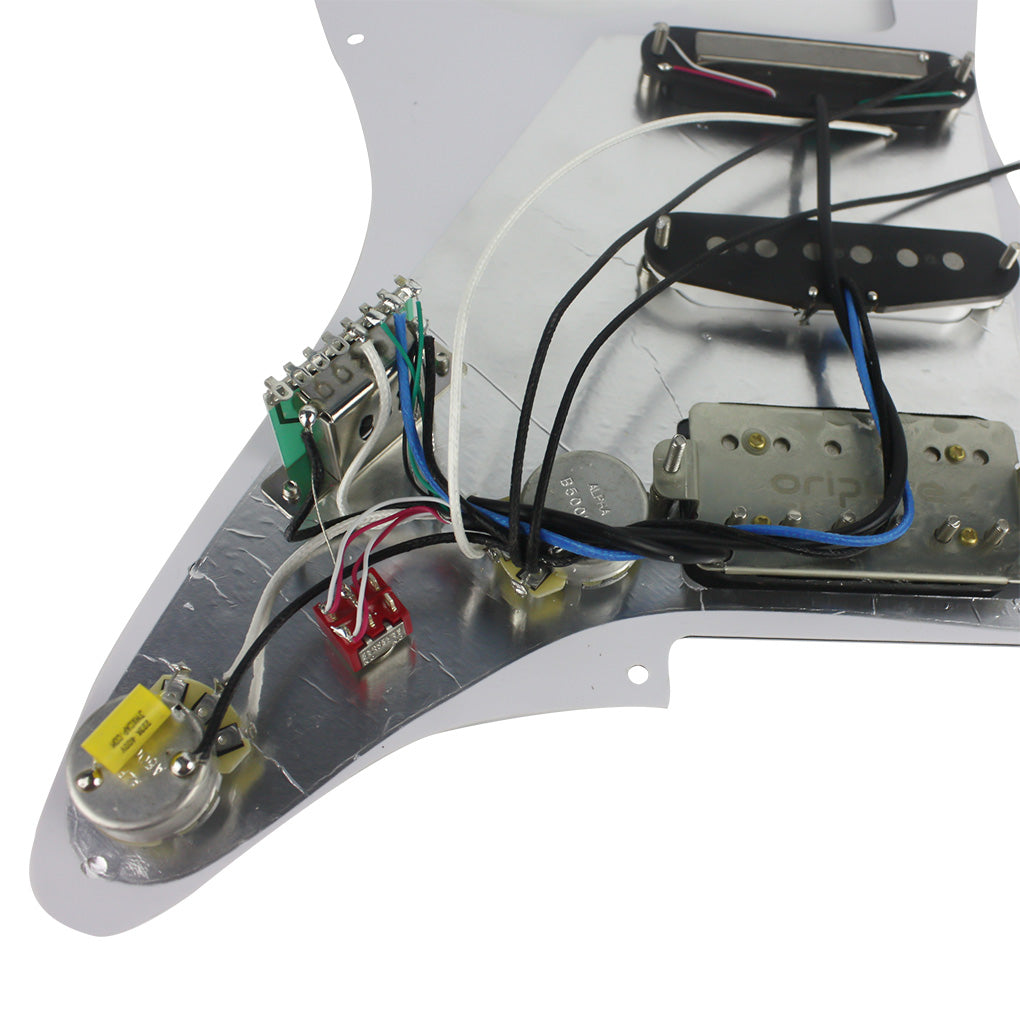

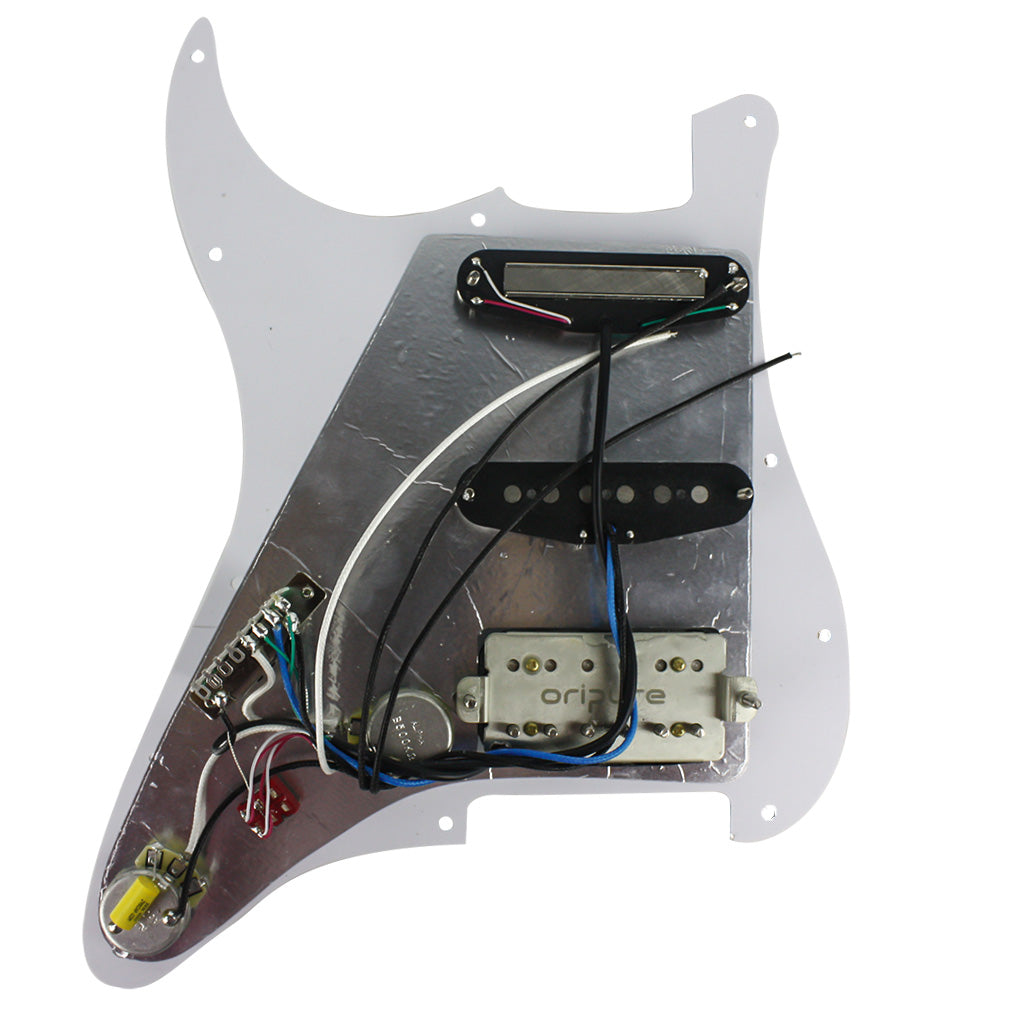

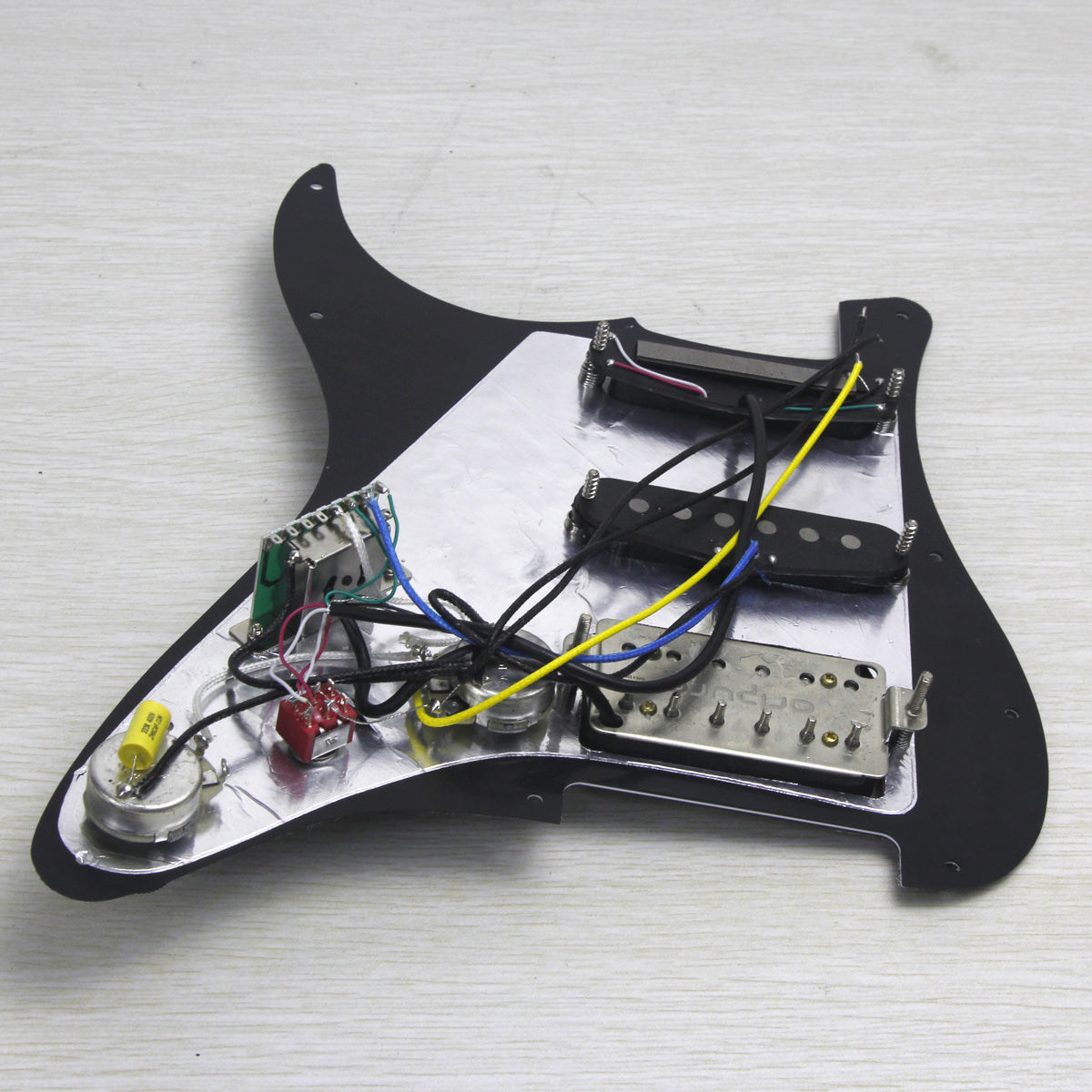

• Complete prewired control set with braided fiber cables, help reduce circuit noise.

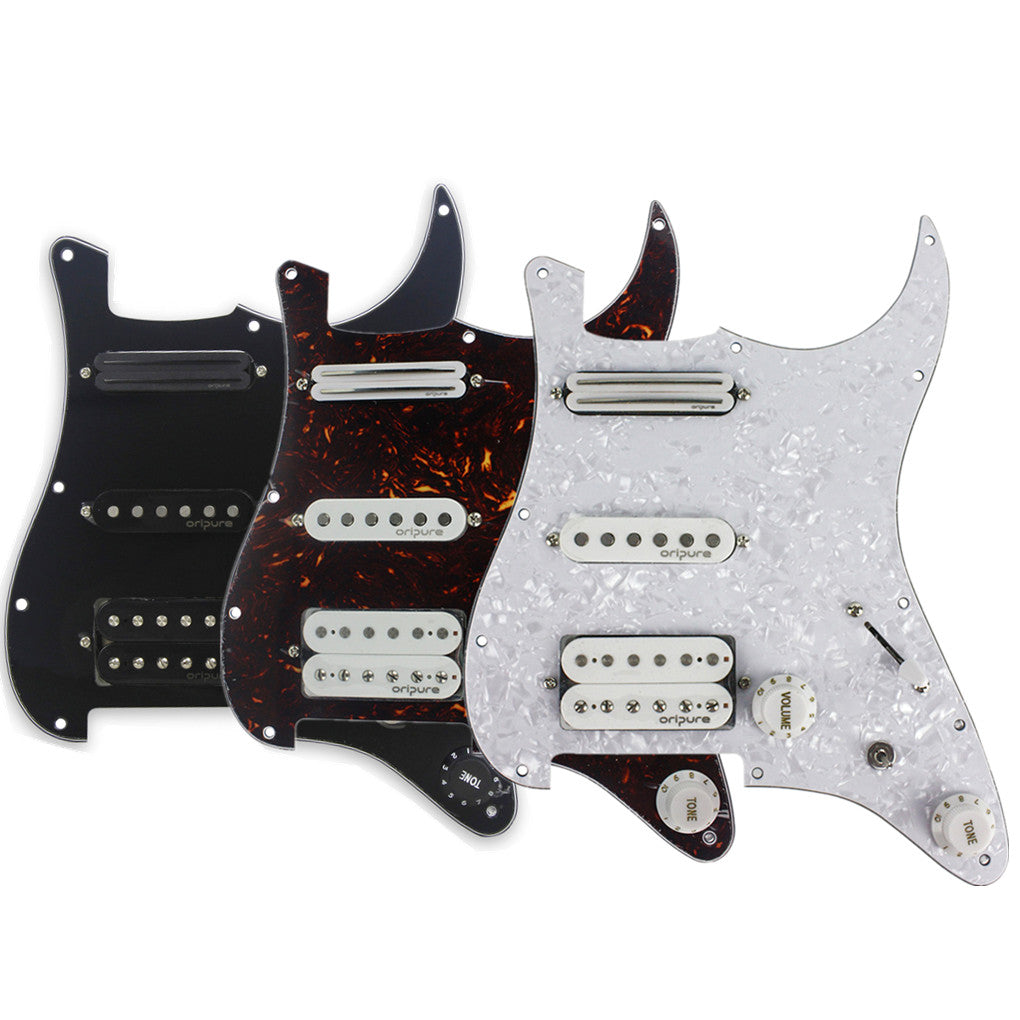

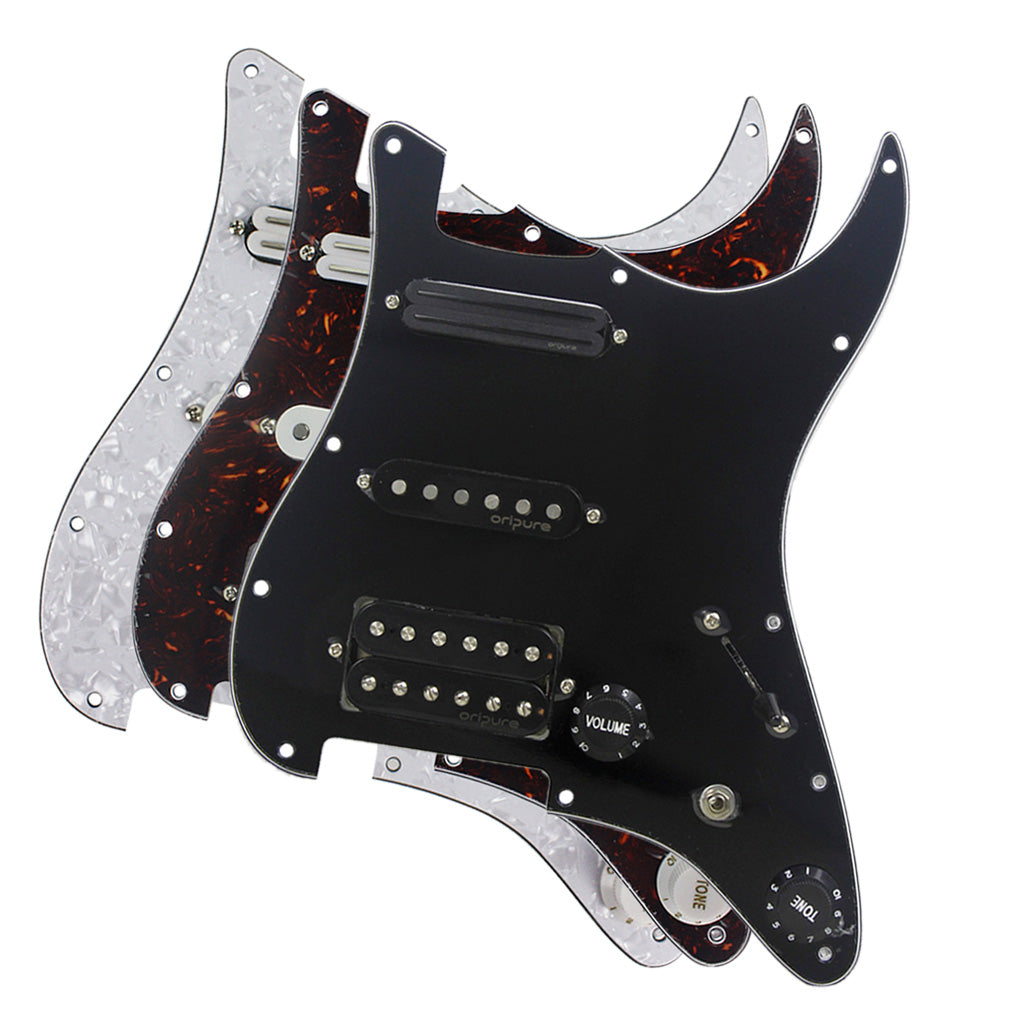

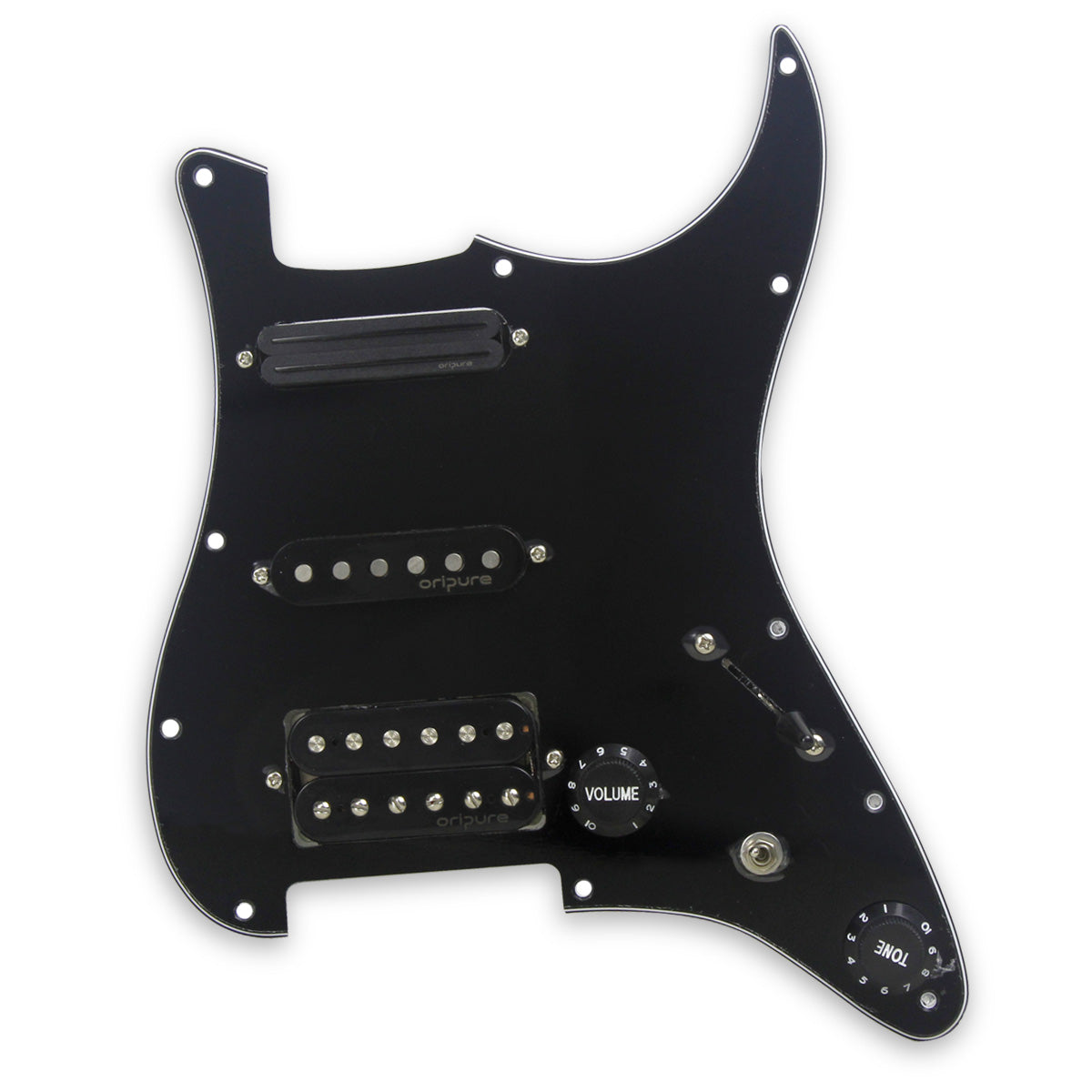

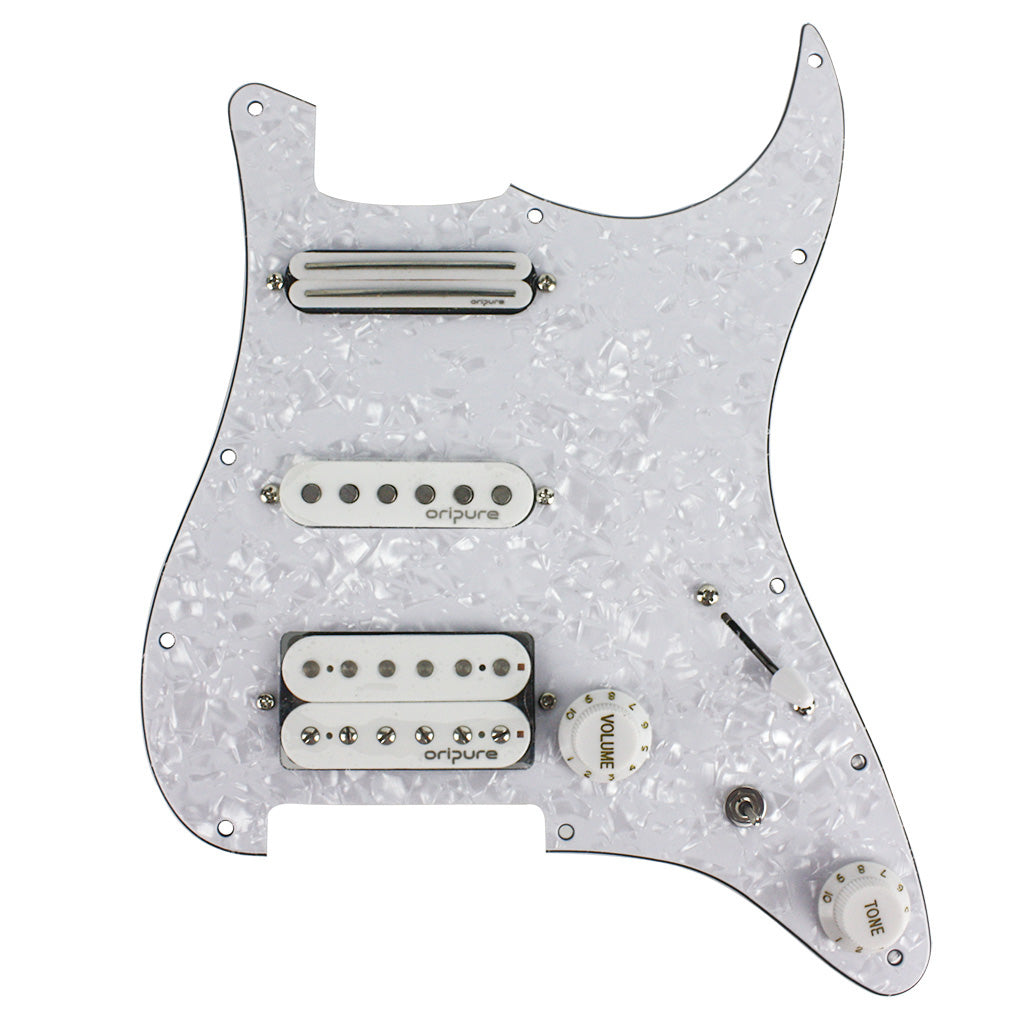

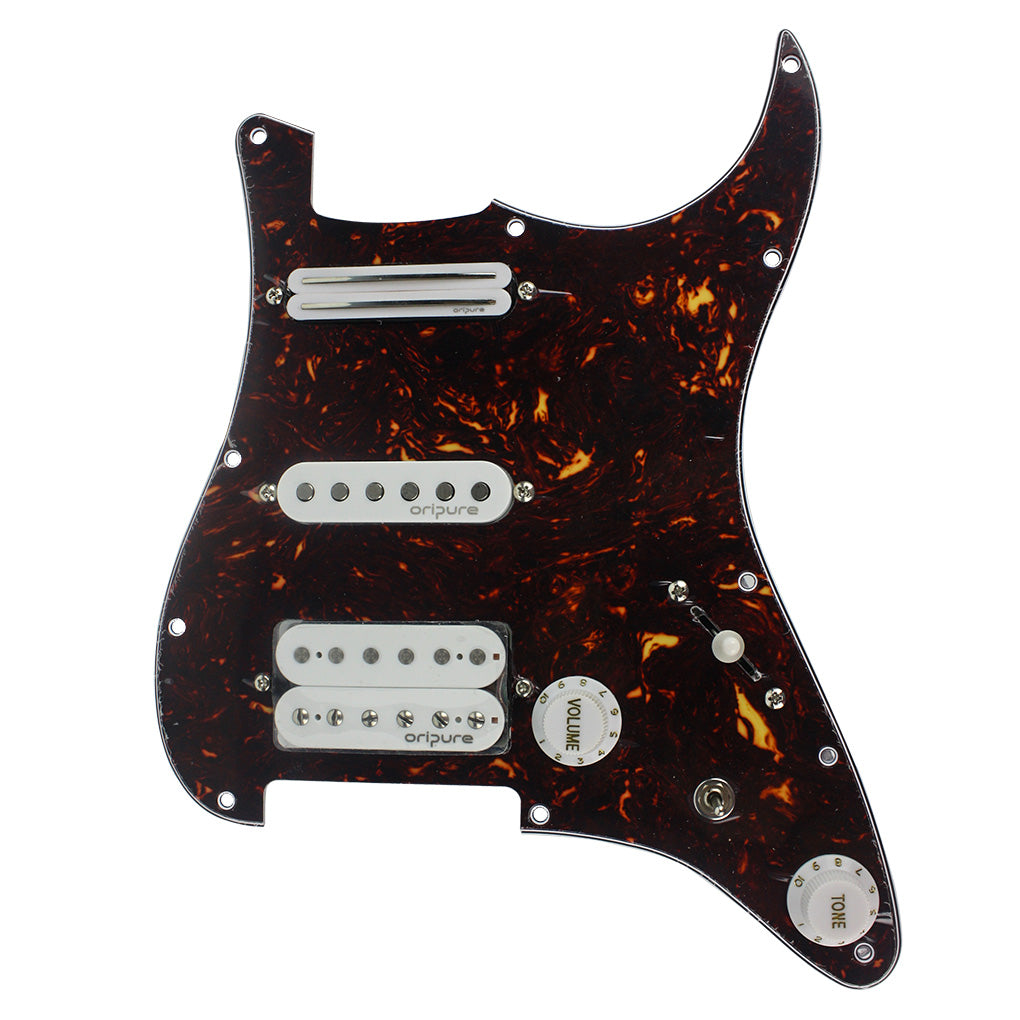

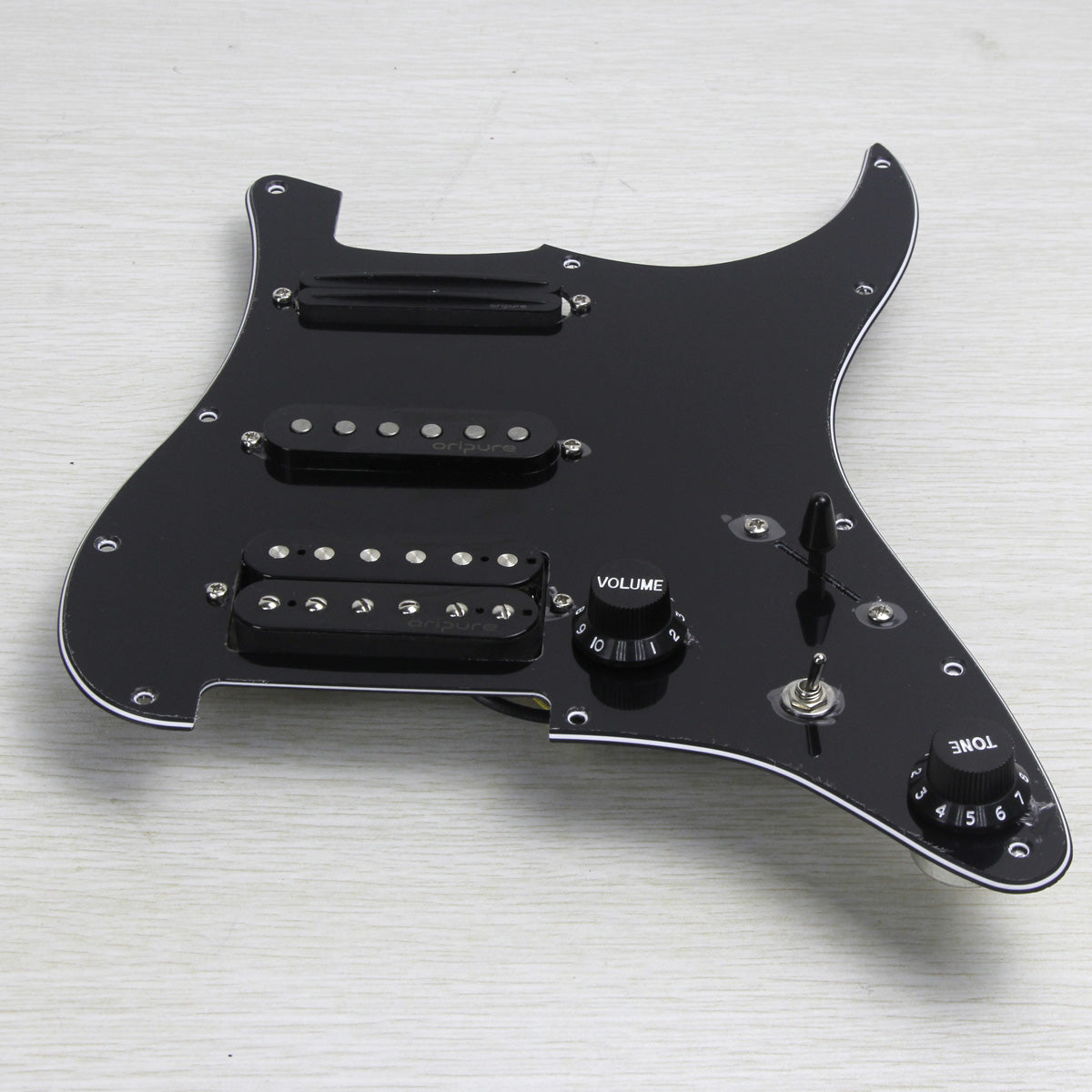

• Pickguard Color: Black, White Pearl, or Brown Tortoise Color for Choosing !!!

Specifications:

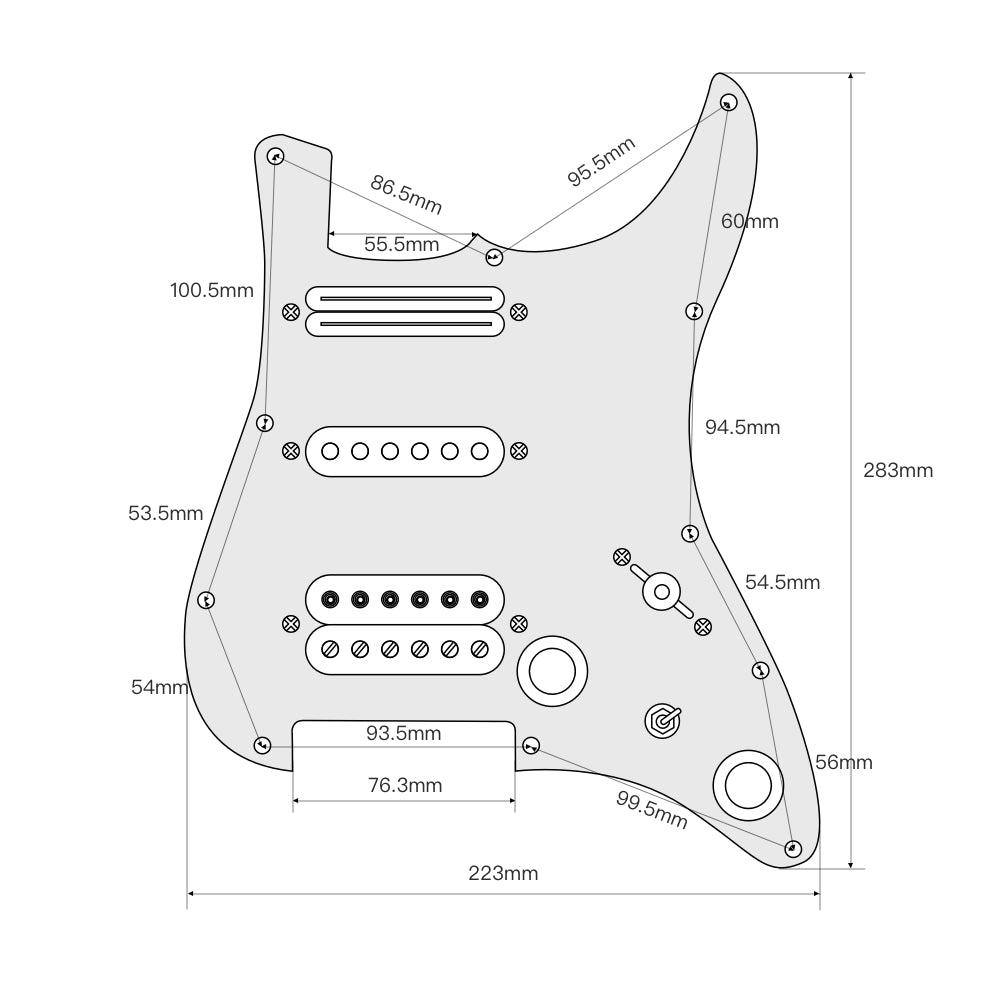

• Pickguard: HSS type; with 11 screw mounting holes; with full pure aluminum foil on back.

• Neck Position: Alnico 5 Hot Rail Pickup, Small Humbucker, Resistance: 10k-11k ohm.


• Middle Position: Alnico 5 Single Coil Pickup; Resistance: 5k-6k ohm; 52mm Pole Pieces Spacing.


• Bridge Position: Alnico 5 Humbucker Pickup, Resistance 13k-14k ohm; with 6 Fixed & 6 Adjustable Pole Pieces.

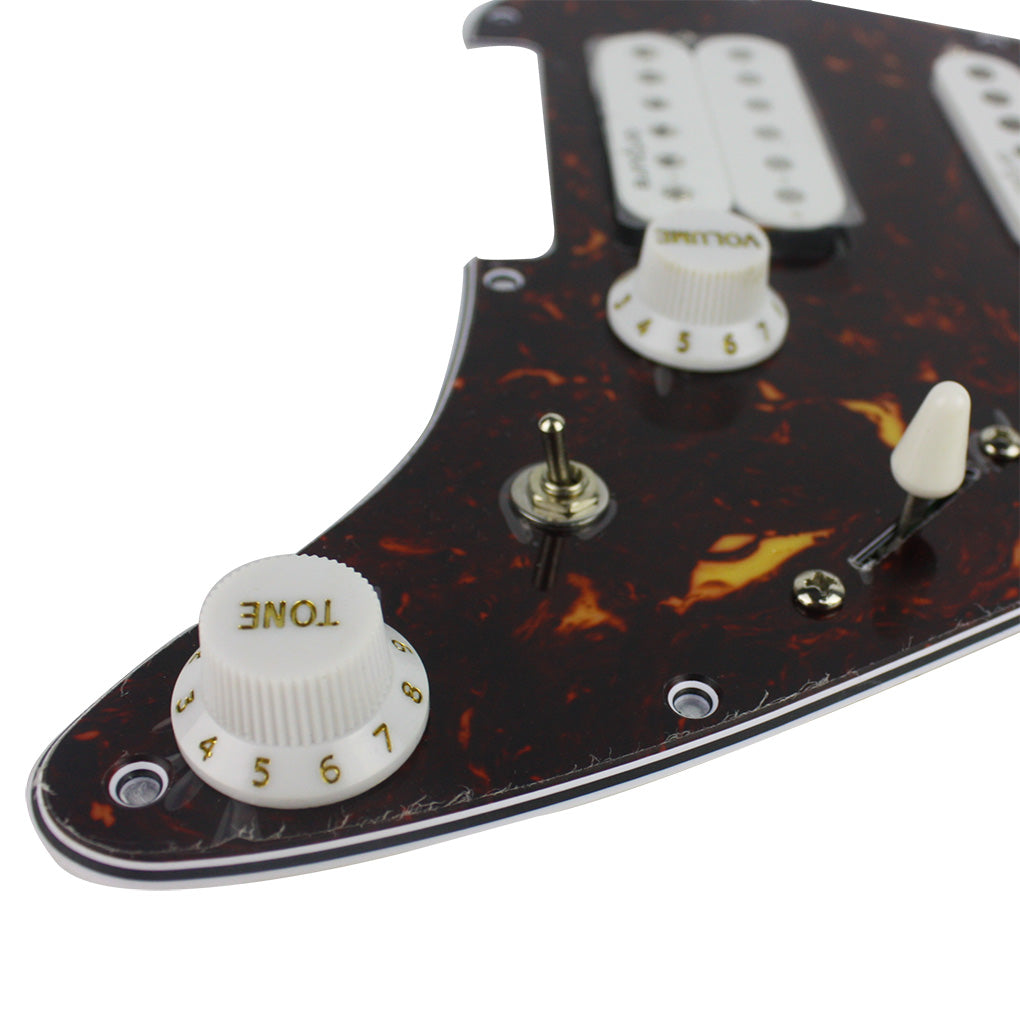

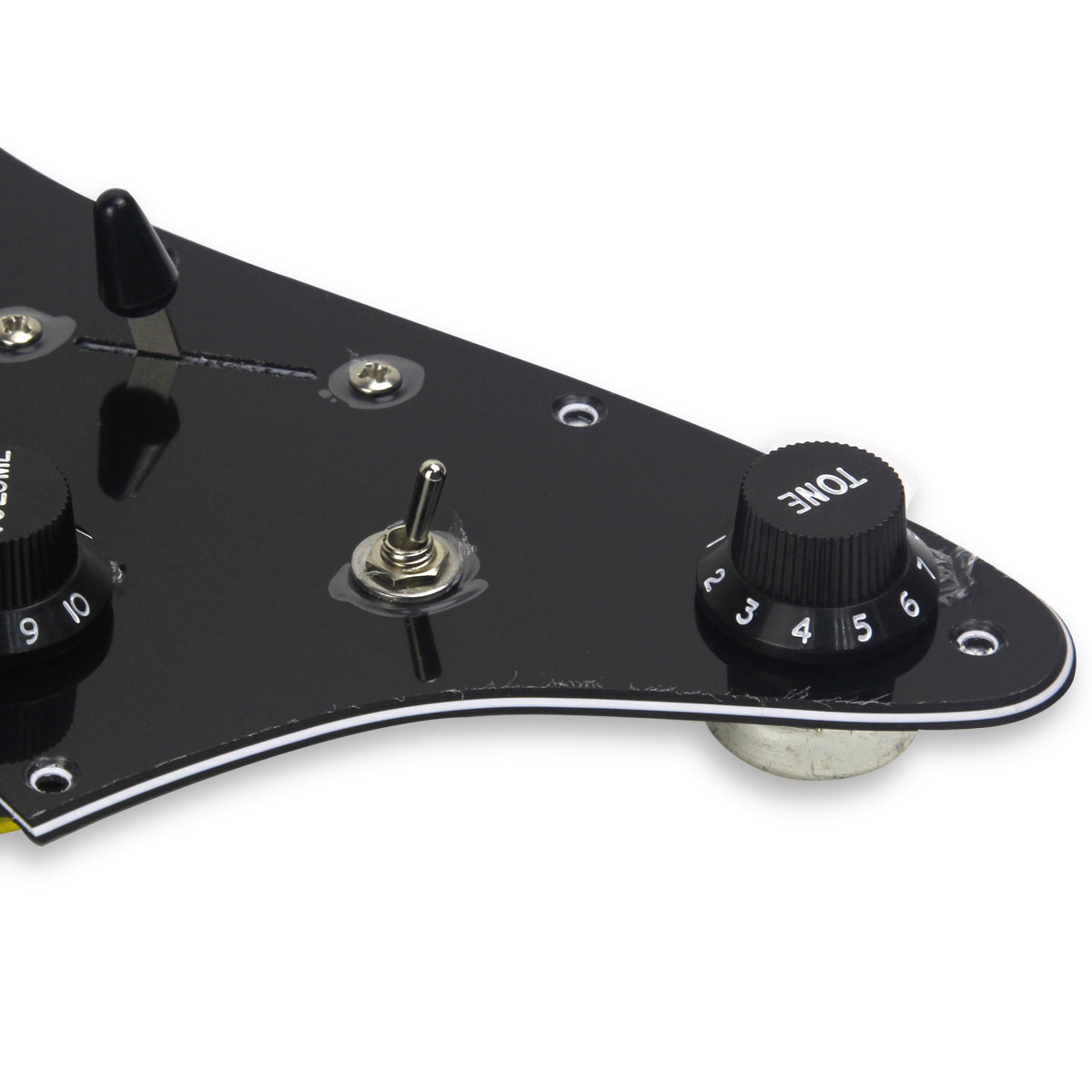

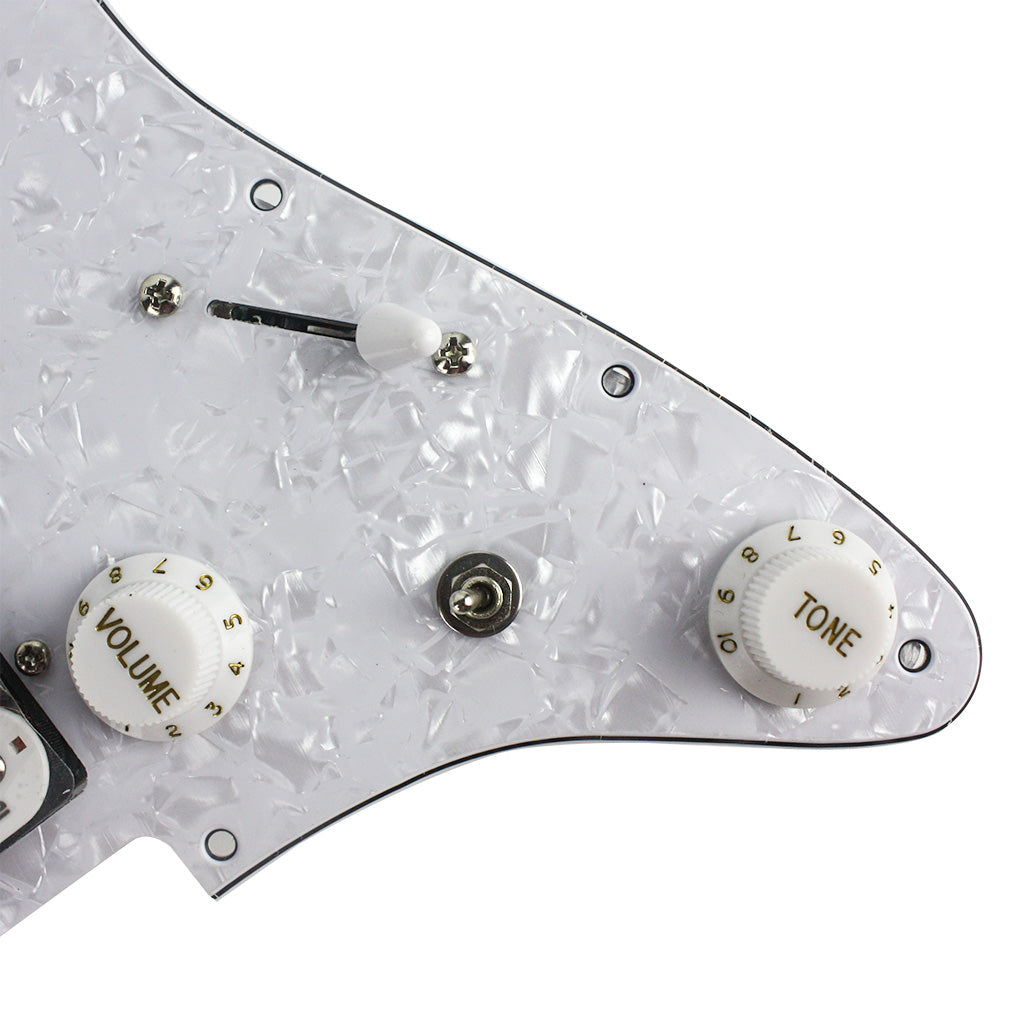

• Main Switch: 5-Way Pickup Selector Toggle Switch.


• Mini Switch: 2-Way Mini Switch; the coil split switch for neck & bridge double-coil pickup.

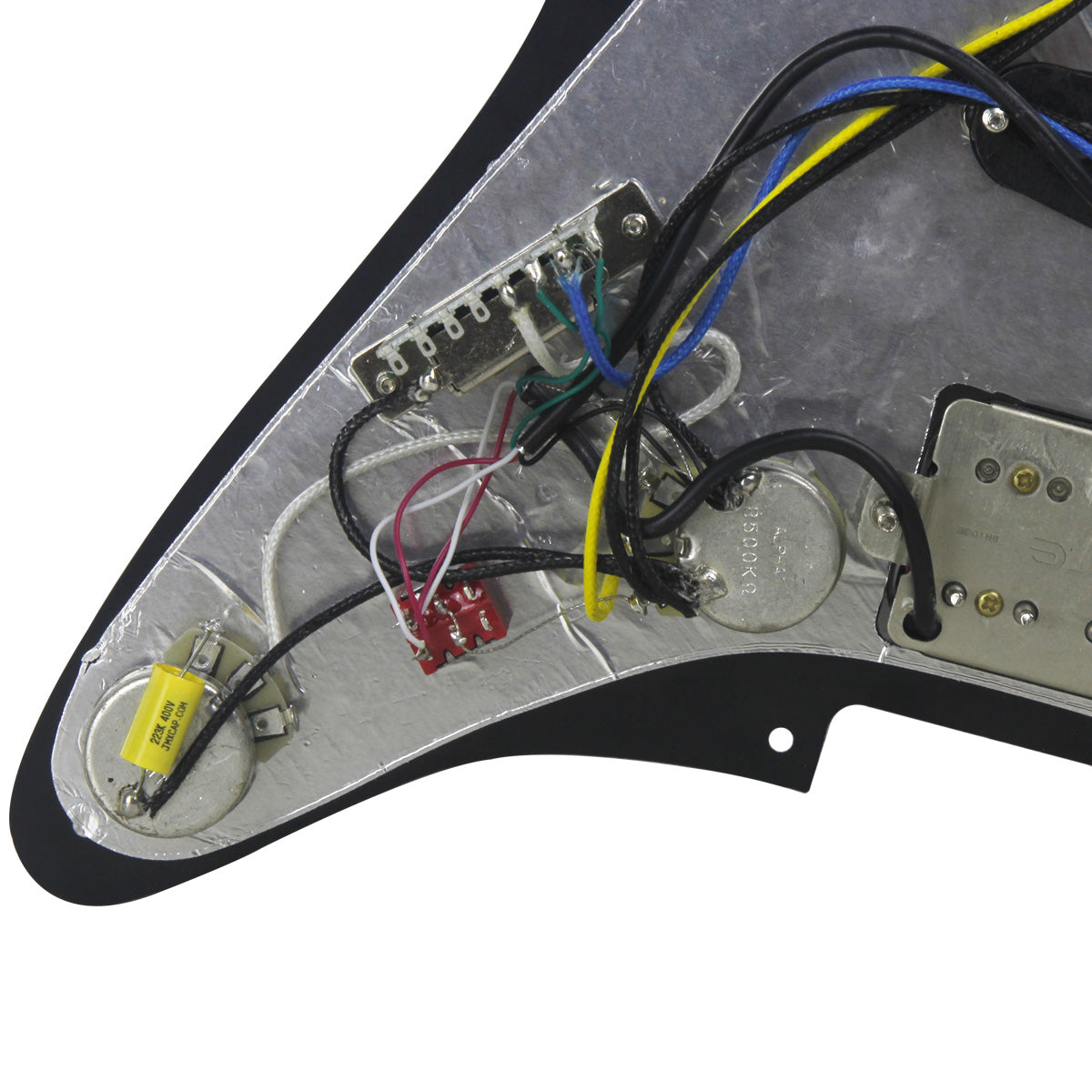

• Pots: Korean Alpha Pots, 1 A500k for Tone & 1 B500k for Volume.

• Capacitor: 223K 400V.
