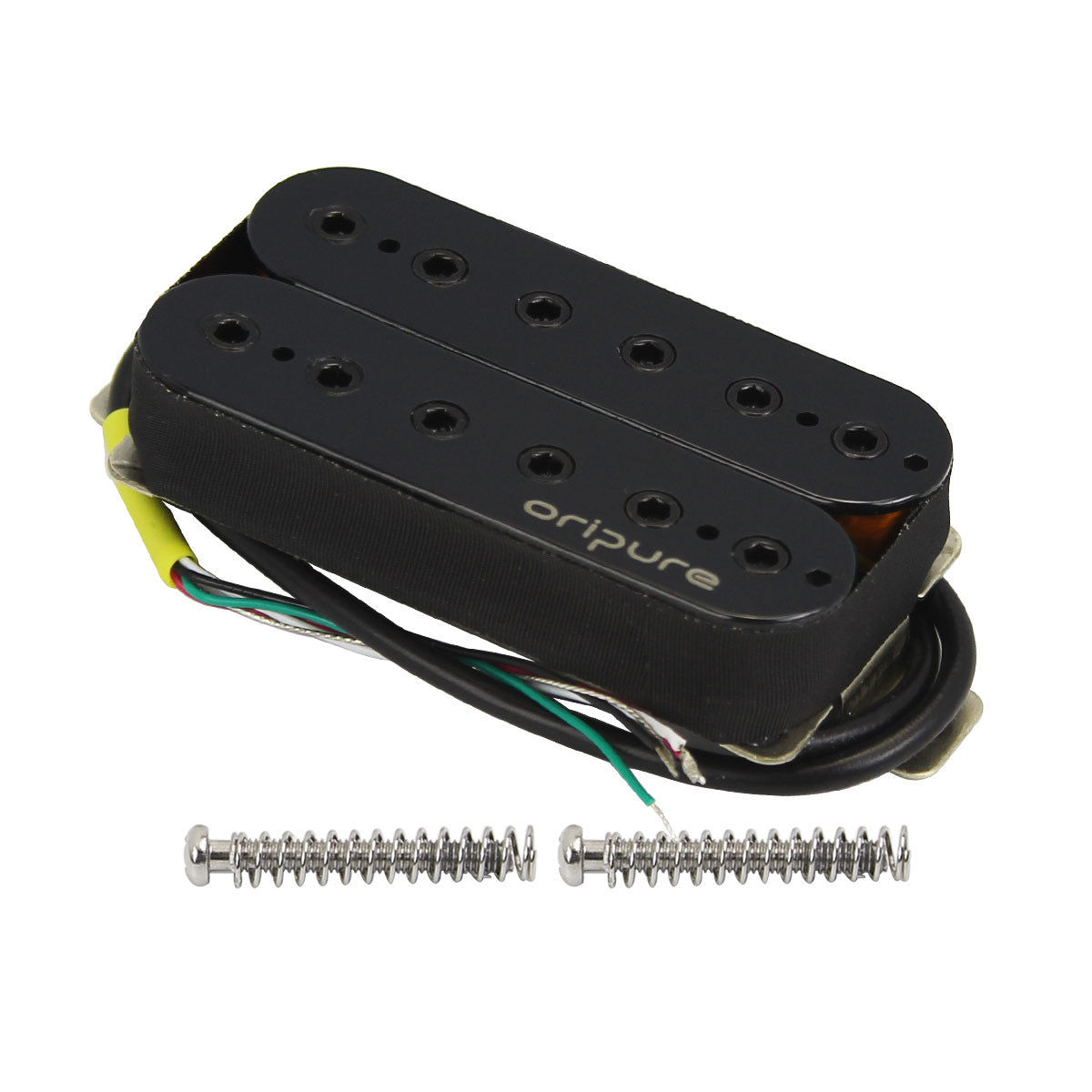

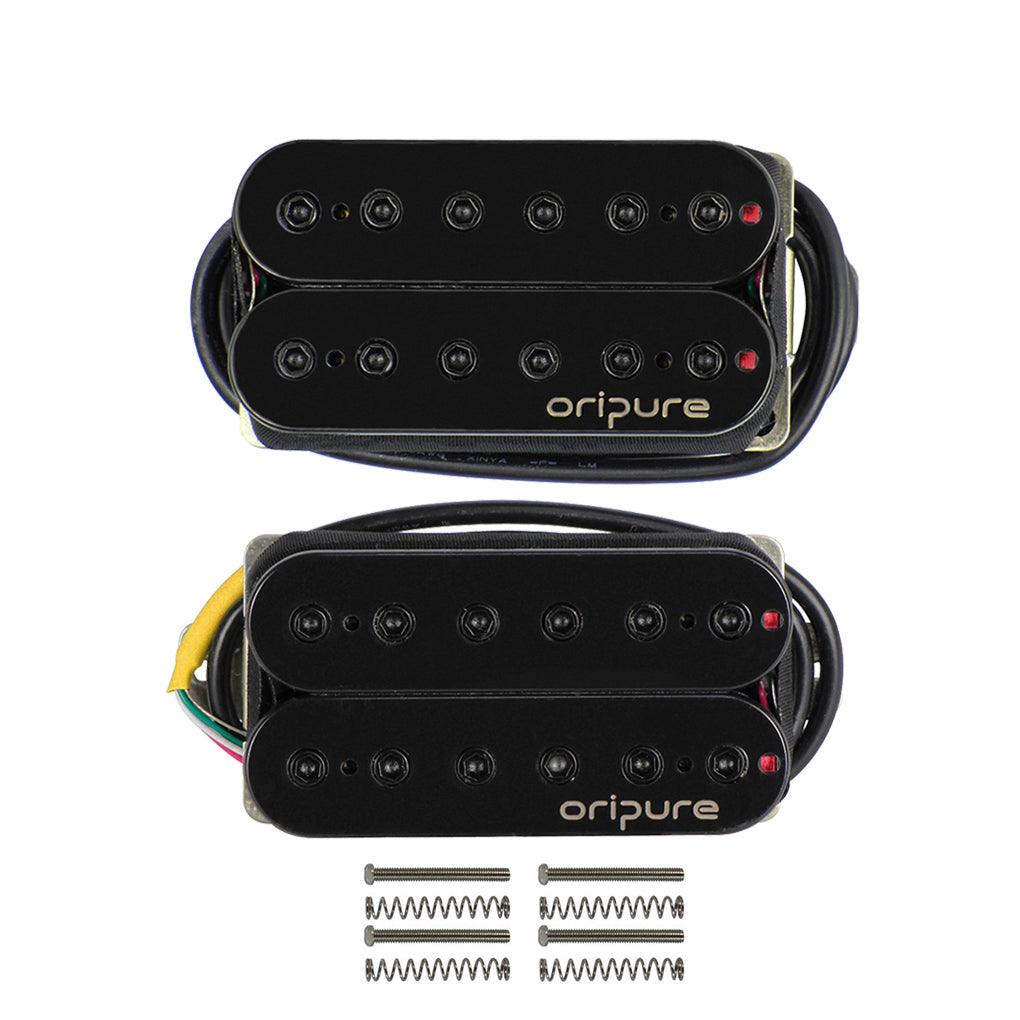

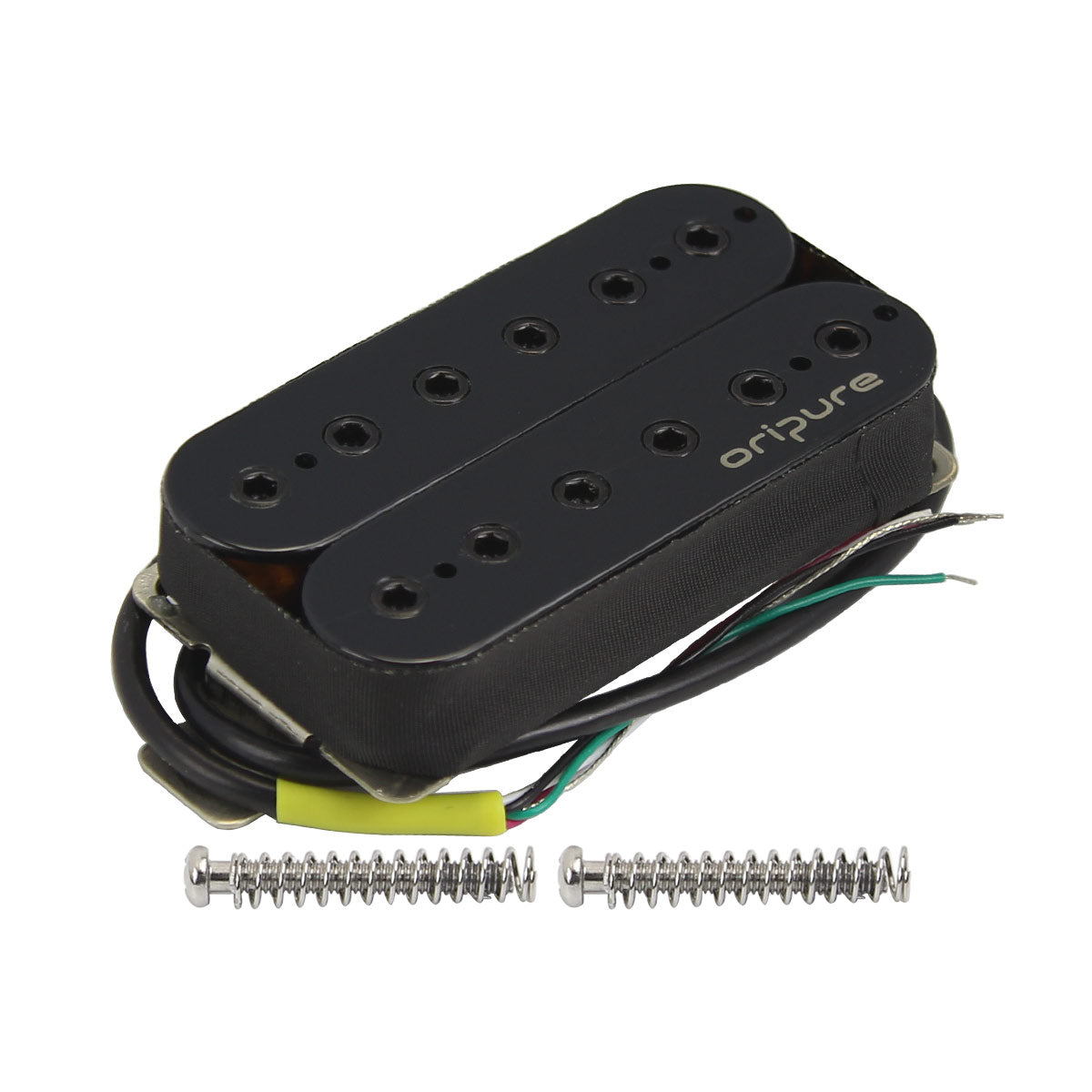

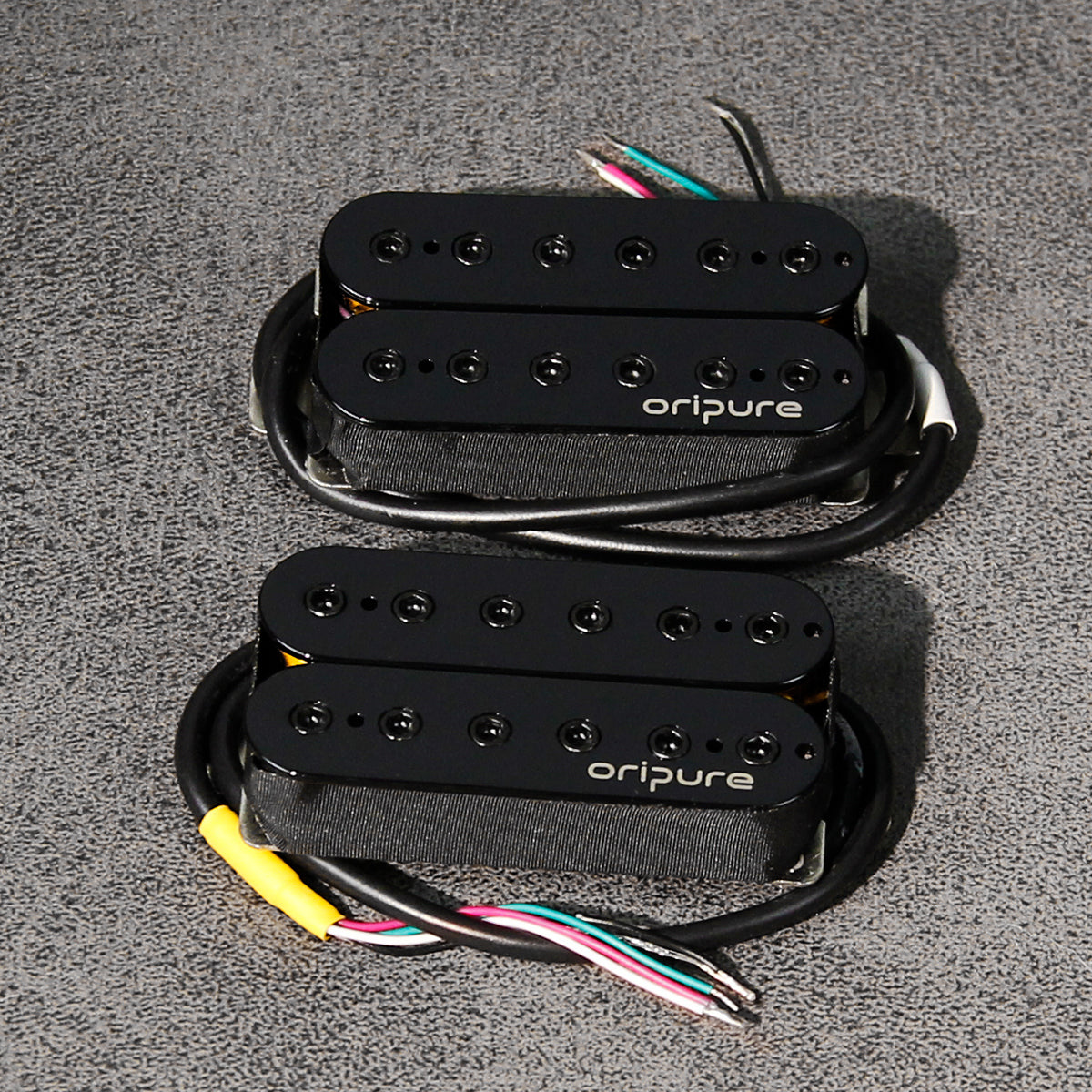

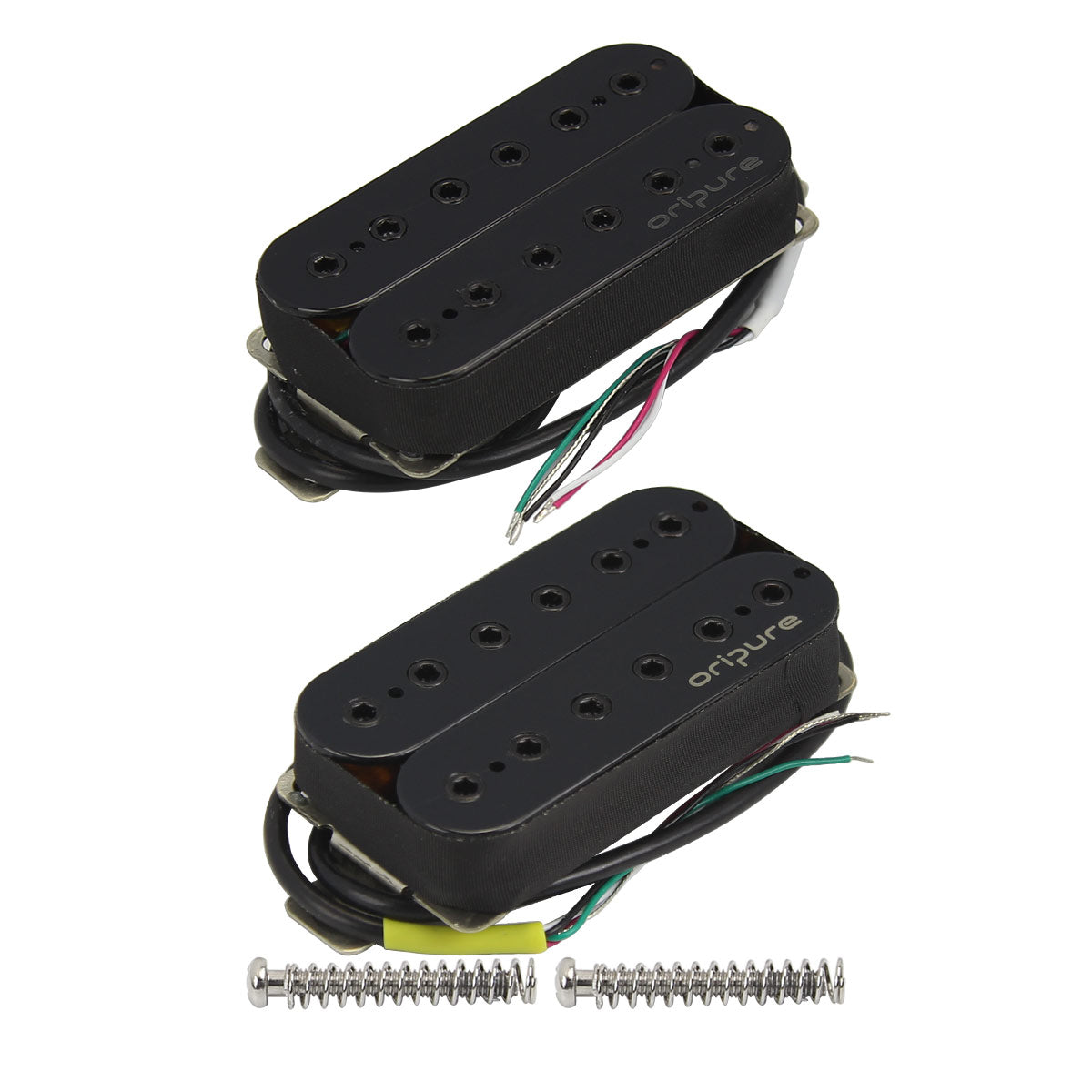

Specifications
• Brand: OriPure
• Model: PH5
• Pickup Type: Dual-Coil Humbucker (Hex Adjustable Pole
Pieces / 4-Conductor Wire / Coil Split Supported)
• Magnet: Alnico 5 (Aluminum-Nickel-Cobalt No. 5)

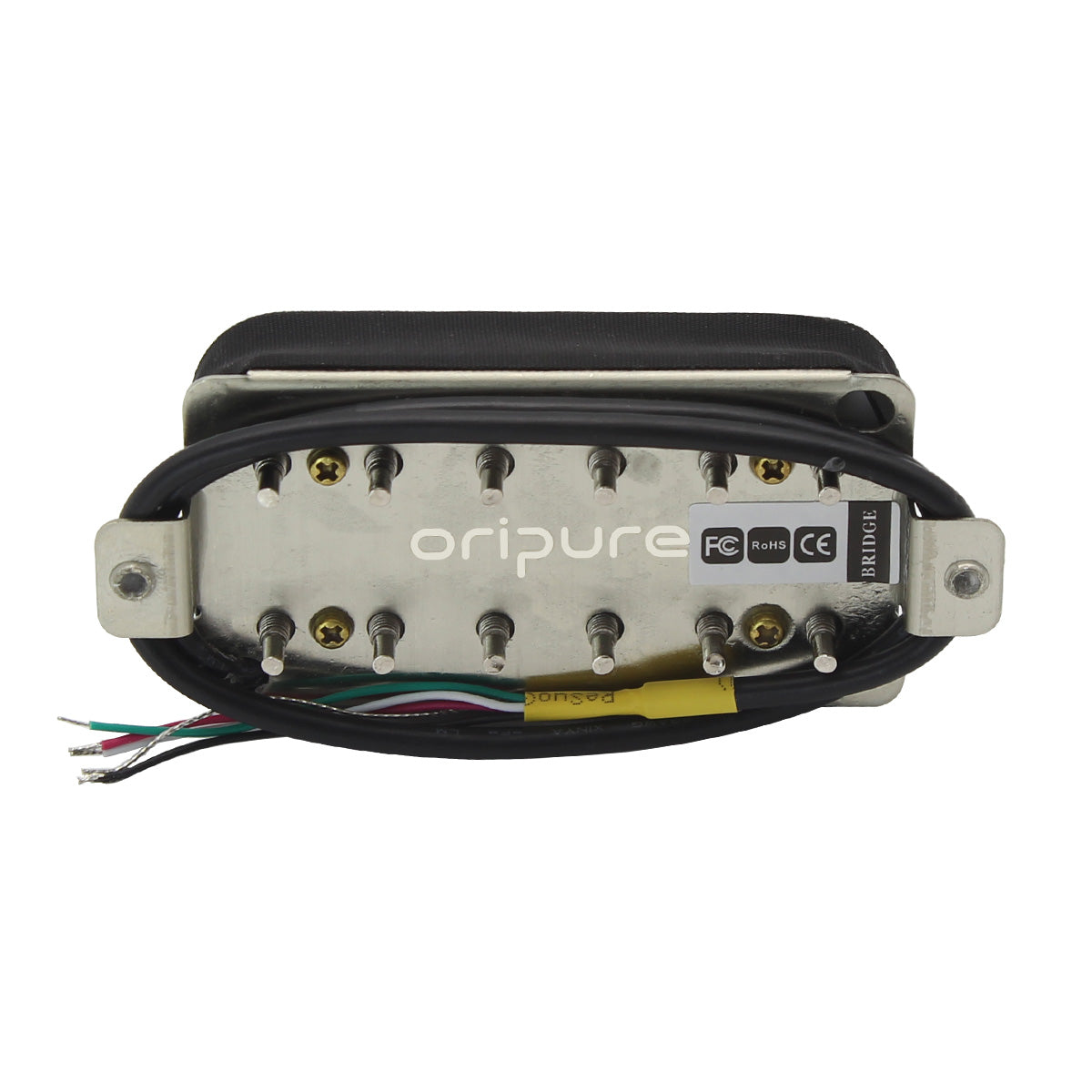

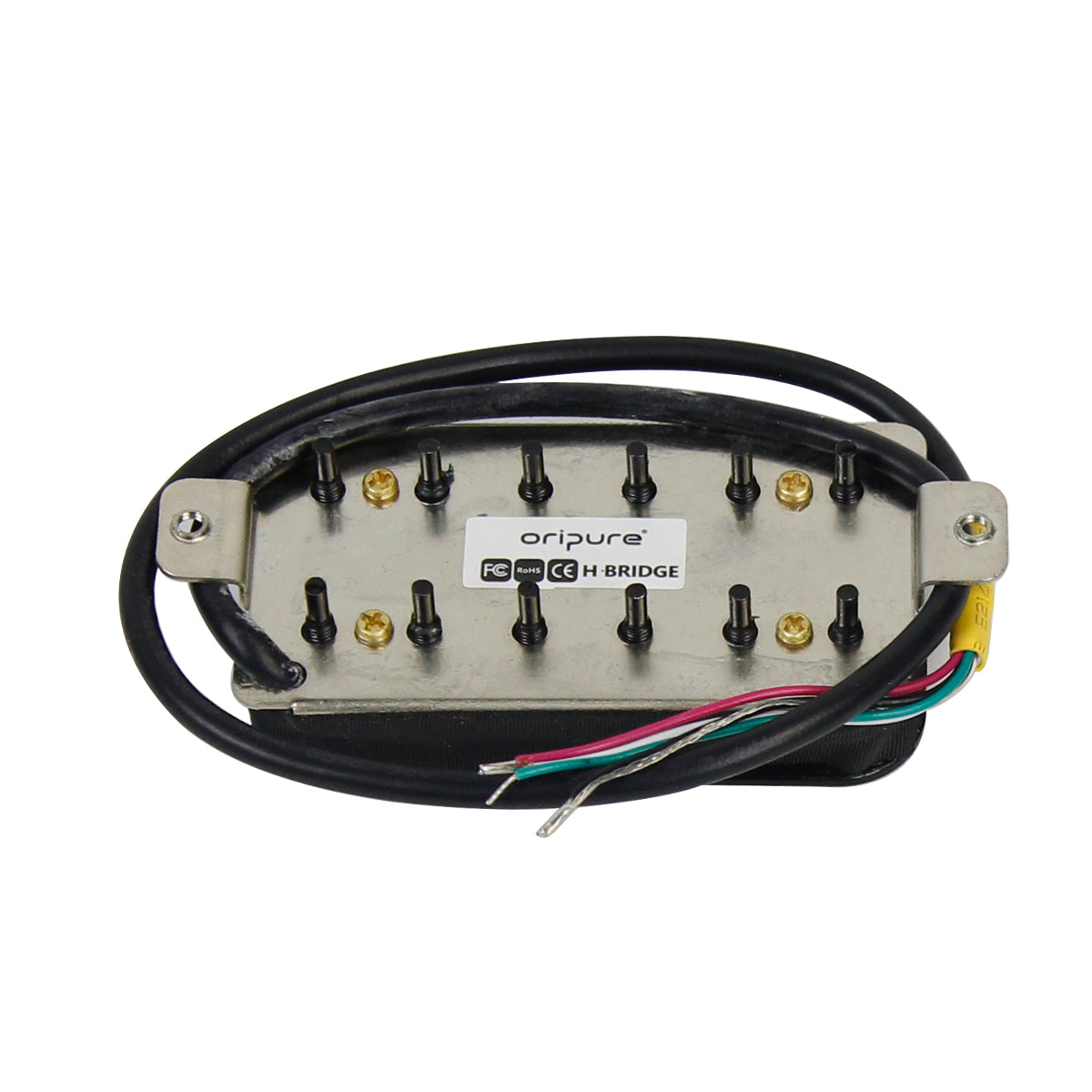

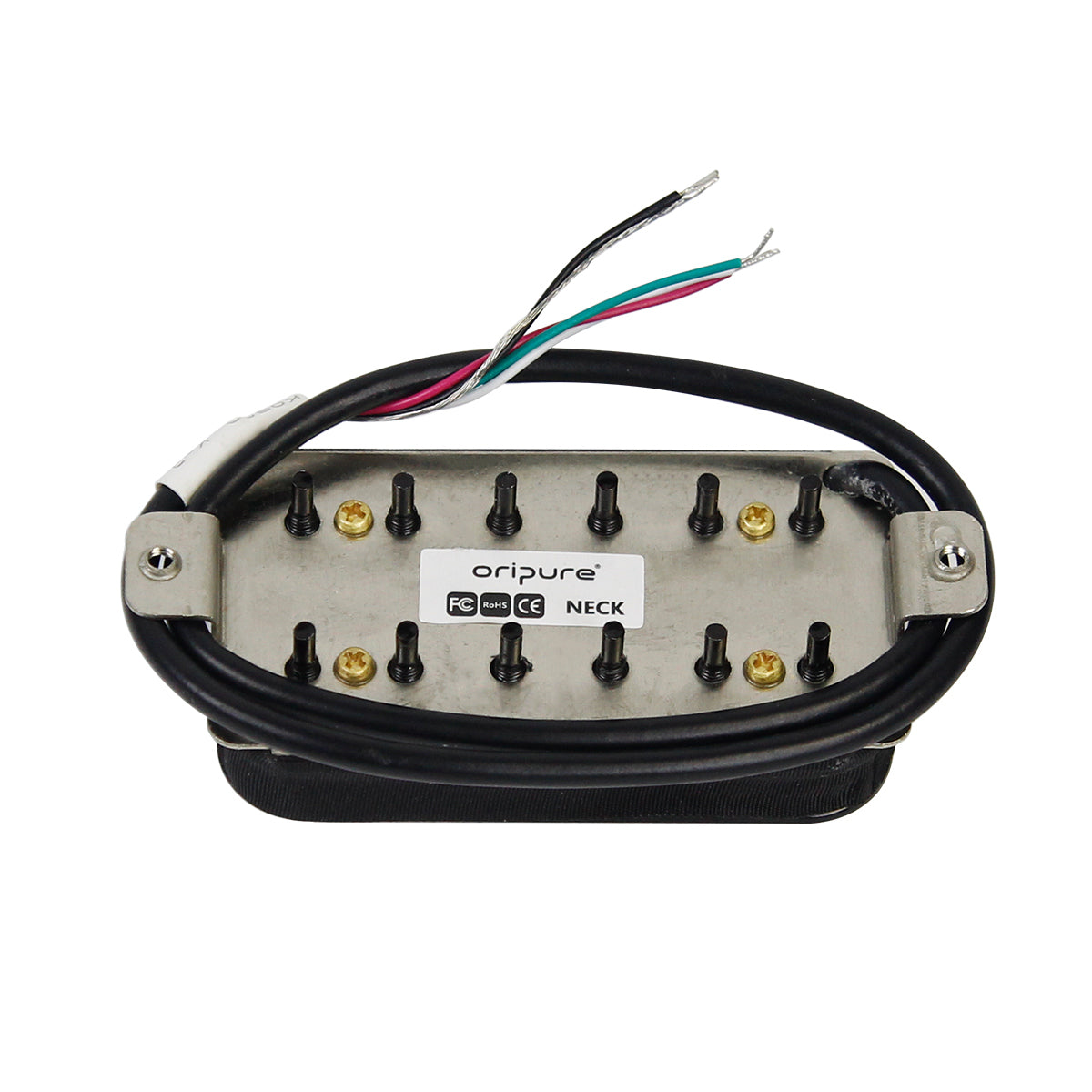

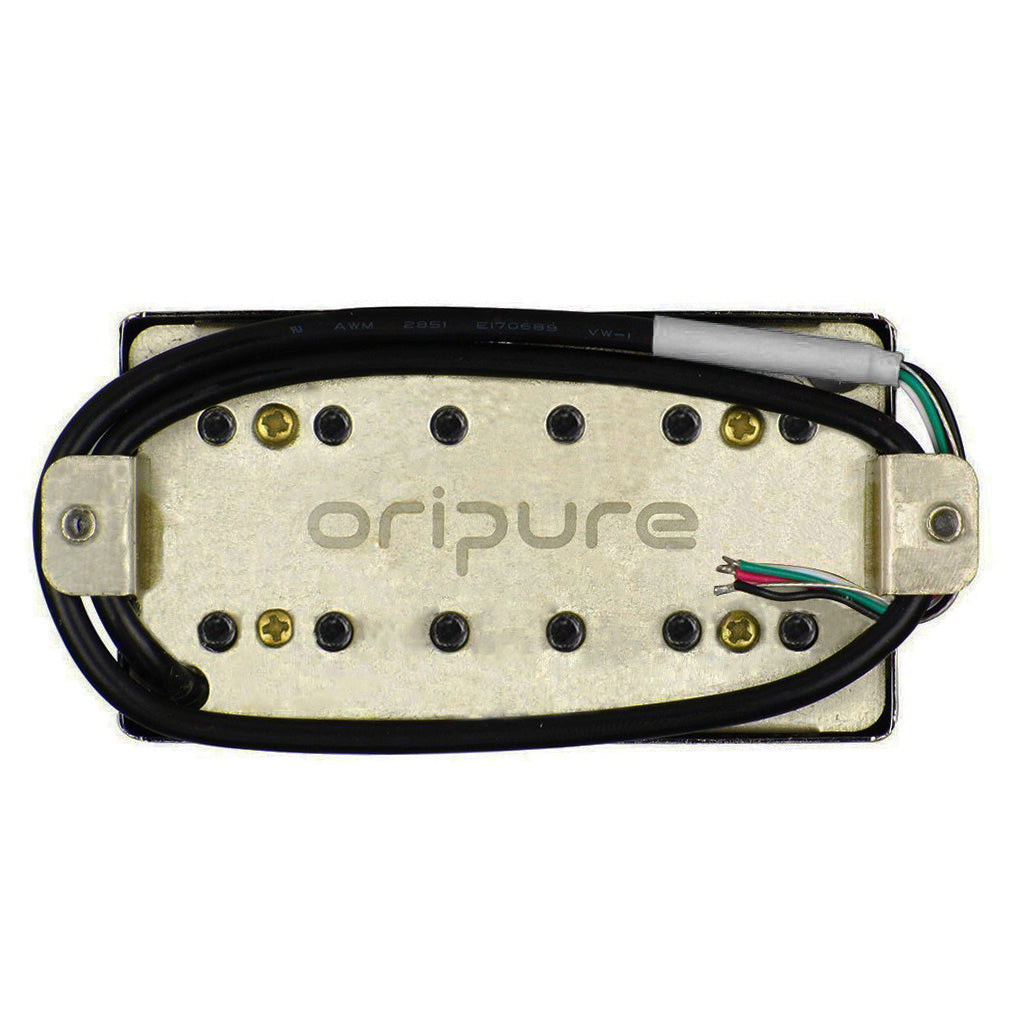

• Baseplate: Cupronickel Alloy Baseplate (Nickel Silver)

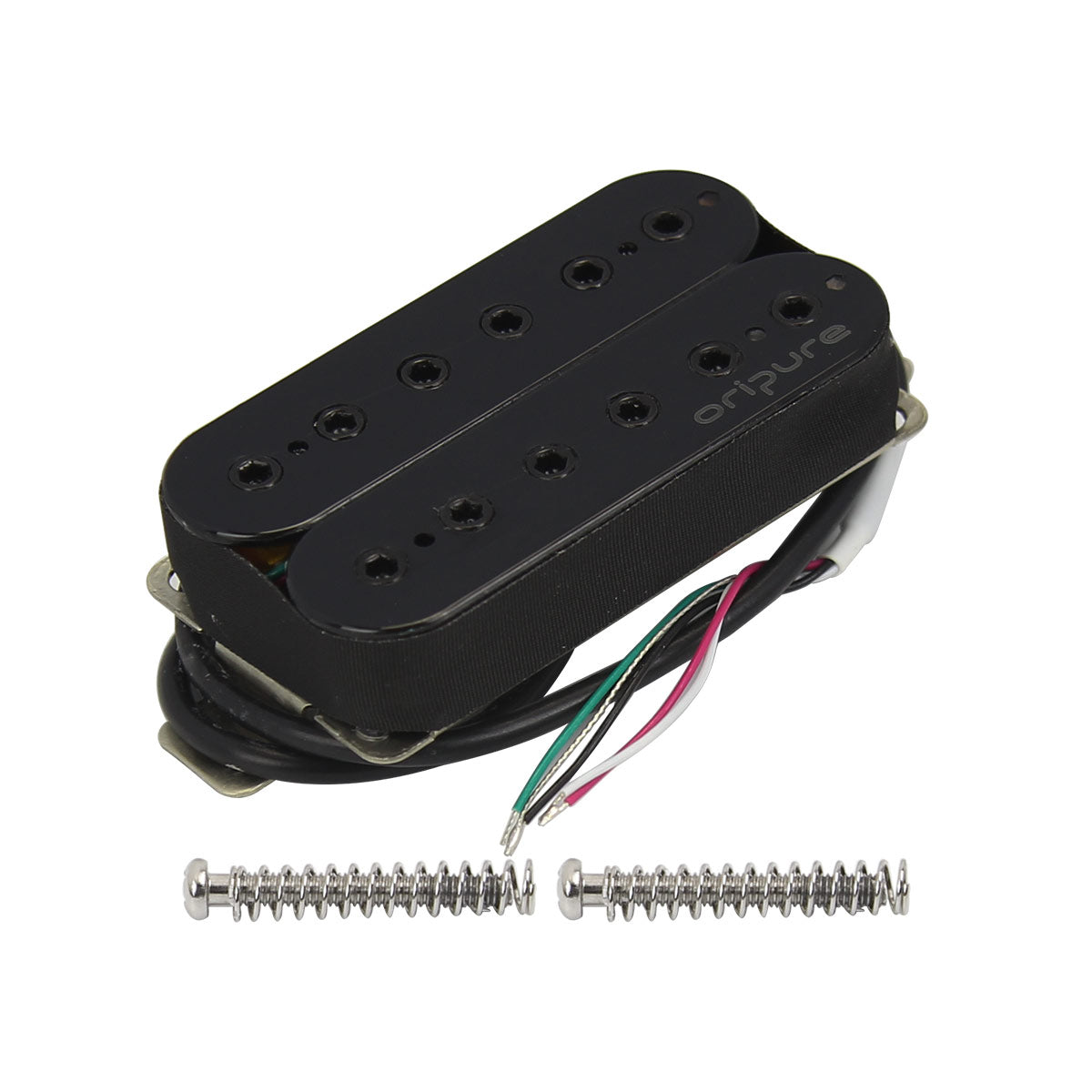

• Wiring: 4-Conductor Wire (Supports Coil Split, Series/Parallel,
Phase Reverse)
• Cable Material: PVC Wire + Acetate Cloth Shielding +
Internal Copper Foil
• Craftsmanship: Hand-Wound + Full Vacuum Wax Potting
Parameter List

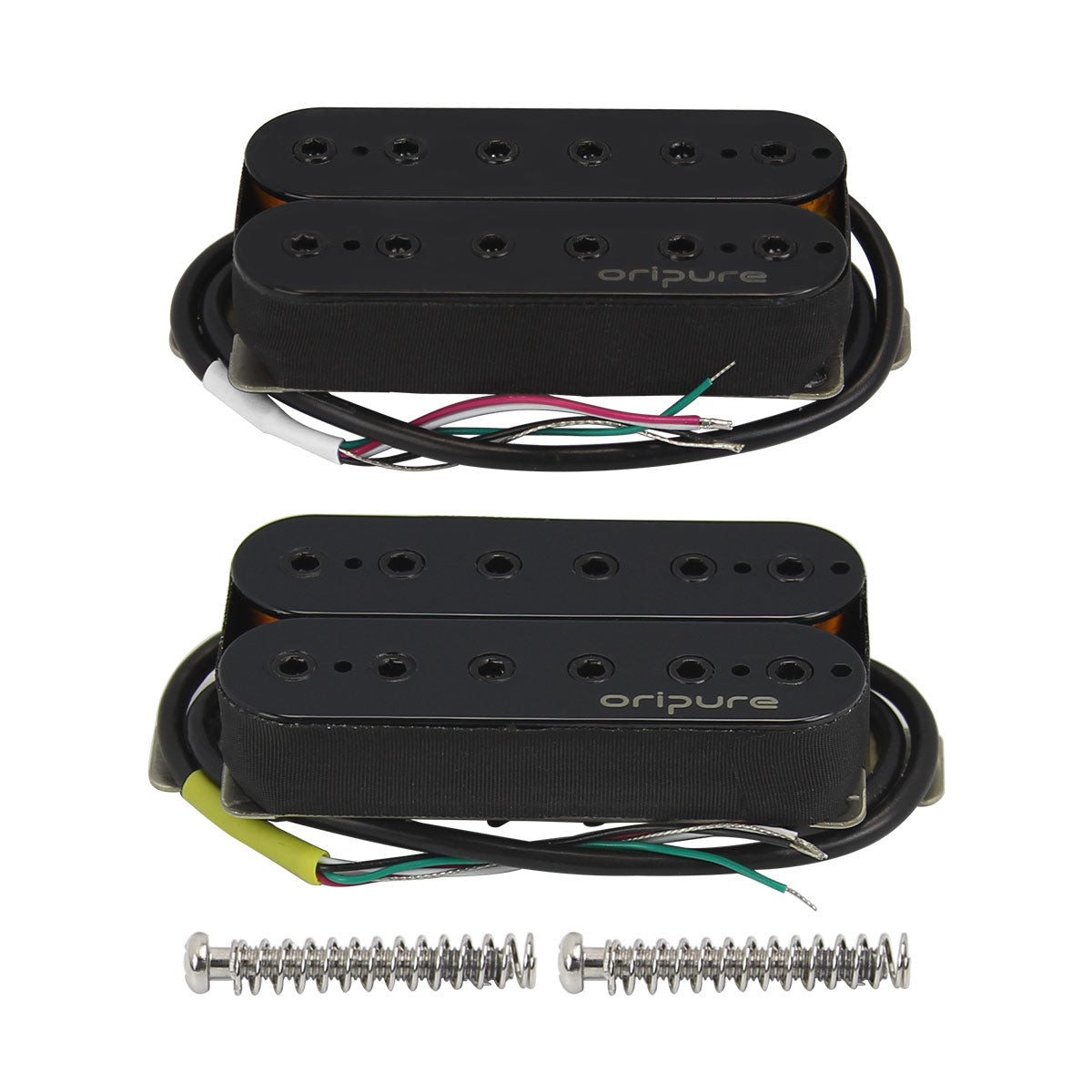

| Item |
PH5-BK-N (Neck) |
PH5-BK-HB (Bridge) |
| DC Resistance (DCR) |
7.8KΩ |
7.6KΩ |
| Peak Inductance |
3.7H |
8.3H |
| Wire Gauge |
AWG42 |
AWG43 |
| Pole Spacing |
50mm |
52mm |
| Frequency Ratio (High/Mid/Low) |
30% / 20% / 50% |
45% / 30% / 25% |
| Output |
Medium Output |
High Output |
Features:
• Hex Adjustable Pole Pieces
Allows independent adjustment of magnetic pull and output for
each string, providing better volume balance; ideal for
professional mods and fine-tuning tone.
• Alnico 5 High-Power Magnet
Strong attack, excellent dynamics, powerful output;
tight low end,resilient mids, clear non-harsh highs
— ideal for rock and metal.
• Strong Shielding Structure & Multiple Wiring Options
4-conductor PVC shielded wire + acetate cloth + copper foil
significantly reduce RF interference and enhance signal purity.
Supports coil split, series/parallel, phase reverse, and other
advanced wiring configurations.
• Full Vacuum Wax Potting (Wax-Potted)
Reduces coil microphonics and effectively suppresses feedback,
suitable for stage and high-gain environments.

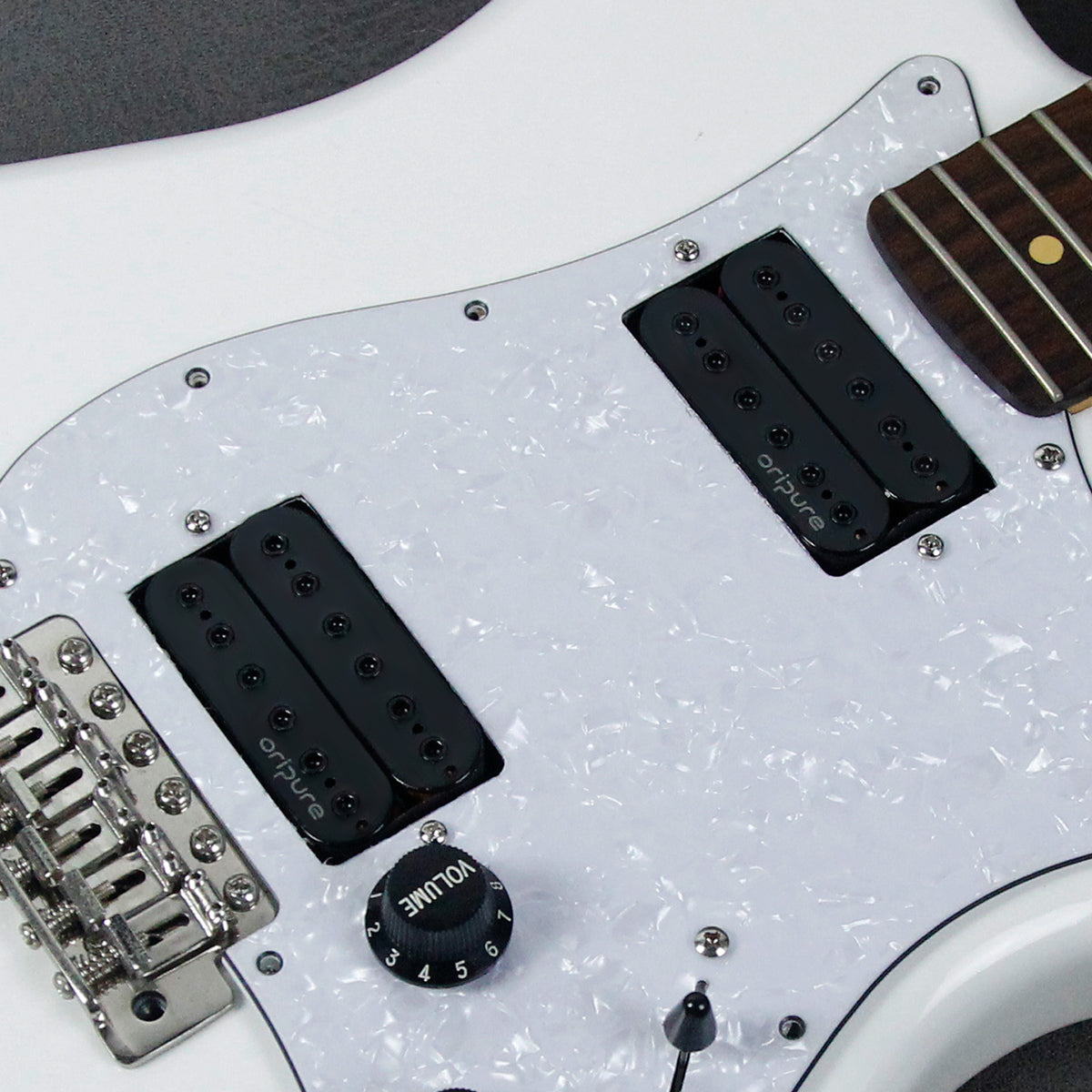

• Fully Compatible with Various Guitar Types
Ideal for solid-body guitars with bolt-on necks, and also suitable
for set-neck and single-cut guitars. Works with OFFSET models
as well.
Tone Profiles
Bright, sharp, aggressive — designed for high gain with strong
penetration, explosive response, and modern metal attack.
• Necke - 7.8kΩ Tone
Soft, sweet, warm, full, delicate, and clear.
Smooth and rounded tone with rich detail and strong sustain.
Excellent for clean melodies; warm but not muddy with light
overdrive. Coil-split tone remains crisp and bright
with single-coil clarity.
• Bridge - 16.6kΩ Tone
Powerful, aggressive, transparent.
Bright and sharp highs without harshness, solid and grainy mids,
tight lows that do not boom, maintaining clarity even under
high gain. Coil-split tone offers bright, crisp Strat-like character.
Suitable Genres:
Hard Rock • Classic Rock • Metal • Heavy Metal • Black Metal •
Death Metal • Metalcore • Thrash Metal • Industrial Metal

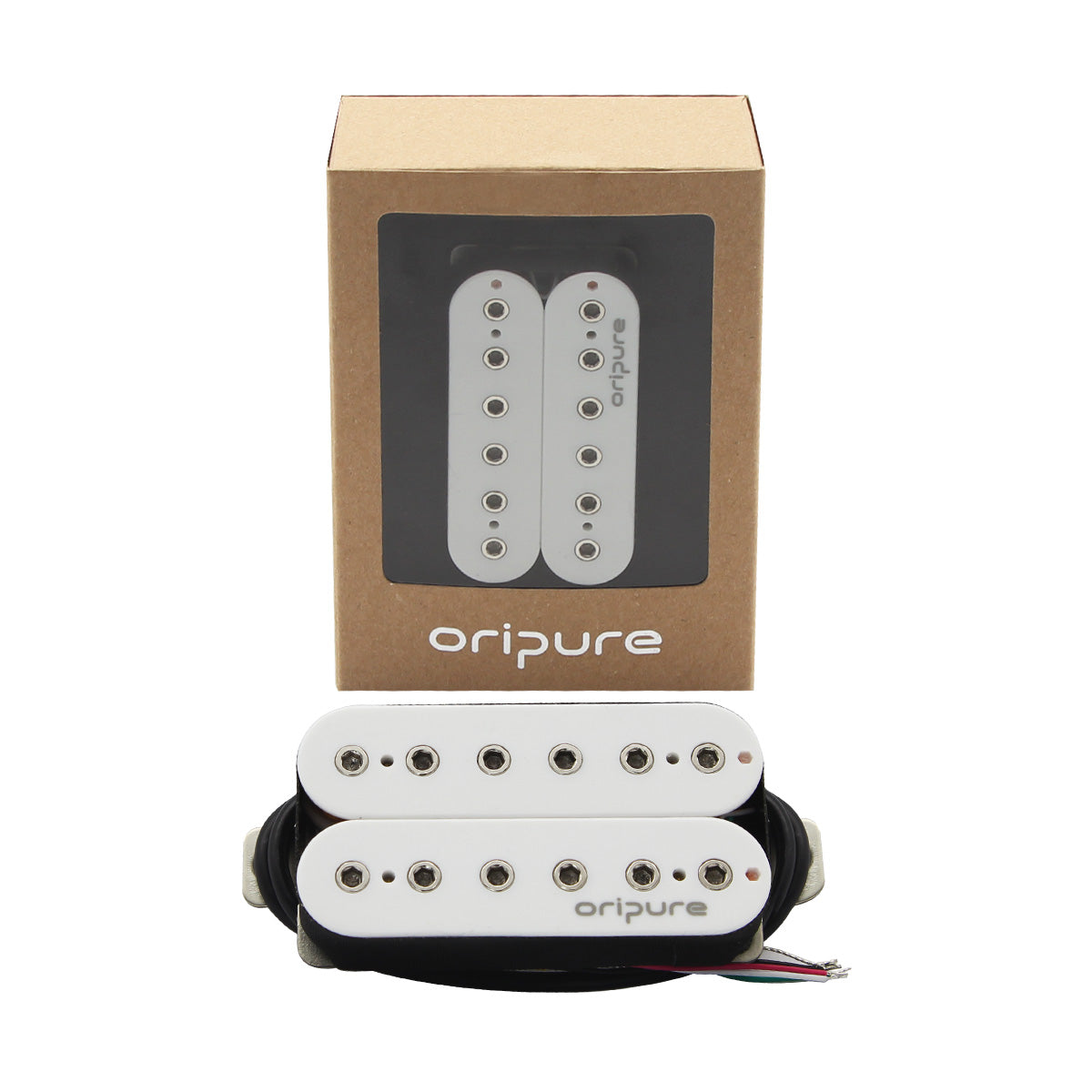

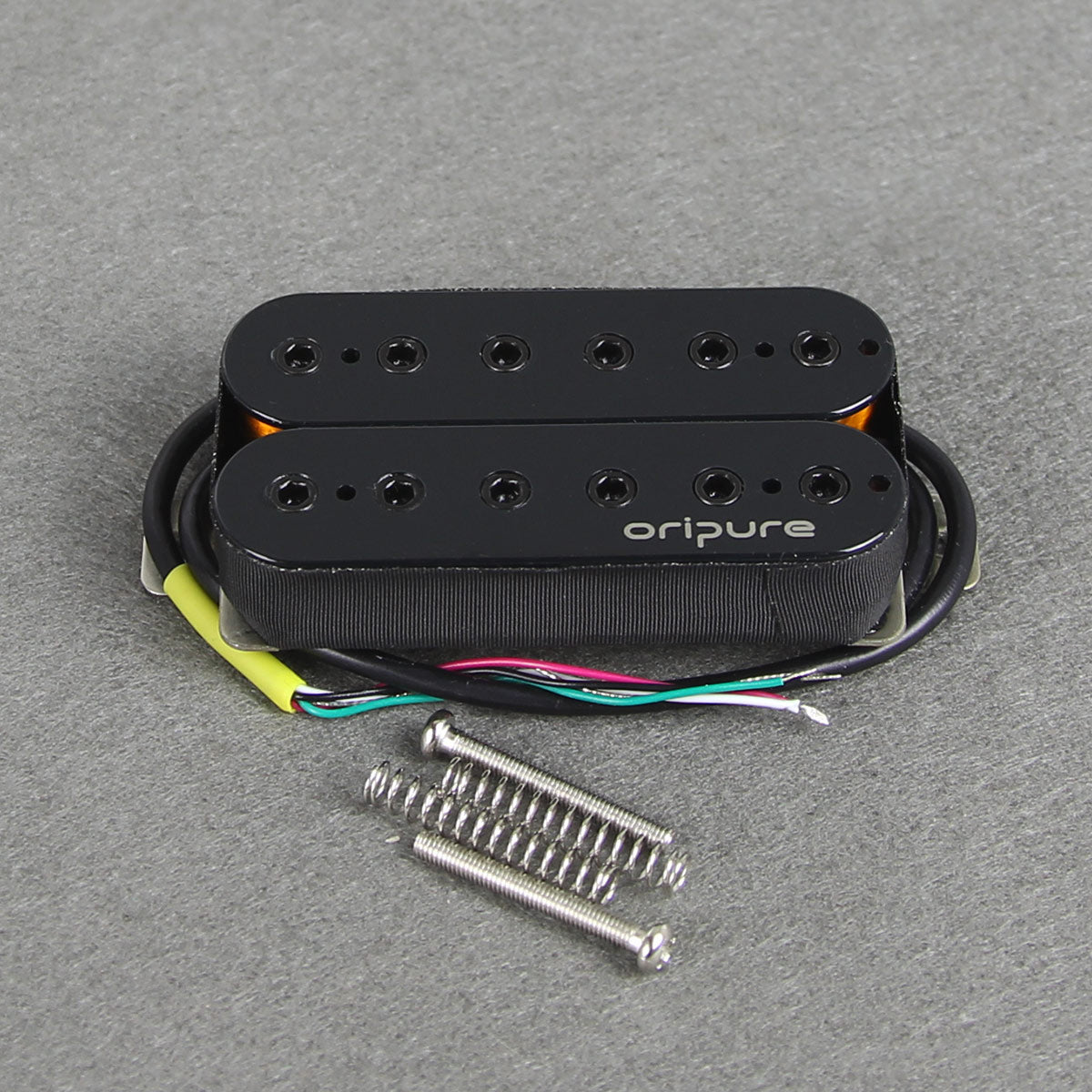

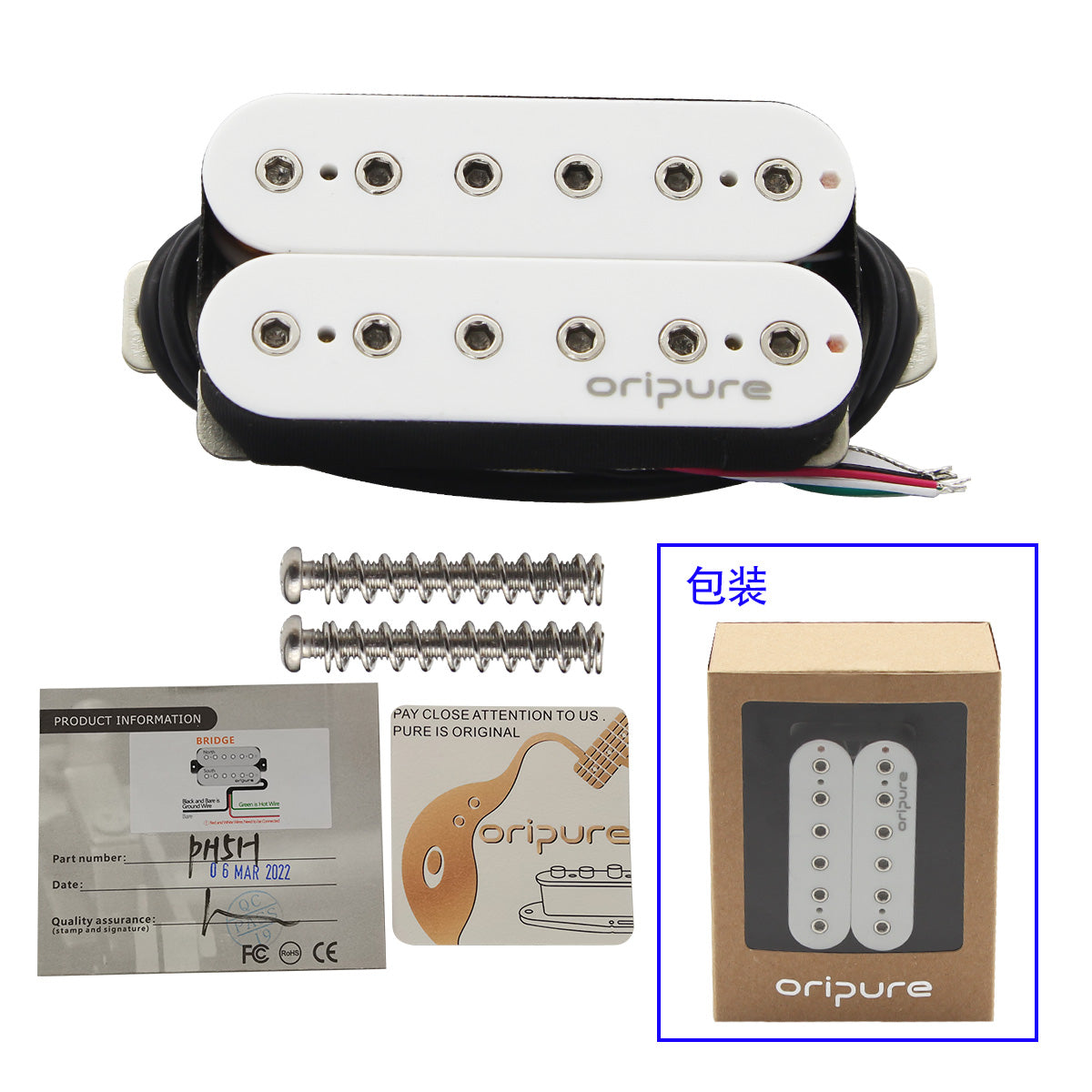

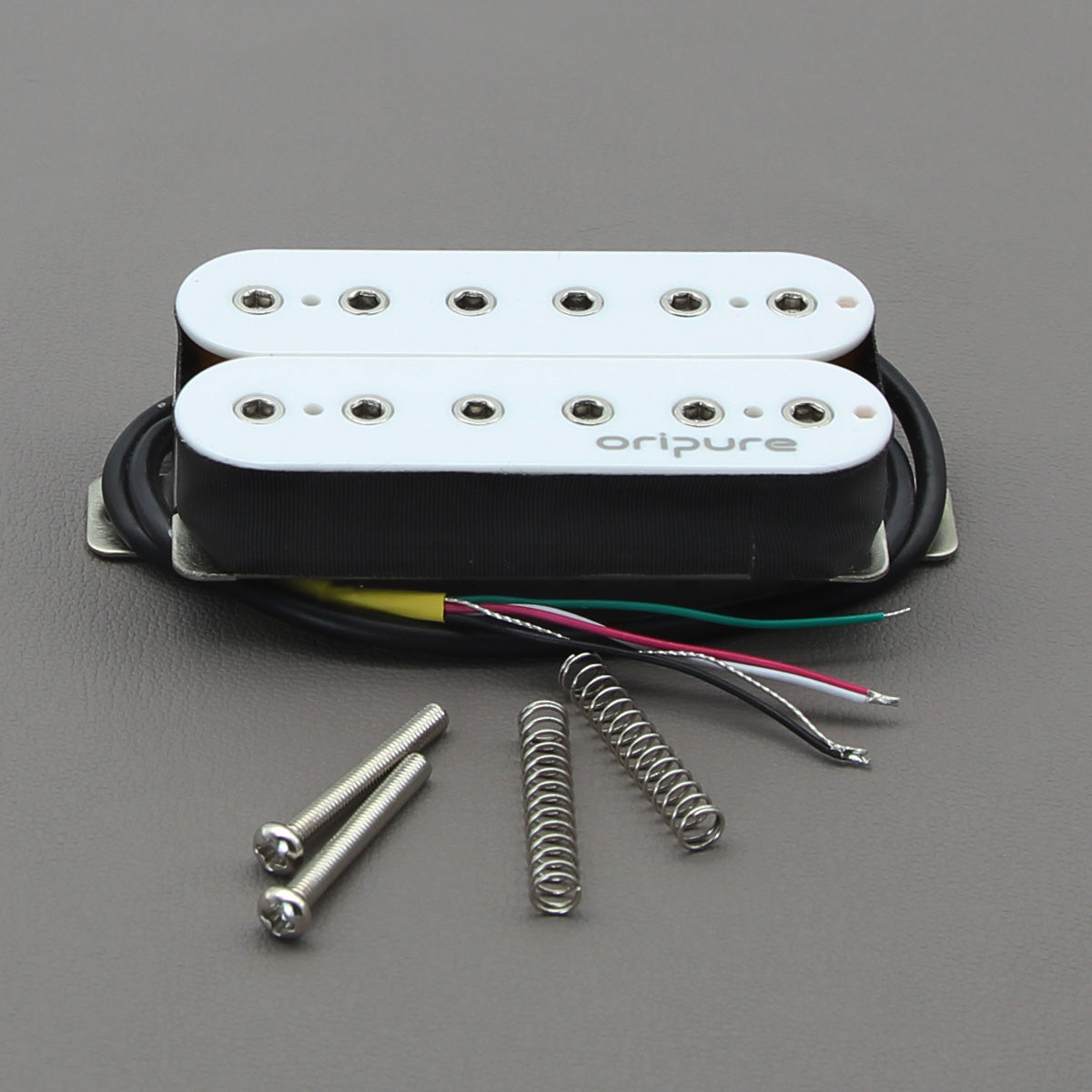

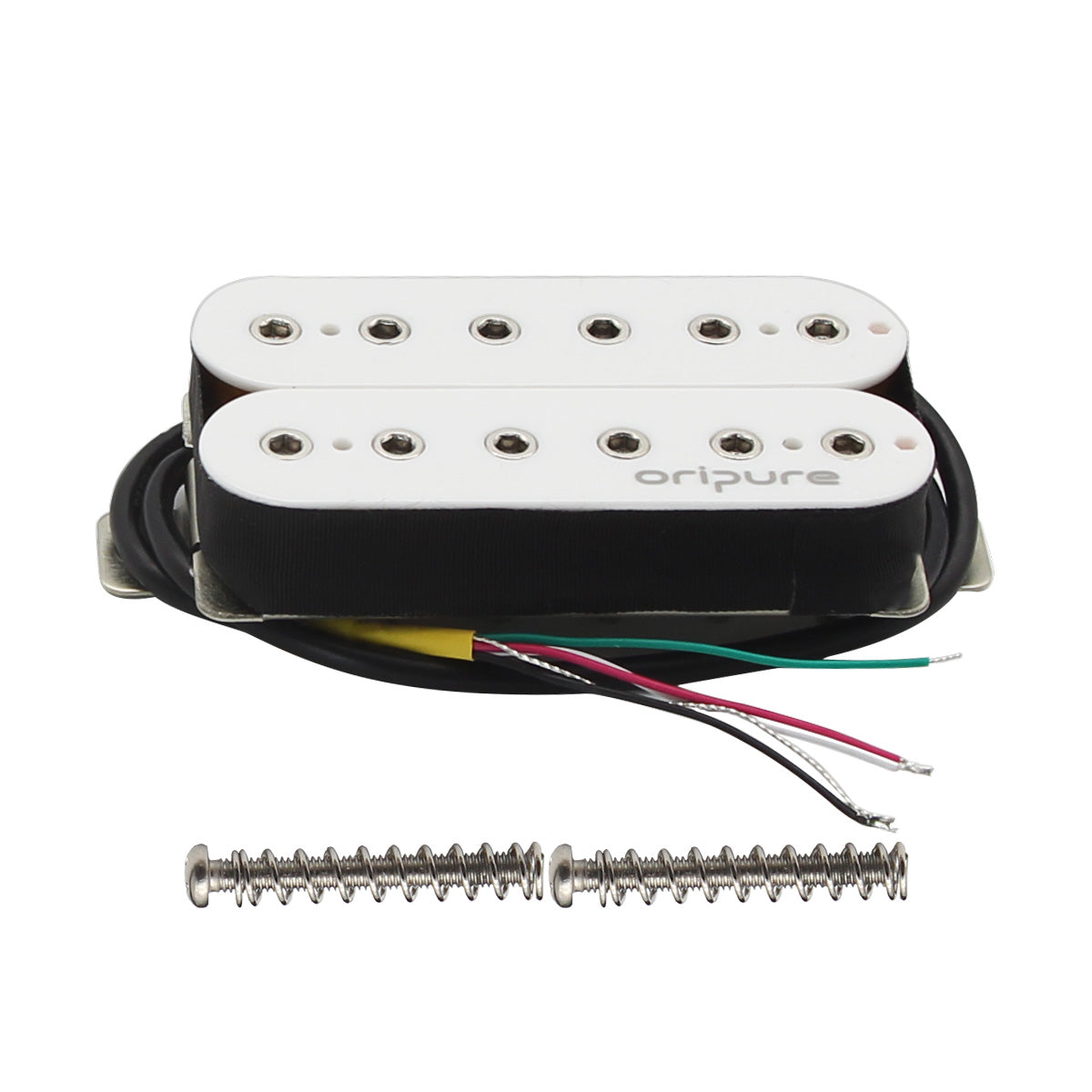

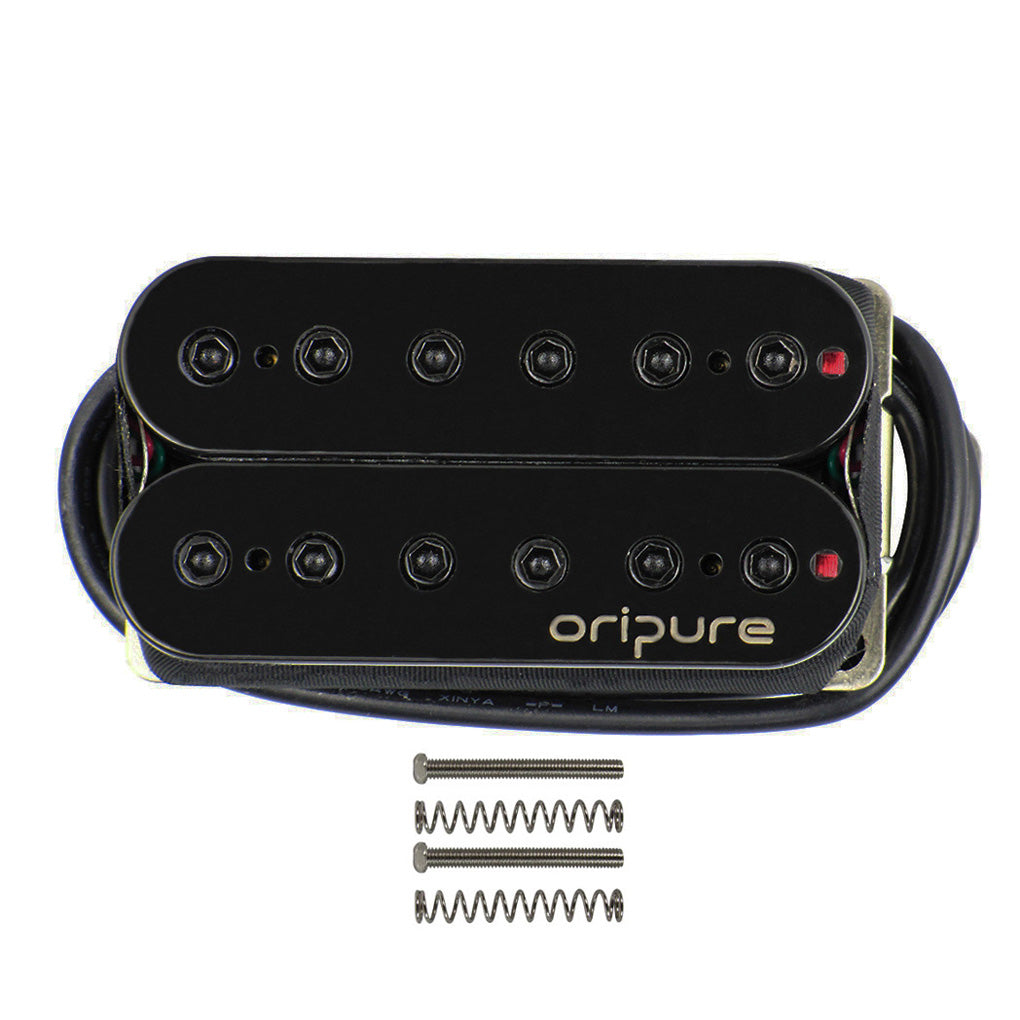

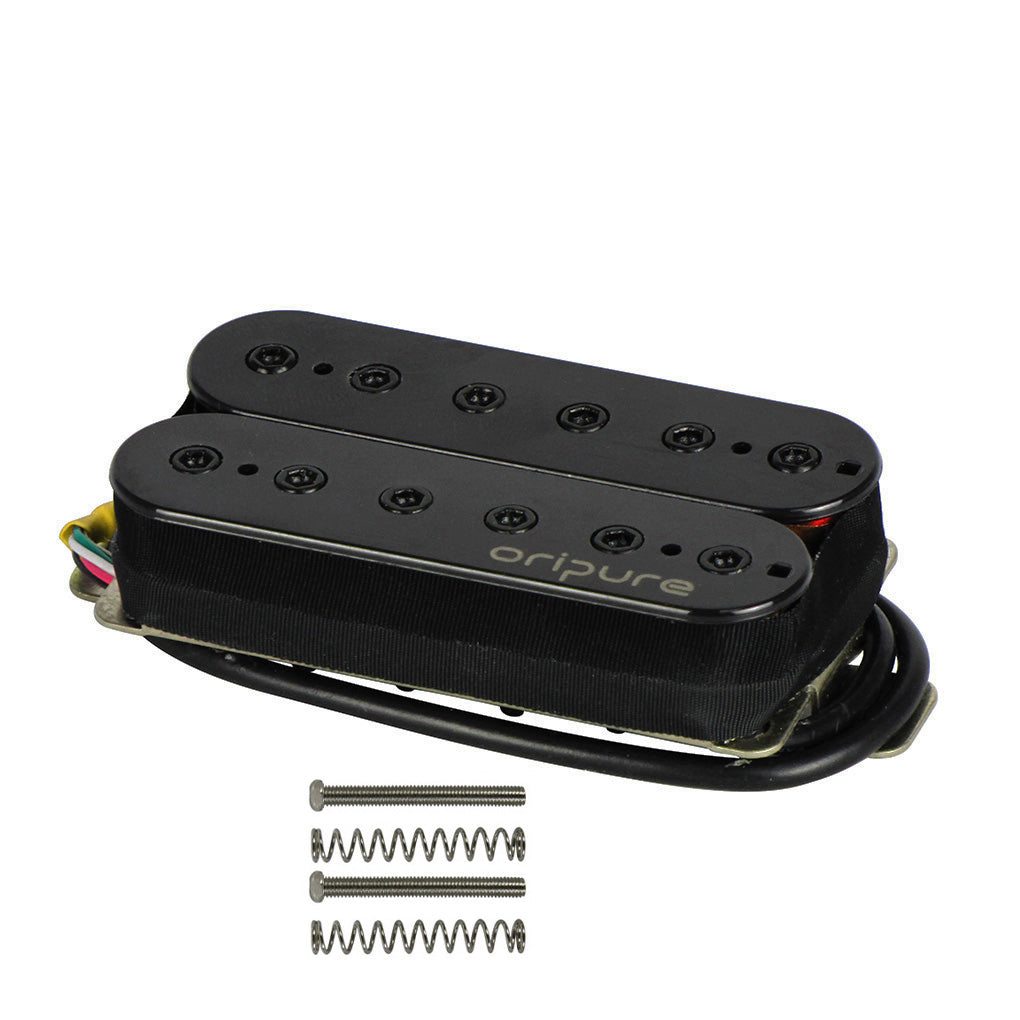

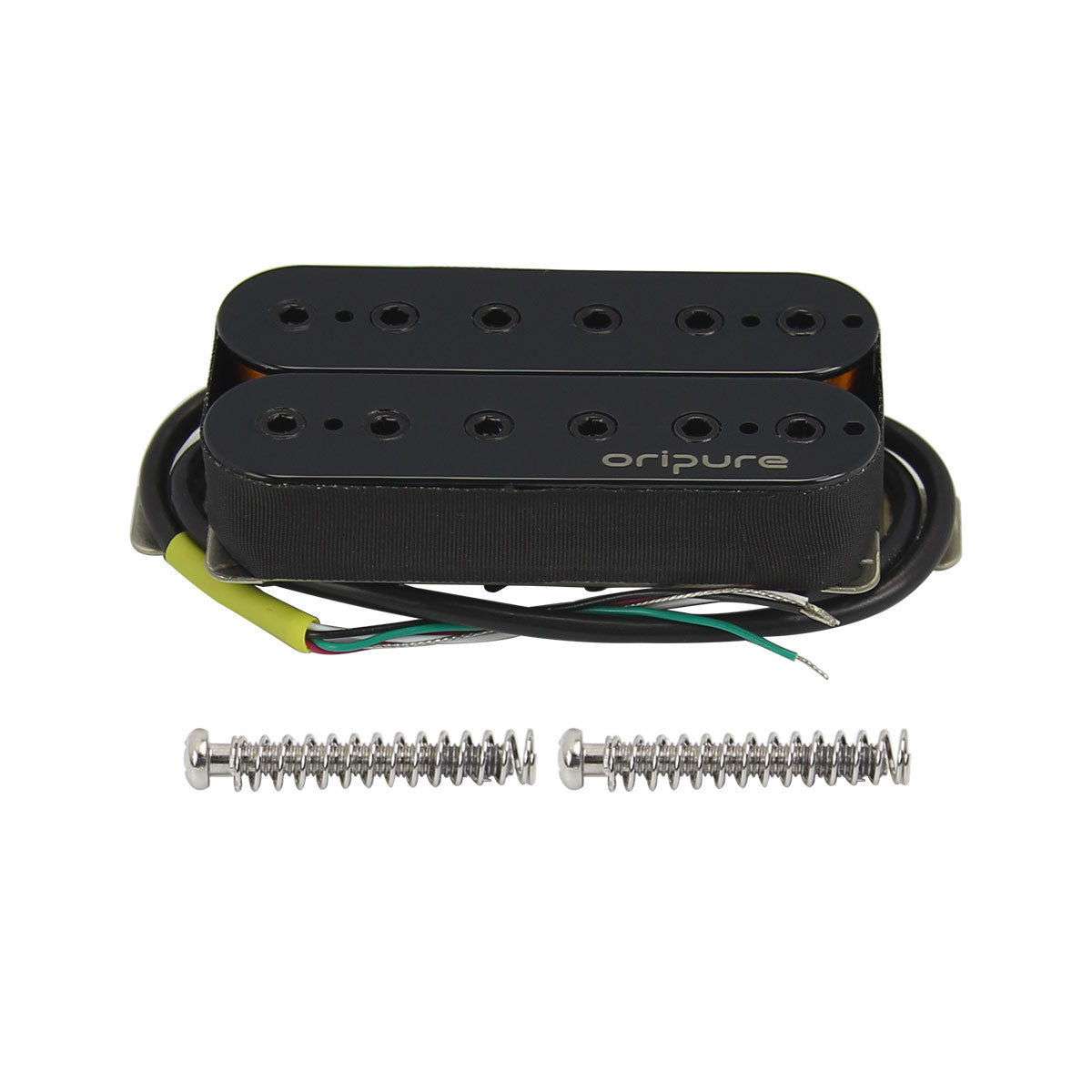

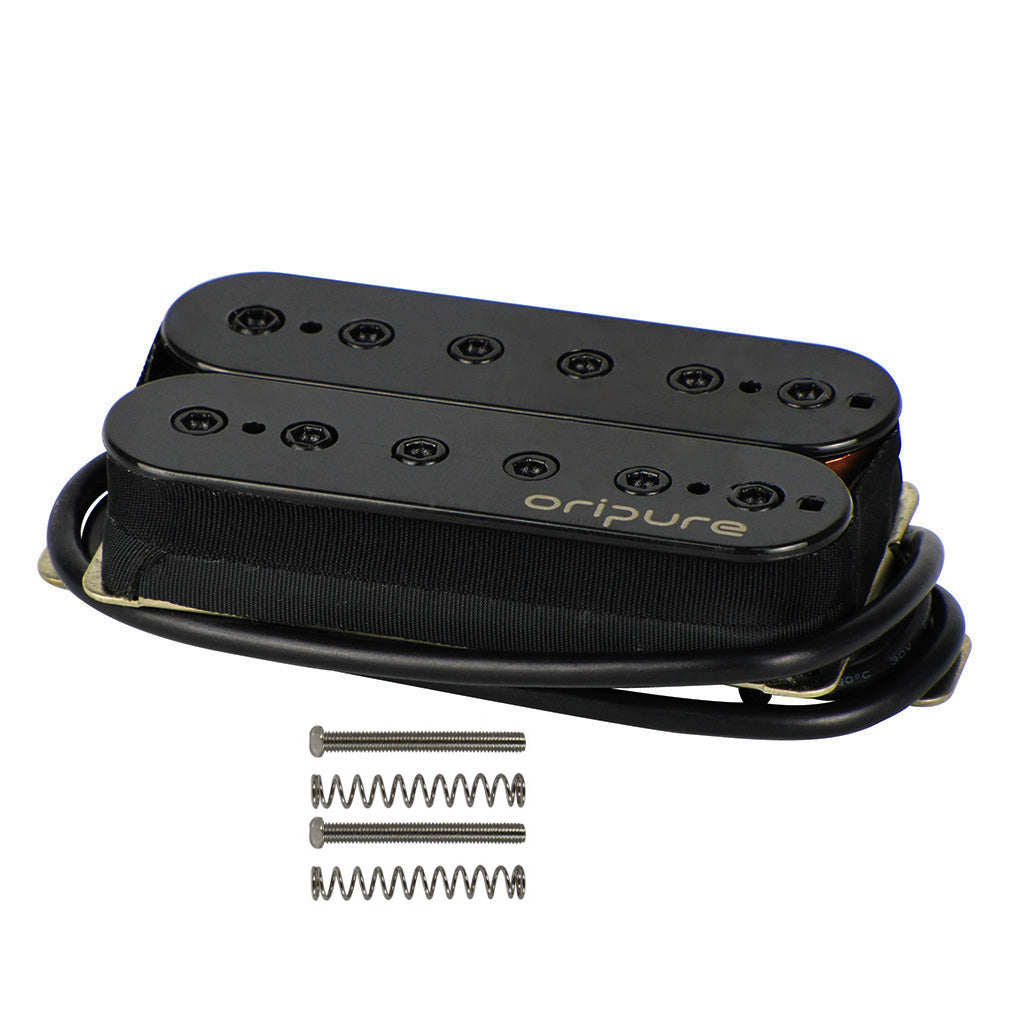

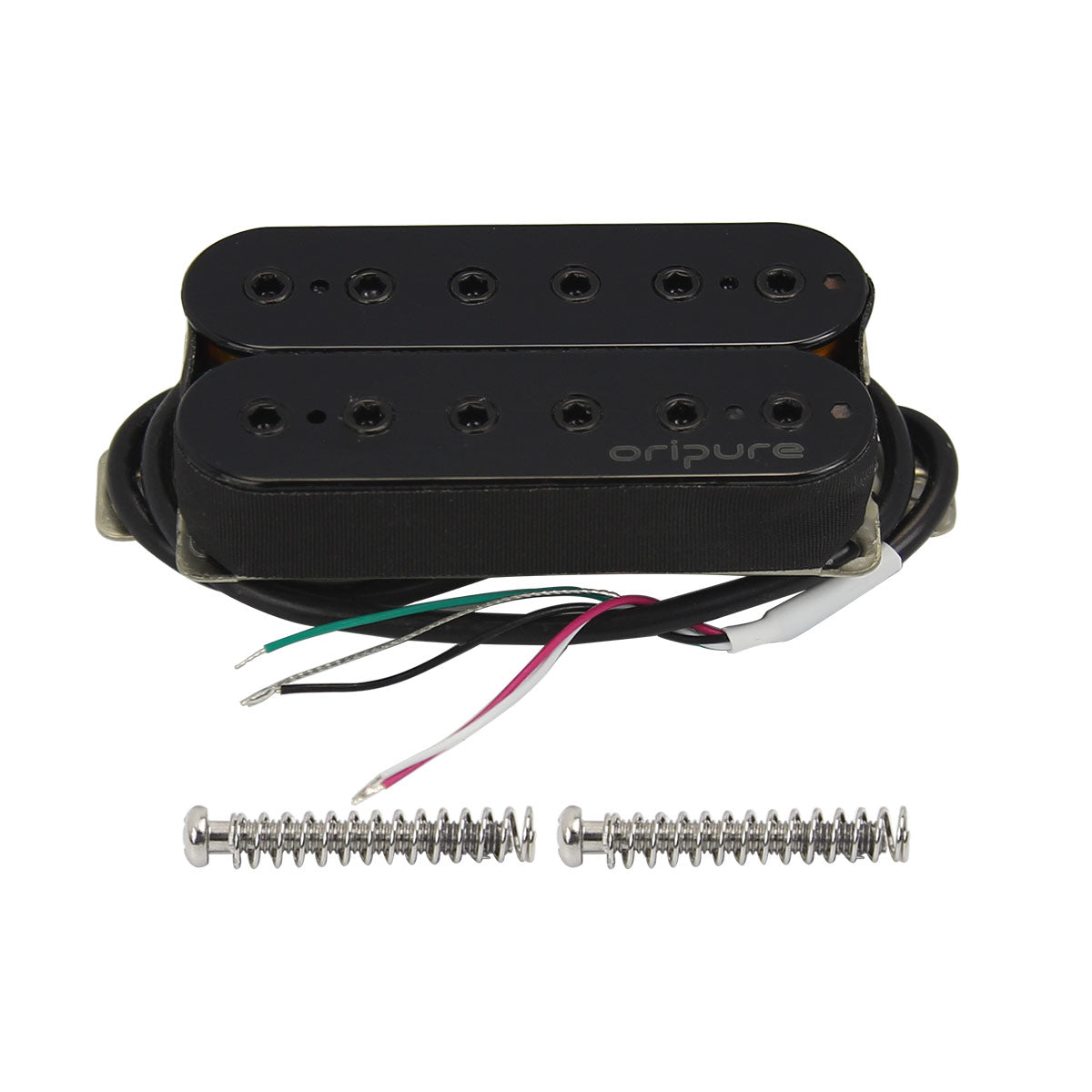

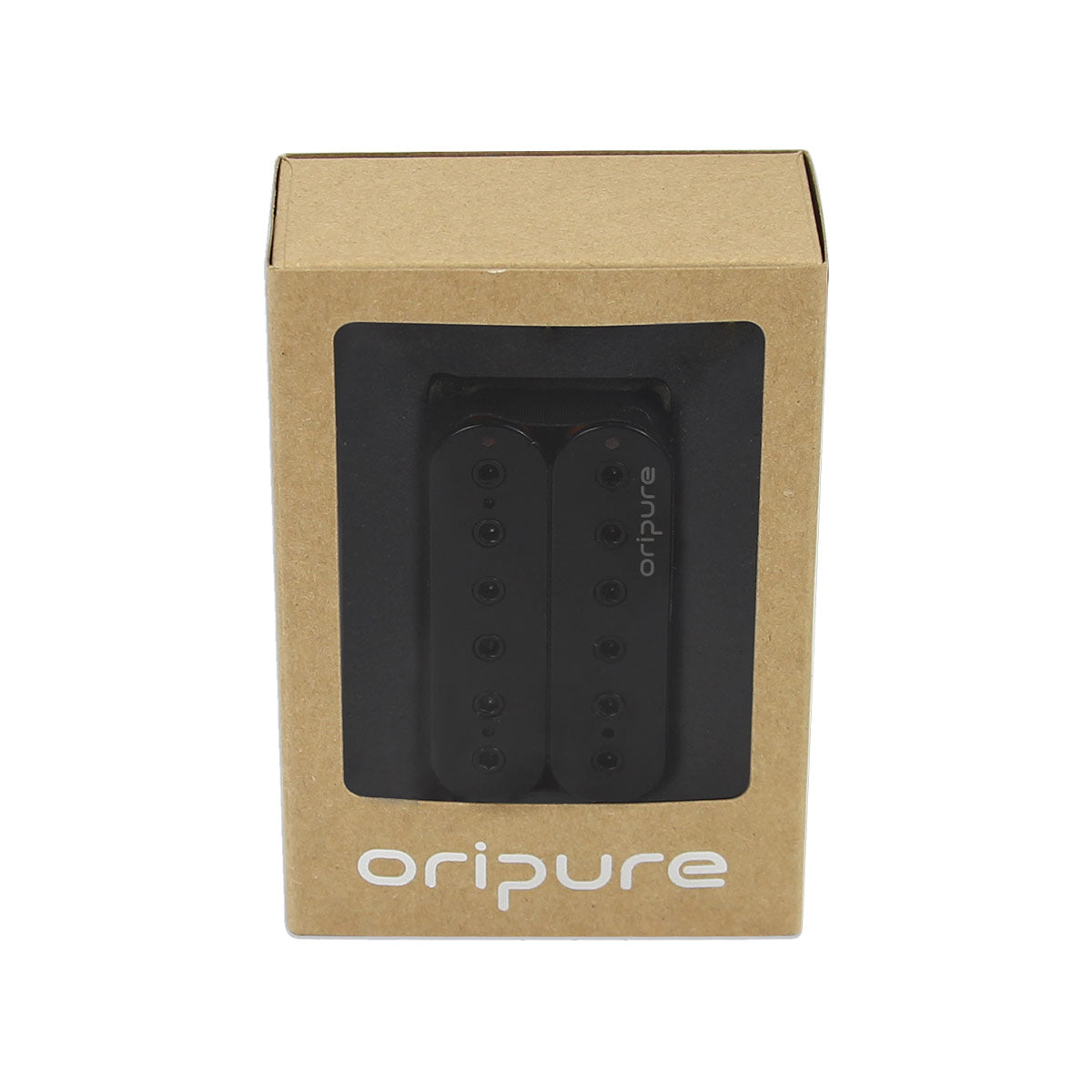

Package Includes:

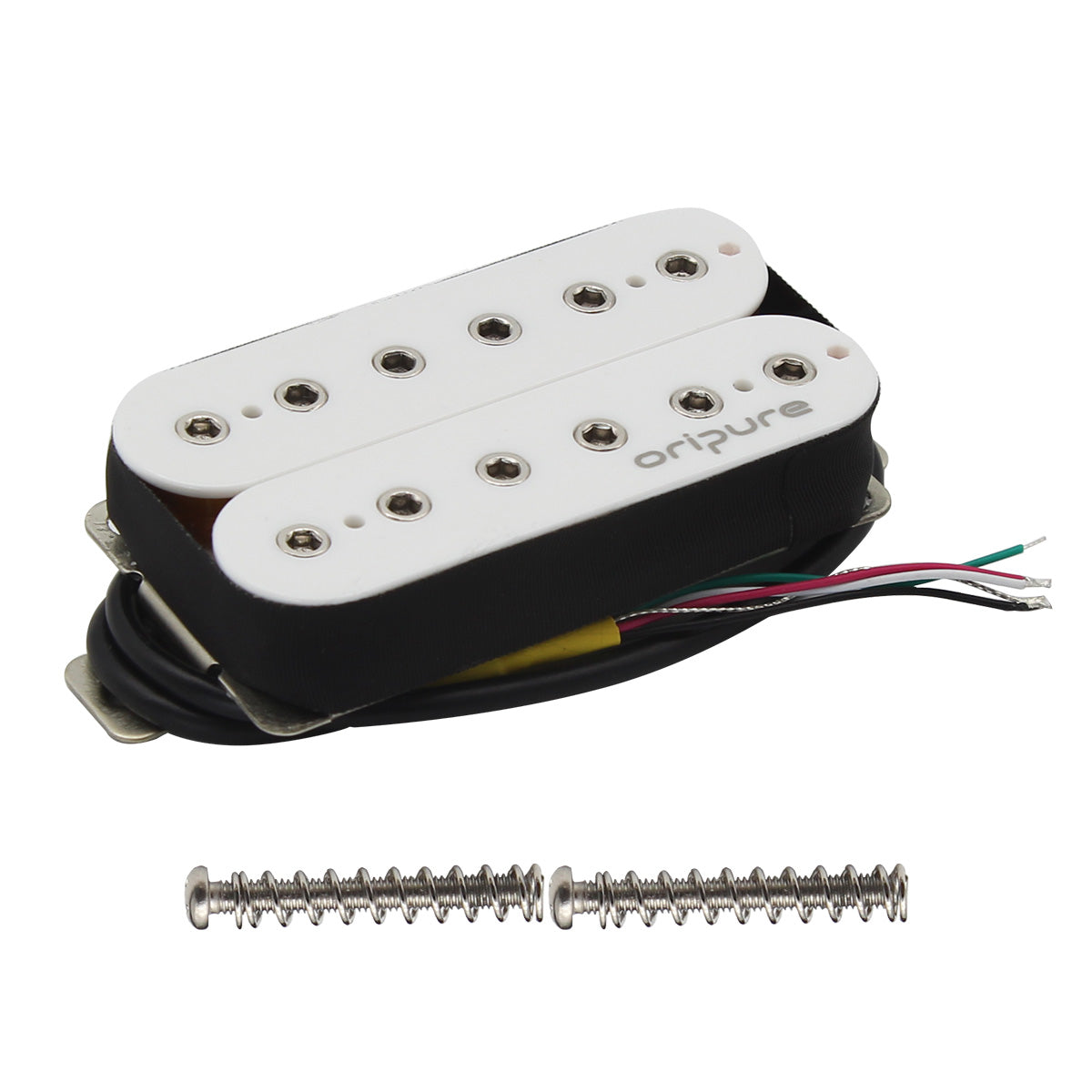

PH5 Pickup × 1
Mounting Screws × 2
Springs × 2
