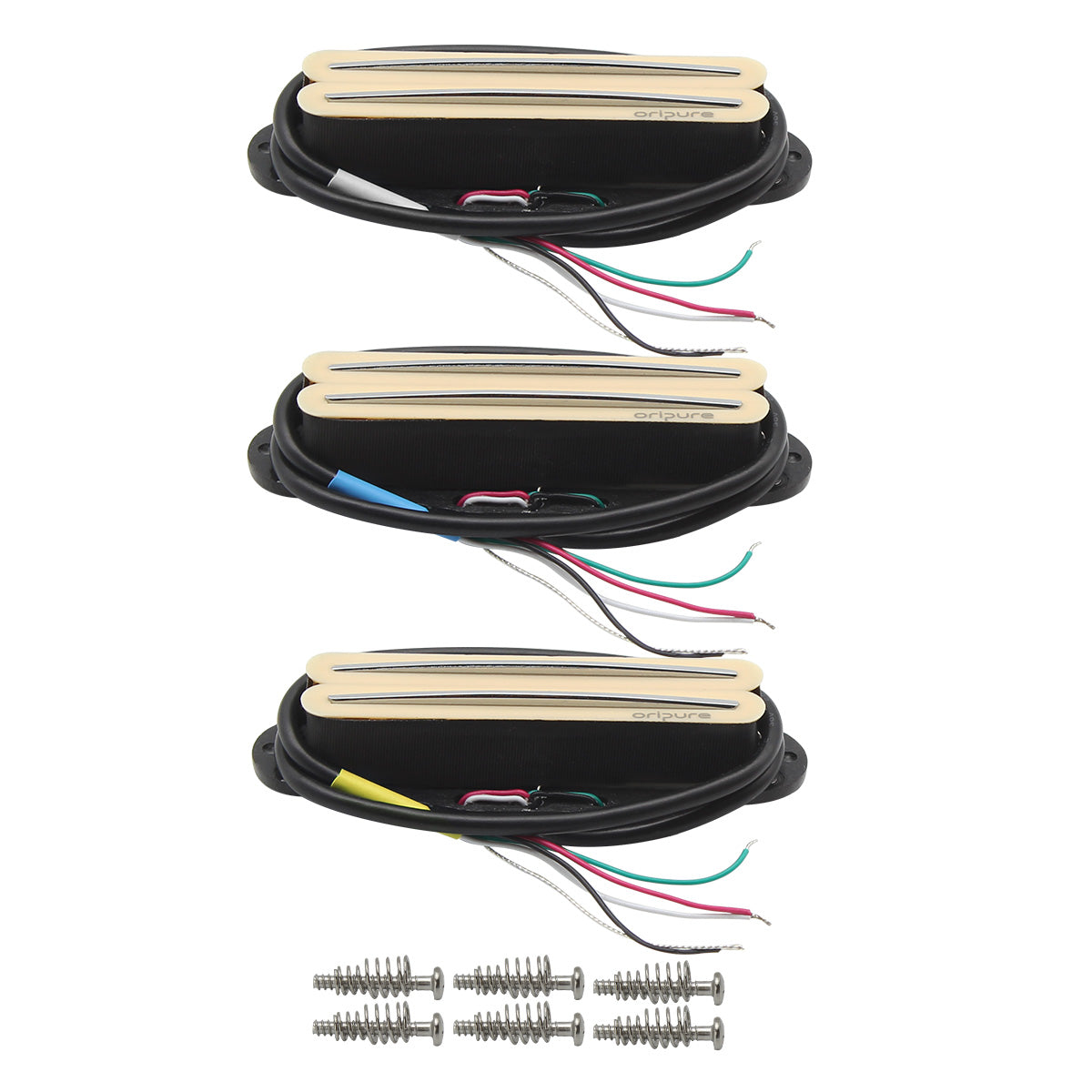

Specifications
• Brand: OriPure
• Model: PB5
• Type: Single-Coil Sized Hot Dual Rails

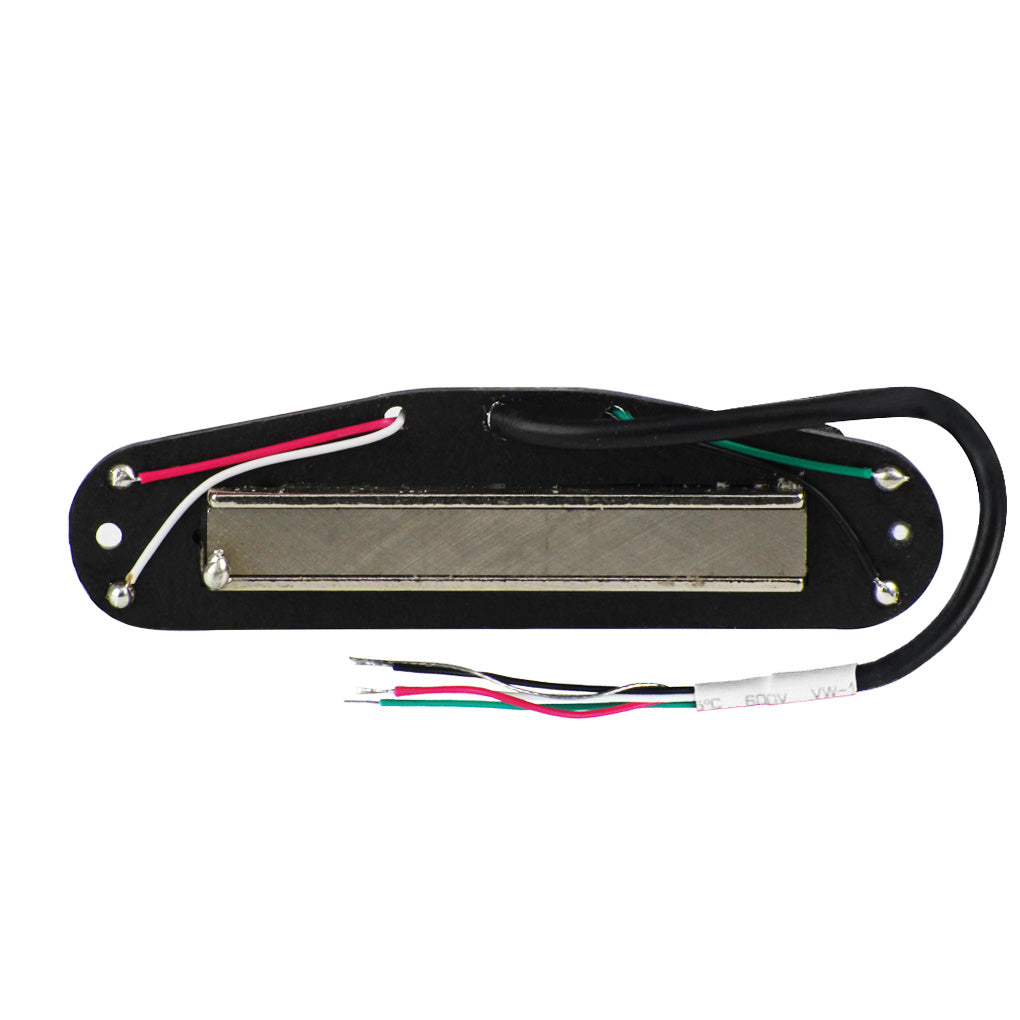

• Magnet: Alnico 5
• Wire: 4-core shielded cable (supports coil split,
phase reverse, multiple wirings)

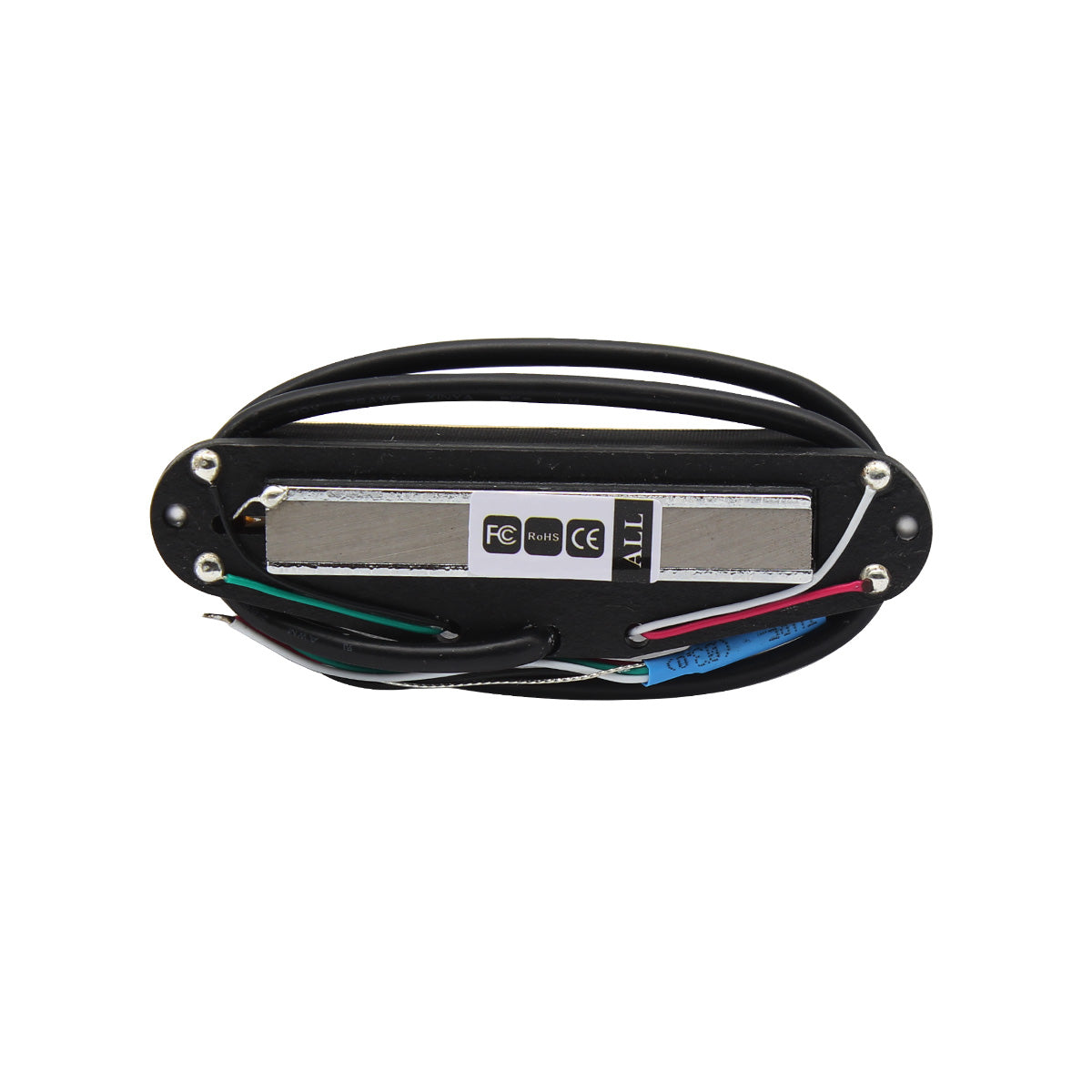

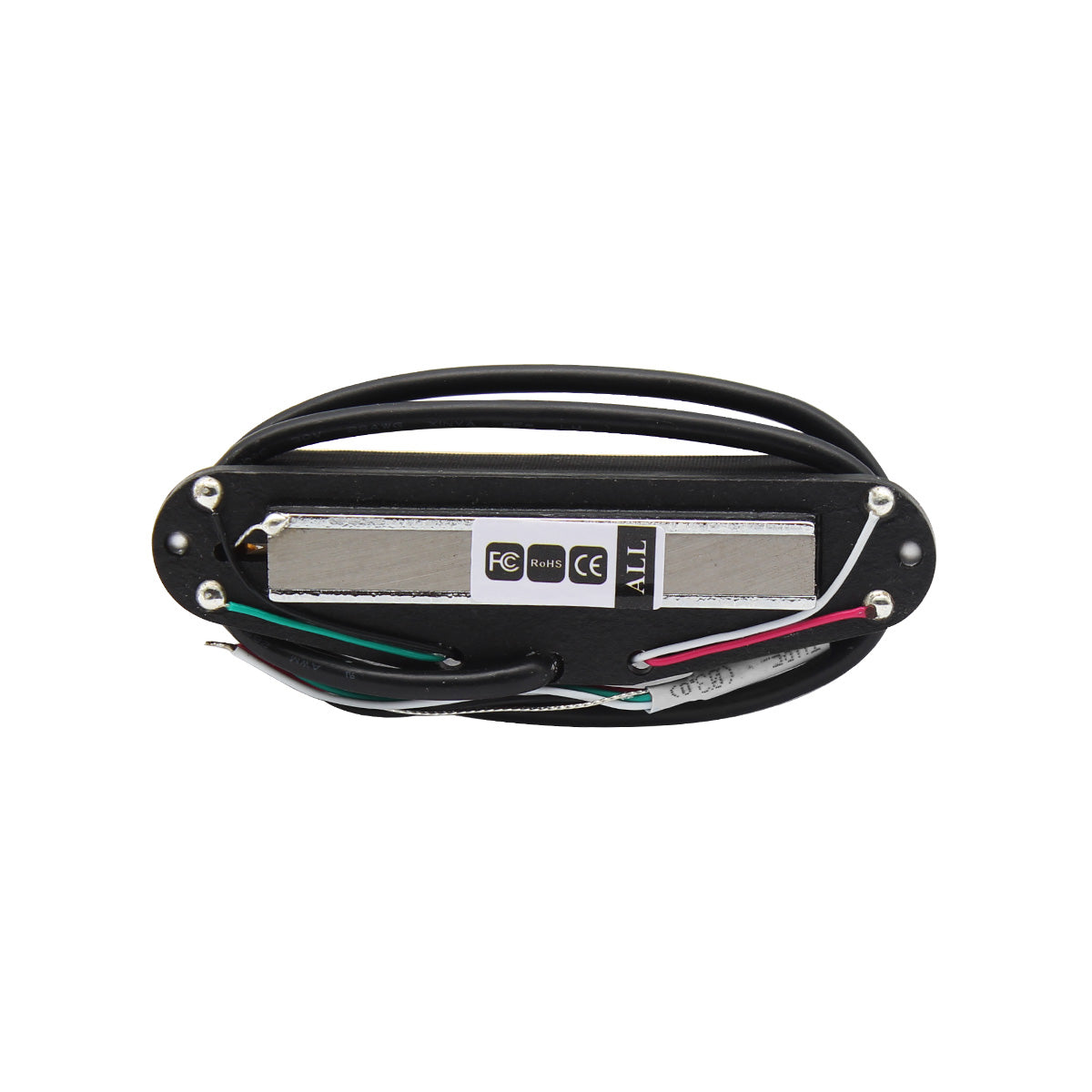

• Bobbin: Fiber Plate Bobbin
• Craftsmanship: Hand-wound + Vacuum Wax Potting
• Position: Neck / Middle / Bridge all applicable
• Compatible Guitars: ST / IBZ or any single-coil slot guitar,
direct replacement for single coil size

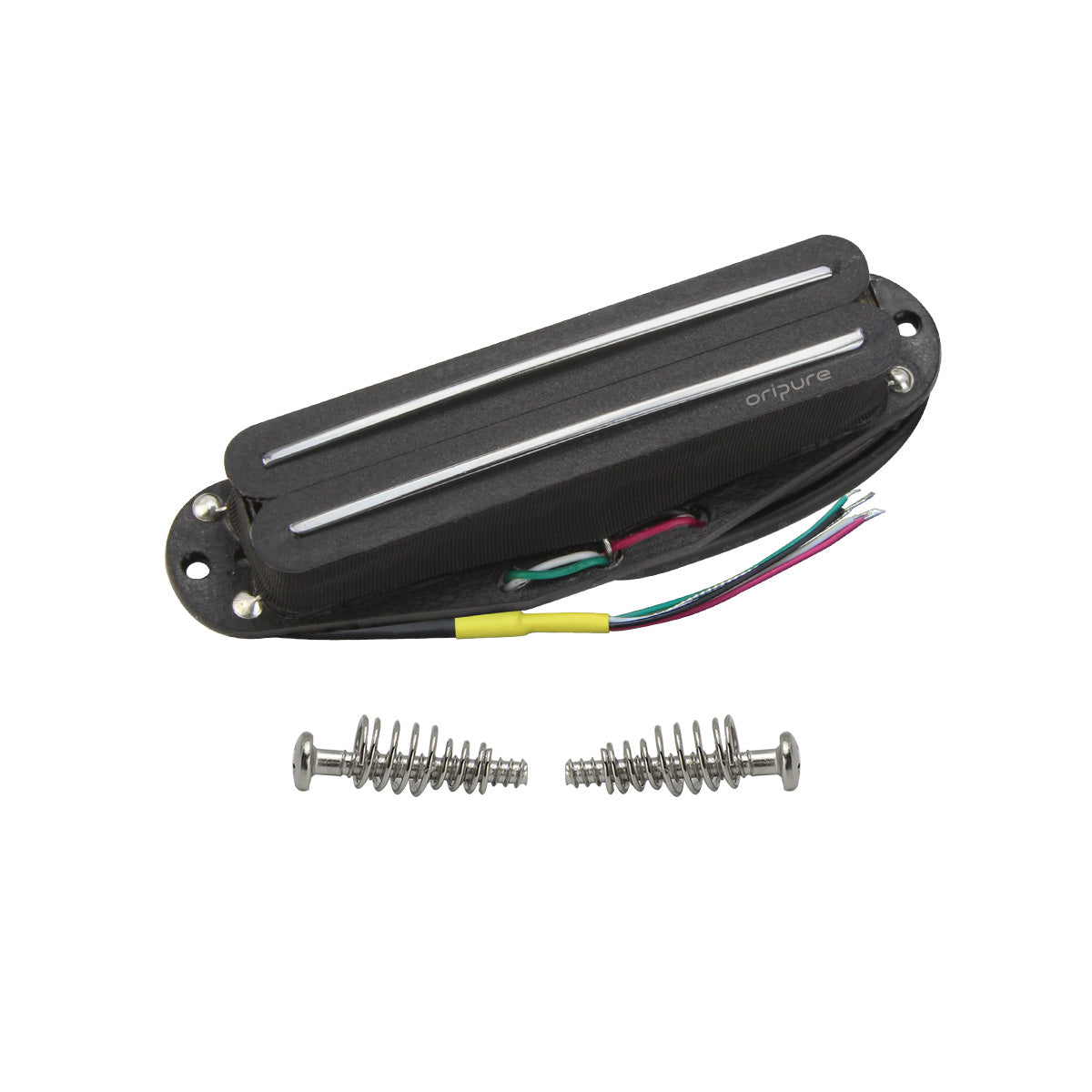

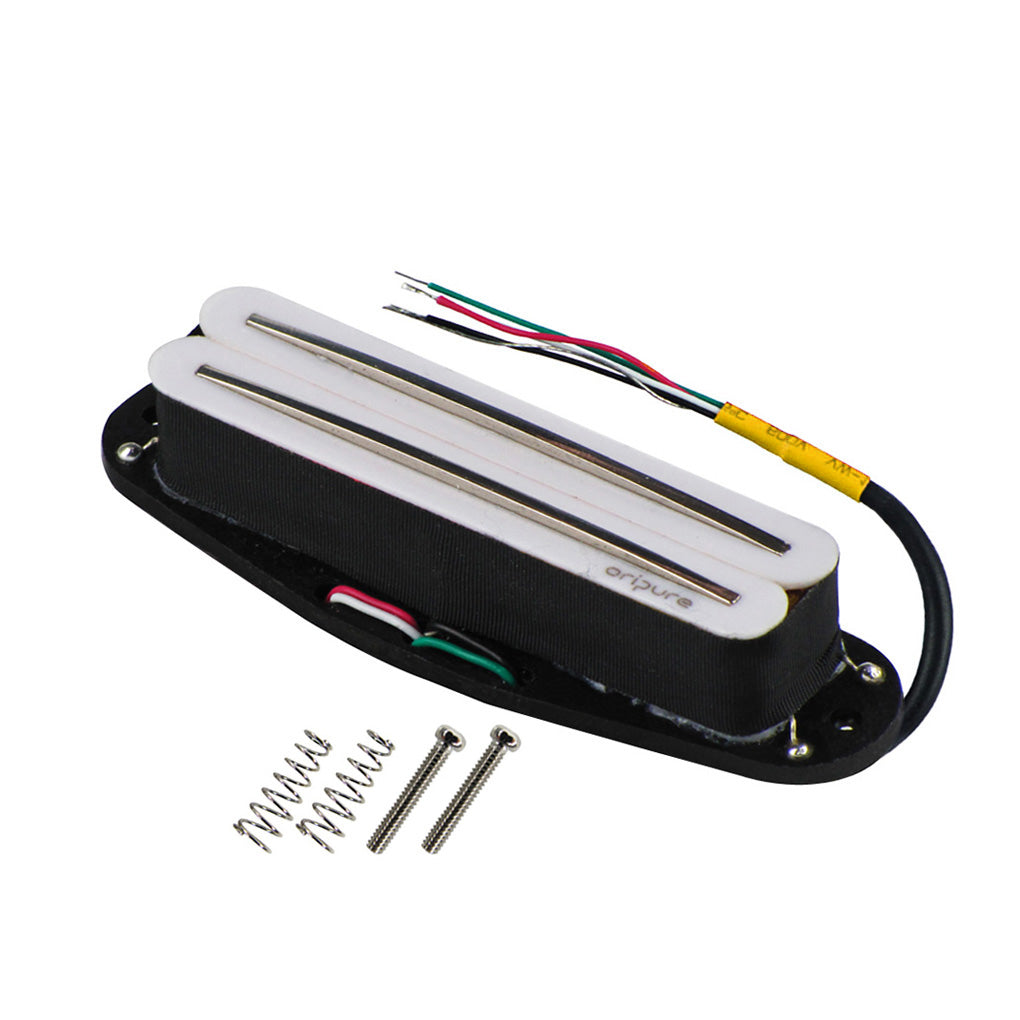

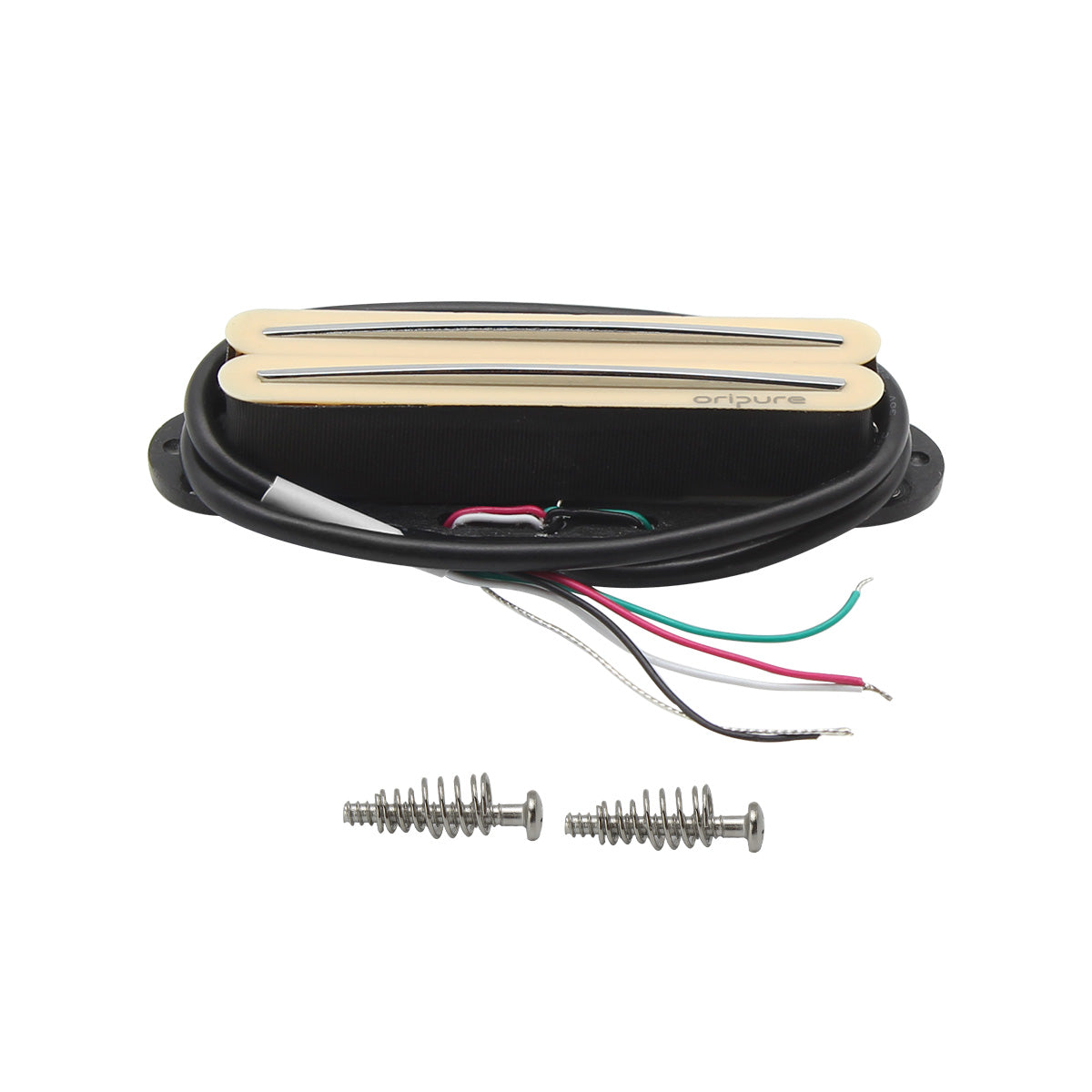

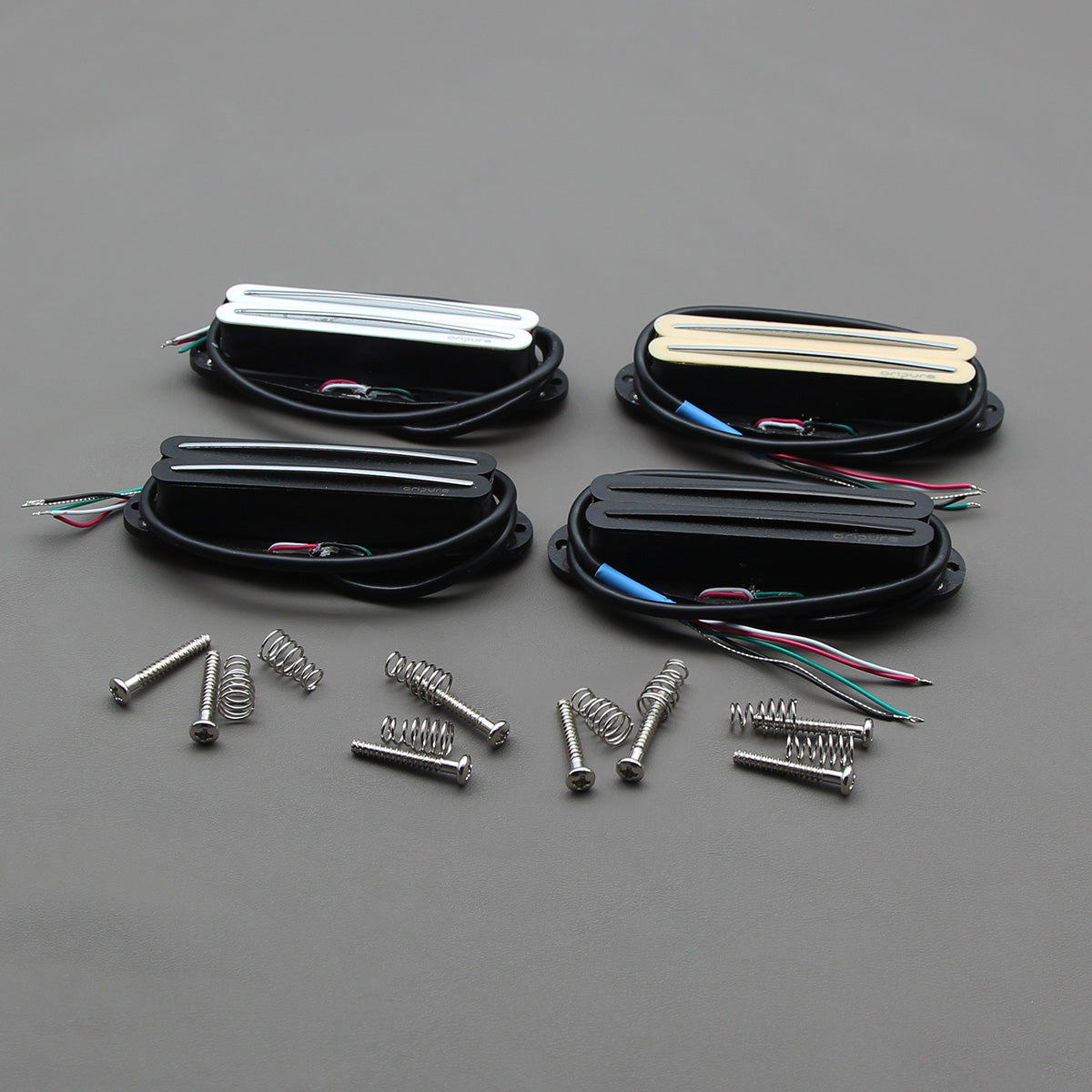

• Colors: White, Yellow, Black, Full Black
• Output Type: High Output
Parameter List
| Parameter |
Neck |
Middle |
Bridge |
| DC Resistance (DCR) |
9.3KΩ |
13.0KΩ |
16.0KΩ |
| Inductance |
5.4H |
10.0H |
11.0H |
| AWG enamel wire |
43# |
43# |
44# |
| Polarity |
N |
RwRP |
S |
| Tone Ratio (High/Mid/Low) |
40% / 35% / 25% |
55% / 35% / 10% |
40% / 35% / 15%
|
Features:
• Mini dual-rail design, high output strong push
replacing single coil without modification Fits any single-coil slot,
a high-value hot-rail solution for ST, IBZ, and mod players.
• AWG 43 enameled wire with Alnico 5 magnet
The result is a more impactful and dynamic tone,
which is brighter and more transparent than traditional
humbucking pickups.

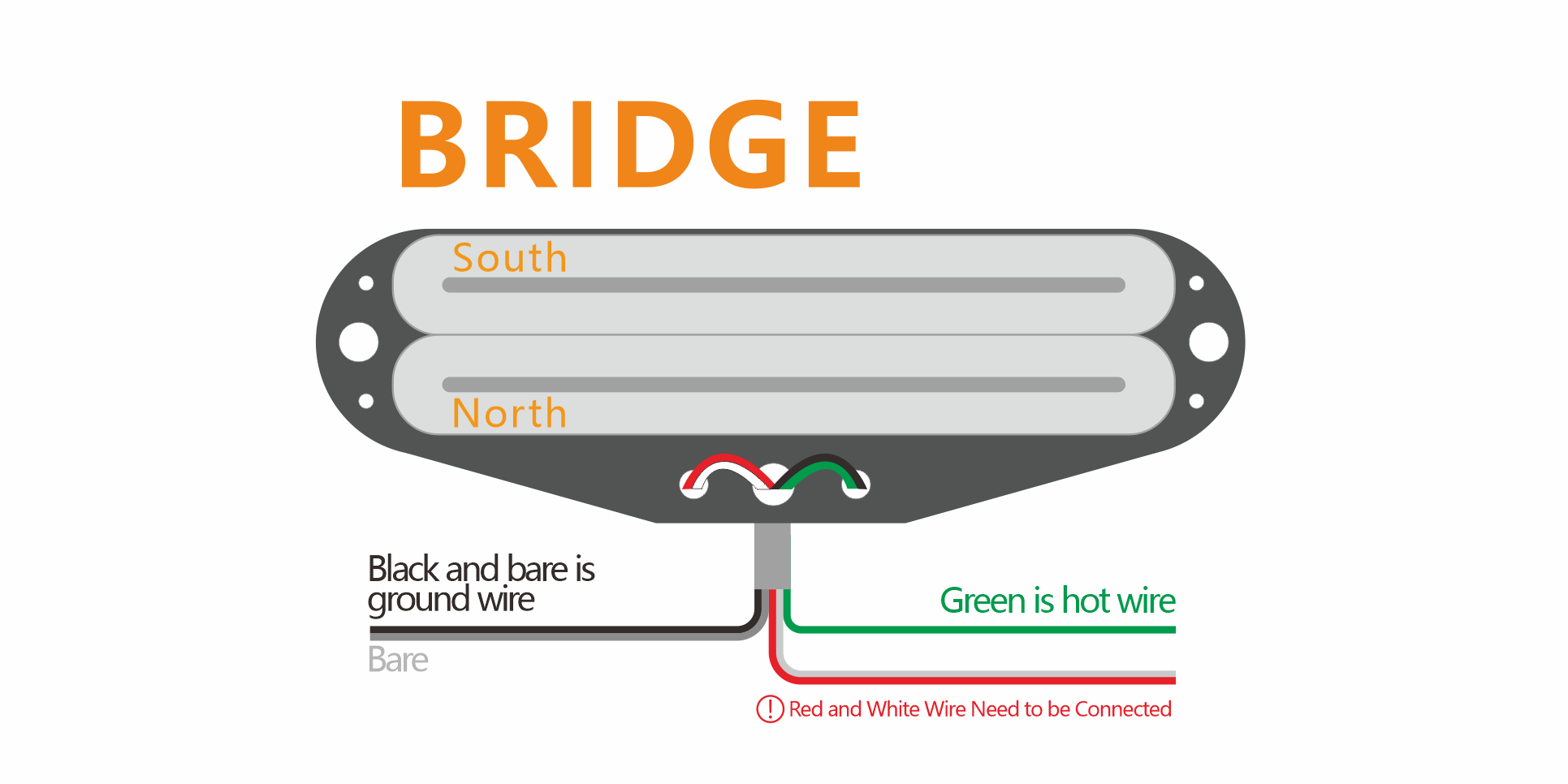

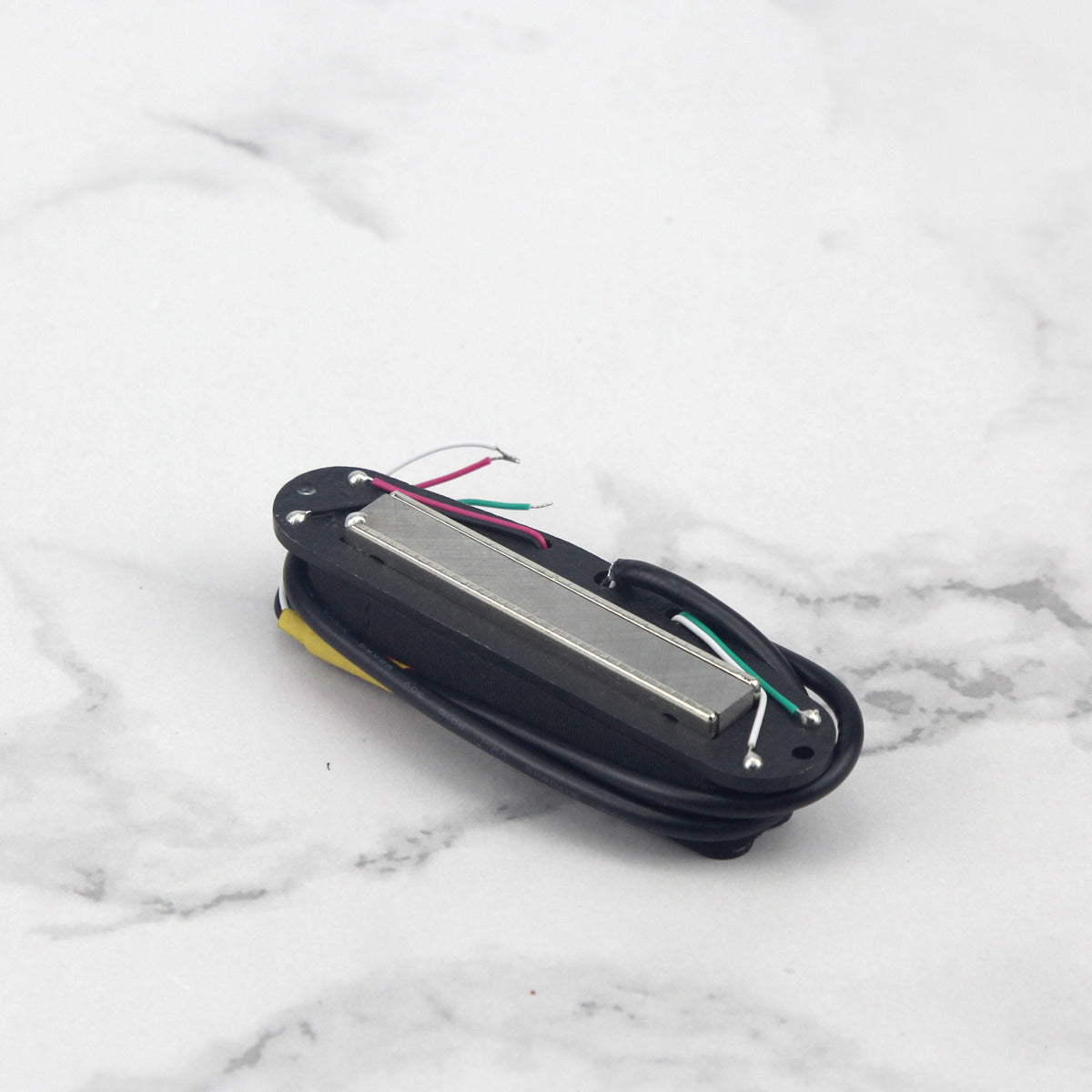

• Four-core wire
full wiring freedom Supports Coil Split, Phase Reverse, Series /
Parallel wiring, meeting advanced player needs.
• Vacuum wax potting for squeal suppression
suitable for high gain, reducing mechanical noise, stable in
live performance without squeal.
Tone Profiles
• Neck - 9.3kΩ Tone
Warm, sweet, delicate, slight twang. Round and full sound,
clear fingerstyle, strong steel-string texture. Suitable for clean,
soft jazz, warm blues.
• Middle - 13kΩ Tone
Bright, clear, warm, crisp. Great for Funk, Pop, rhythm playing;
transparent and cutting without harshness.
• Bridge - 16kΩ Tone
Bright, powerful, aggressive, high output, suitable for rock and
heavy rhythm. Chords sound clear with twinkly brightness, great
sustain, full overdrive.
Suitable Genres:
Blues • Country • Jazz • Funk • Post-rock • Brit-Rock • Grunge •
Math Rock • Noise Rock • Shoegaze • Punk • Classic Rock •
Hard Rock

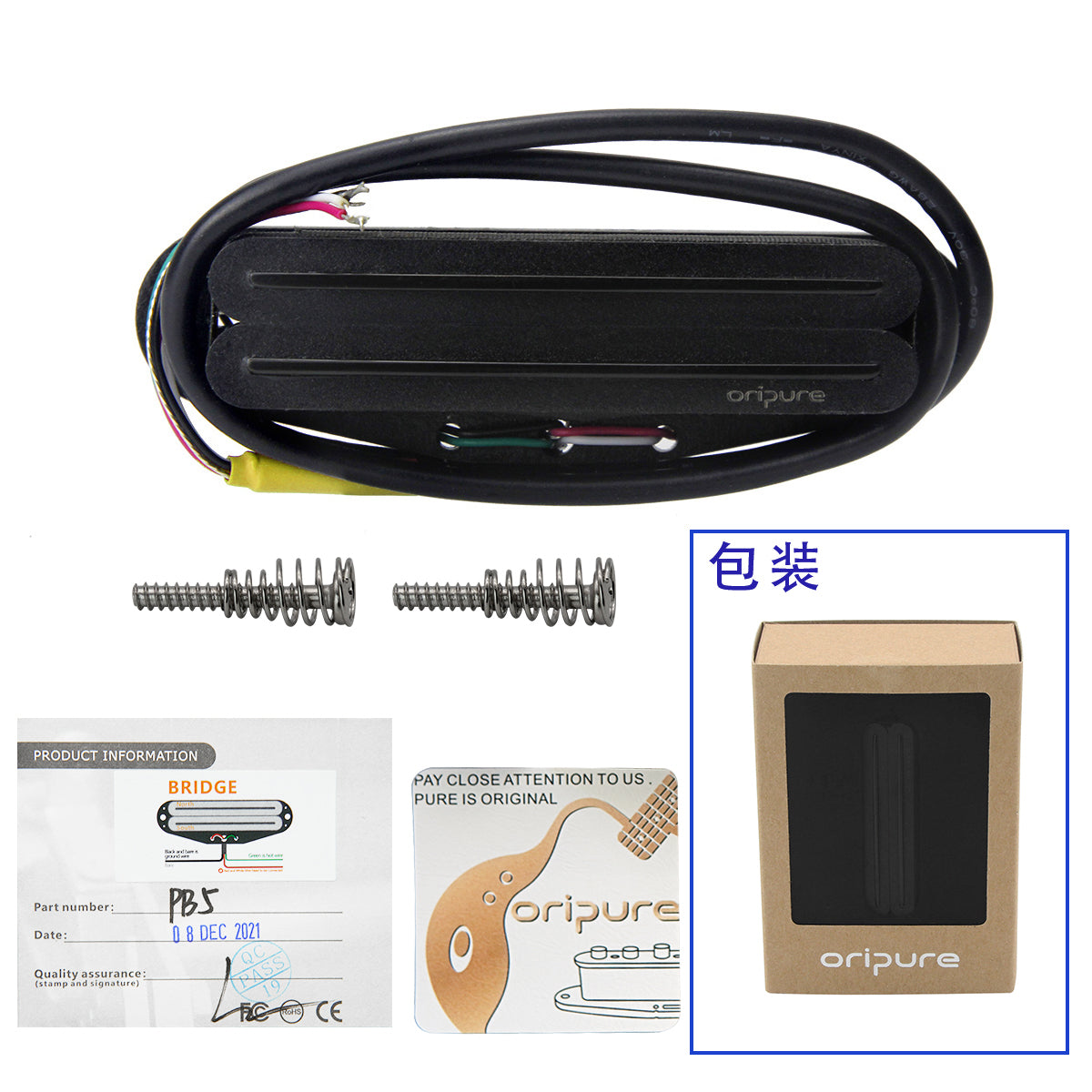

Package Includes:

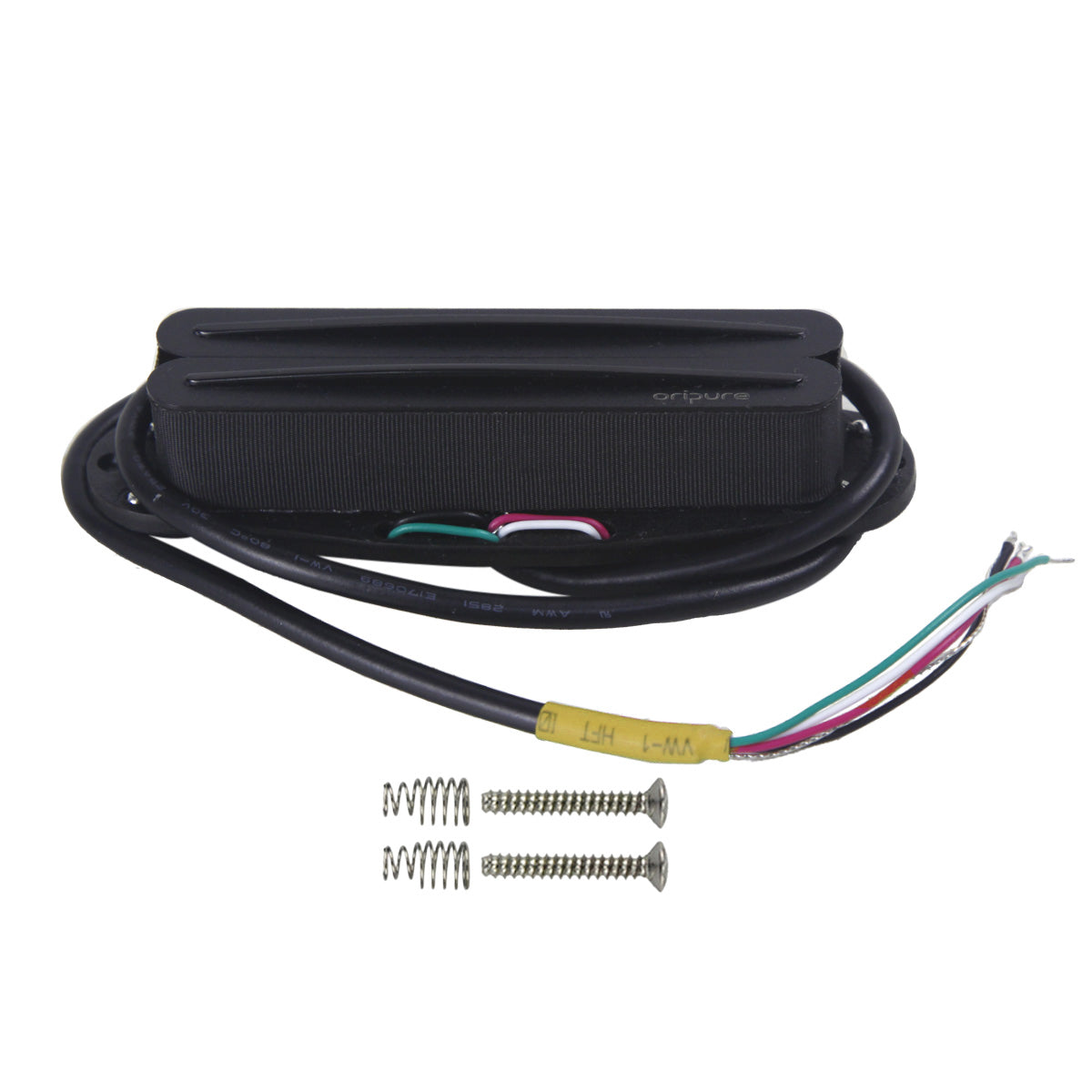

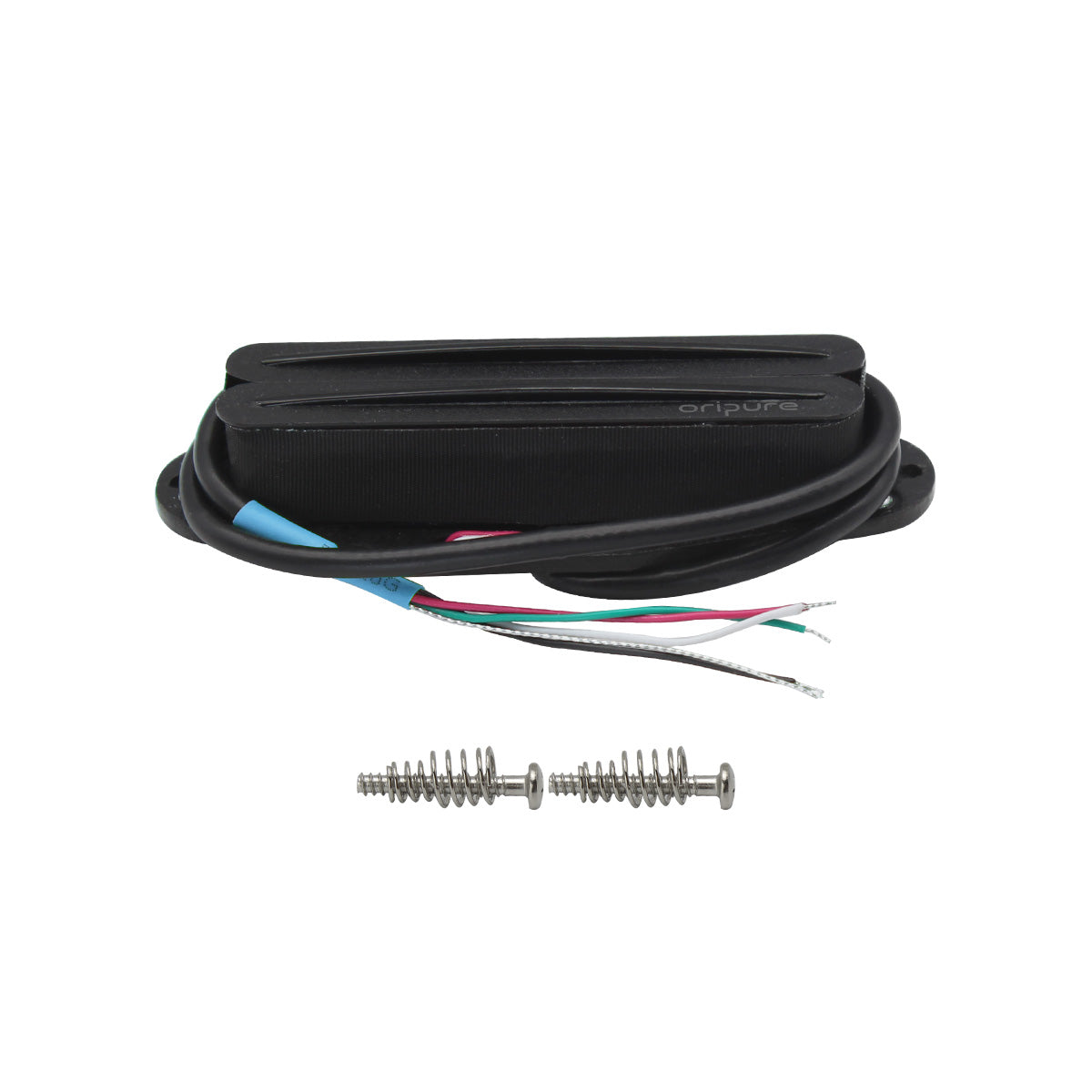

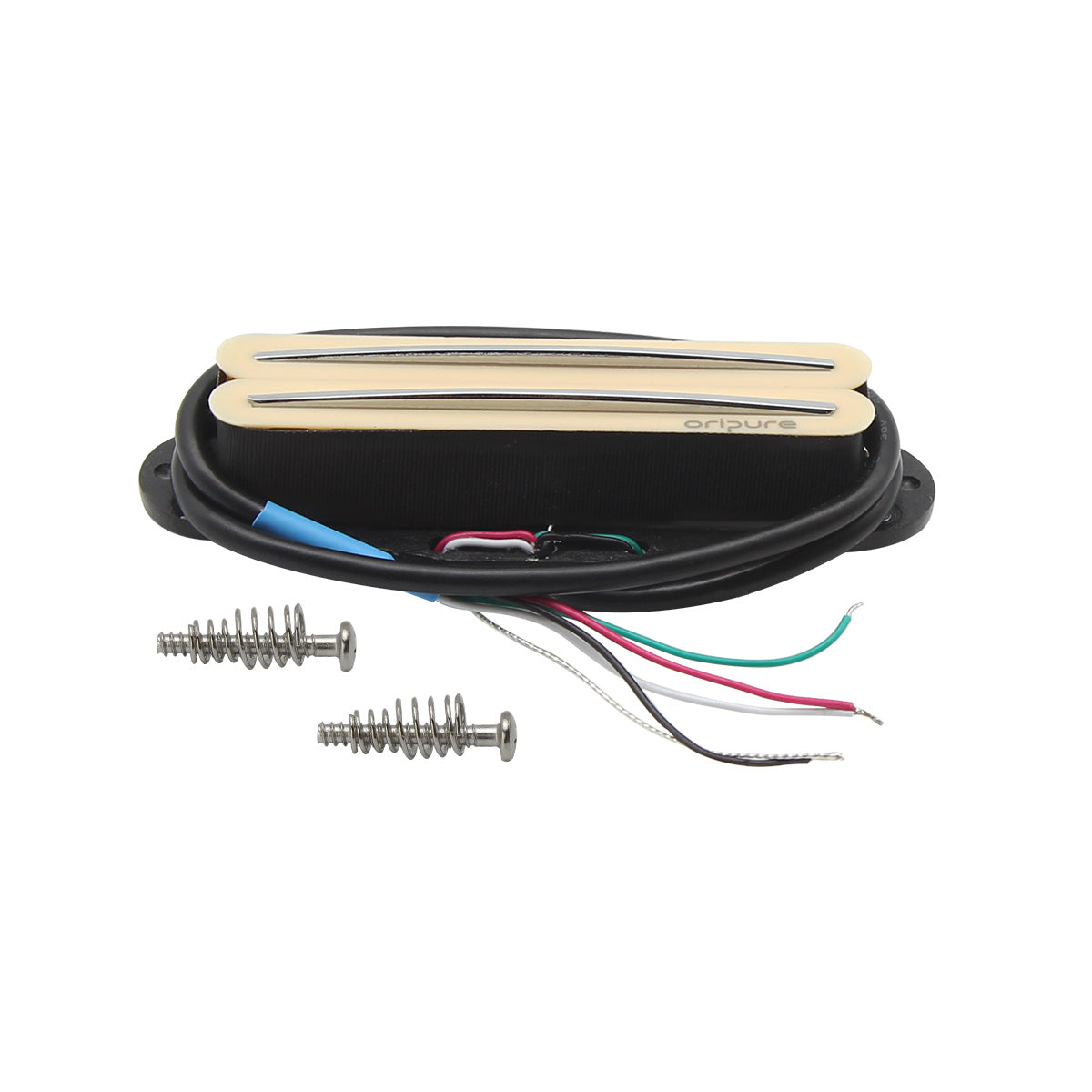

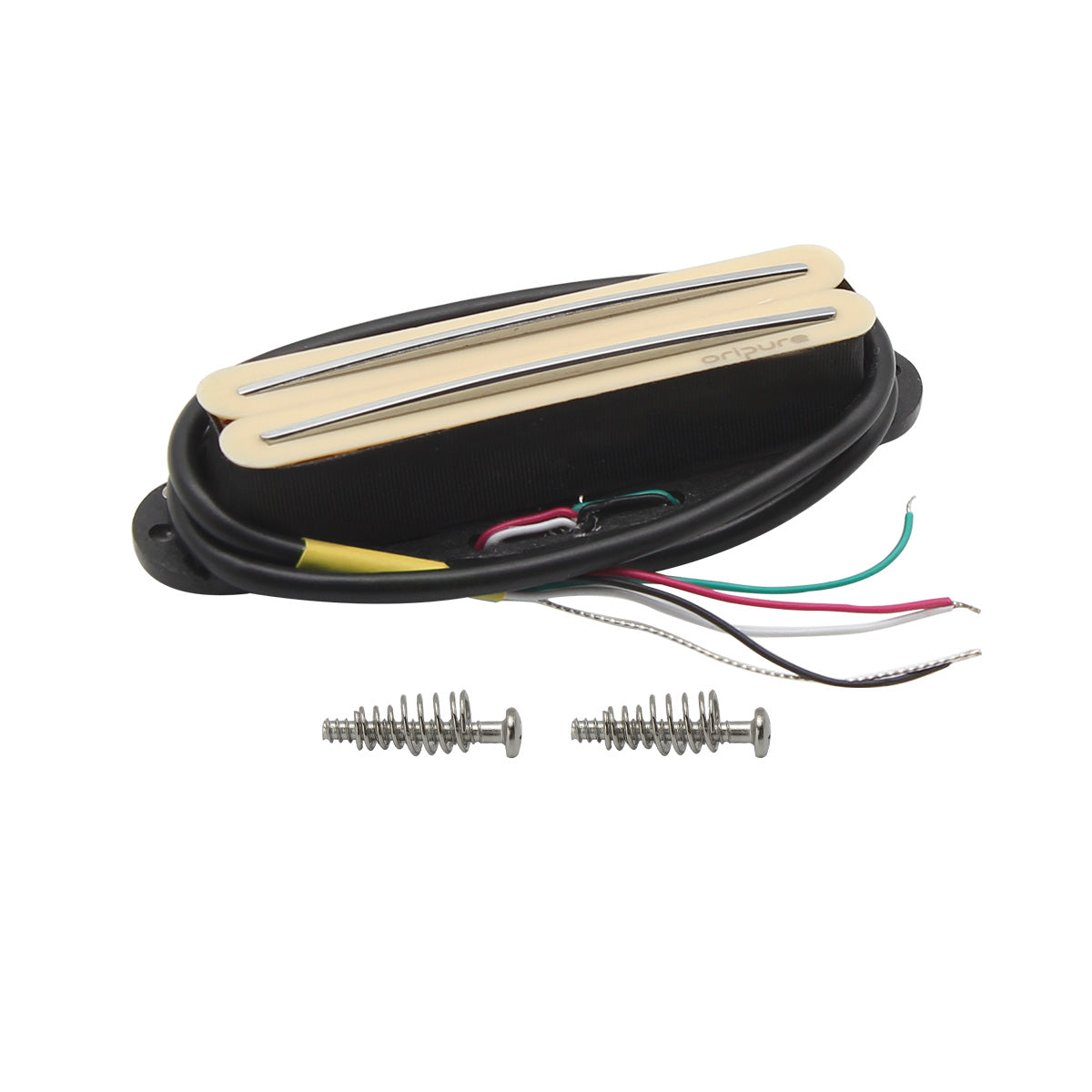

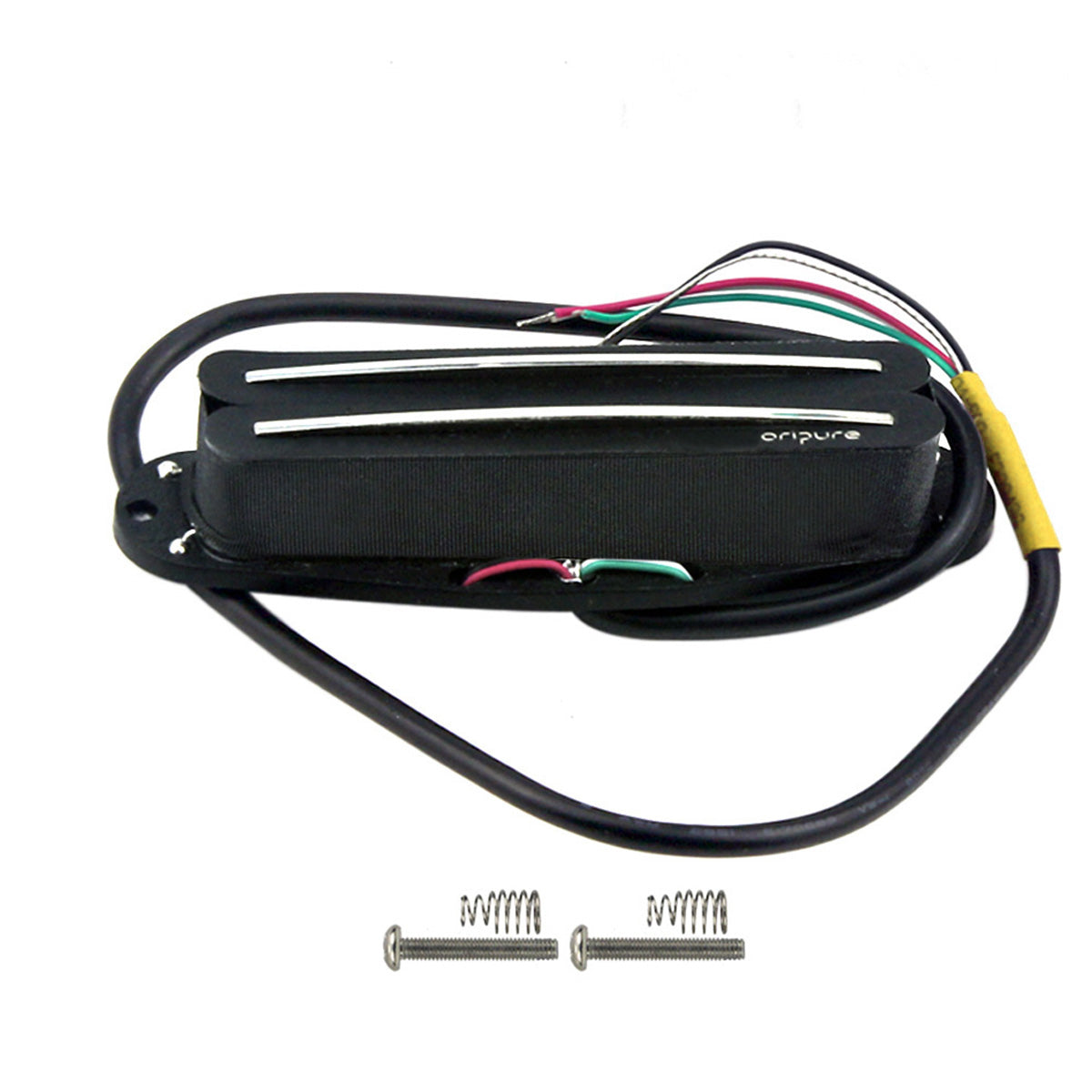

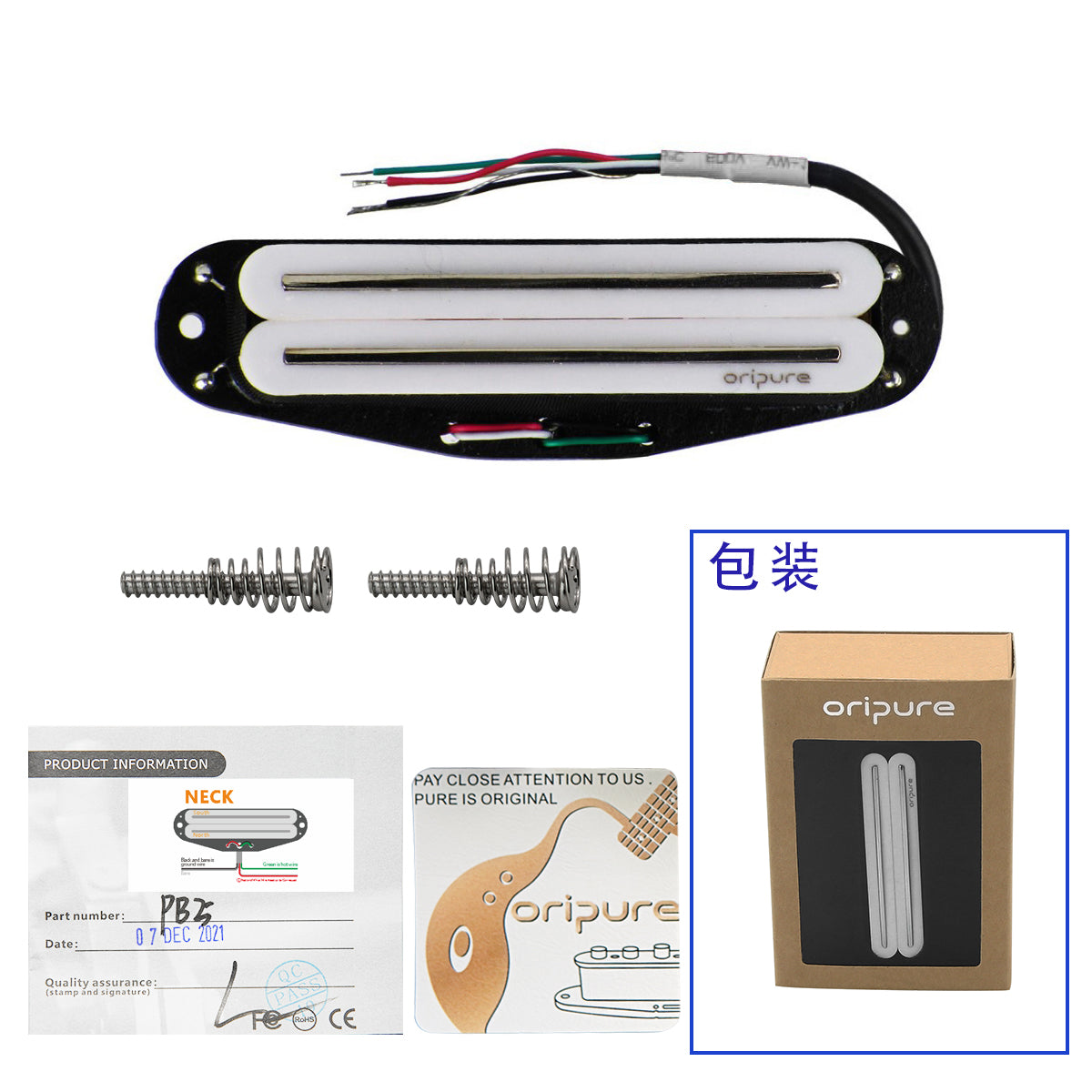

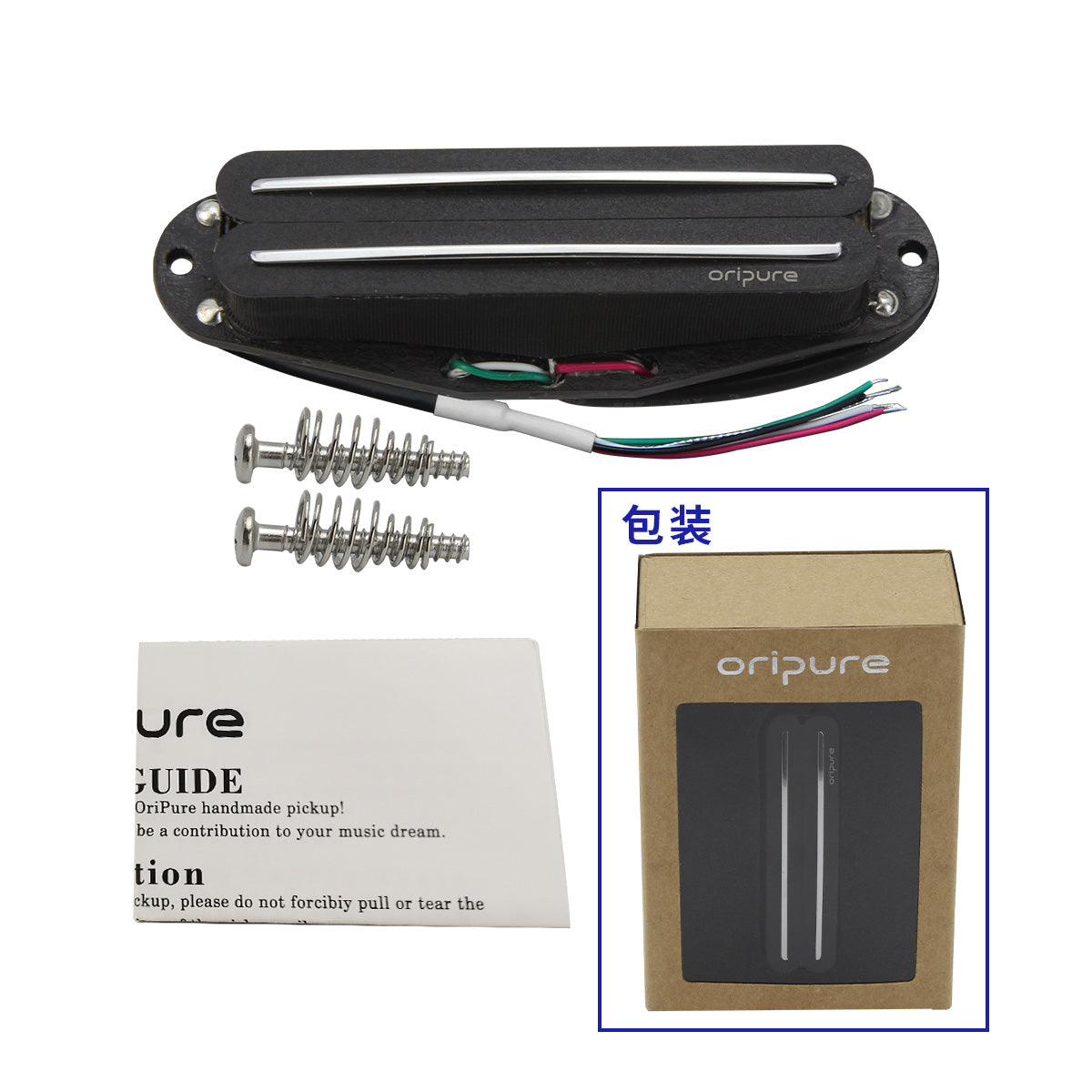

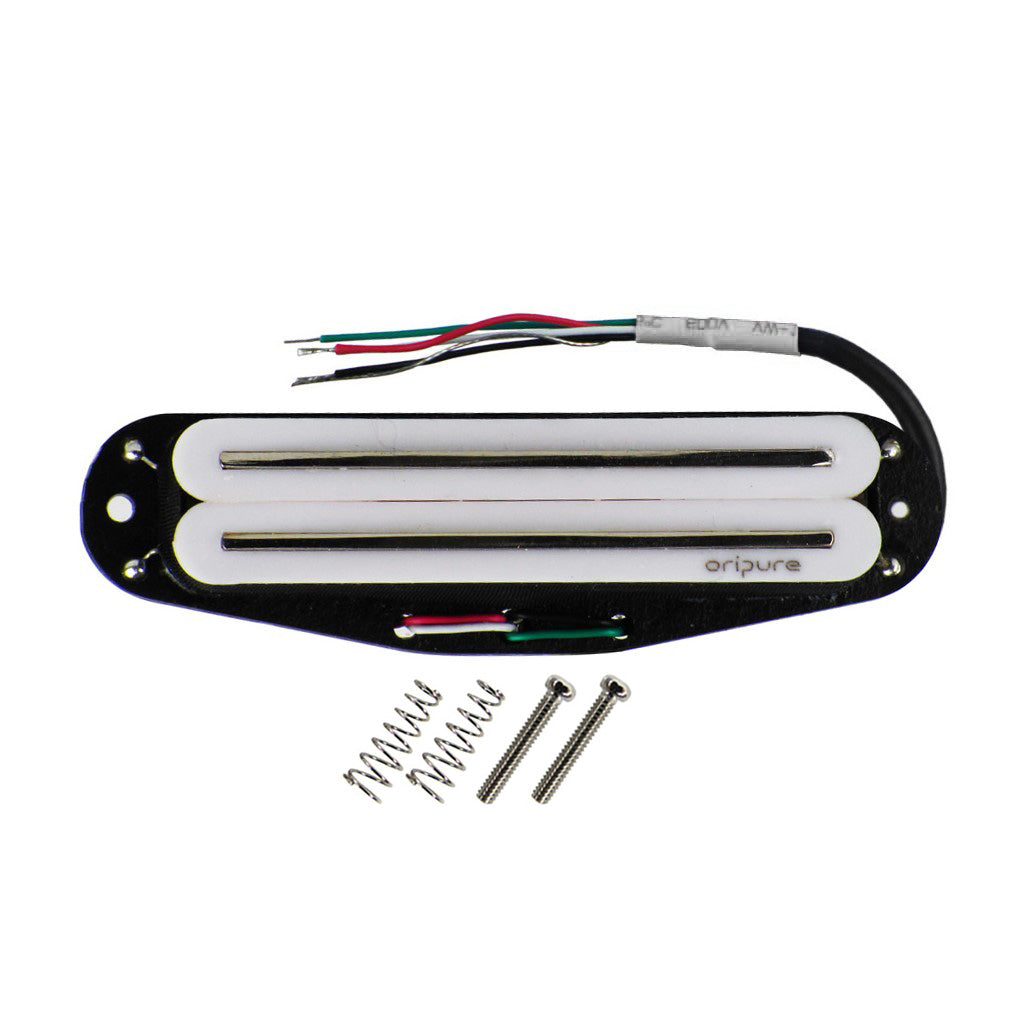

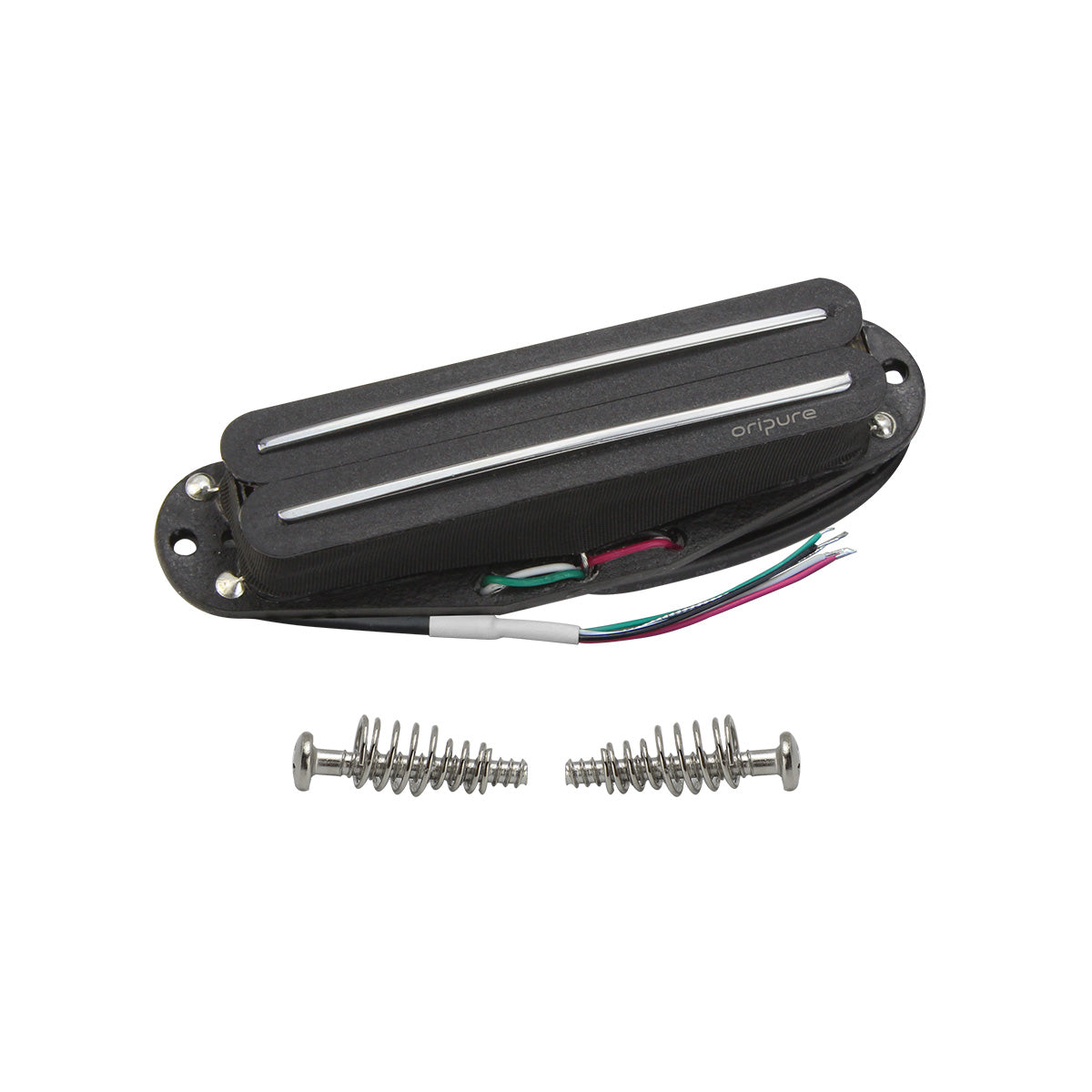

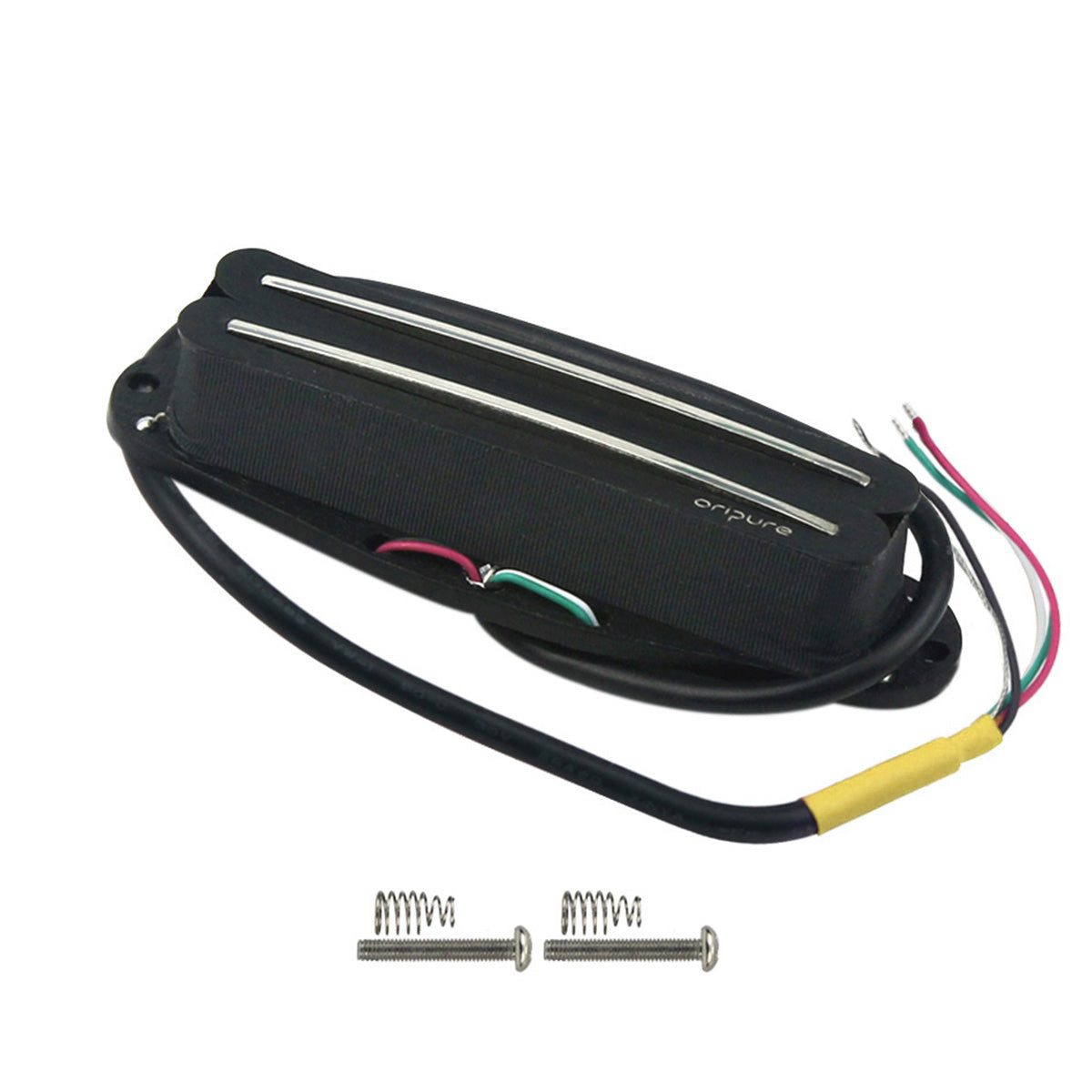

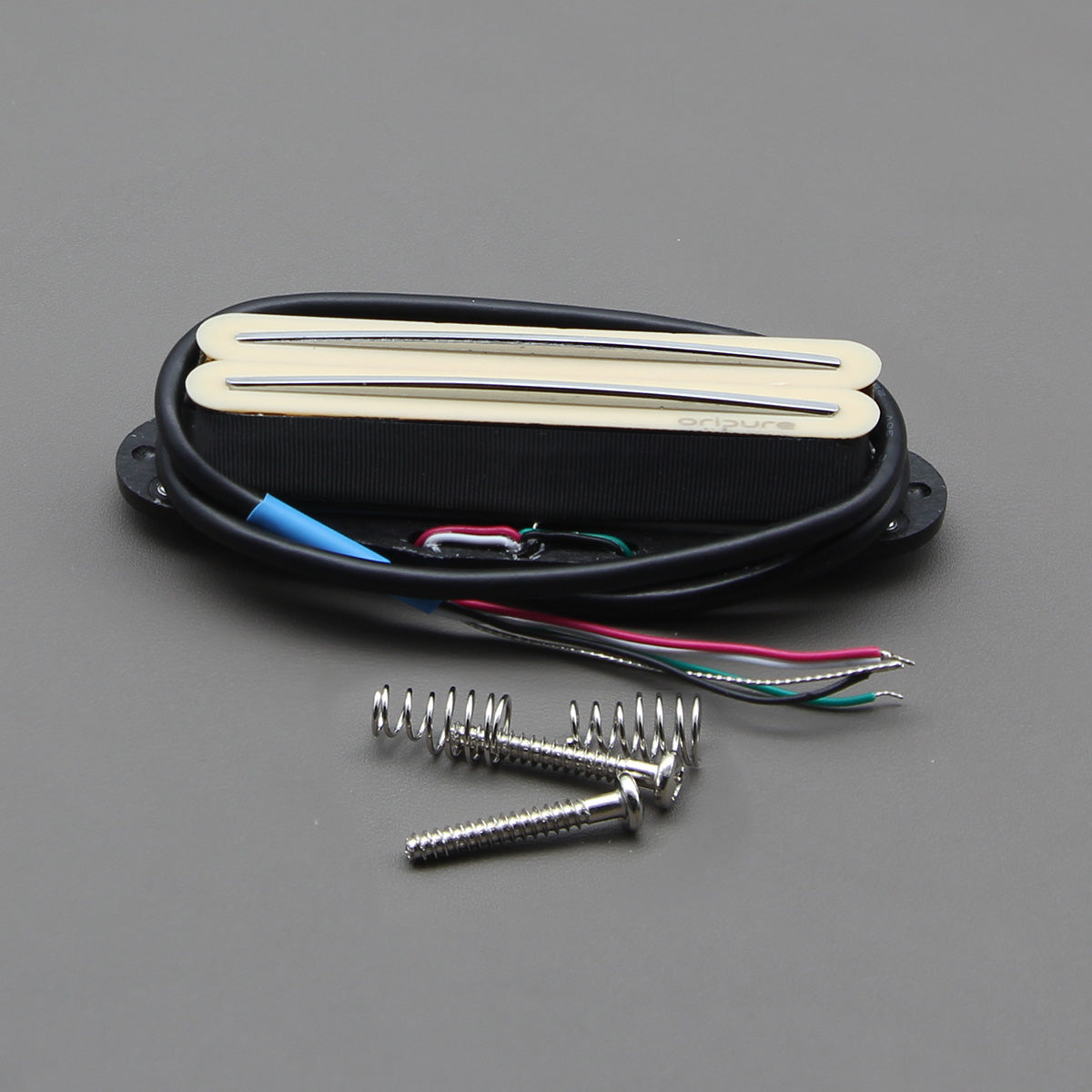

PB5 Pickup × 1
Mounting Screws × 2
Springs × 2
