OriPure HSH Prewired Pickguard Loaded Alnico 5 Pickup Set fit HSH Strat Guitar
OriPure HSH Prewired Pickguard Loaded Alnico 5 Pickup Set fit HSH Strat Guitar
Features:
-

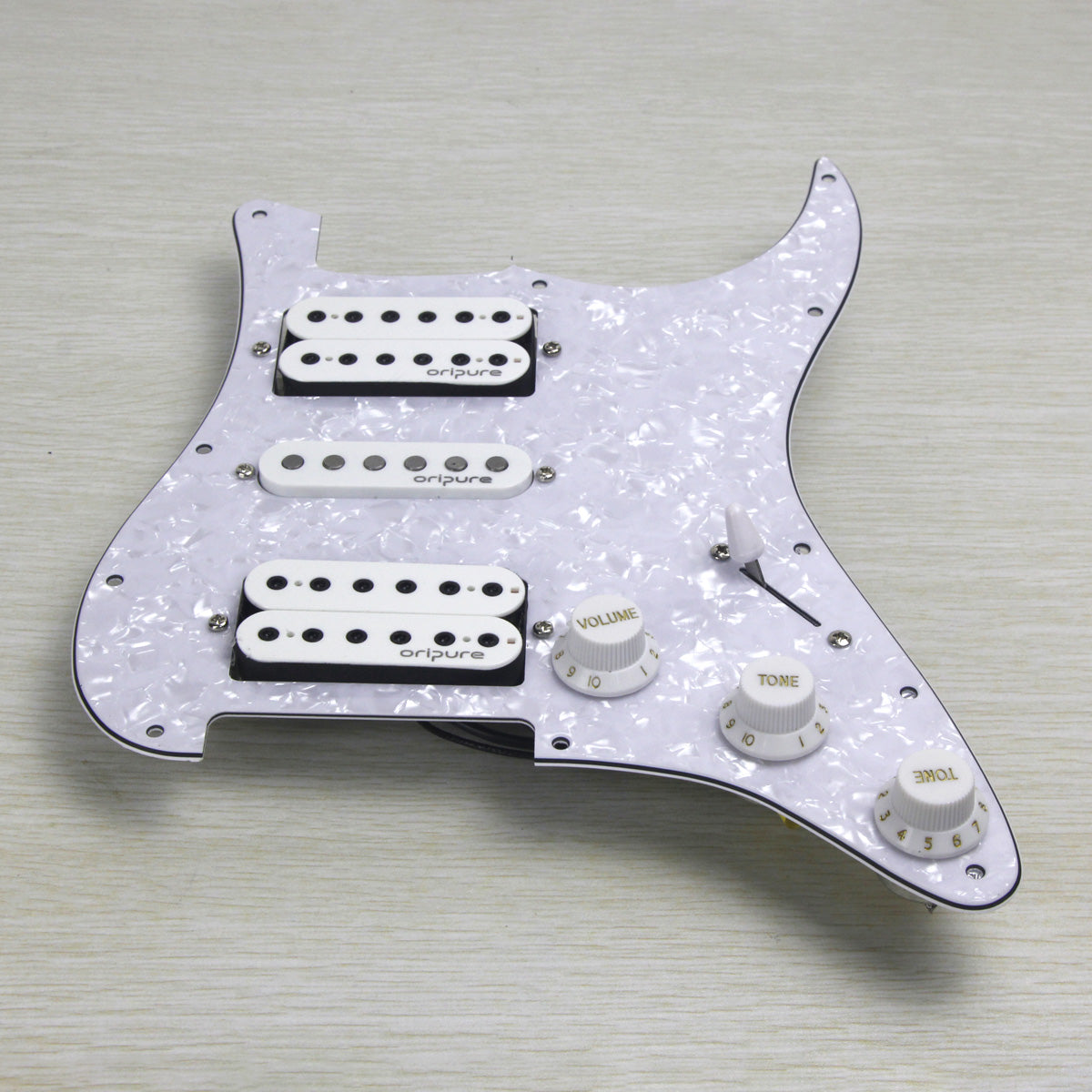

OriPure Prewired Loaded HSH Guitar Pickguard.
-
Fit FD Strat HSH Style Guitar and Similar Custom Building.
-
HSH Pickguard 11-Hole, 3 Alnico 5 Pickups, 2T 1V Pots, 5-Way Switch.
-
Alnico 5 pickups, 2 humbucker for neck and bridge position, 1 single coil for middle.
-
With thin films covered on the pickguard, please take them off when using it.
-

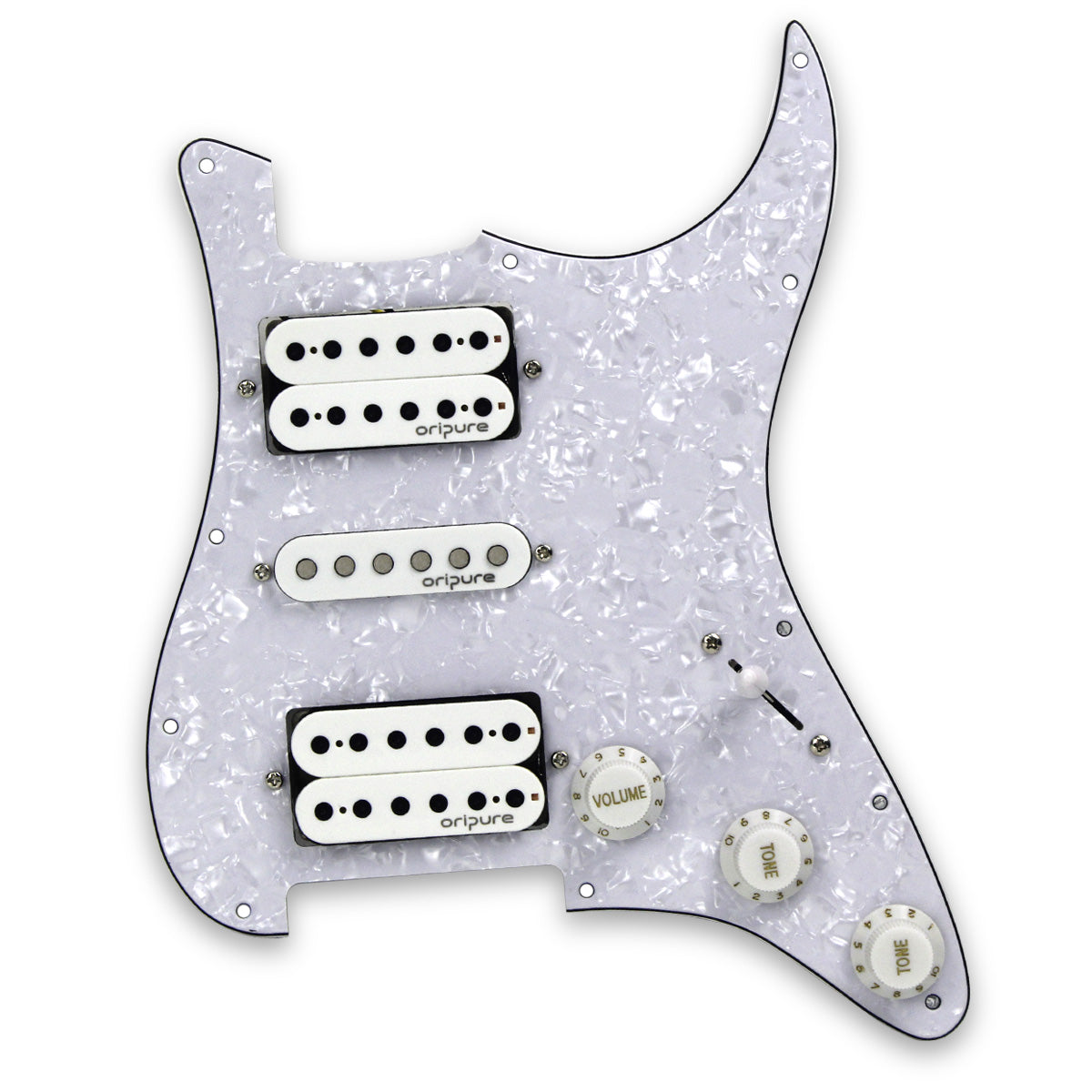

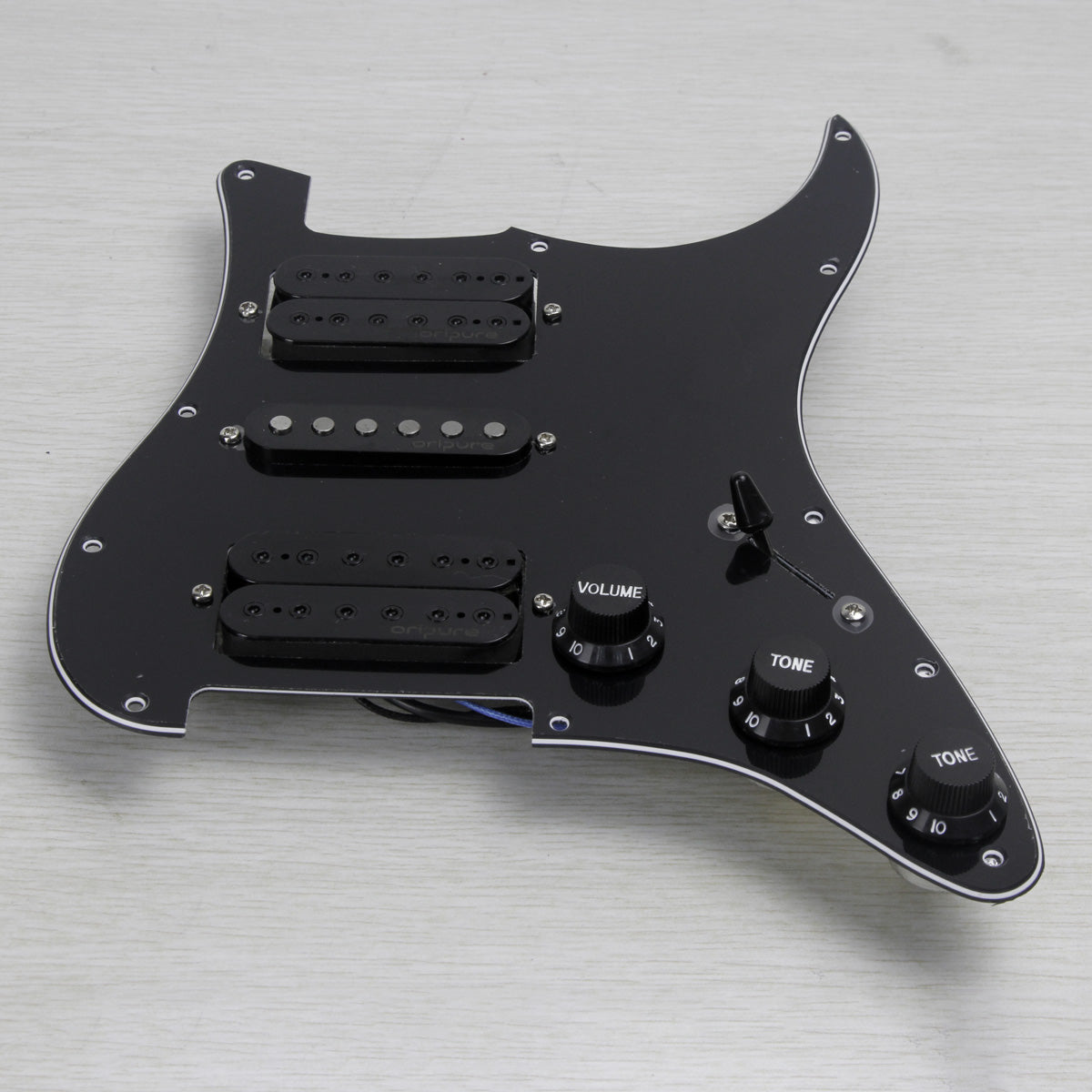

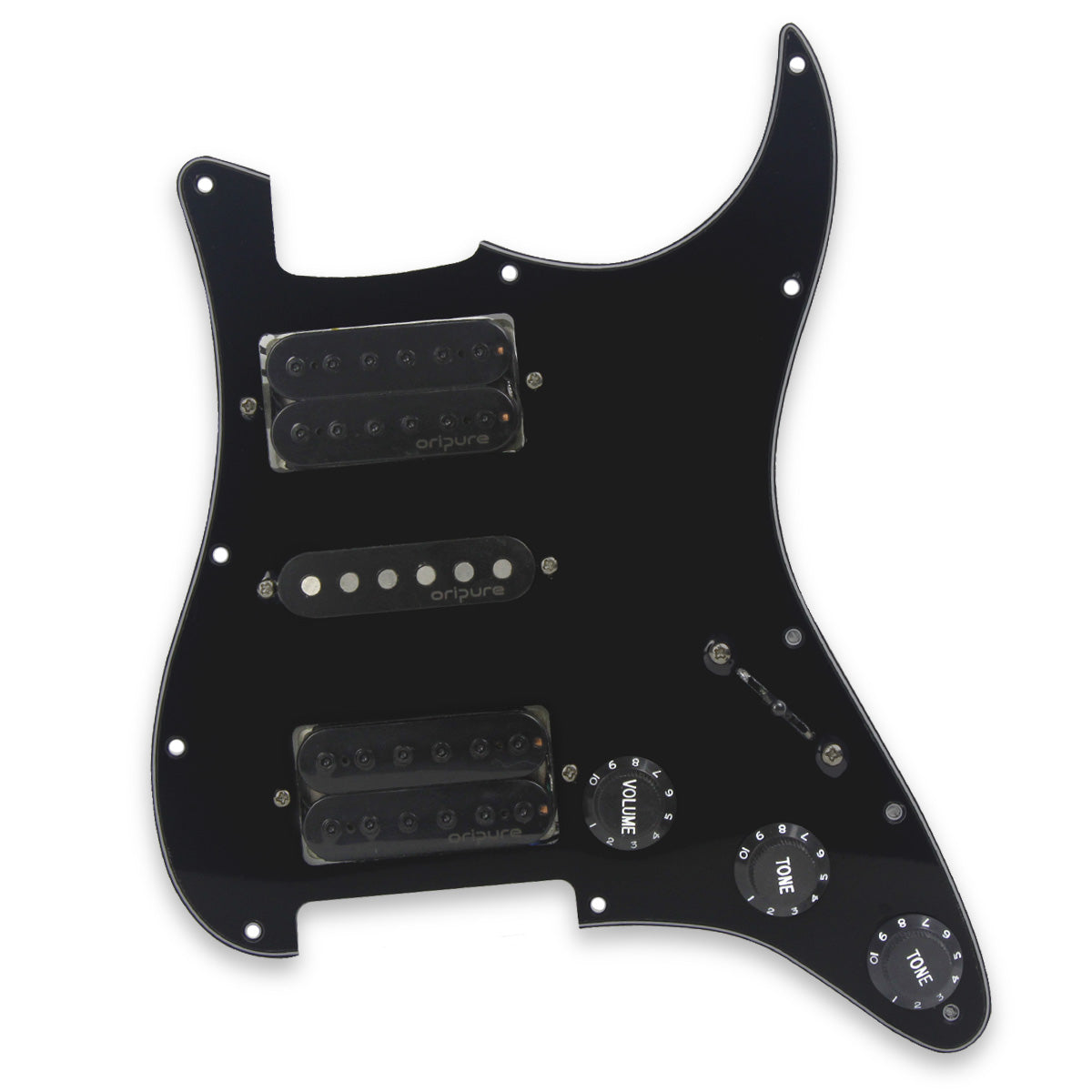

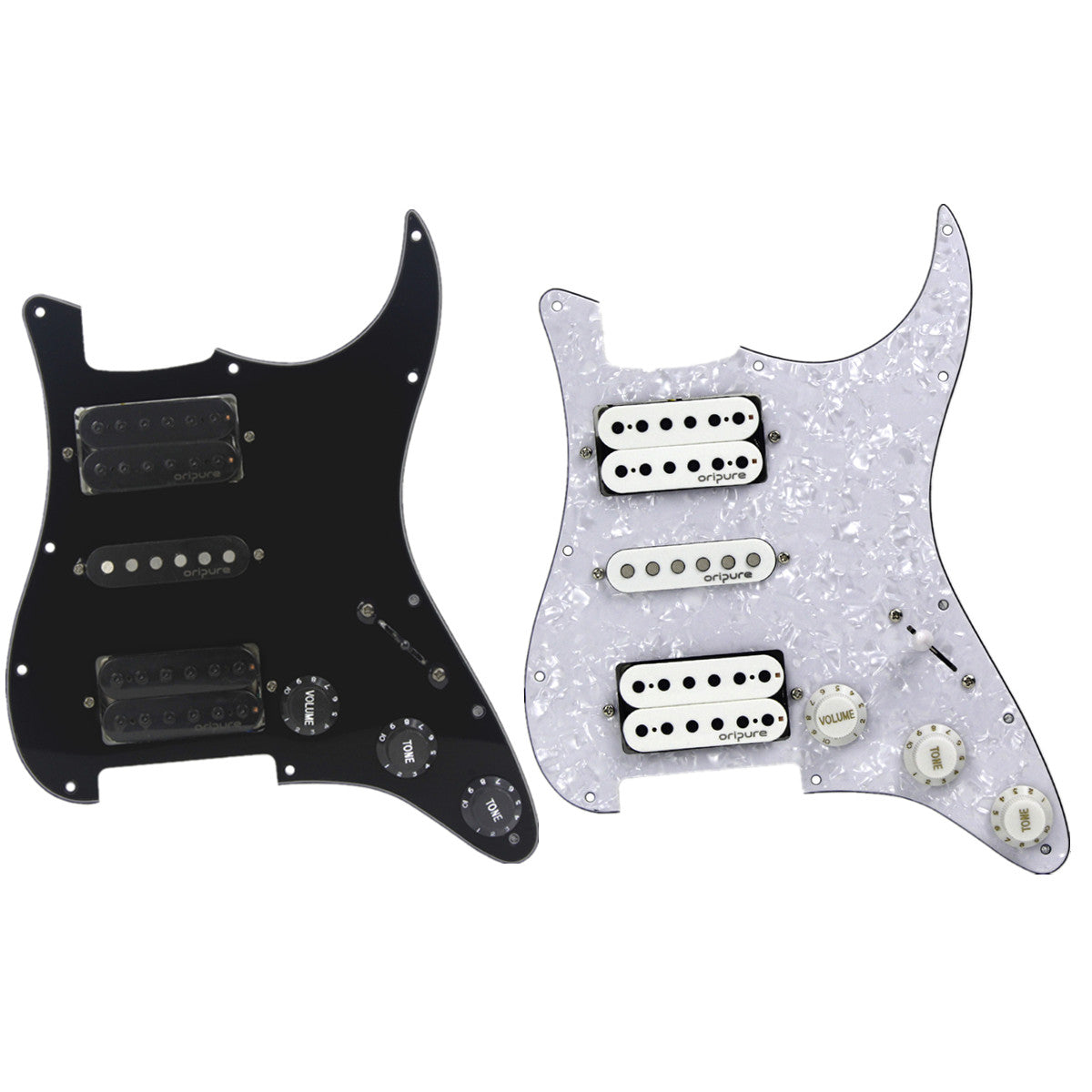

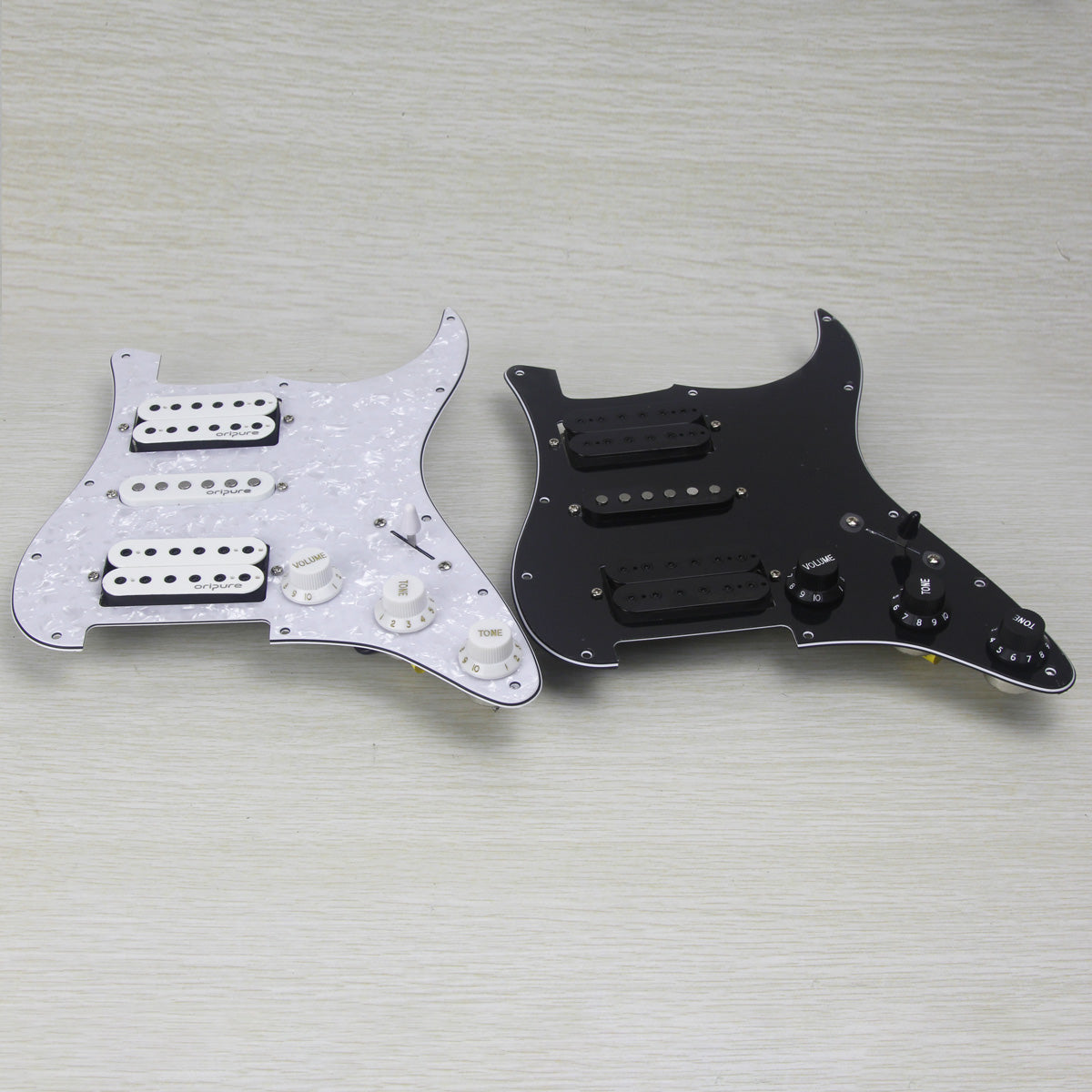

Pickguard Color: White Pearl or Black Color for Choosing !!!
Specifications:
-

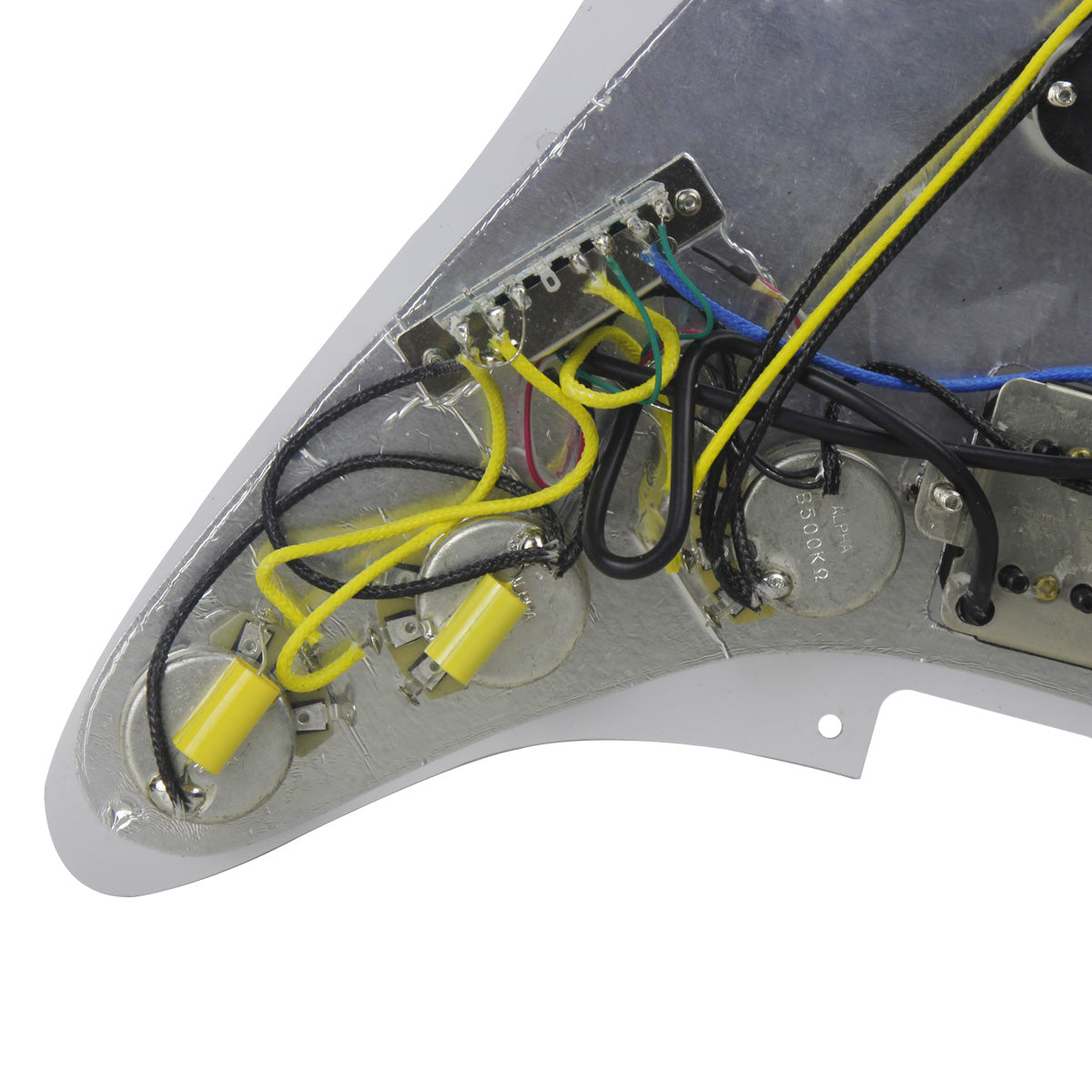

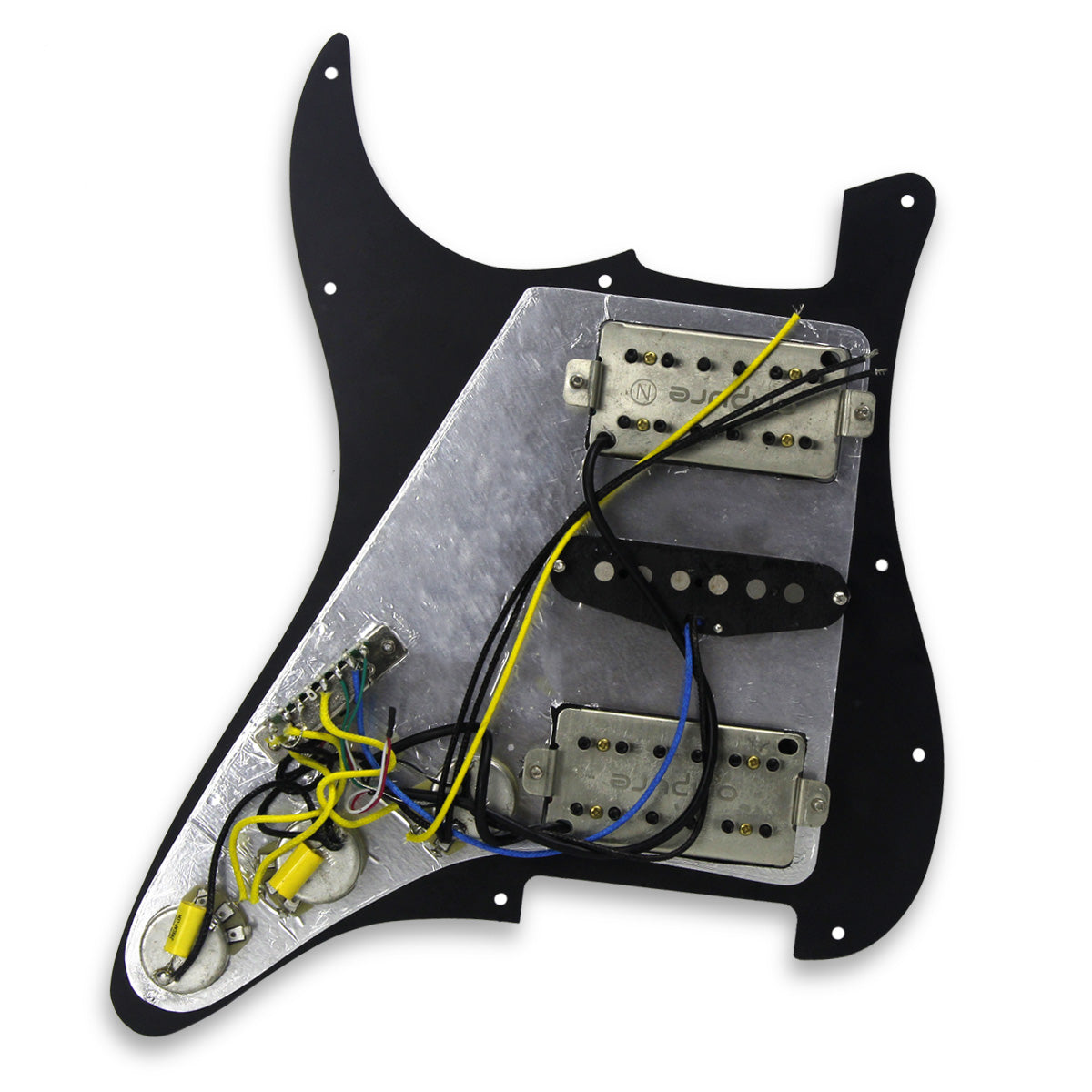

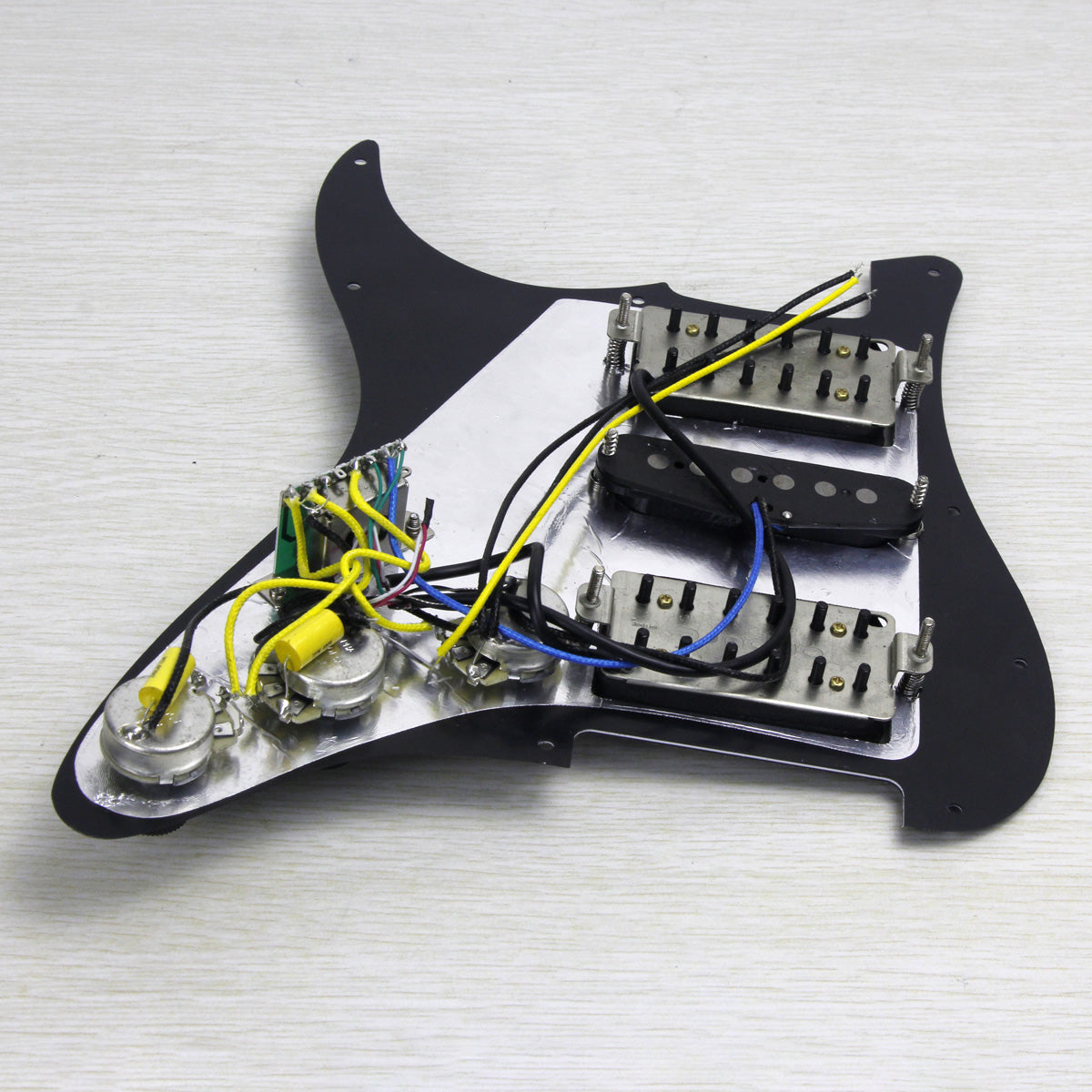

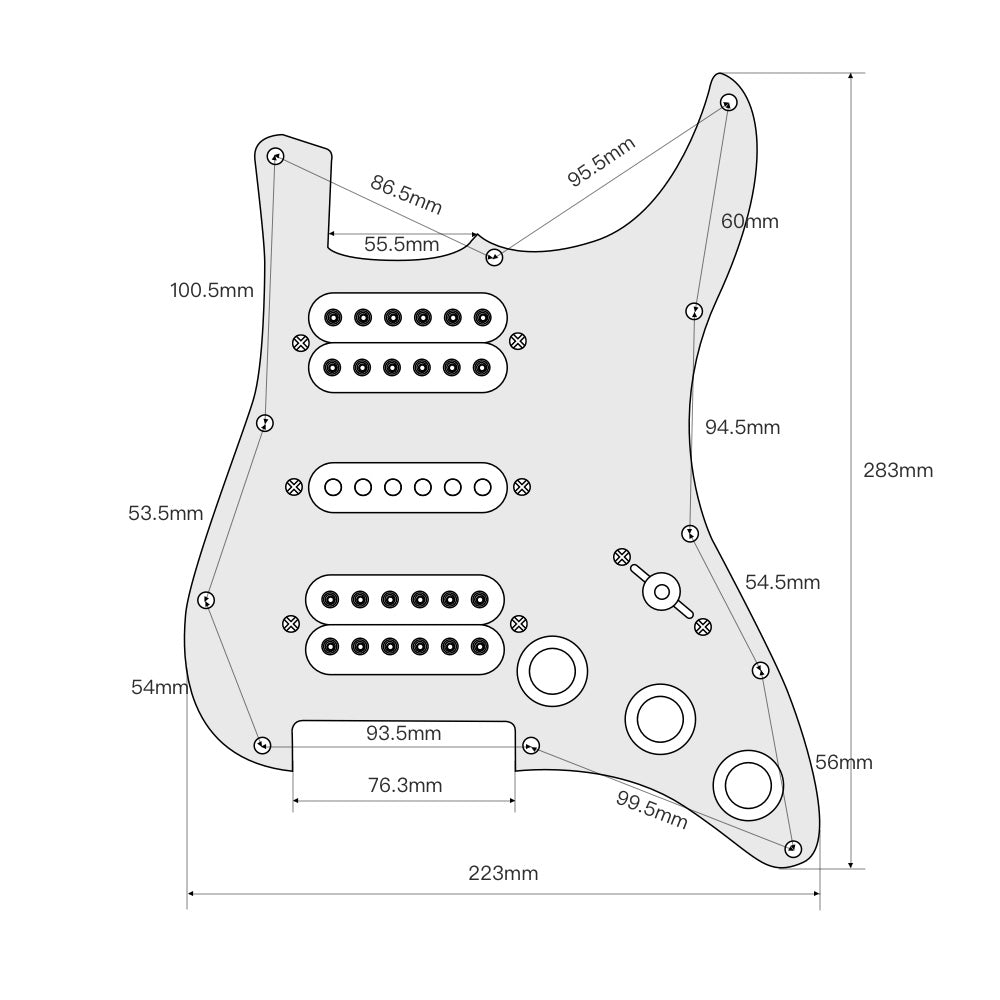

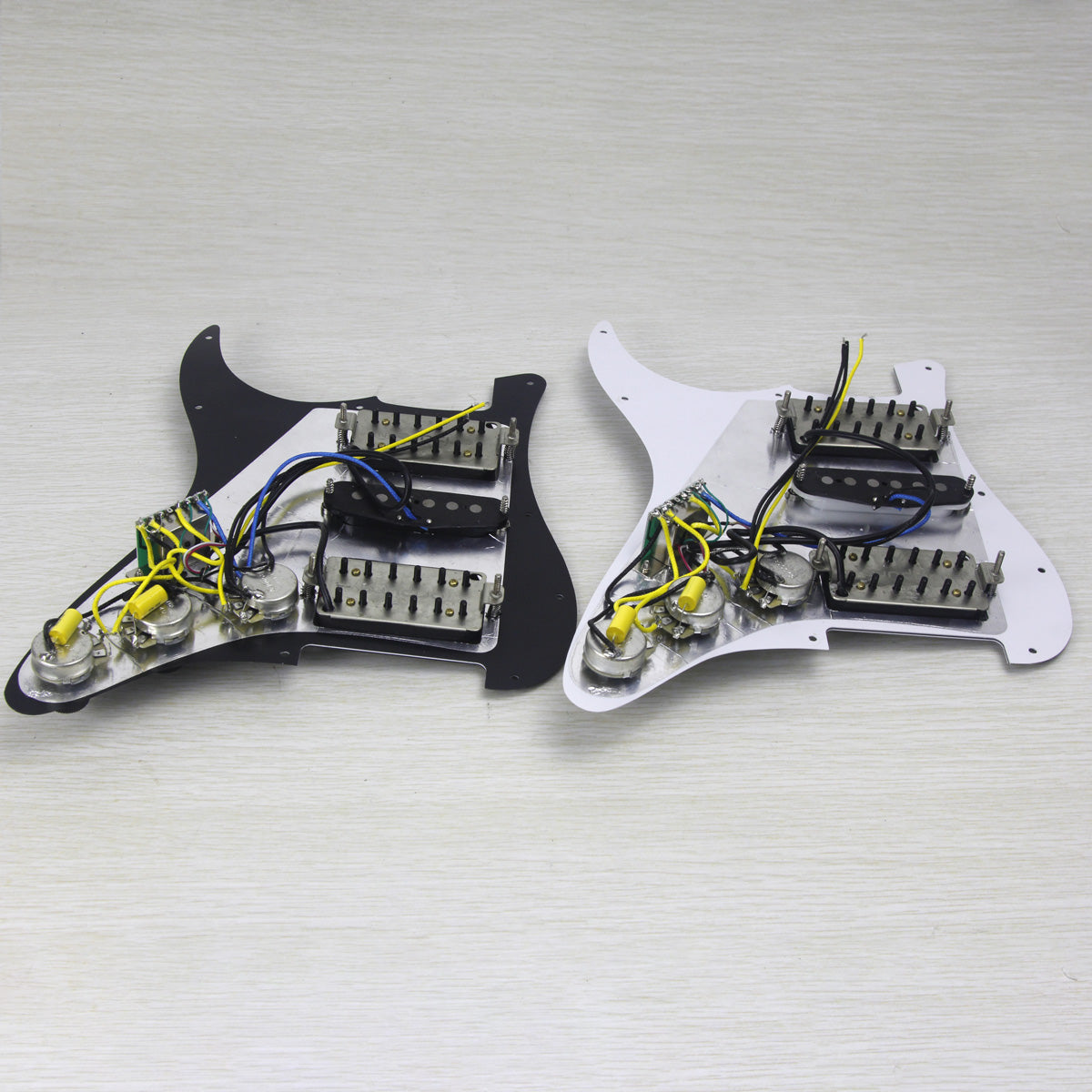

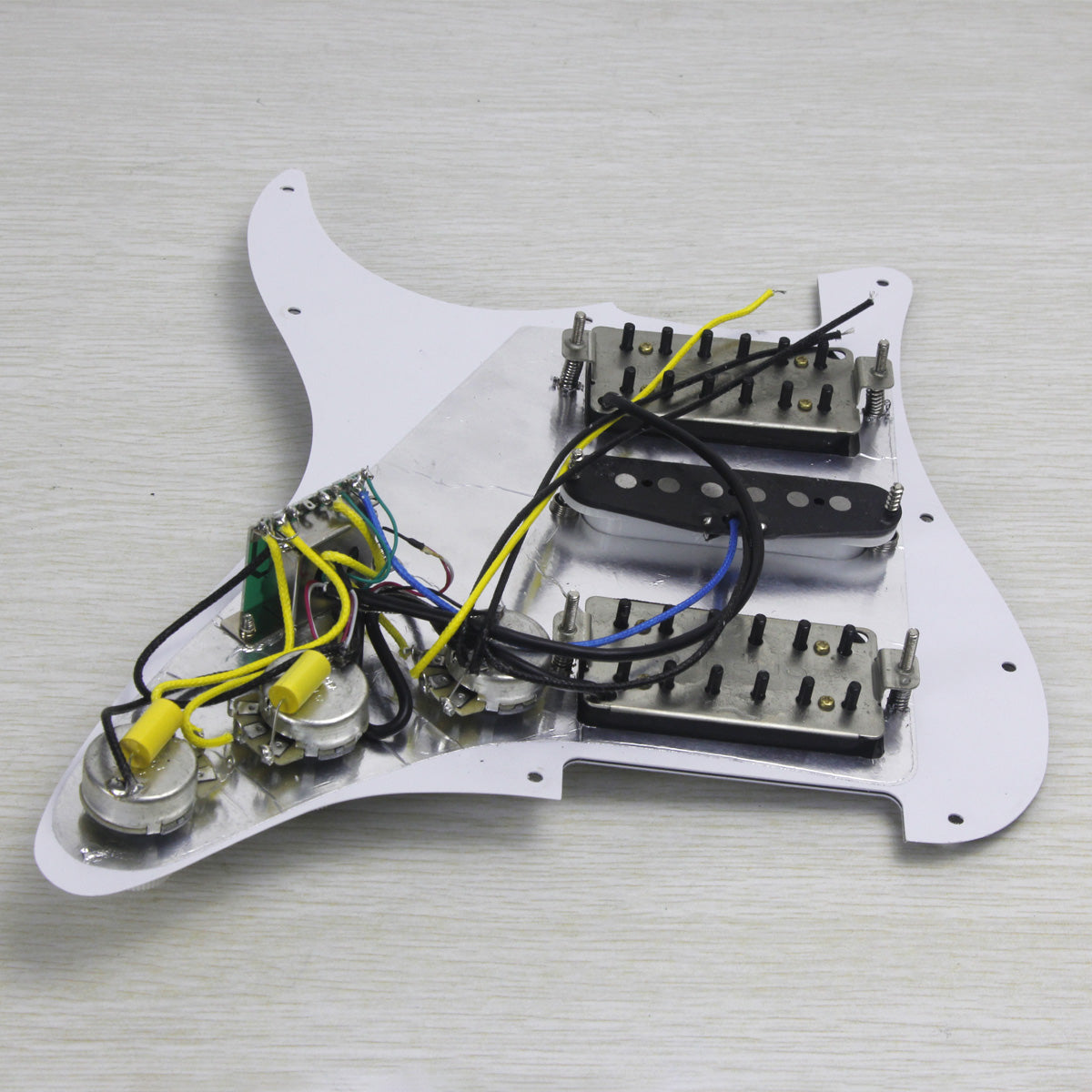

Pickguard: White Pearl HSH type, with screw 11 mounting holes, with full pure aluminum foil on back.
-

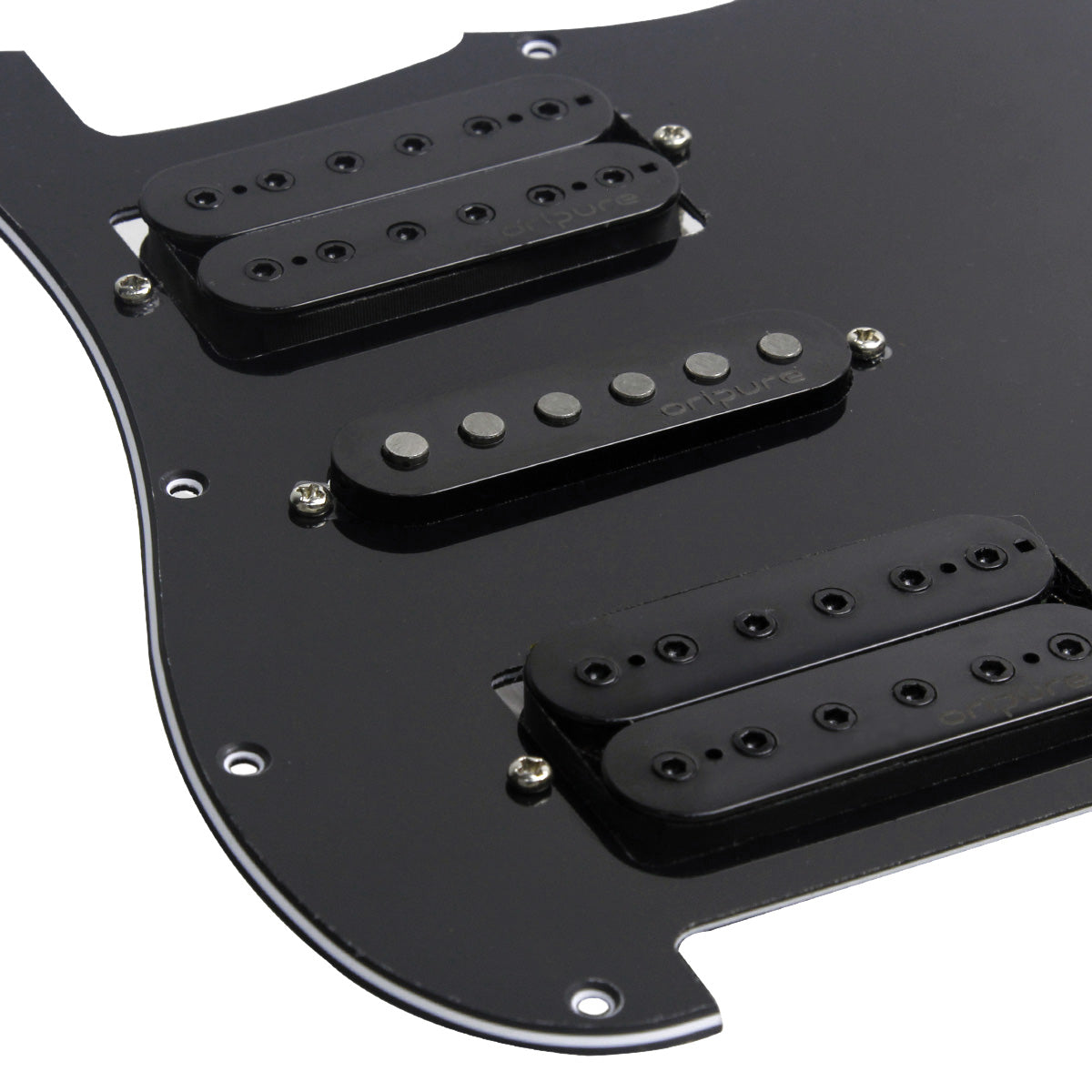

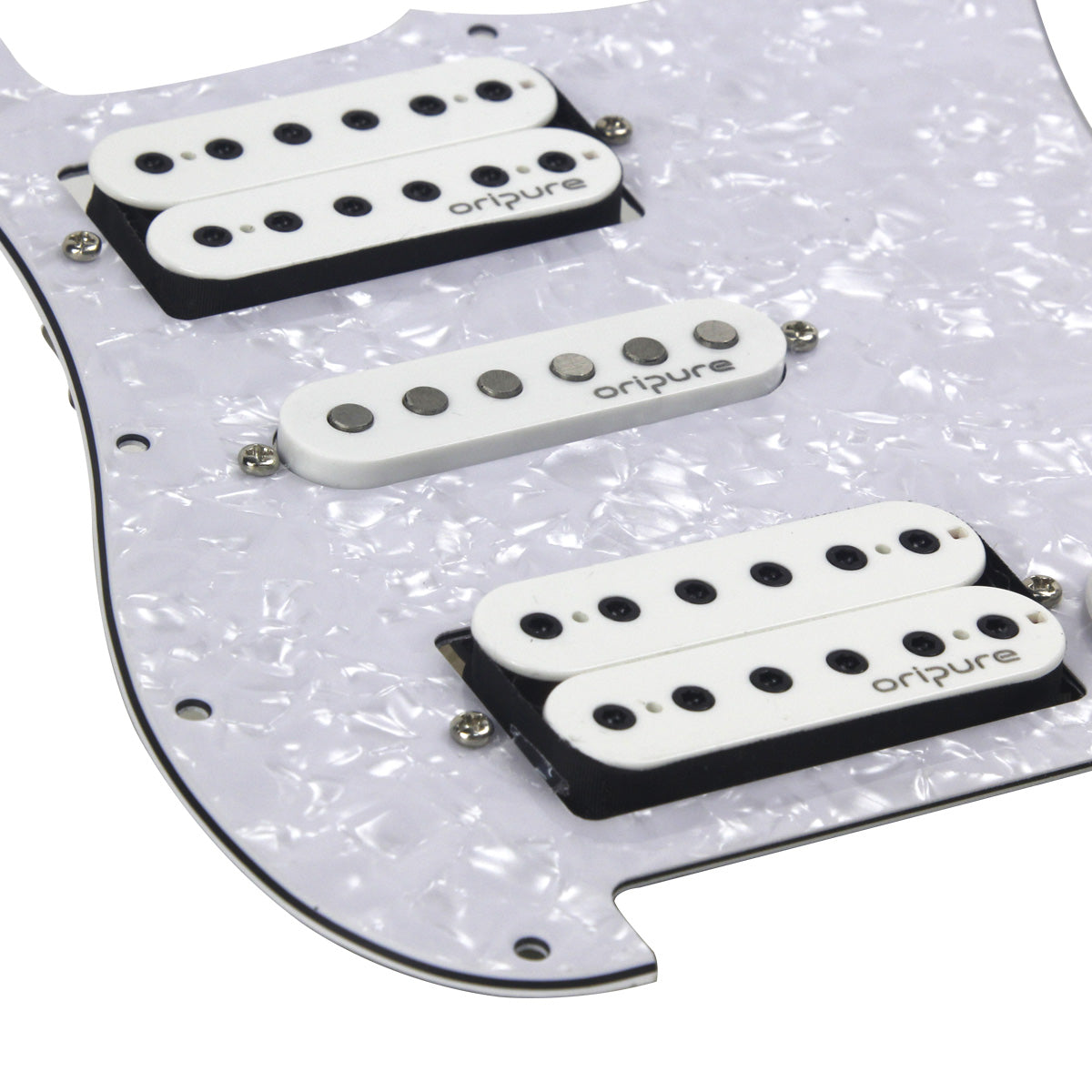

Neck Position: Alnico 5 Humbucker Pickup, Resistance 15-16k ohm; 12 Adjustable Hex Pole Pieces.
-
Middle Position: Alnico 5 Single Coil Pickup, Resistance 6-7k ohm.
-
Bridge Position: Alnico 5 Humbucker, Resistance 16-17k ohm (B); with 12 Adjustable Hex Pole Pieces.
-

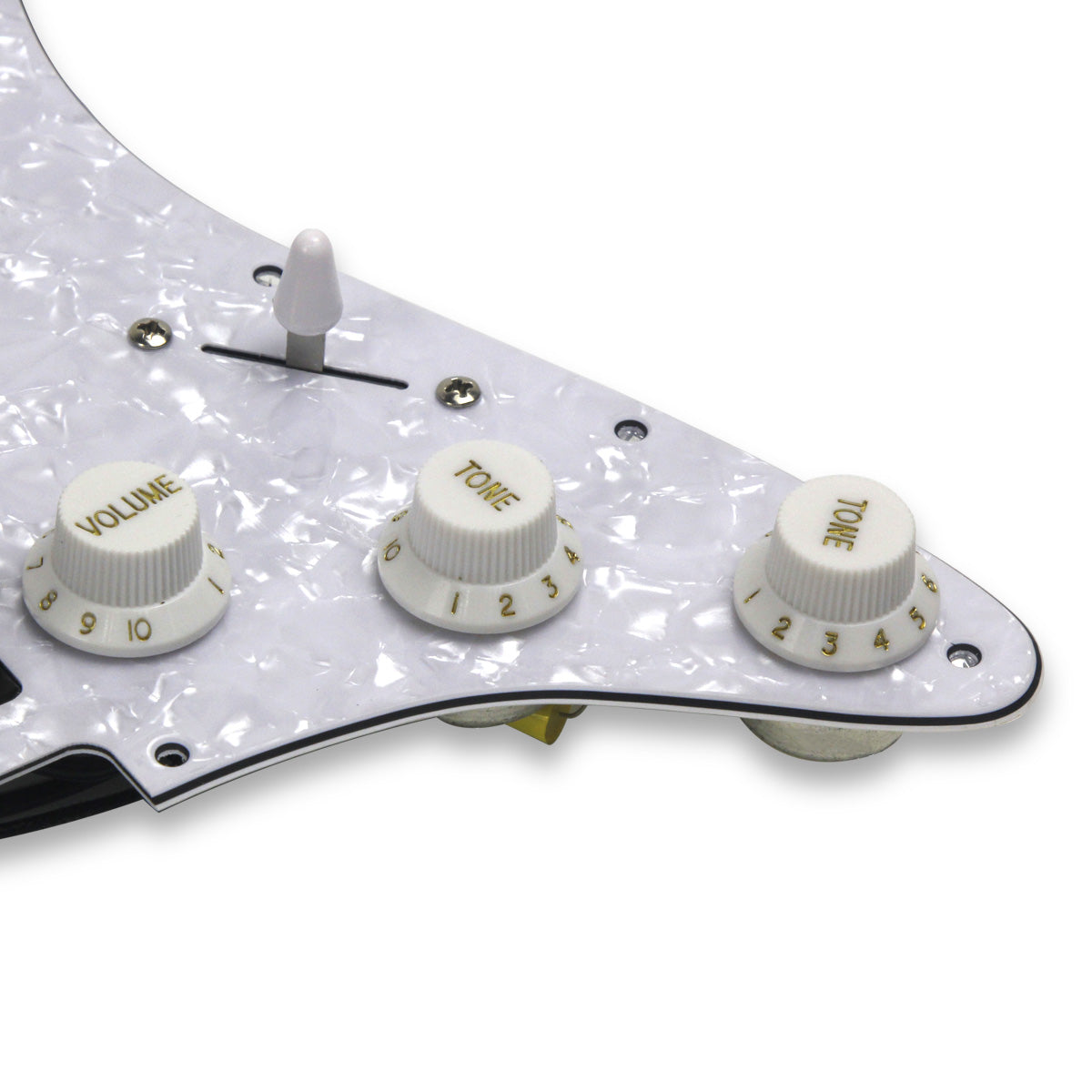

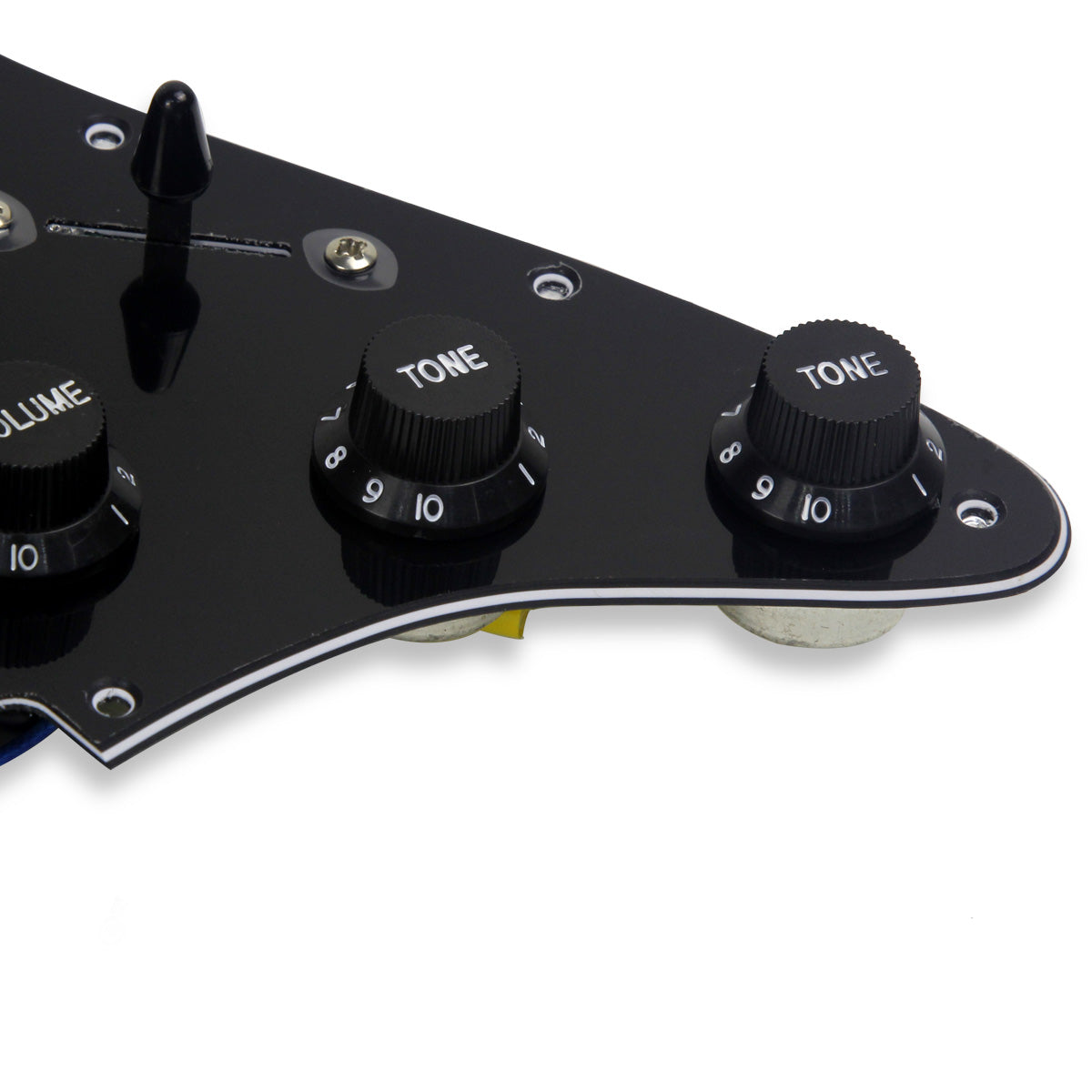

Switch: 5-Way Pickup Selector Toggle Switch.
-
Pots: Korean Alpha Pots, 2 A500k for Tone and 1 B500k for Volume.
-
Capacitor: 223K 400V.
