Specifications
• Brand: OriPure (Yuechun Yuansheng)
• Model: PBL5
• Color: Black

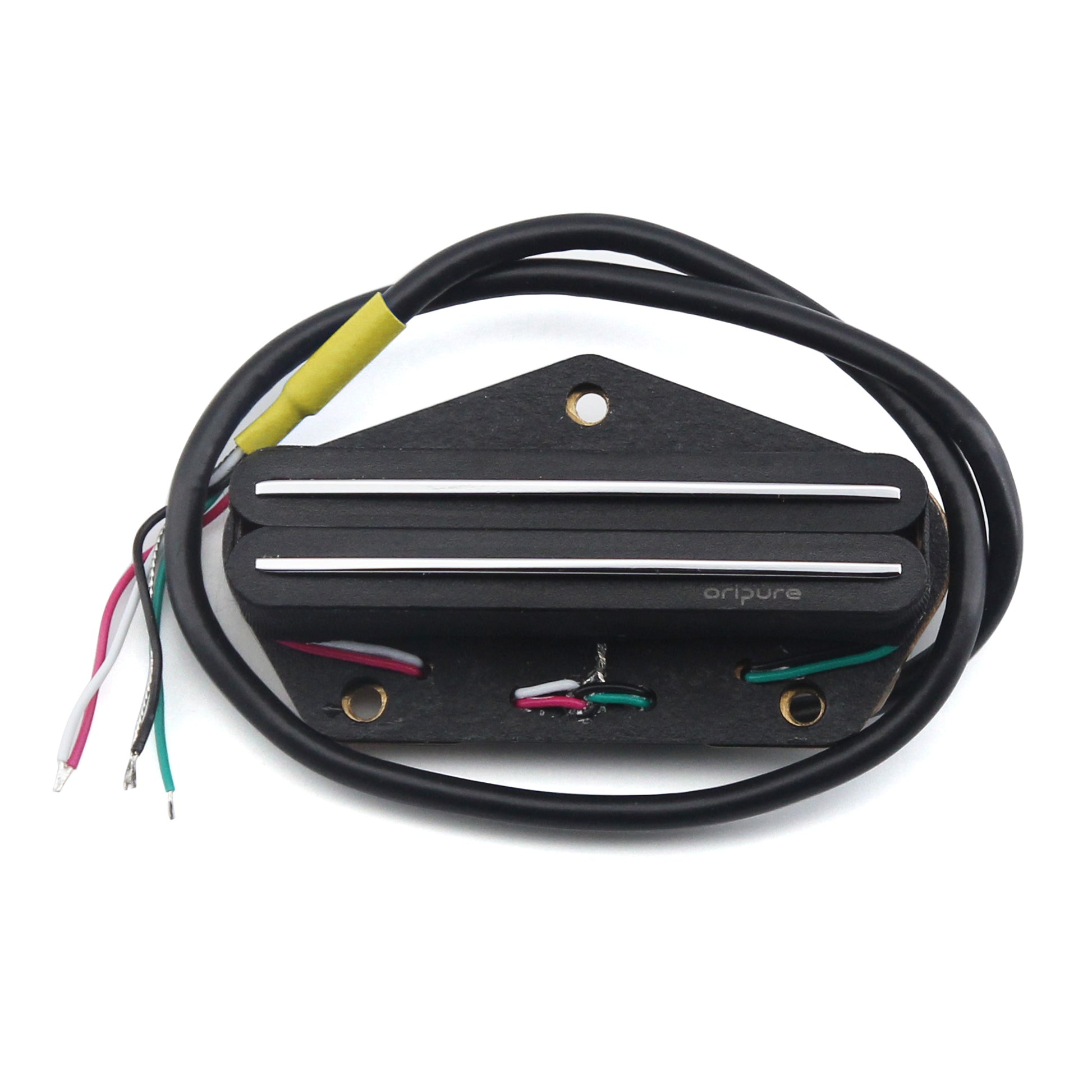

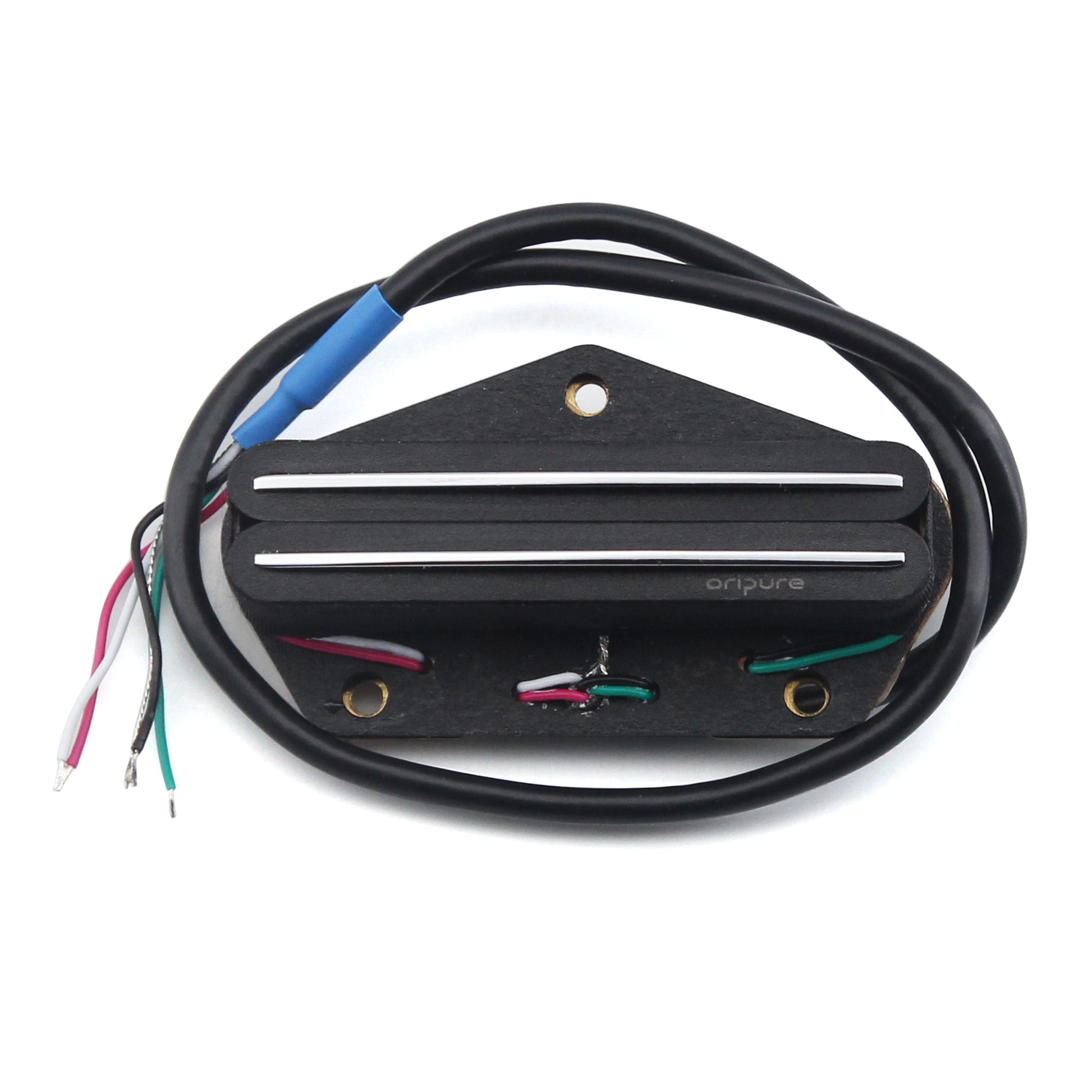

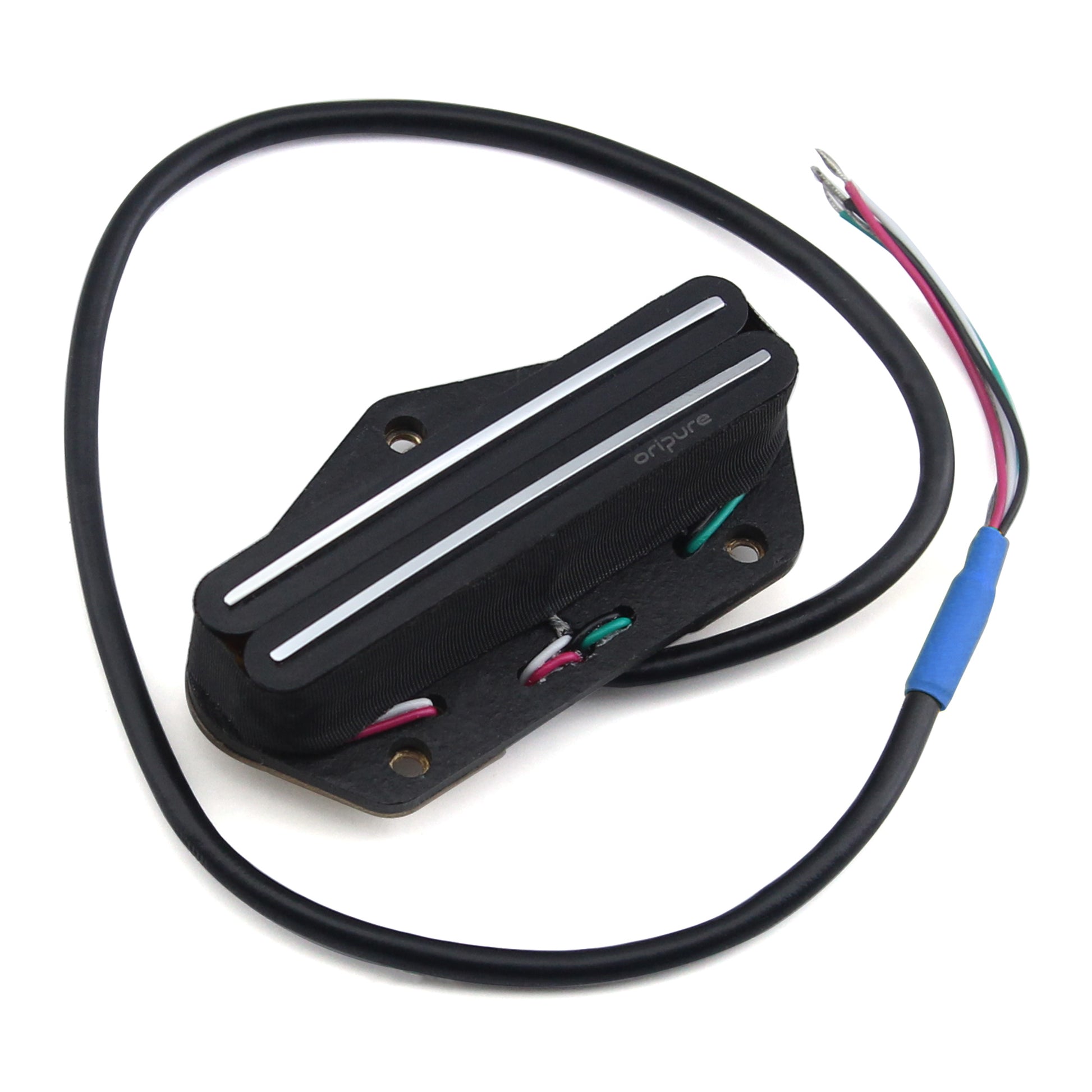

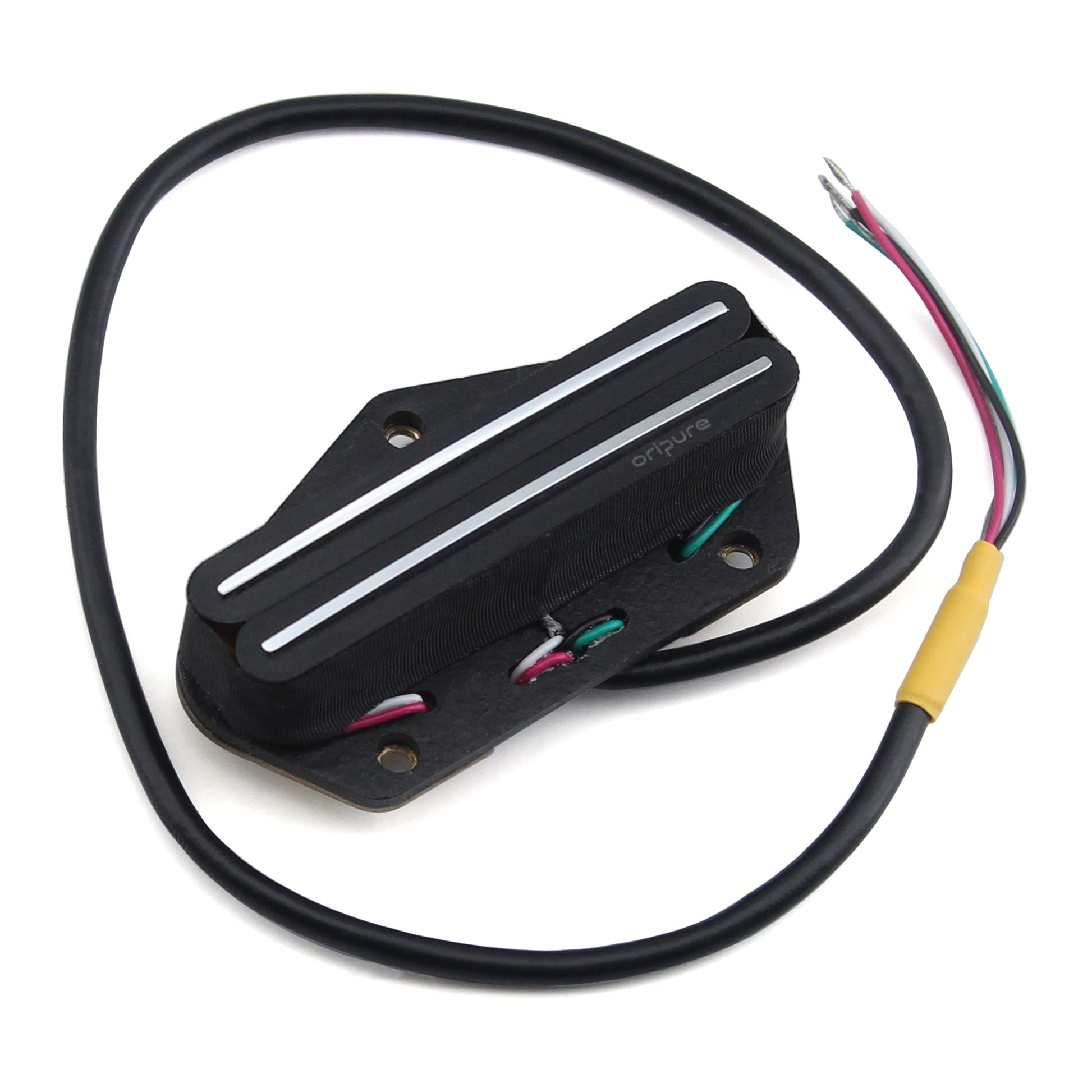

• Pickup Type: TL-style Mini Dual-Rail Bridge Humbucker (Dual Rails Humbucker)
• Magnet Type: Alnico 5 (Alnico V)
• Coil Structure: Dual Steel Blade Pole Pieces + Overwound Coils
• Pickup Position: Bridge

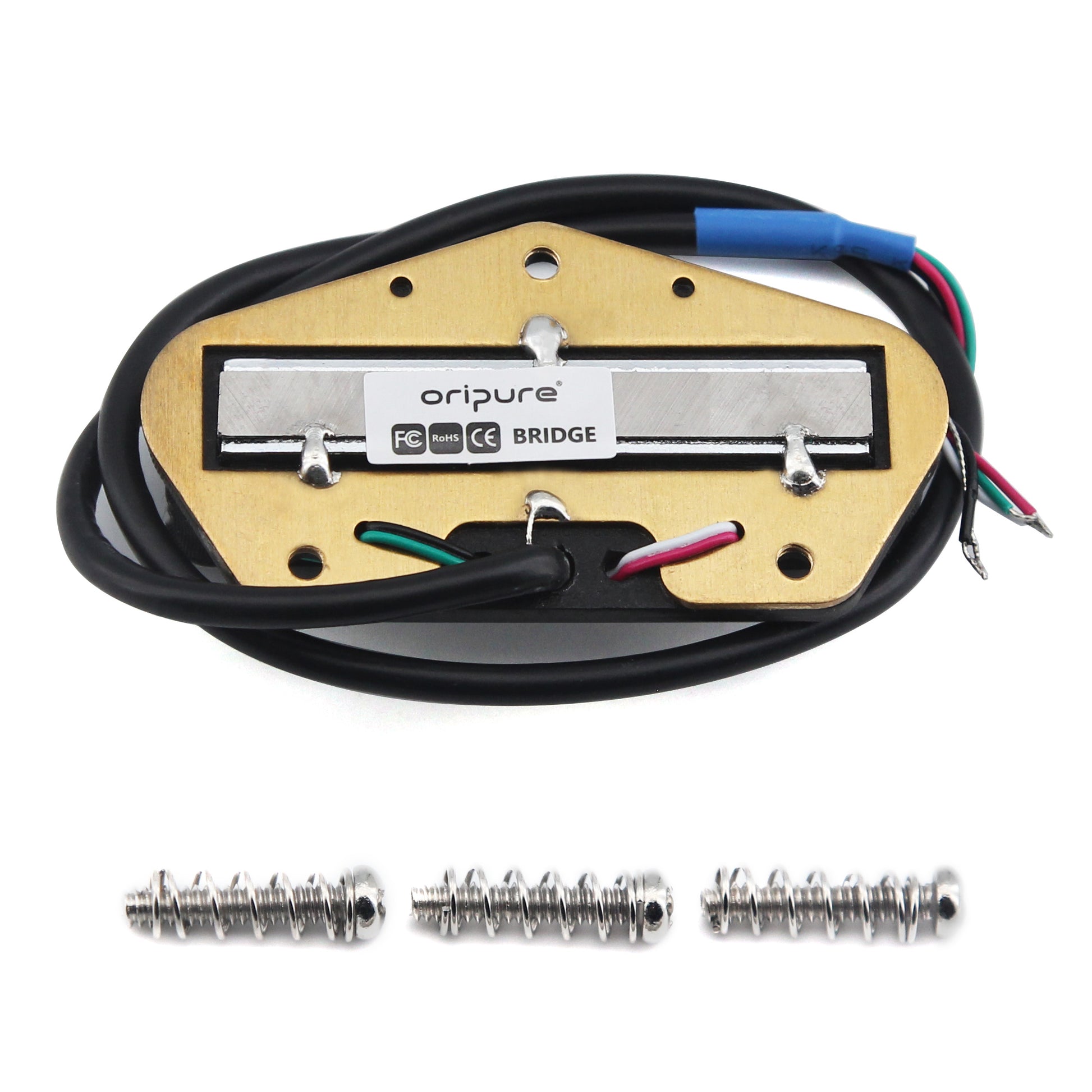

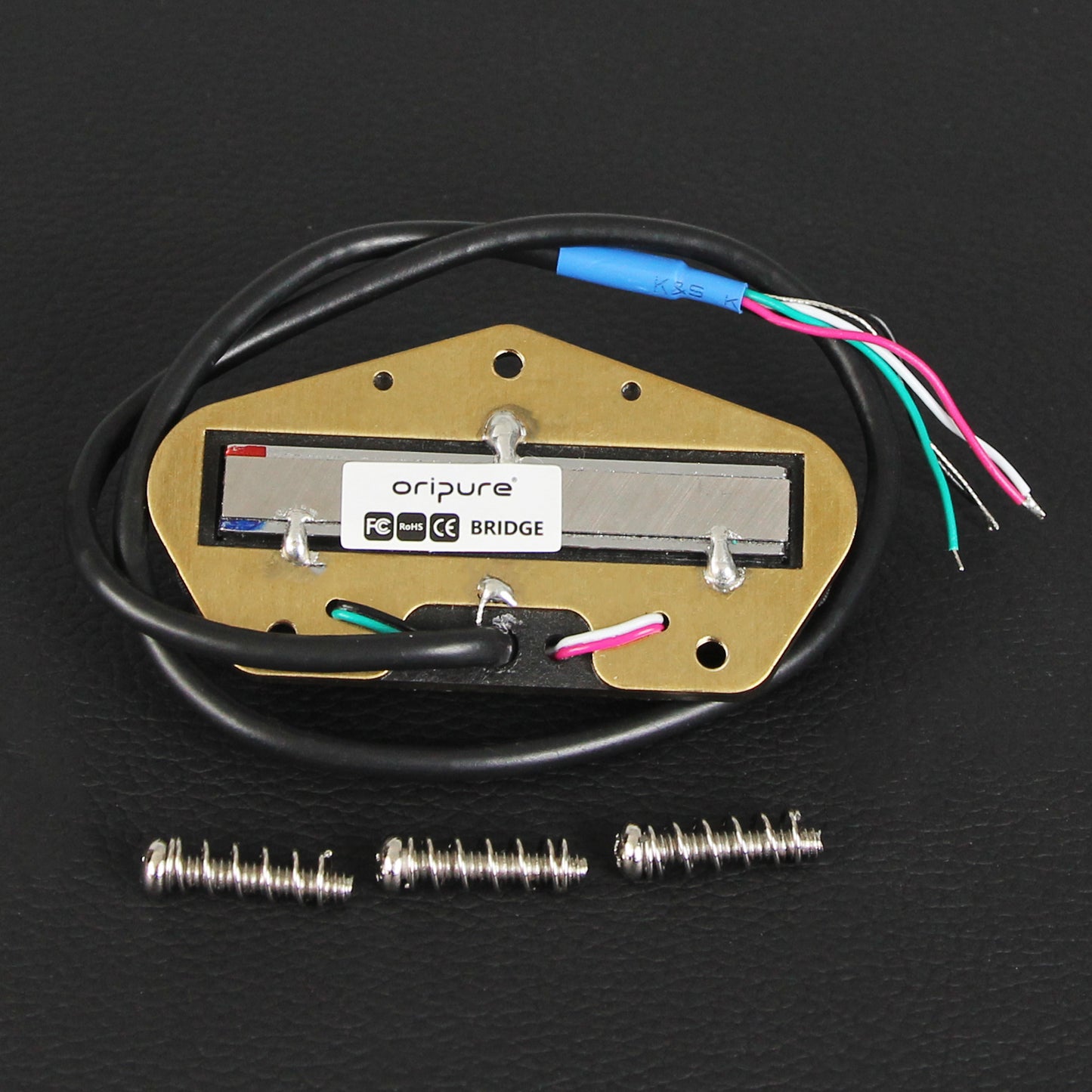

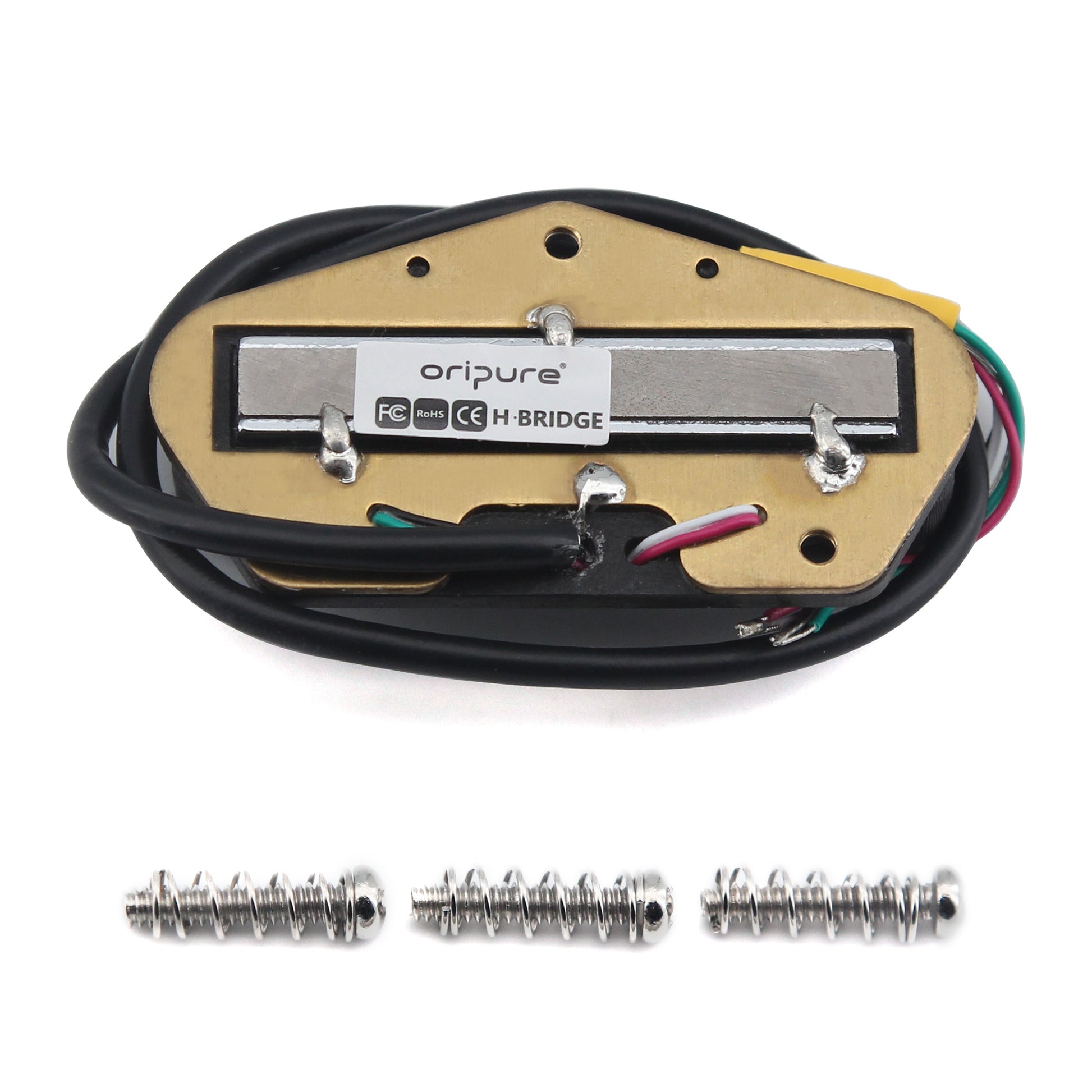

• Baseplate Material: Brass
• Bobbin Material: Black Fiberboard
• Wiring: 4-Conductor, Coil Split Capable
Parameter List
| Parameter |
Bridge |
Bridge(HB) |
| DC Resistance (DCR) |
13.0KΩ |
16.0KΩ |
| Inductance |
10.0H |
11.0H |
| AWG enamel wire |
AWG 43 |
AWG 44 |
| Tone Ratio (High/Mid/Low) |
35% / 45% / 20% |
35% / 45% / 20% |
Features:
• Alnico 5 + dual steel blade poles, improved penetration
and detail
High-flux Alnico 5 concentrates and brightens the highs; steel
blade poles provide even magnetic coverage, ensuring every
string is clearly articulated.
• Coil-split design (4-conductor), multi-tone integration
From classic TL dual-rail thick tones to clean and transparent
single-coil tones, one pickup delivers multiple style
options effortlessly.
• Overwound coils + high-inductance structure
(10H+ high inductance)
Higher inductance means stronger output and fuller tone
—ideal for players who need high push, cutting power,
and strong energy.
• Vacuum wax potting for quiet, noise-free performance
Fully wax-potted to reduce microphonics and mechanical noise,
maintaining stability in high-gain, overdrive,
and stage environments.
Tone Profiles
• Bright, Sharp, Transparent, Gentle Clean and non-harsh tone
lines, suitable for clean and light overdrive.
• Balanced frequency response. Dual rails provide even output
across six strings, with clear chords and melodies.
• Delicate clean tones. Can produce airy, dreamy, and lively
clean textures.
• Strong detail resolution. High-frequency response captures
subtle nuances such as fingerpicking, tapping,
hammer-ons/pull-offs.
• Excellent performance under overdrive/distortion.
More pronounced highs, longer sustain, stronger penetration,
tight attack. Highly detailed shaping for refined soloing and
high-definition rhythm playing.
Suitable Genres:
Funk, Blues, Jazz, Country, Indie, City Pop, Post-Rock, Shoegaze, Math Rock

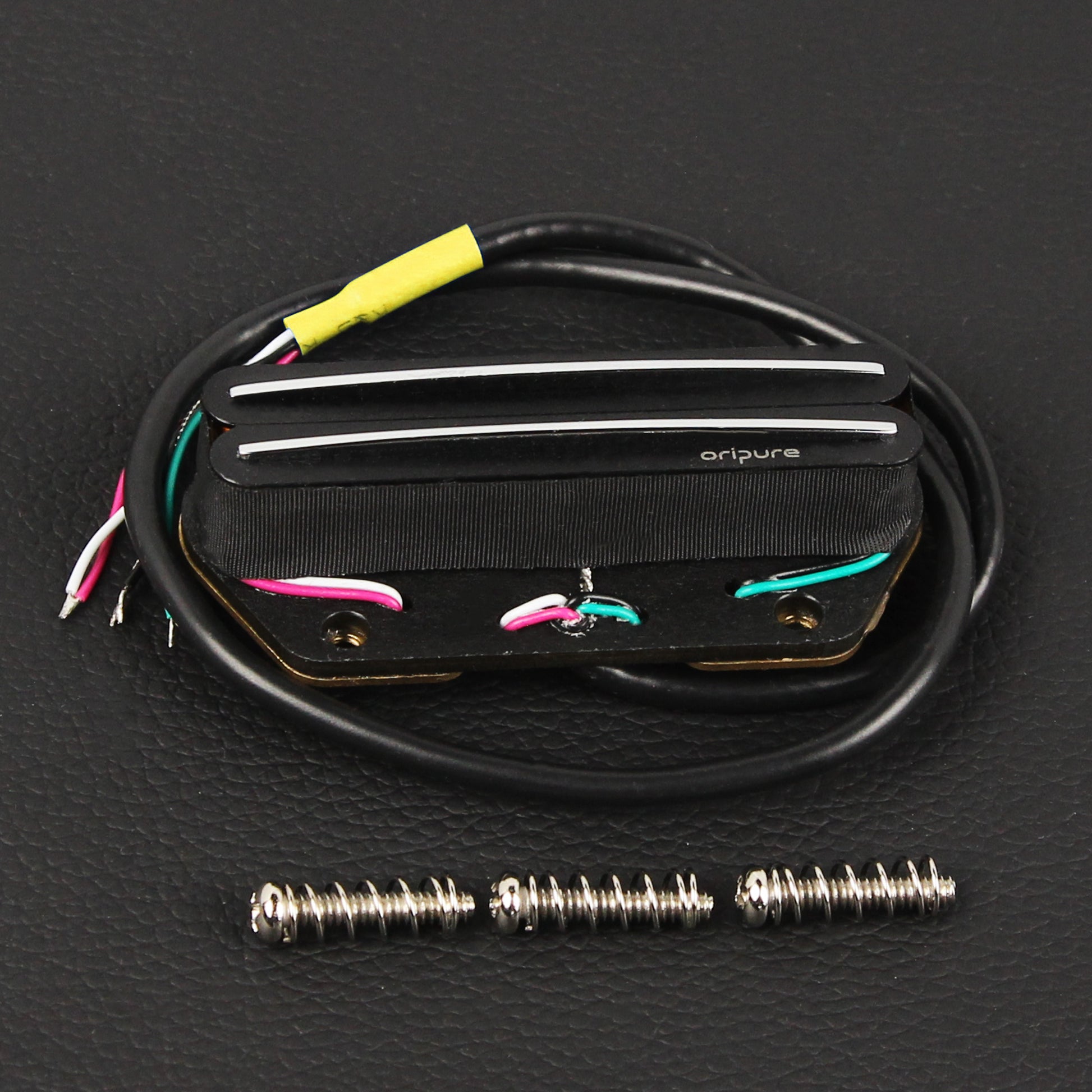

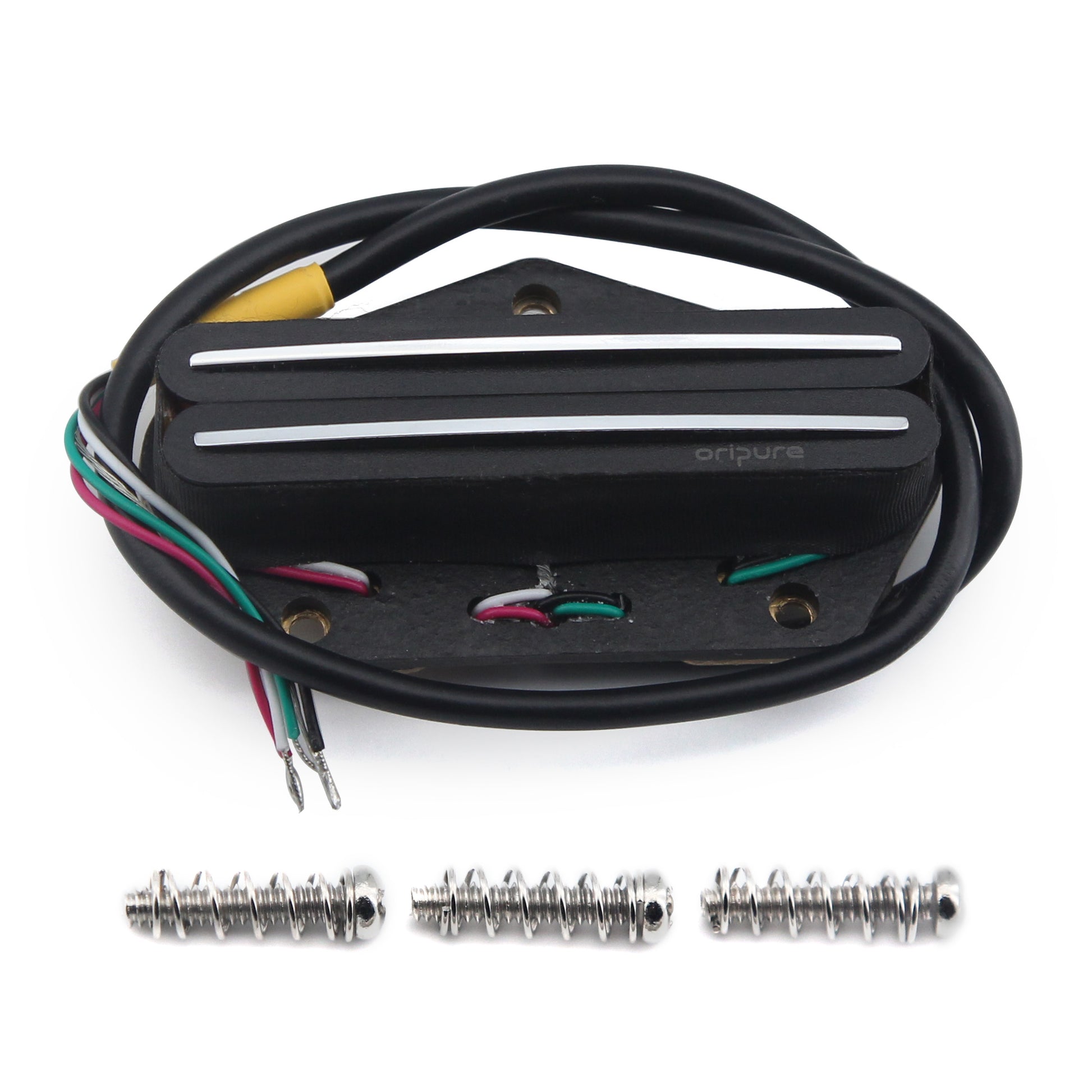

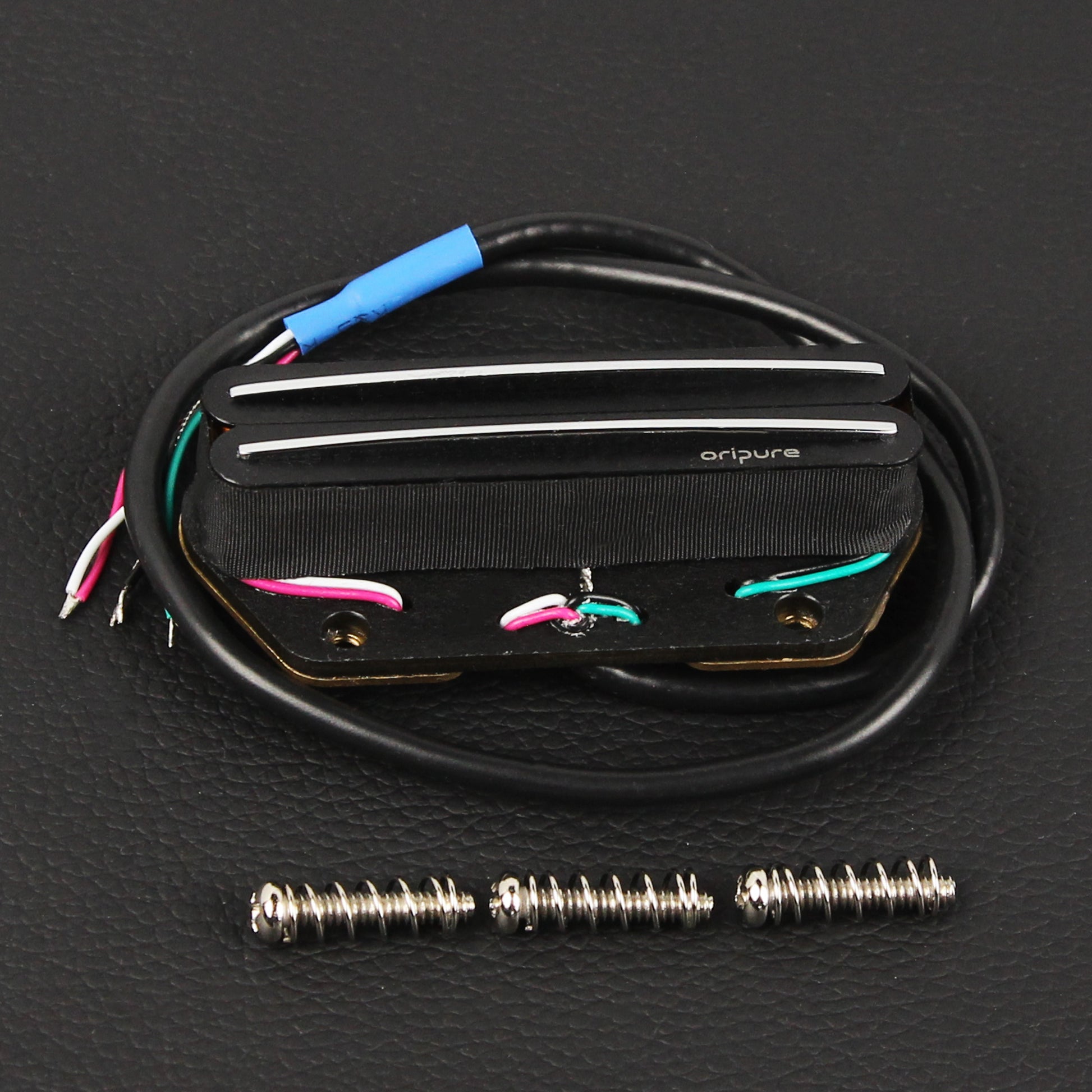

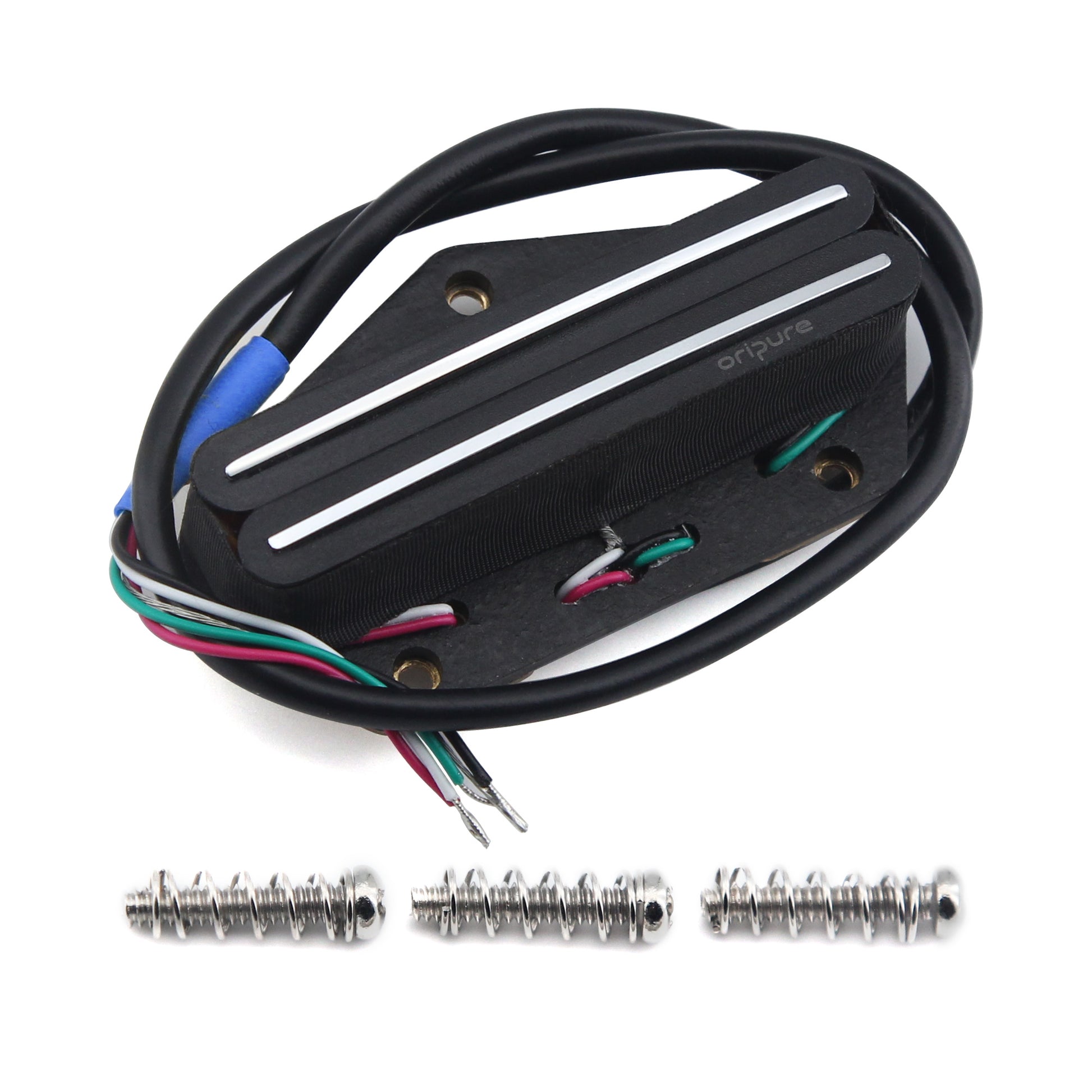

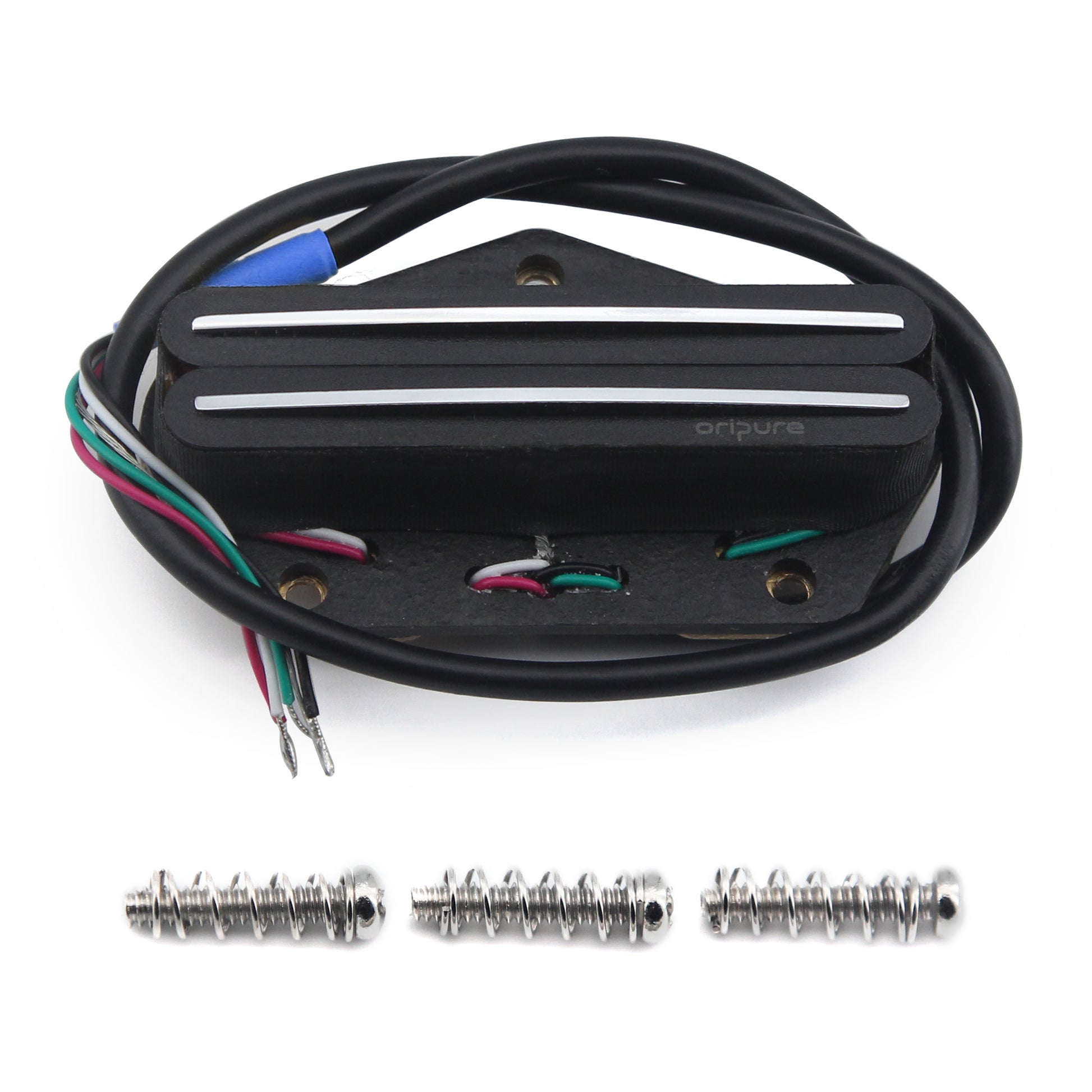

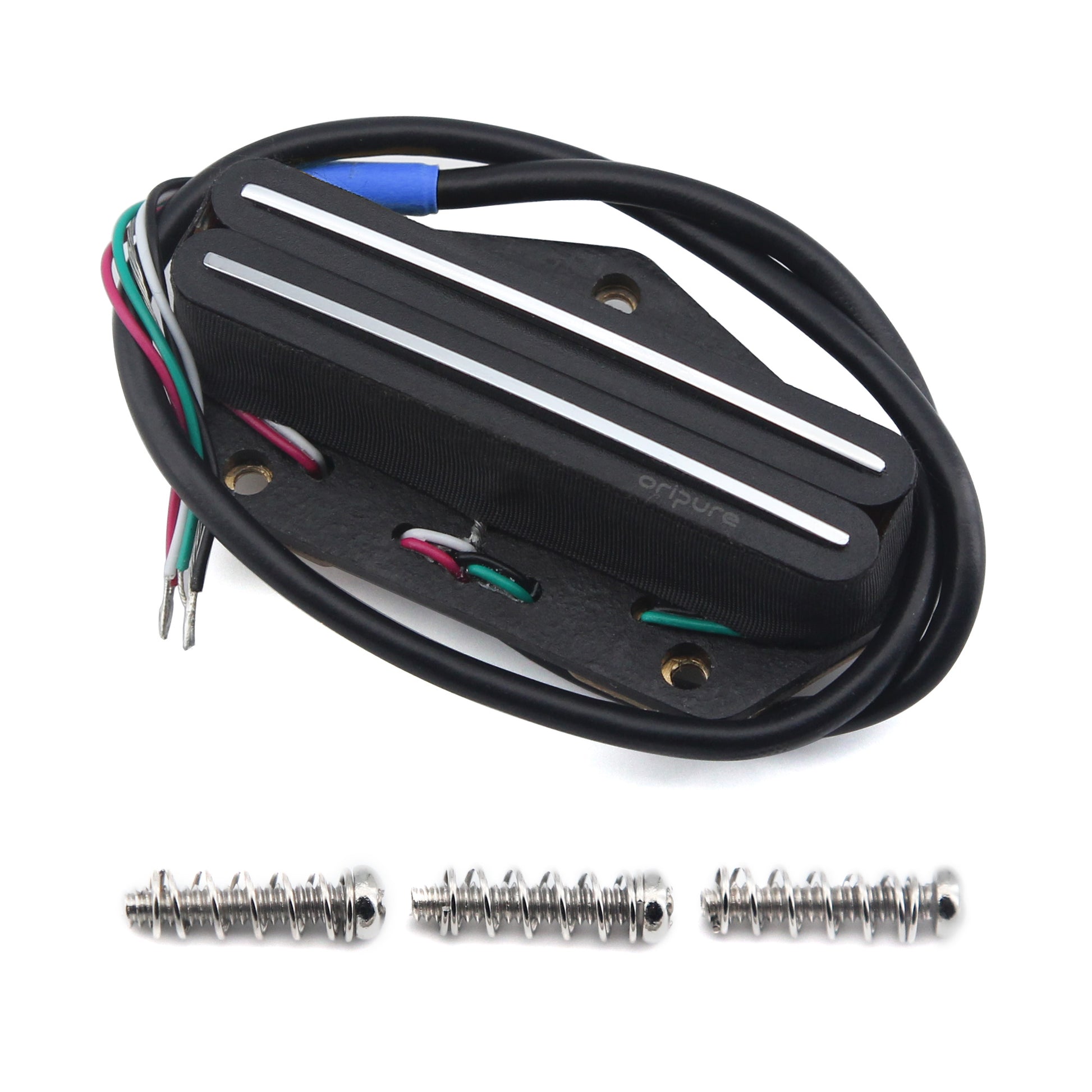

Package Includes:
PBL5 Pickup × 1
Mounting Screws ×3
Springs × 3
