OriPure

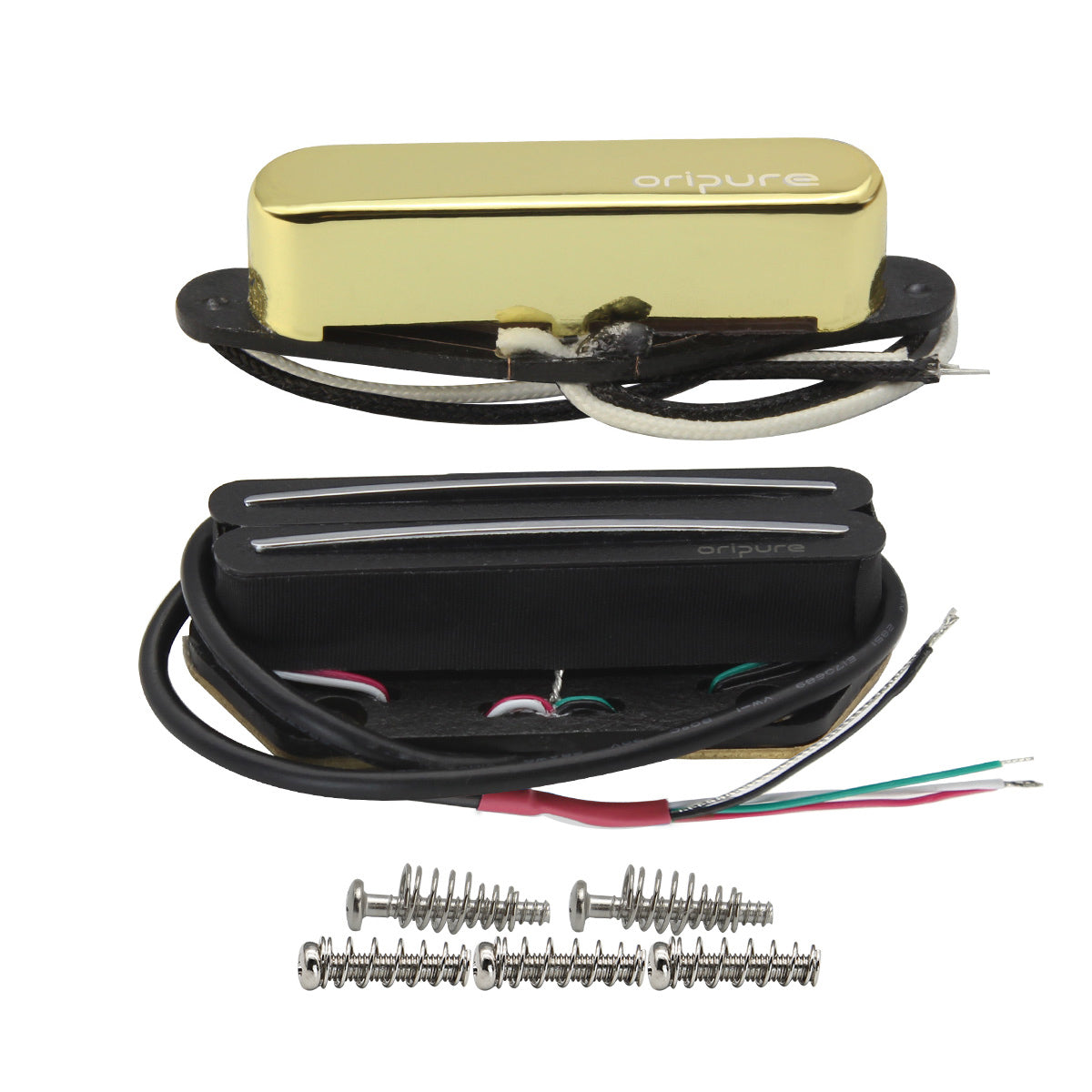

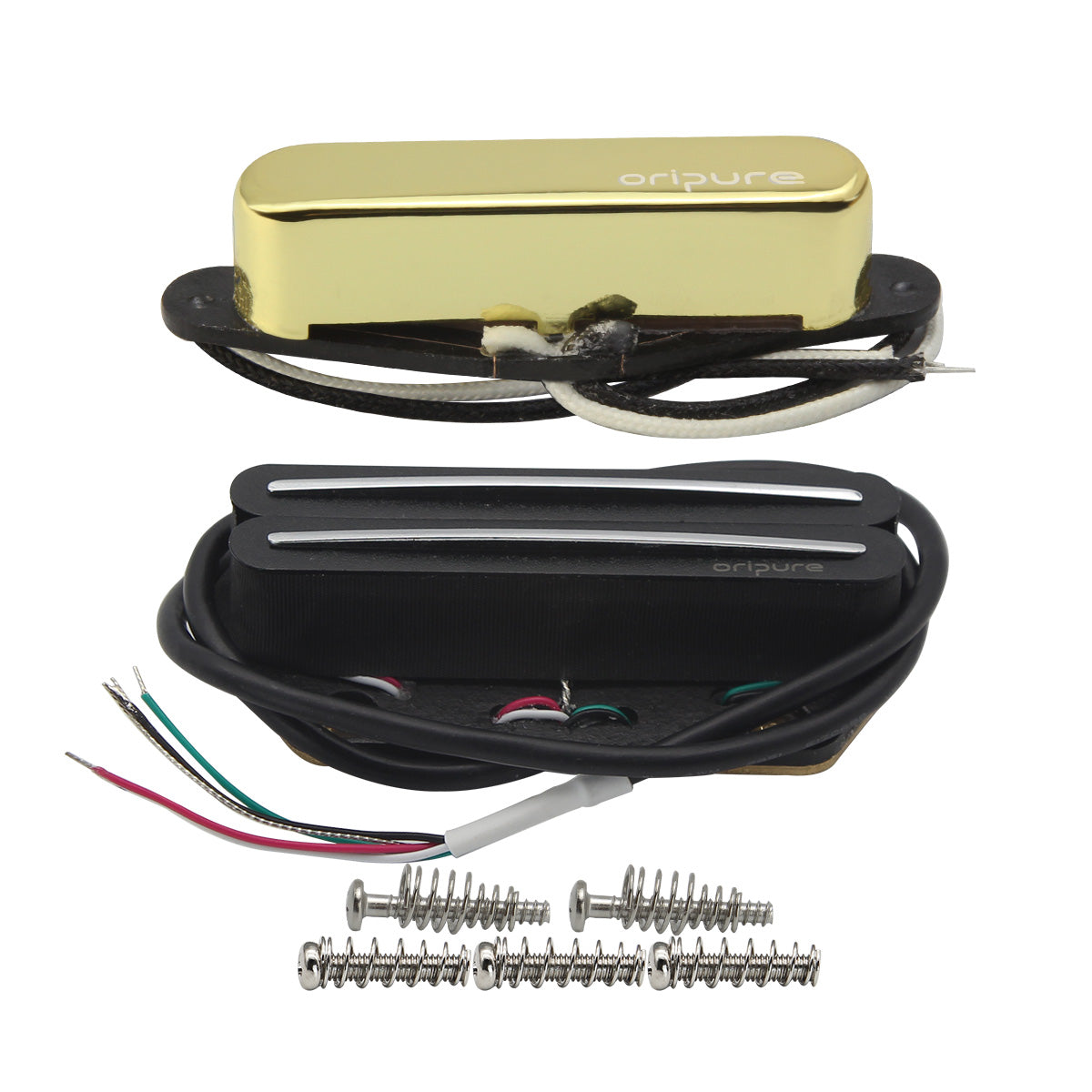

OriPure TL Alnico5 Pickup SR Set

OriPure TL Alnico5 Pickup SR Set

Features:

OriPure PSL5 CLASSIC TL neck pickup Fits for FD TL Style electric guitar or similar guitar parts replacement.
Built with alnico 5 magnets,AWG44 enamel-coated magnet wire,a copper-nickel alloy cover with a vintage look,and vintage waxed cloth hookup wire for warmer classic TL sound.
Tone: Clear,warm and full sound.  On top of the classic jazz tone with a hint of avant-garde guitar modern vibe.
Wax potted for squeal free performance.
Installation hardware included.
Suitable for BLUES;COUNTRY;JAZZ;FUNK;Post-rock;British rock;Grunge;Math-rock;Noise rock;Shoegazing;PUNK style music.
Dual Hot Rails Humbucker Bridge Pickup Fits for Tele style guitar parts replacement.
Alnico 5 magnet, two steel blades and overwound coils all combine to delivers a bright , sharp,transparent ,gentle sound .the classic tone of funk and blues of the 70s and 80s.
A strict quality inspection method control the minimized error,to ensure the quality of each pickup is consistent.


Specifications:
Brand: OriPure.
Model: PSL5+PBL5.
Position: Neck + Bridge
Magnet: Alnico 5.
Neck Resistance: 7.8K
Bridge Resistance:10.6K/13.6K/16K
Peak Frequency: 1.8H + 4.2H.
OUTPUT: Moderate output.
Based on the frequency ratio of each pickup per se:Treble-45%;Middle-15%;Bass-40%.
Color: Chrome/Gold/Black


Package Included:
2 x Guitar Pickup
5 x Screws
5 x Springs


Note:
All parameters for reference, the actual may be a bit deviation. The actual effect of tone will be a little different from different guitars or related equipment.
The DC Resistance we marked will change due to the difference in ambient temperature, and the range of change will reach 500Ω. In case of extreme temperature, the range of change will be greater.
View full details

OriPure Custom STD-TL Prewired circuit

OriPure STD-TL Alnico 5 Loaded Prewired Guitar TL Pickguard 3 Way Super Switch.

Pickguard Color: Black 3ply, White 3ply, Cream 3ply,White Pearl 4ply, Red Tortoise 4ply colors for choose.

More Information

The Wiring

The Pickups

  • OriPure TSF558 Vintage Staggered Single Coil Pickups for Strat/SQ Style Electric Guitar Parts Replacement.Use Alnico 5 magnets, vulcanized fiber bobbin, AWG42 wire, and braided cloth cables, exquisite craftsmanship brings a great sound to your guitar.The middle pickup is reverse wound and reverses polarity (RwRP) so that it cancels the hum as a 'humbucker' would when playing in positions 2 & 4 on a traditional 5-way set-up. The bridge pickup is slightly hotter to give it a higher output and balance the pickups as a set.Suitable for Post-rock, Garage Rock, J-Rock, J-Pop, Funk music, British rock, Grunge, Math-rock, Noise rock, Shoegazing style music.Each pickup is fully wax potted for squeal-free performance.The iconic electric guitar sound of the golden age of rock and roll. Jazz, funk, British style, psychedelic, let people return to the crisp, sweet and delicate in the 90s.

  • OriPure TFF566 Vintage Alnico 5 Single Coil Pickup for Strat/SQ Style Electric Guitar Parts Replacement.Alnico 5 magnets and AWG42 enameled wires provides a more penetrating sound.Flat-pole pickups do retain string volume balance.Uses vintage style black fiber cardboard and vintage style hookup wire surrounded by a wax coated cloth insulation.The middle pickup is reverse wound and reverses polarity (RwRP), noise-free and dynamic sound can be obtained in the 2nd and 4th gears.The pickup adopts a low-capacitance winding method. The distributed capacitance is sufficiently low. This processing method means that a crisper and brighter sound can be obtained on this pickup.Create a pioneering and avant-garde temperament for jazz, blues and modern guitar playing atmosphere. It can give you the unique aloofness and freshness of Fusion Jazz and Free Jazz in the new century.Each pickup is fully wax potted for squeal-free performance.A strict quality inspection method control the minimized error,to ensure the quality of each pickup is consistent.Perfect for Strats with maple fretboards and warm Alder and Ash bodies.Suitable for BLUES;COUNTRY;JAZZ;FUNK;Post-rock;Reggae;Indie;Math-rock;Britpop;Classic Rock;Shoegazing style music.
