OriPure MAB-110 20W Guitar Cabinet + OriPure OAH-05 Handcrafted 5W All Tube Guitar Amp Head
OriPure MAB-110 20W Guitar Cabinet + OriPure OAH-05 Handcrafted 5W All Tube Guitar Amp Head
OriPure MAB-110 20W Guitar Cabinet + OriPure OAH-05 Handcrafted 5W All Tube Guitar Amp Head

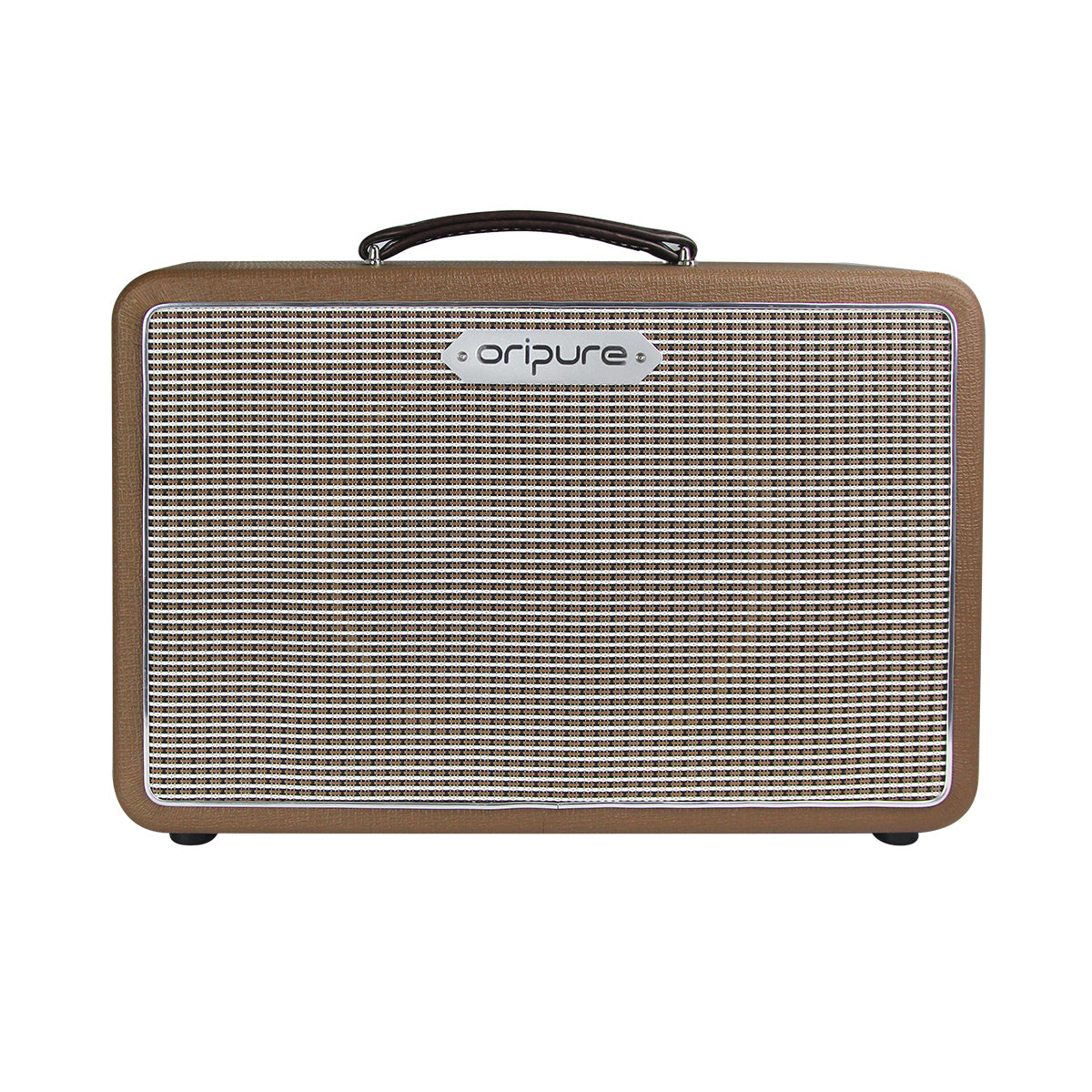

OriPure MAB-110 20W Guitar Cabinet
1. High power output of 20W for a clear and loud sound.
2. Open back cabinet design for improved resonance and tone.
3. 10-inch full paper cone guitar speaker with a bulletproof cloth cap coated with damping glue for enhanced durability and tone quality.
4. Ideal for overdrive and distortion effects, making it a versatile choice for different music genres.
5. 8Ω impedance for compatibility with a wide range of amplifiers and audio equipment.
The MAB-110 is a 20W guitar speaker with a 10-inch paper cone and open-back cabinet design, delivering a clear and authentic British sound that's ideal for different music genres. The speaker features a bulletproof cloth cap coated with damping glue for improved durability, making it a reliable choice for live performances and studio recording sessions. With an 8Ω impedance, this speaker is compatible with a wide range of amplifiers and audio equipment, providing versatile options for guitarists who want to create their unique sound. Whether you're looking for clean tones or overdrive/distortion effects, the MAB-110 is a powerful and reliable option that delivers exceptional sound quality.
OriPure OAH-05 Handcrafted 5W All Tube Guitar Amp Head
Versatile Sound: The 5W Tube Guitar Amplifier Head features two preamp stages controlled by GAIN/VOLUME knobs, delivering clear tones to OverDrive sounds. With a BRIGHT/WARM switch and high/medium/low EQ controls, it offers a wide range of sound customization for different needs.
High-Quality Handcrafted Output Transformer: The output transformer is handcrafted with a paper insulation process, which reduces stray capacitance and increases the resonant frequencies, leading to better response and transparent sound. The use of Grain-Oriented Silicon Steel (35Z155-0.35) increases inductance and improves low-frequency performance.
Single-Ended Output Stage: The Single-Ended Output Stage provides a clean and stable sound, which is perfect for each player's use.
Durable Aluminum Chassis: The amplifier head is housed in a sturdy and stylish cast-aluminum chassis, ensuring its durability and aesthetic appeal.
Accessible Components: The amplifier head features easy-to-find components including a single channel, 1 x 12AX7 (ECC83) preamp tube, 1 x EL84 power tube, and 1 x 6Z4 rectifier tube
Specifications:
Power: 5W / 5-Watt
Preamp tube: 1 x 12AX7 (ECC83)
Power tube: 1 x EL84
Rectifier tube: 1 x 6Z4
Tone switch: Bright/Warm
Channels: Single Channel
Controls: Volume/Gain/Treble/Middle/Bass
Gain Control: Lower gain settings produce clean tones, while higher gain settings result in overdriven tones.
Standby Mode Control: The OFF position puts the amplifier in standby mode, with only the filaments heated and no high voltage applied, while the ON position is for normal operation
Outputs: 8Ω/16Ω
Jack: 1-megohm high-impedance 6.35mm input jack
Power Selector Switch: Switch between 110V and 220V power
Couldn't load pickup availability
OriPure Custom STD-TL Prewired circuit
OriPure STD-TL Alnico 5 Loaded Prewired Guitar TL Pickguard 3 Way Super Switch.
Pickguard Color: Black 3ply, White 3ply, Cream 3ply,White Pearl 4ply, Red Tortoise 4ply colors for choose.
More Information
The Wiring
The Pickups
- OriPure TSF558 Vintage Staggered Single Coil Pickups for Strat/SQ Style Electric Guitar Parts Replacement.Use Alnico 5 magnets, vulcanized fiber bobbin, AWG42 wire, and braided cloth cables, exquisite craftsmanship brings a great sound to your guitar.The middle pickup is reverse wound and reverses polarity (RwRP) so that it cancels the hum as a 'humbucker' would when playing in positions 2 & 4 on a traditional 5-way set-up. The bridge pickup is slightly hotter to give it a higher output and balance the pickups as a set.Suitable for Post-rock, Garage Rock, J-Rock, J-Pop, Funk music, British rock, Grunge, Math-rock, Noise rock, Shoegazing style music.Each pickup is fully wax potted for squeal-free performance.The iconic electric guitar sound of the golden age of rock and roll. Jazz, funk, British style, psychedelic, let people return to the crisp, sweet and delicate in the 90s.
- OriPure TFF566 Vintage Alnico 5 Single Coil Pickup for Strat/SQ Style Electric Guitar Parts Replacement.Alnico 5 magnets and AWG42 enameled wires provides a more penetrating sound.Flat-pole pickups do retain string volume balance.Uses vintage style black fiber cardboard and vintage style hookup wire surrounded by a wax coated cloth insulation.The middle pickup is reverse wound and reverses polarity (RwRP), noise-free and dynamic sound can be obtained in the 2nd and 4th gears.The pickup adopts a low-capacitance winding method. The distributed capacitance is sufficiently low. This processing method means that a crisper and brighter sound can be obtained on this pickup.Create a pioneering and avant-garde temperament for jazz, blues and modern guitar playing atmosphere. It can give you the unique aloofness and freshness of Fusion Jazz and Free Jazz in the new century.Each pickup is fully wax potted for squeal-free performance.A strict quality inspection method control the minimized error,to ensure the quality of each pickup is consistent.Perfect for Strats with maple fretboards and warm Alder and Ash bodies.Suitable for BLUES;COUNTRY;JAZZ;FUNK;Post-rock;Reggae;Indie;Math-rock;Britpop;Classic Rock;Shoegazing style music.
The LOOK
- Choose your favorite pickguard and knob combo.Need inspiration?
