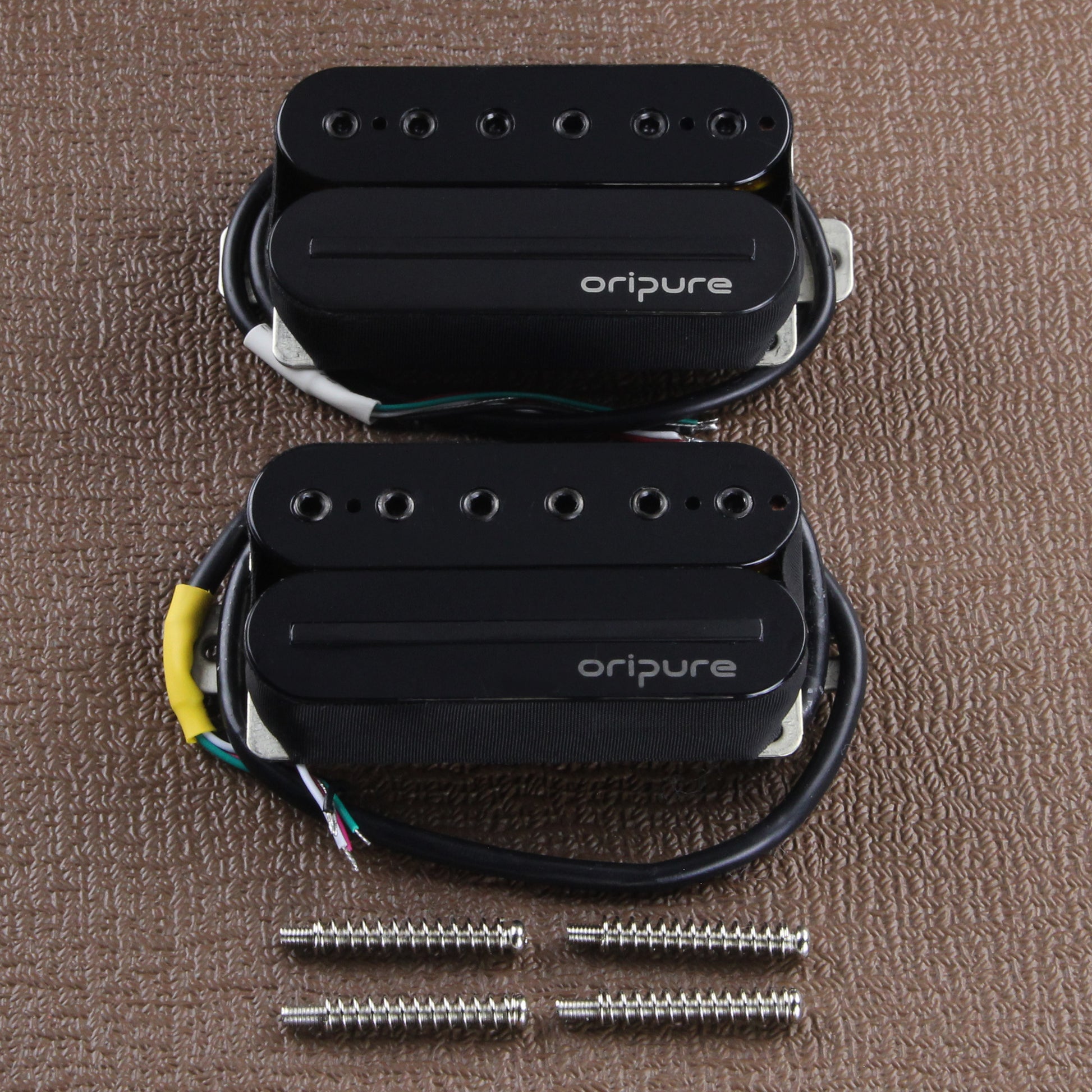

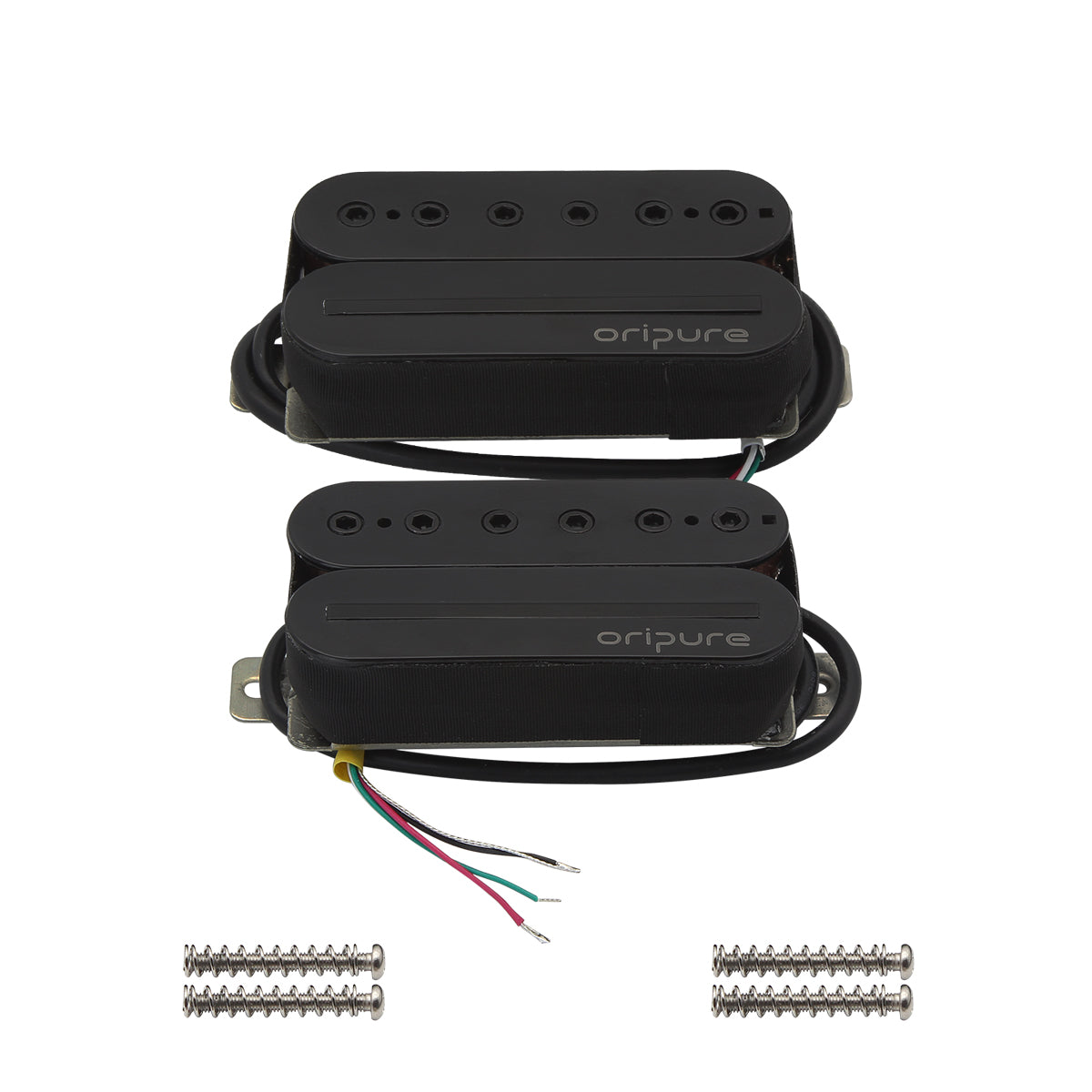

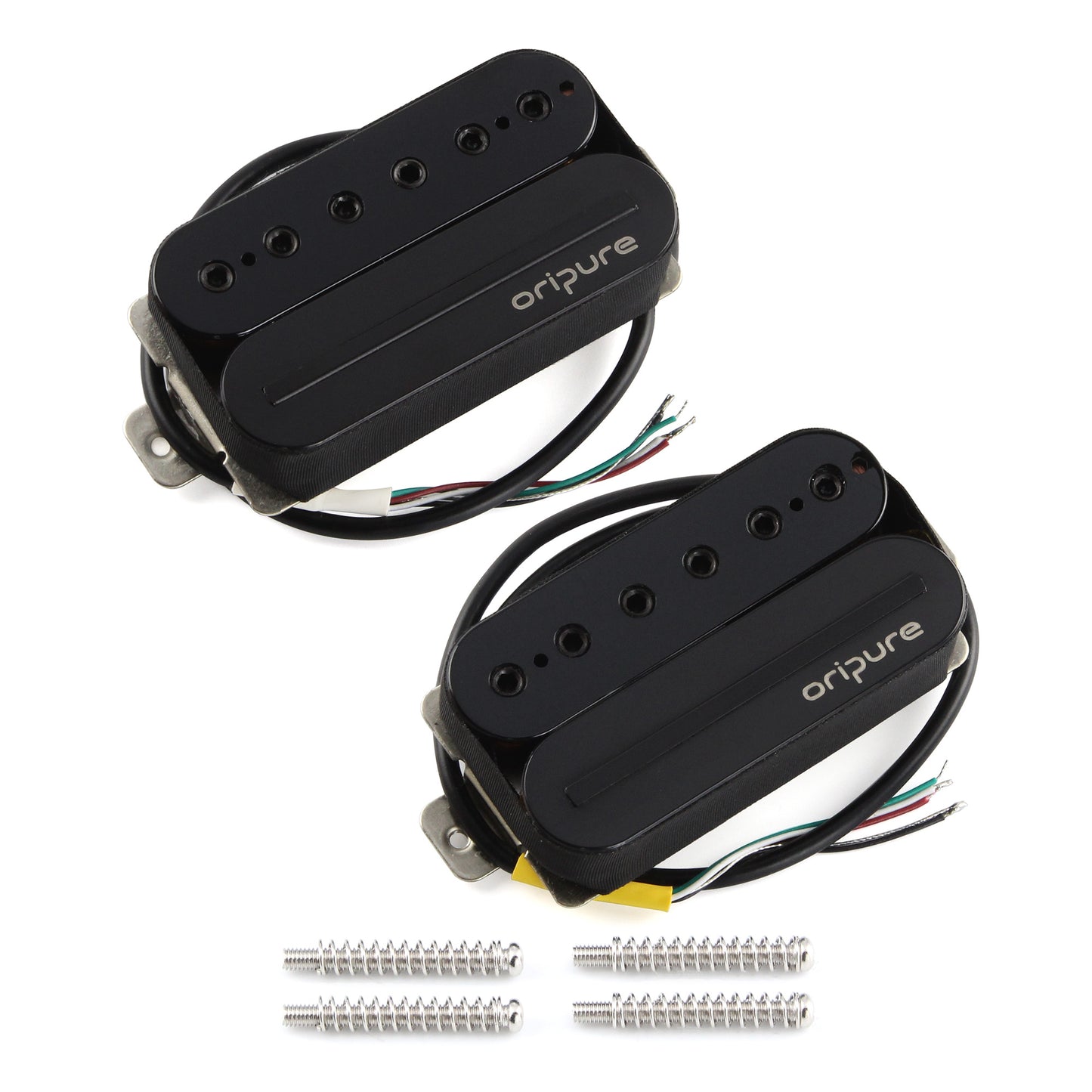

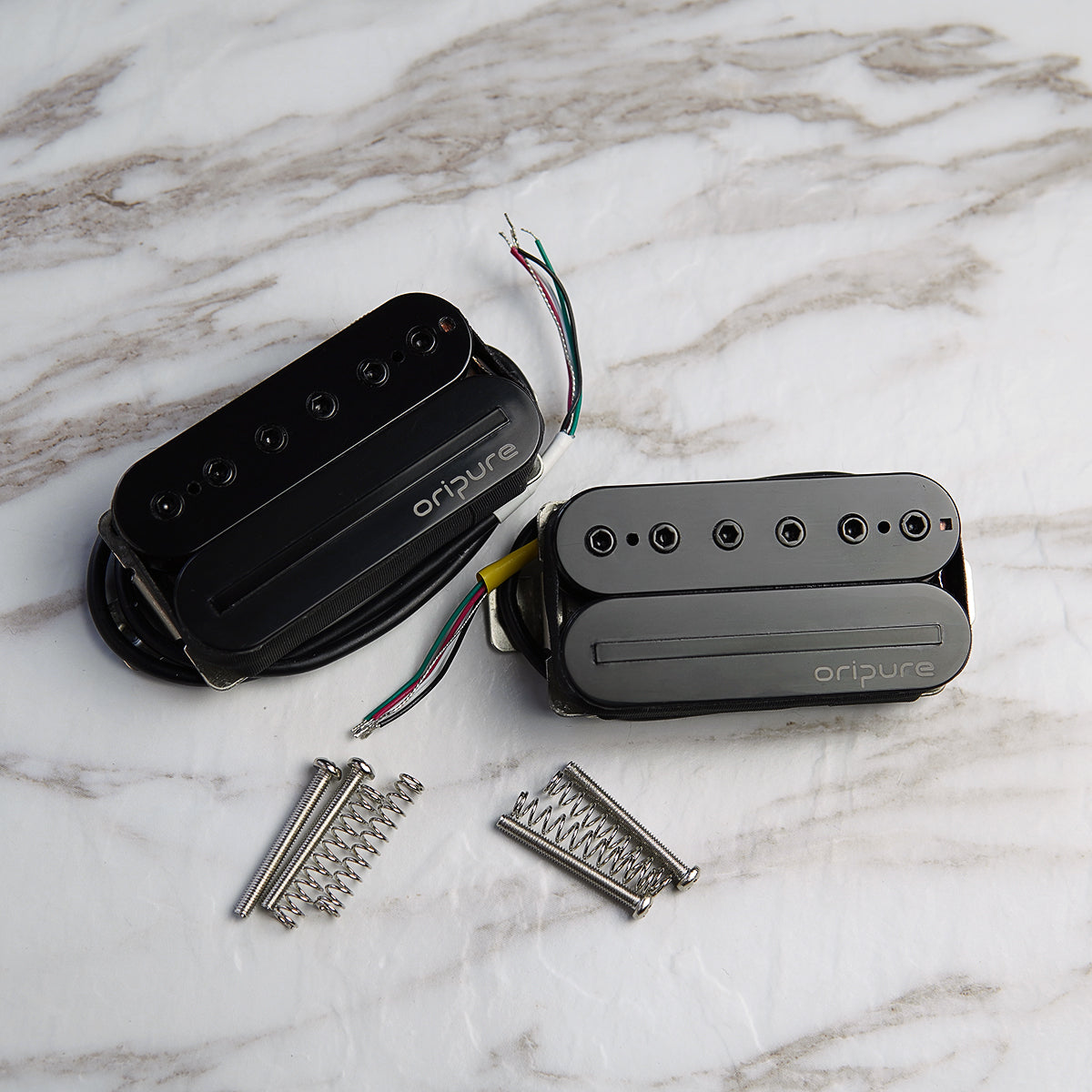

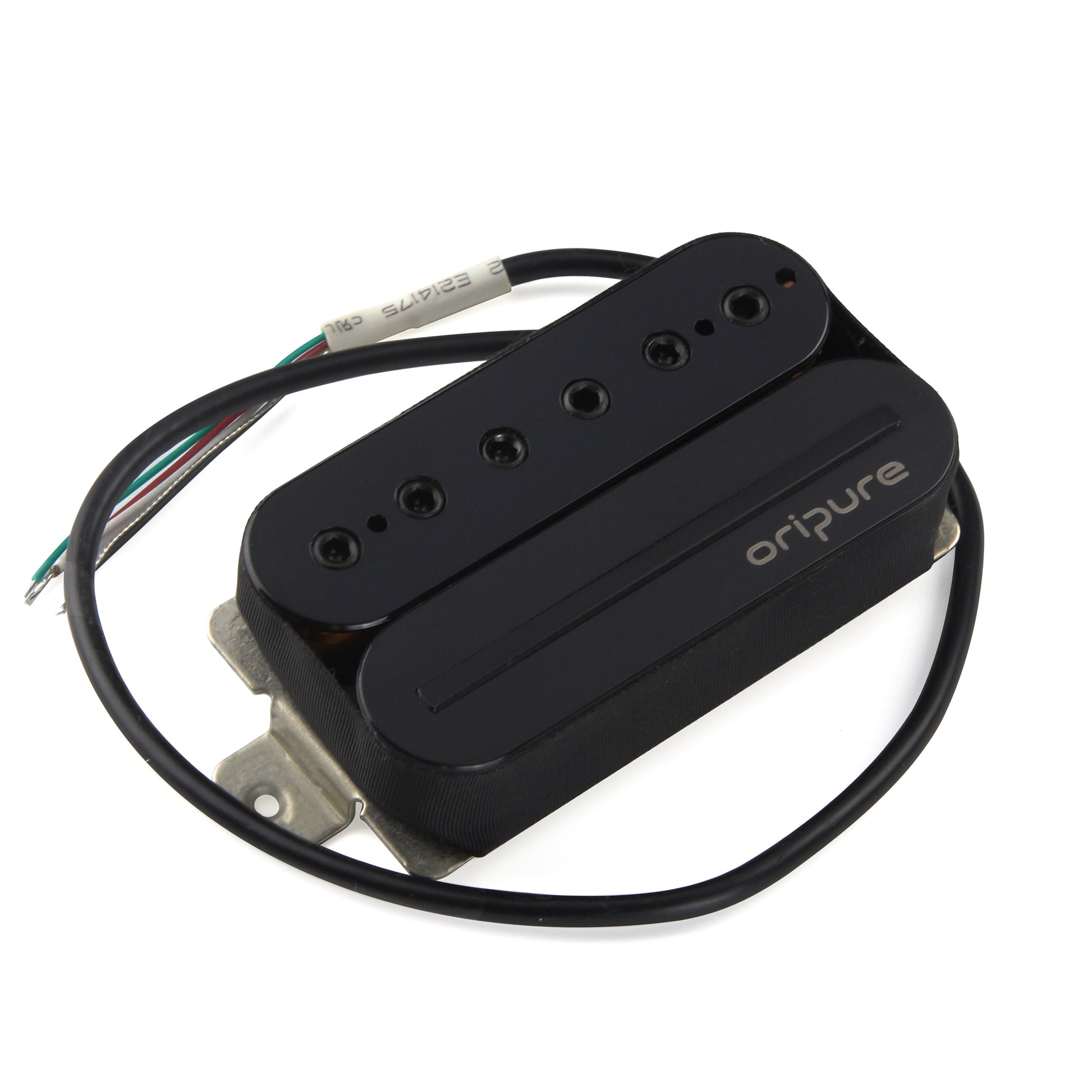

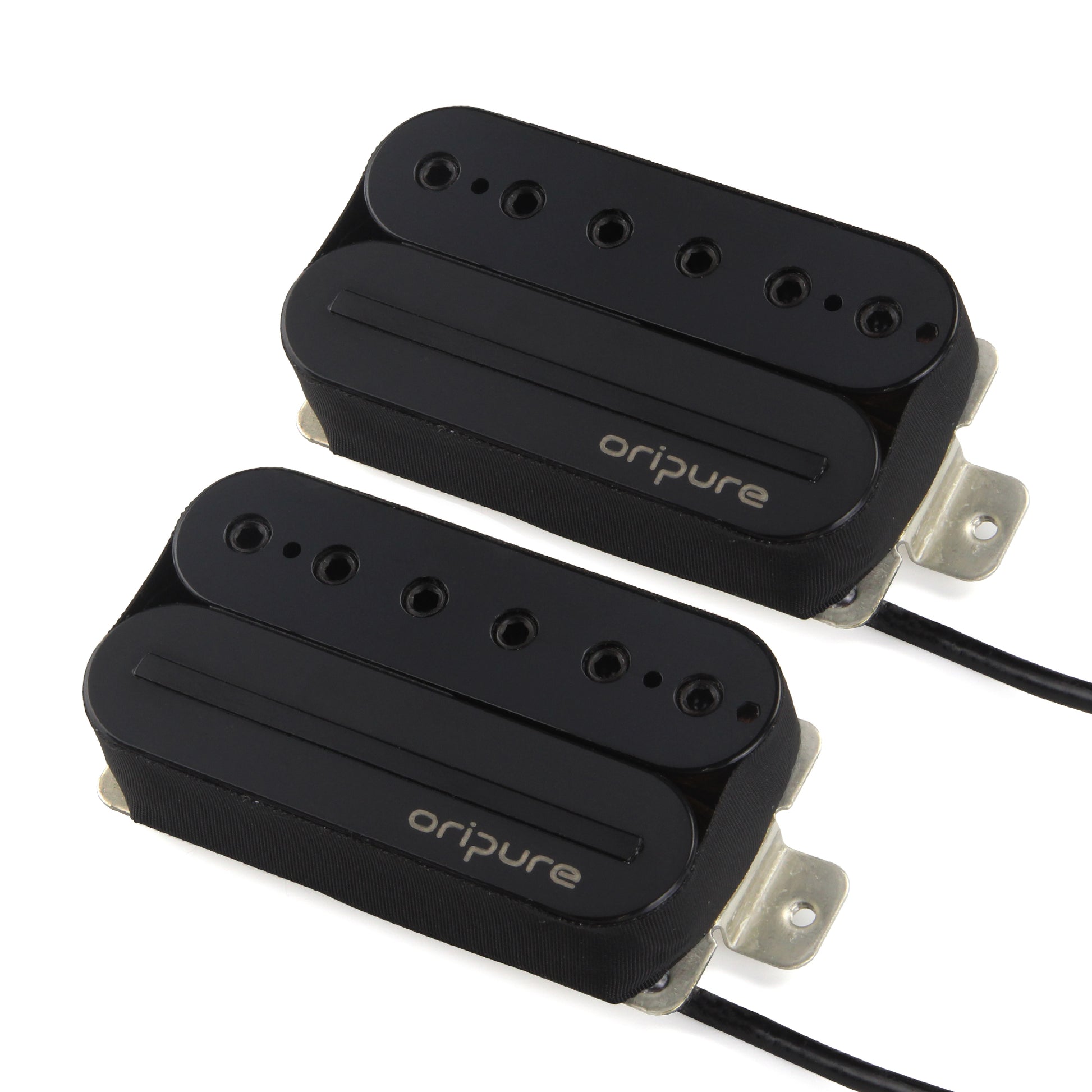

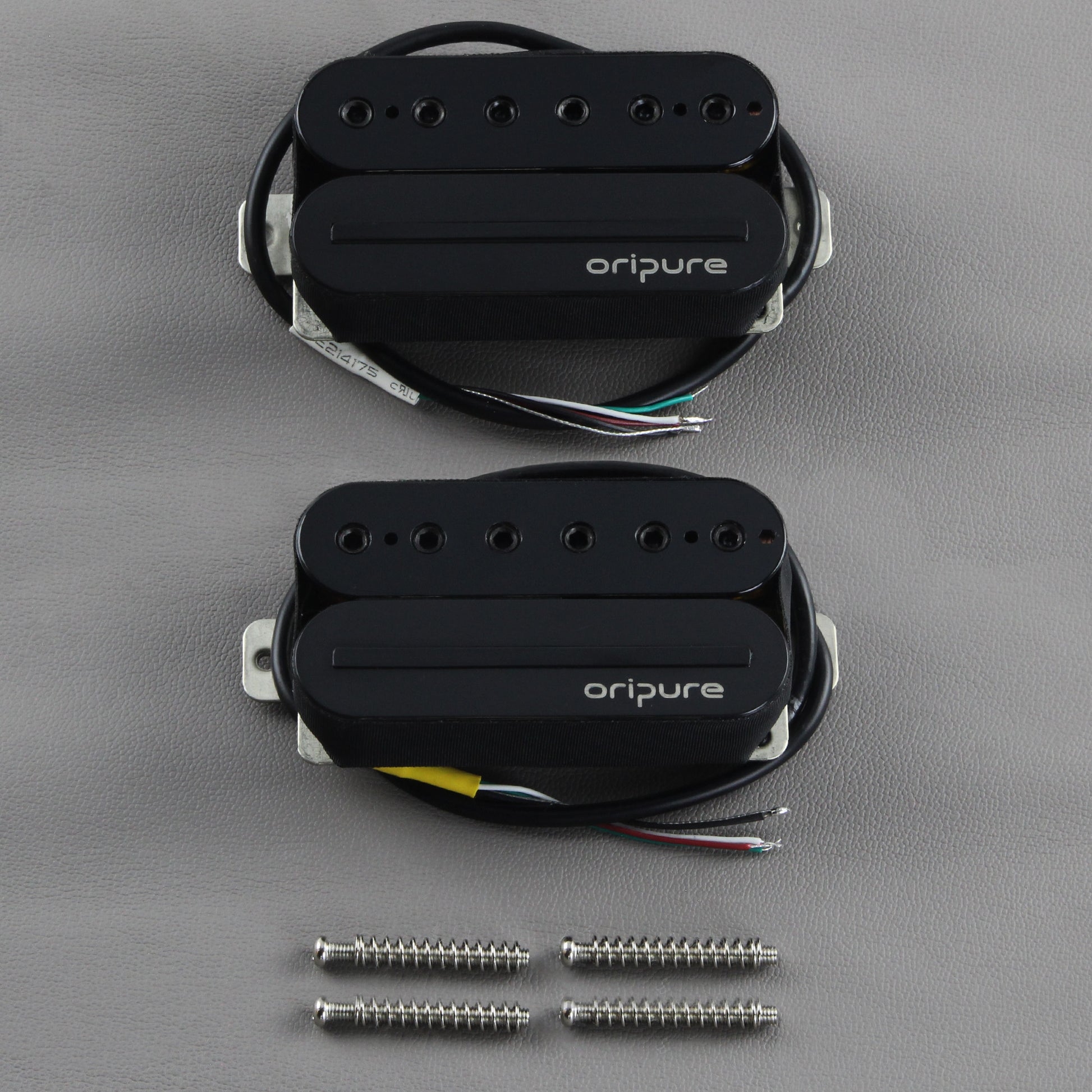

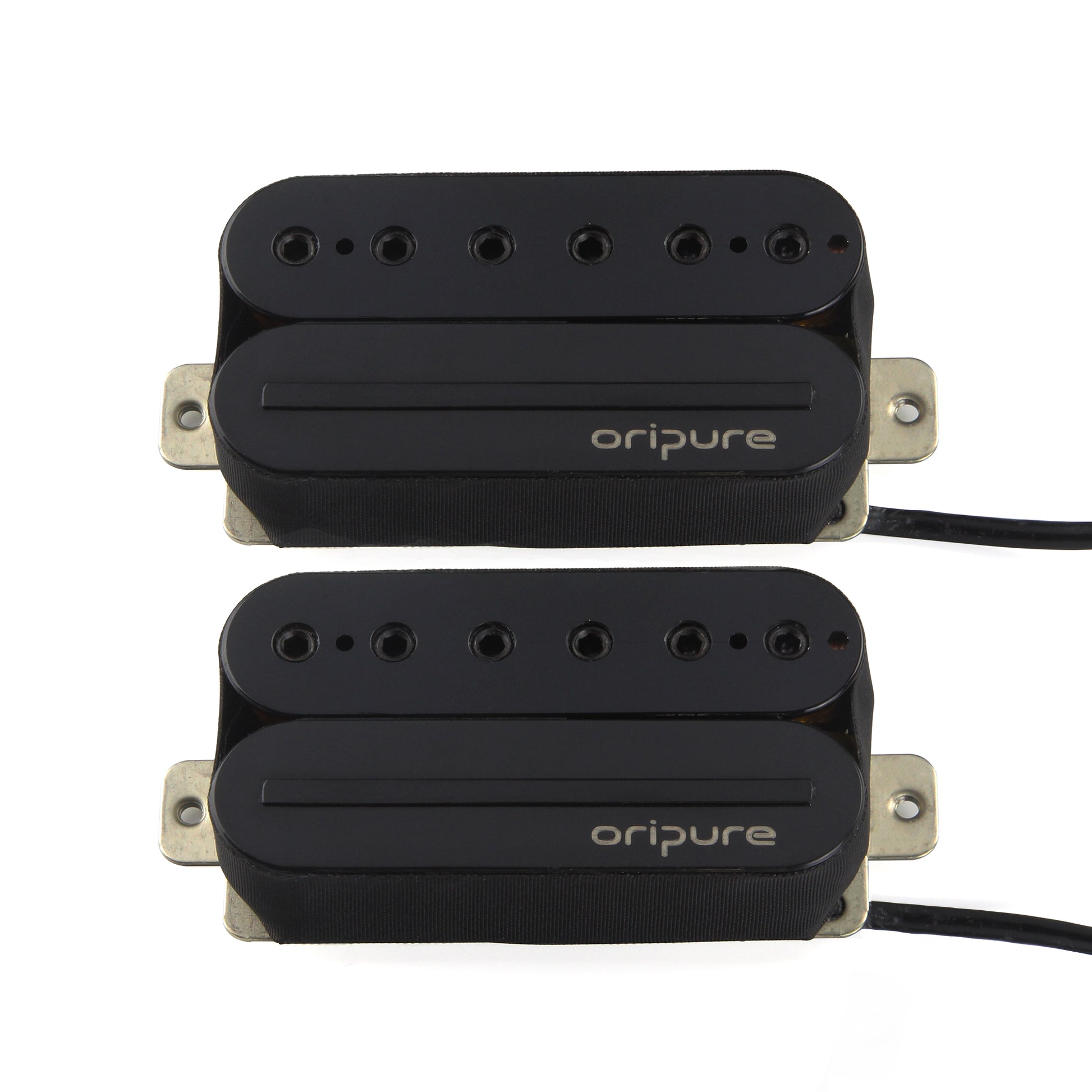

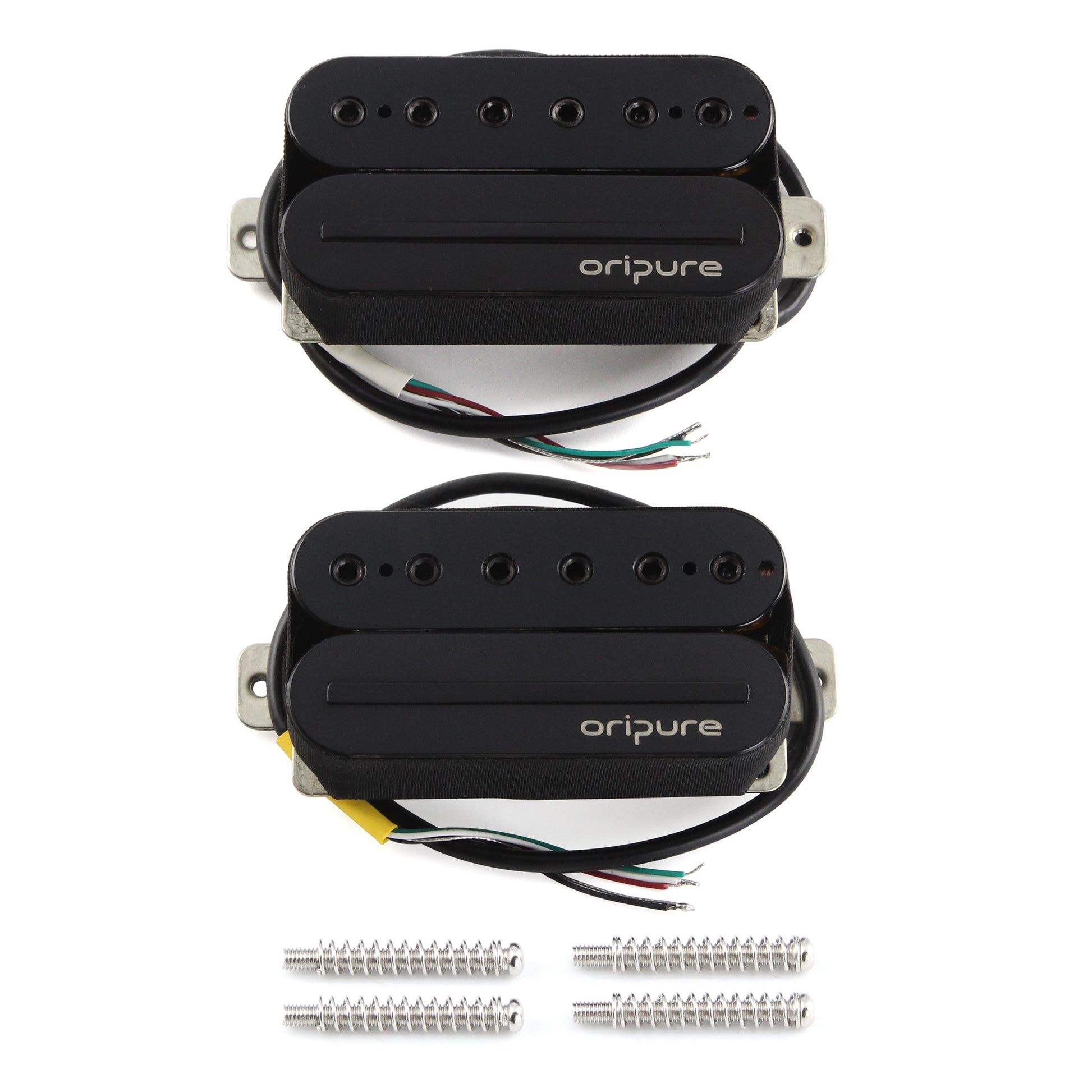

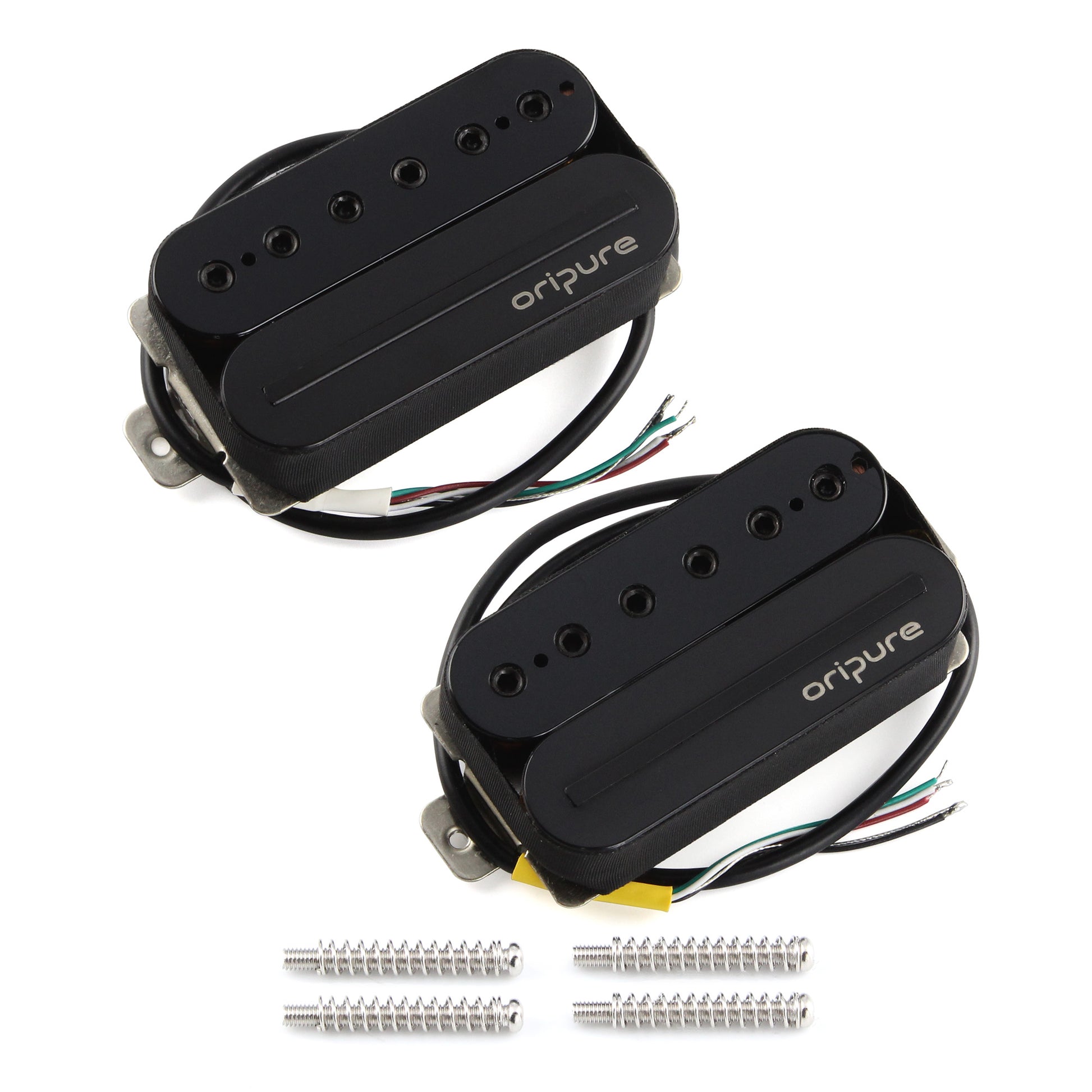

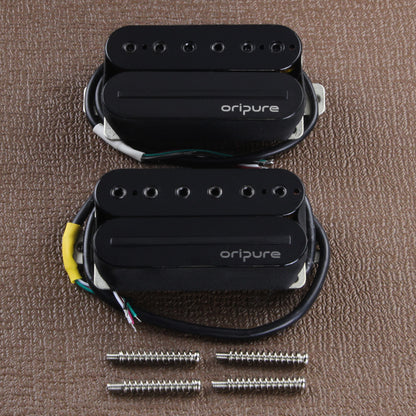

OriPure Single-Rail Alnico 2N & 5B Dual Pickup PSB2

$61.99 USD

Sale Sold out

Position Neck Bridge N+B Bridge

Quantity

Specifications

• Brand: OriPure
• Model: PSB2
• Color: Black (BK)
• Wire: 4-conductor

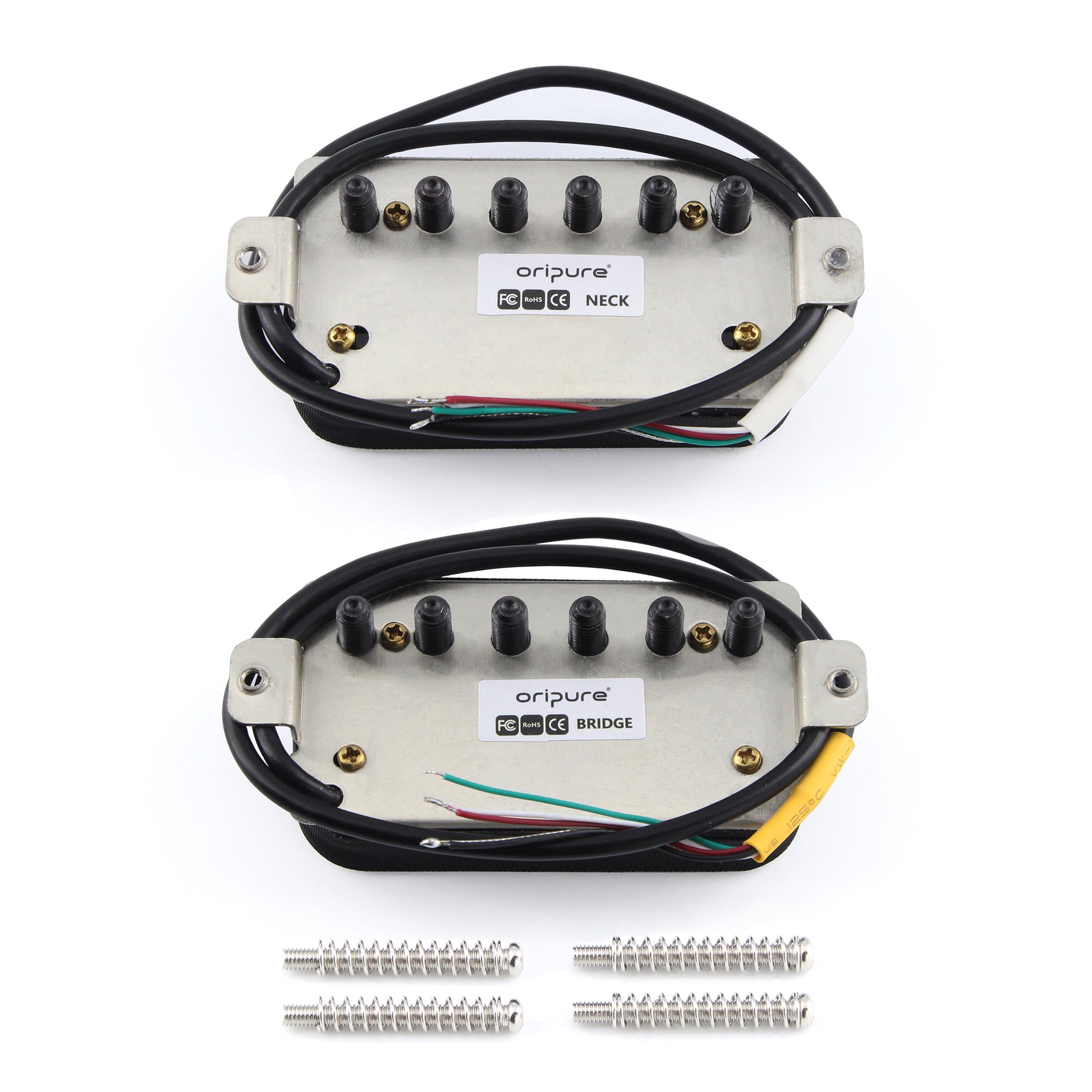

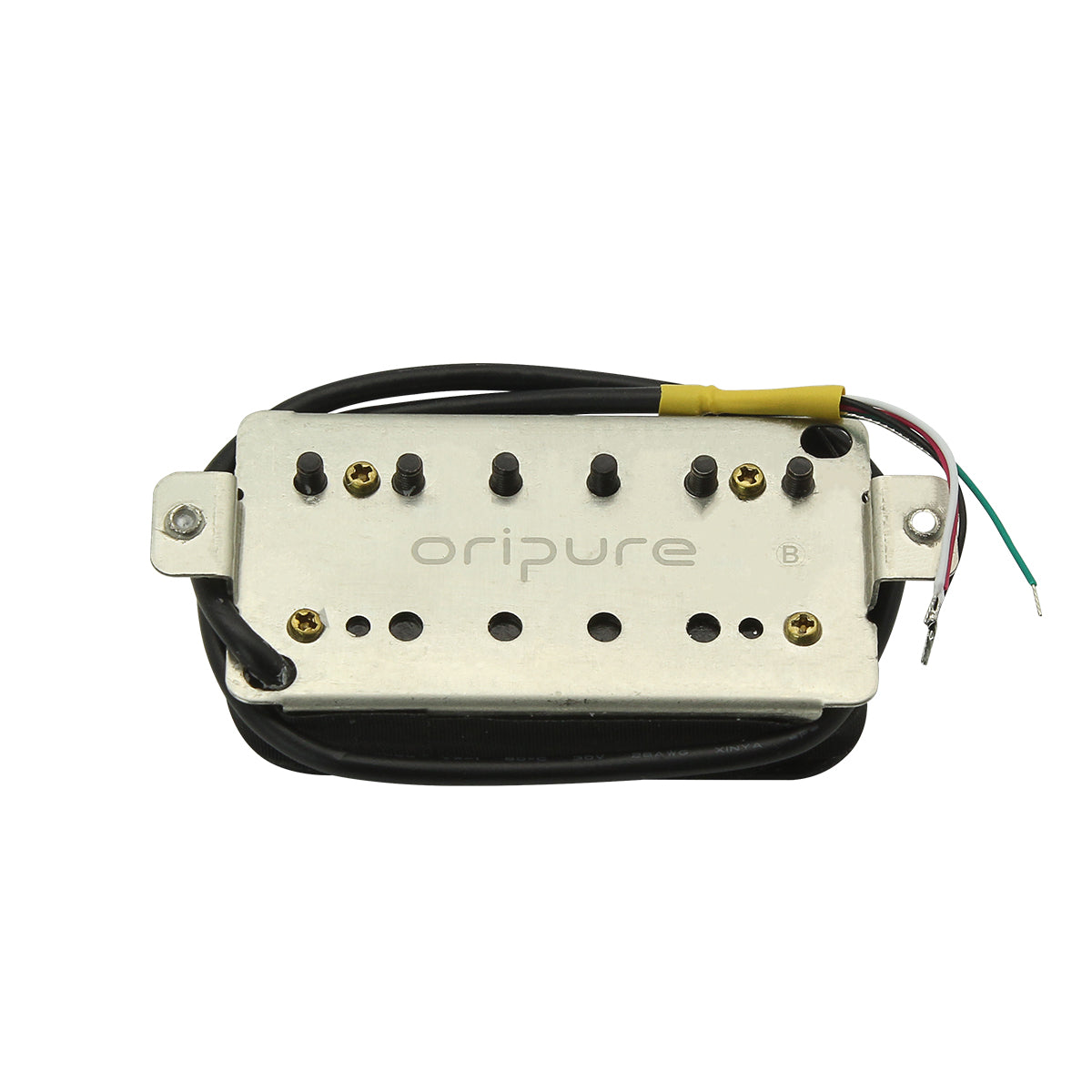

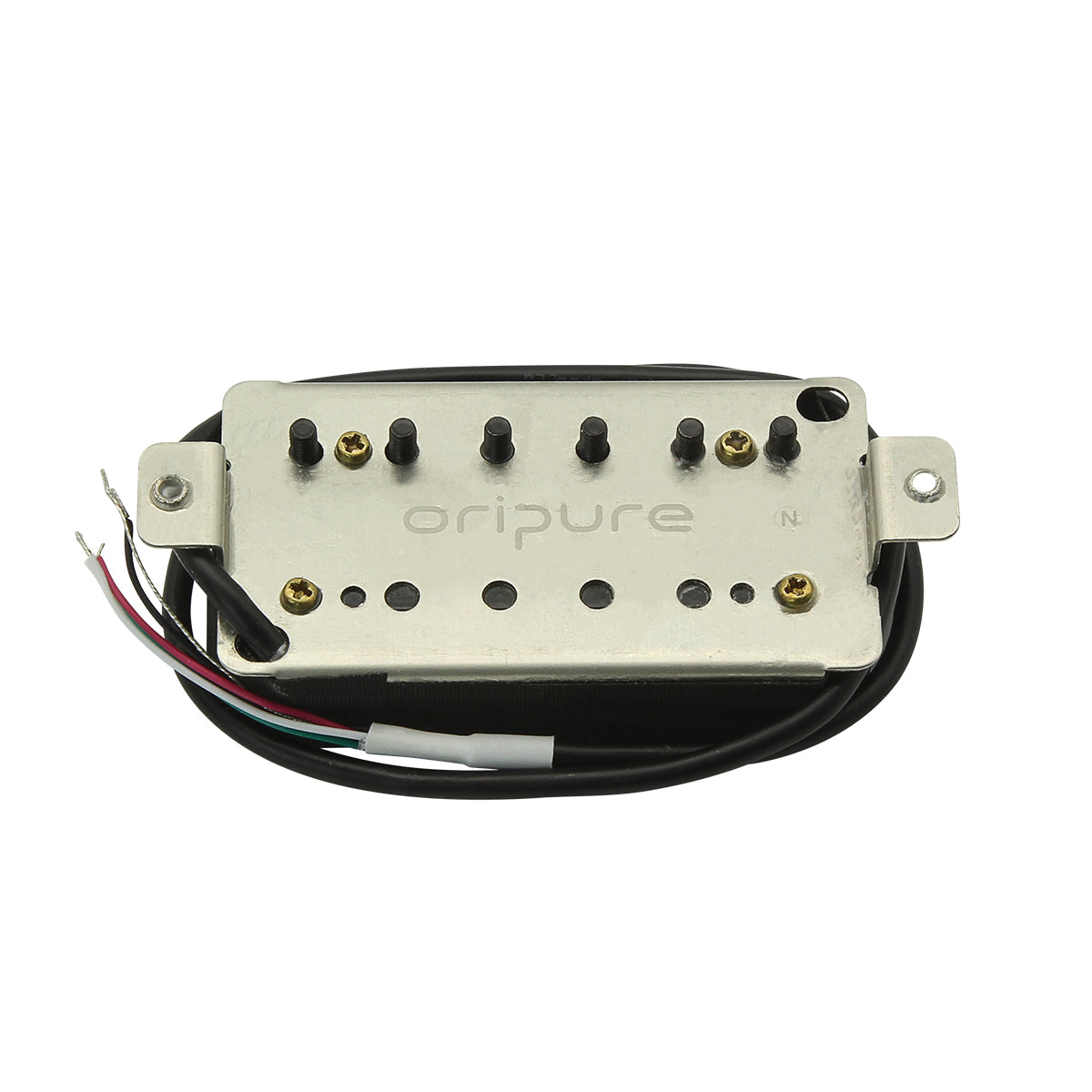

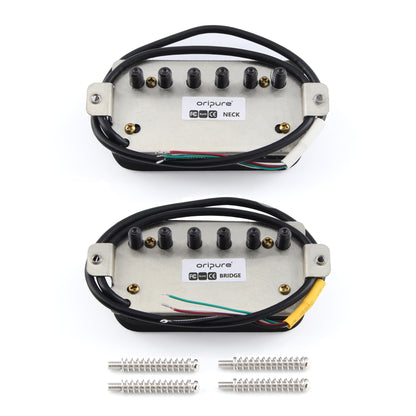

• Baseplate: Nickel-silver (Copper-Nickel Alloy)
• Magnet: High-quality magnetic steel
(Neck Alnico II /Bridge Alnico V)

Parameter List

Item	PSB2-BK-N(Neck)	PSB2-BK-B(Bridge)
Magnet	Alnico 2	Alnico 5
DC Resistance (DCR)	7.8KΩ	13.5KΩ
Peak Inductance	4.6H	8.0H
Coil	AWG42 Dual Coil (Humbucker in Single Coil Size)	AWG43 Dual Coil (Humbucker in Single Coil Size)
Frequency Ratio (High/Mid/Low)	65% / 20% / 15%	60% / 20% / 15%
Output Level	Medium-high	High Output

Features:

• Neck with Alnico 2—soft and full; Bridge with Alnico 5
—aggressive and explosive
Precisely tuned for the tonal needs of neck and bridge positions,
ideal for modern metal and rock players.
• Extremely strong distortion grain, three-dimensional,
bright, and impactful
The PSB-2 series uses a special coil and adjustable pole-piece
structure to deliver realistic grainy distortion with powerful
punch—perfect for metal, metalcore, progressive, rock,
and other high-gain styles.
• Dual-coil structure but retains plenty of high frequencies;
coil-split tone is uniquely flavorful
Brighter than typical humbuckers, combining single-coil clarity
with humbucker thickness. Coil-splitting produces a more
distinctive high-frequency texture.
• Long sustain, high clarity, and strong layering in clean tones
The clean tone is bright, sweet, warm, and penetrating,
with a “pearl-glaze” character and crystal-clear
strumming definition.

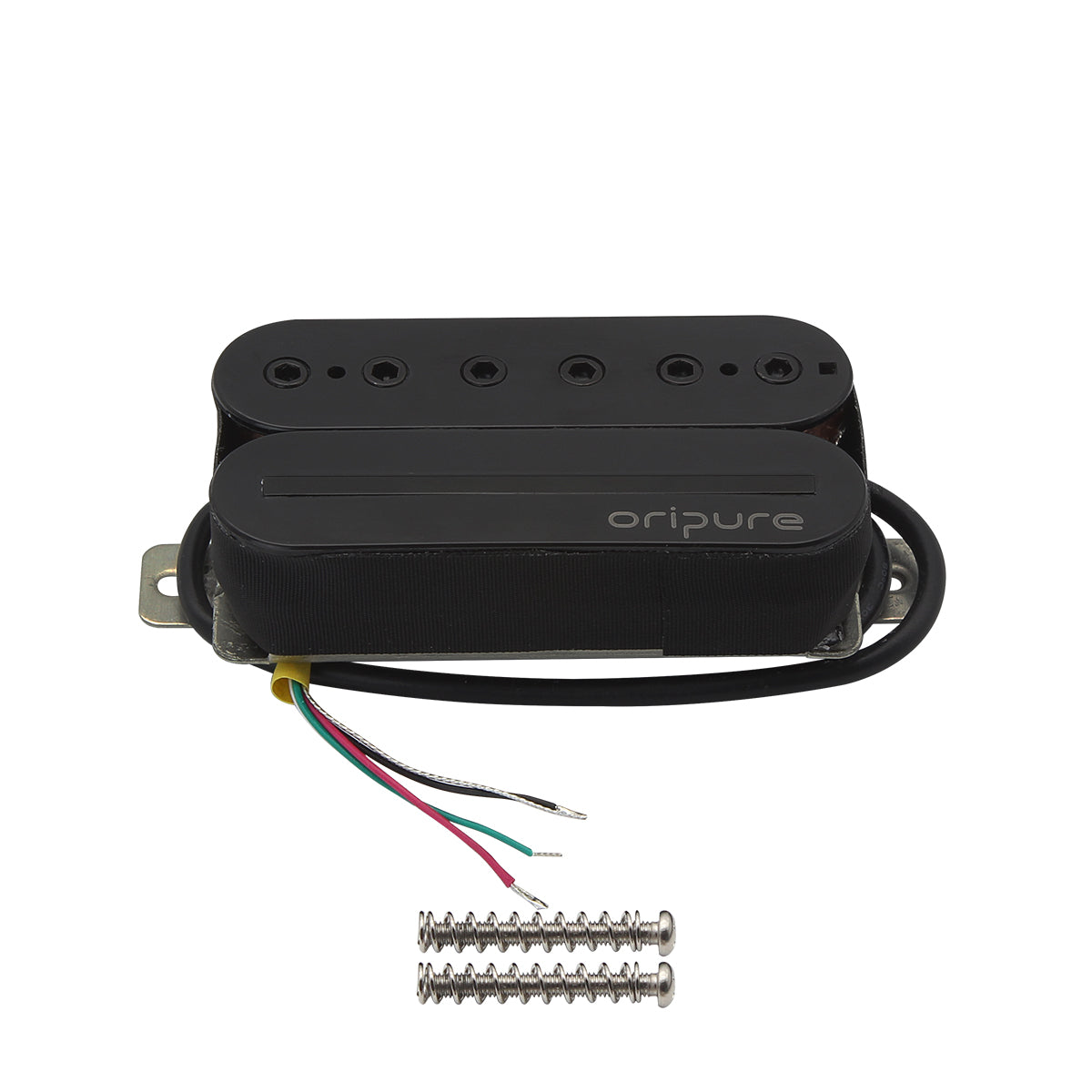

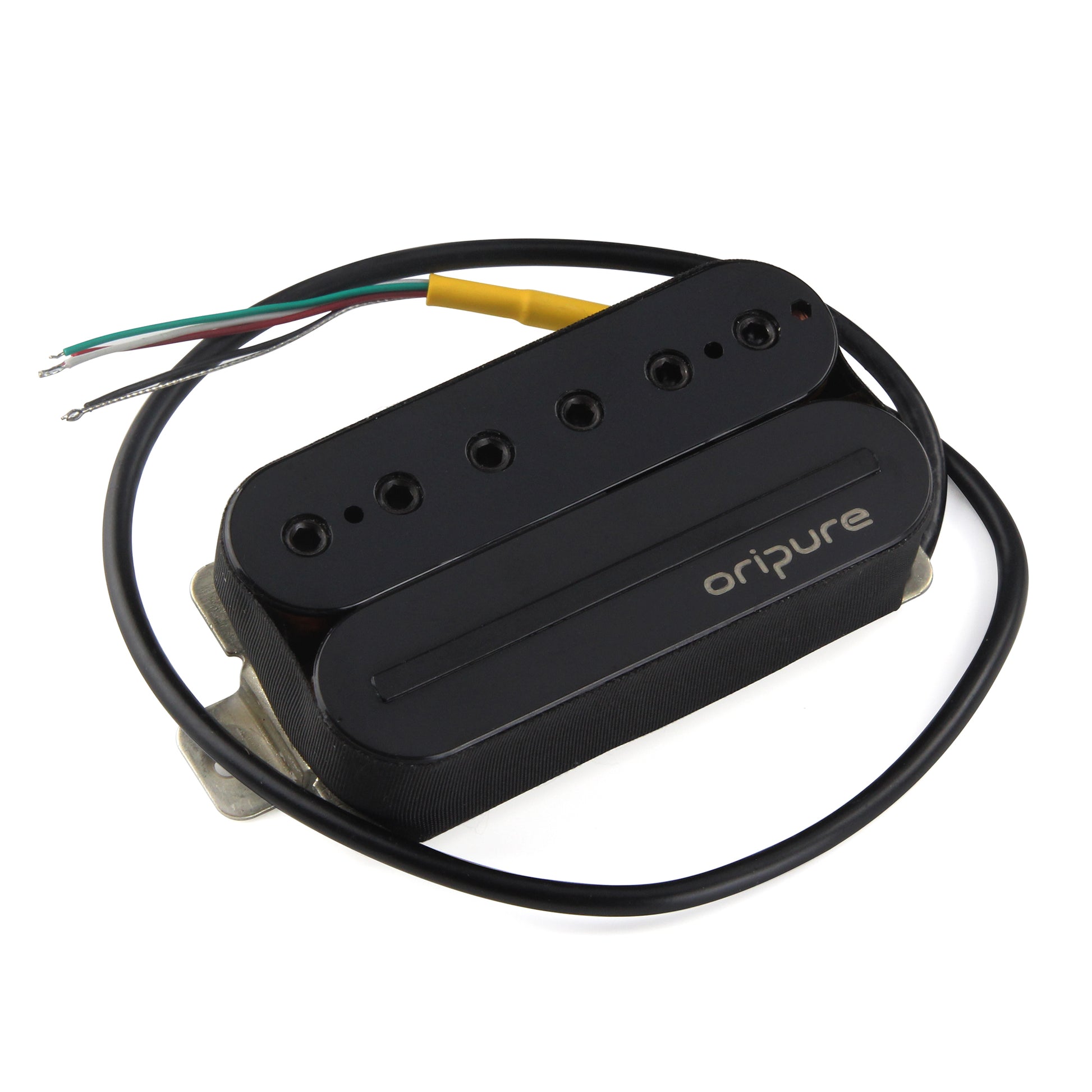

• 4-conductor wire supports multiple wiring options:
coil split / series & parallel / phase reverse
One pickup can produce a wide range of tones—excellent
for modding.
• Nickel-silver baseplate reduces eddy current loss for a
cleaner, more balanced tone
Professional-grade material minimizes high-frequency loss,
making the tone clearer and more transparent.

Tone Profiles

The OriPure PSB2 series offers a tone that is bright, sharp, clear,

and slightly warm, delivering the penetrating power and
explosive character of modern metal.
The bridge pickup is sharper, more aggressive, and more
explosive,naturally carrying metalcore and progressive
metal intensity.

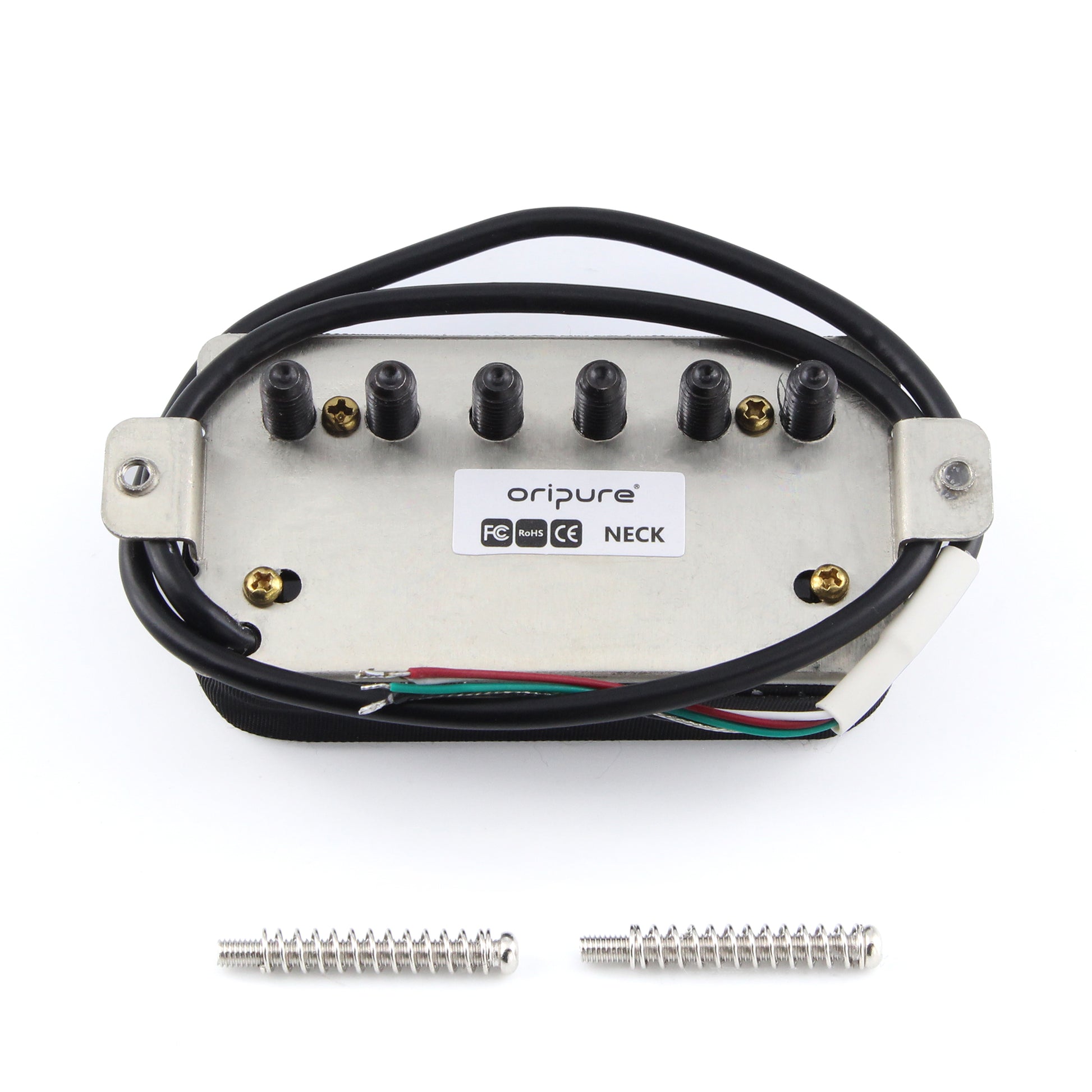

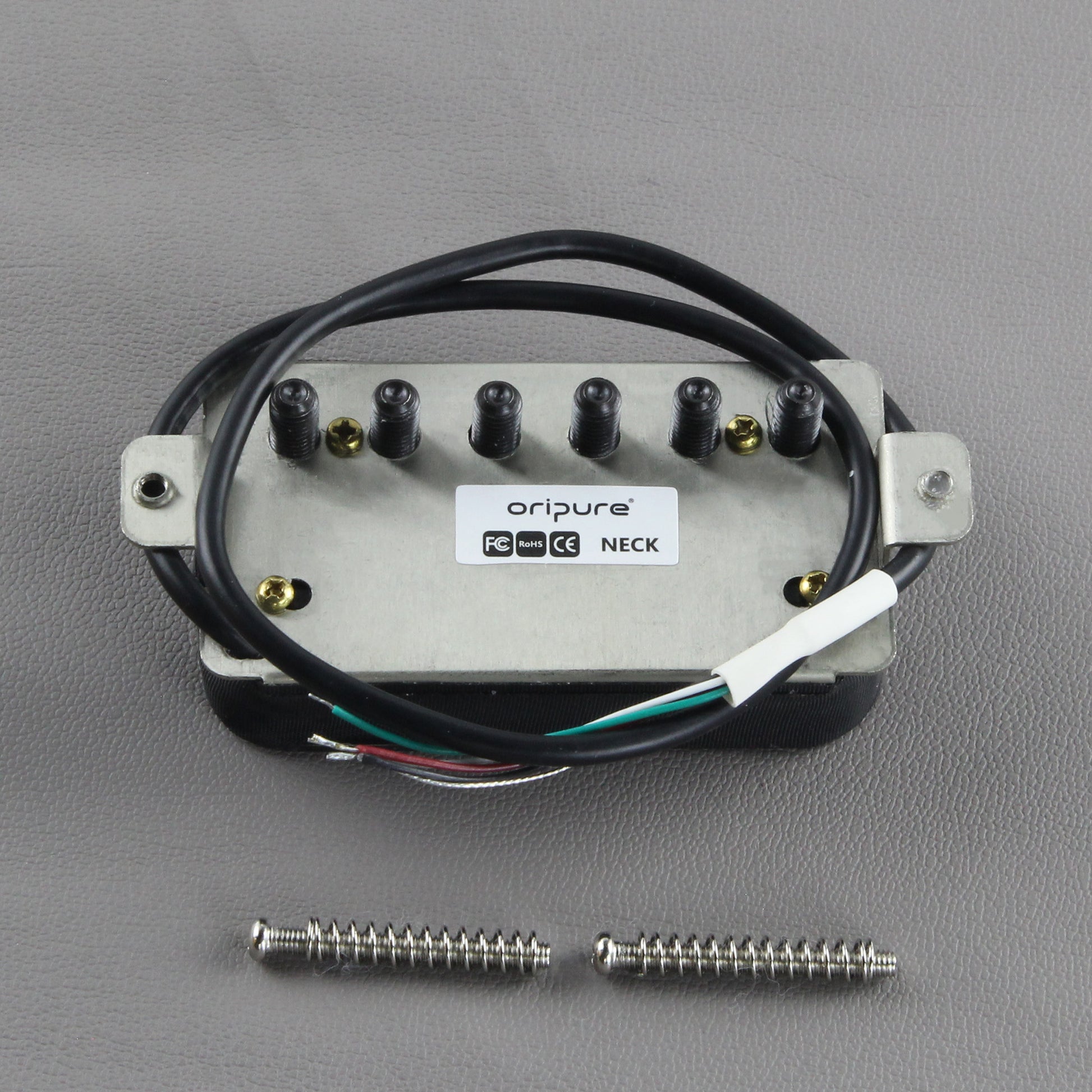

• Neck (PSB2-BK-N | Alnico II)
Tonal Characteristics Bright, sharp, transparent, warm, full,
with strong penetration and a spacious modern-metal
neck tone.

• Strumming is highly three-dimensional, layered, and spacious

• Balanced frequency response and stable soundstage

• Clean tone is sweet, penetrating, with good sustain

• Ideal for creating wide, airy tones

• Bridge (PSB2-BK-B | Alnico V)
Sharp, violent, dominant—full of metalcore and progressive
metal aggression.

• Bright, crisp, and fat

• Punchy & aggressive with strong attack force

• Strong presence and volume; commanding atmosphere

• Wide soundstage with air and impact

• Distortion is highly articulated with clear grain and definition

Suitable Genres:
• Clean & Vintage: Jazz, Blues, Classic Rock, Fusion
• Modern tone & distortion: Hard Rock, Punk, Alternative Rock,
Grunge
• High output, high gain (HB): Metal, Thrash Metal,
Nü Metal, Metalcore

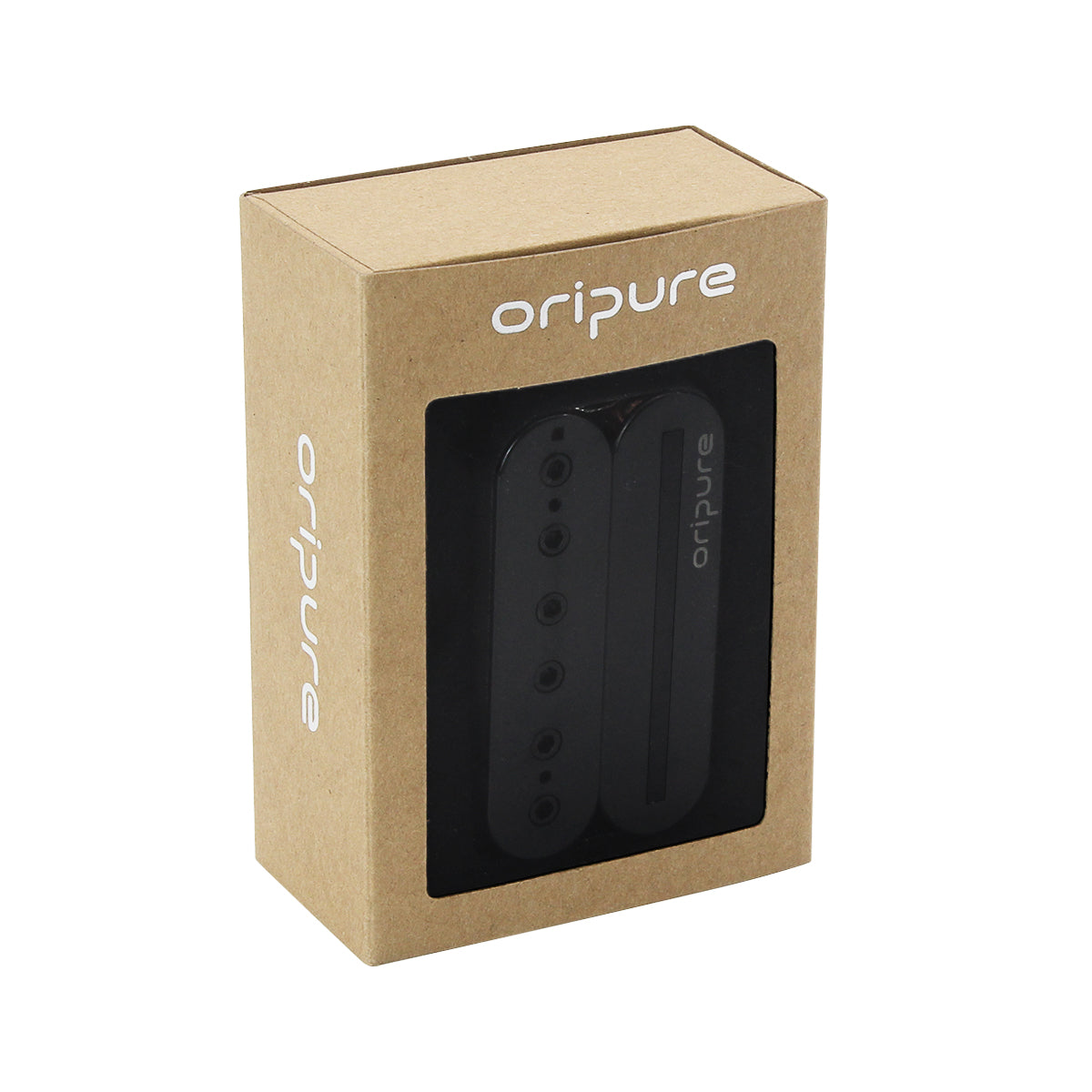

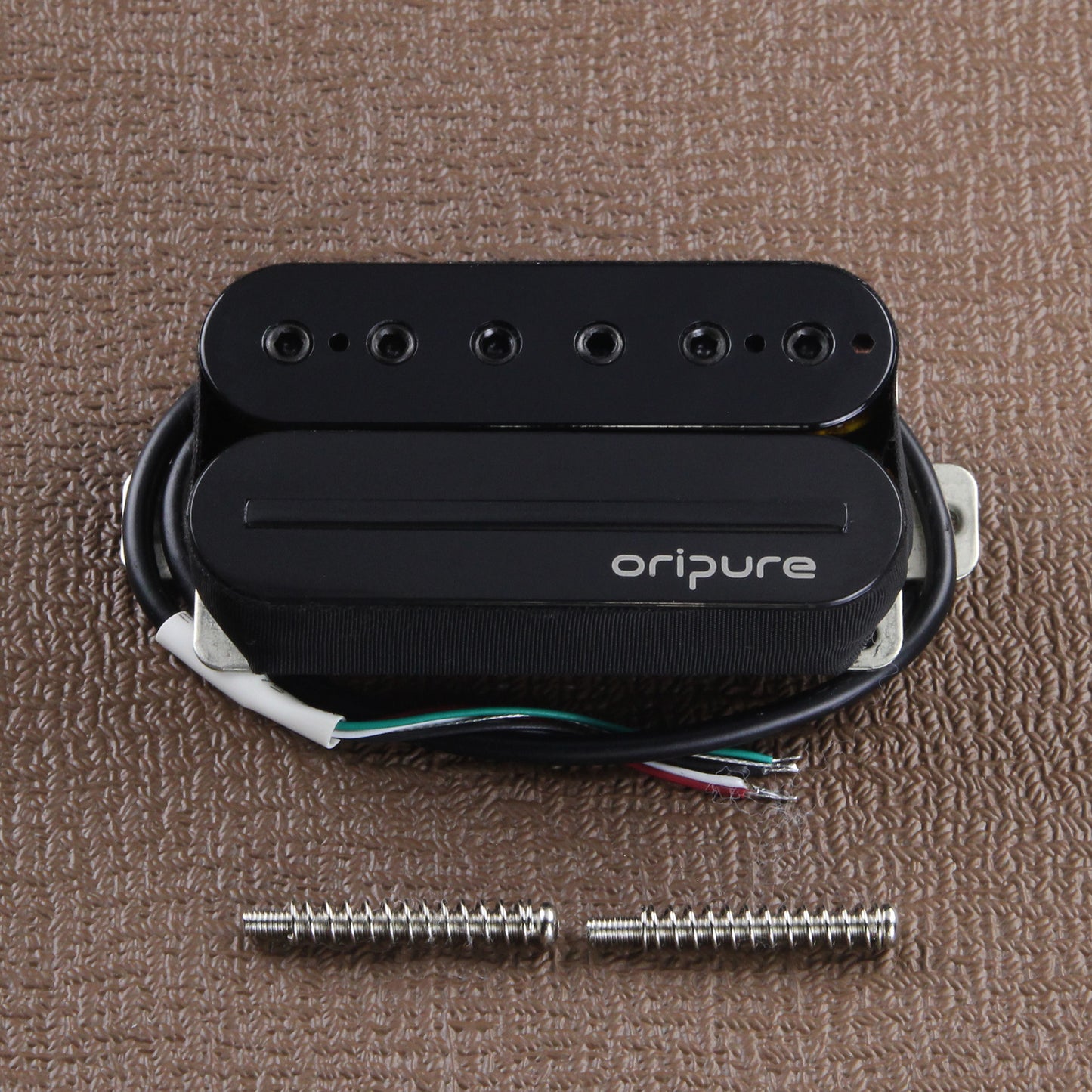

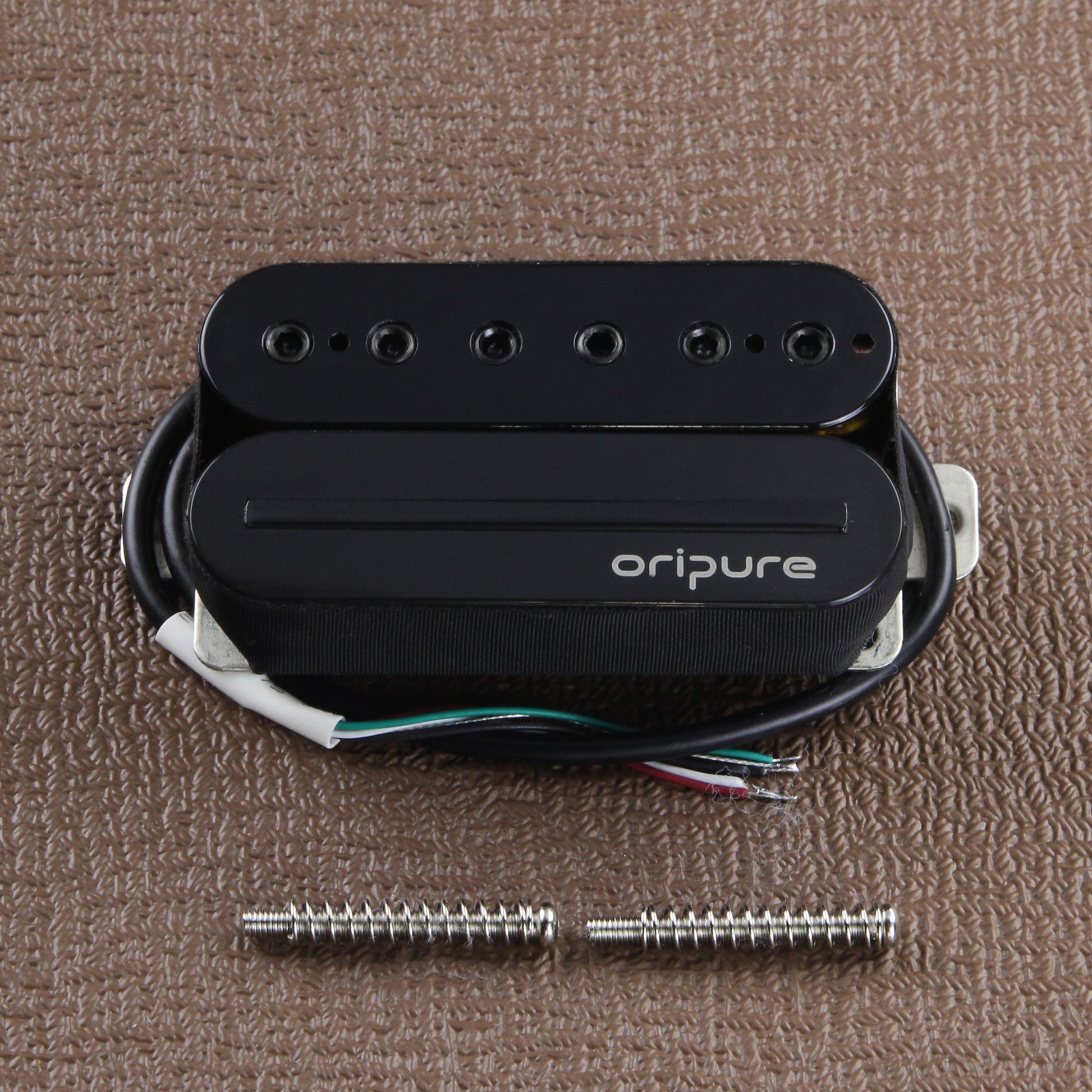

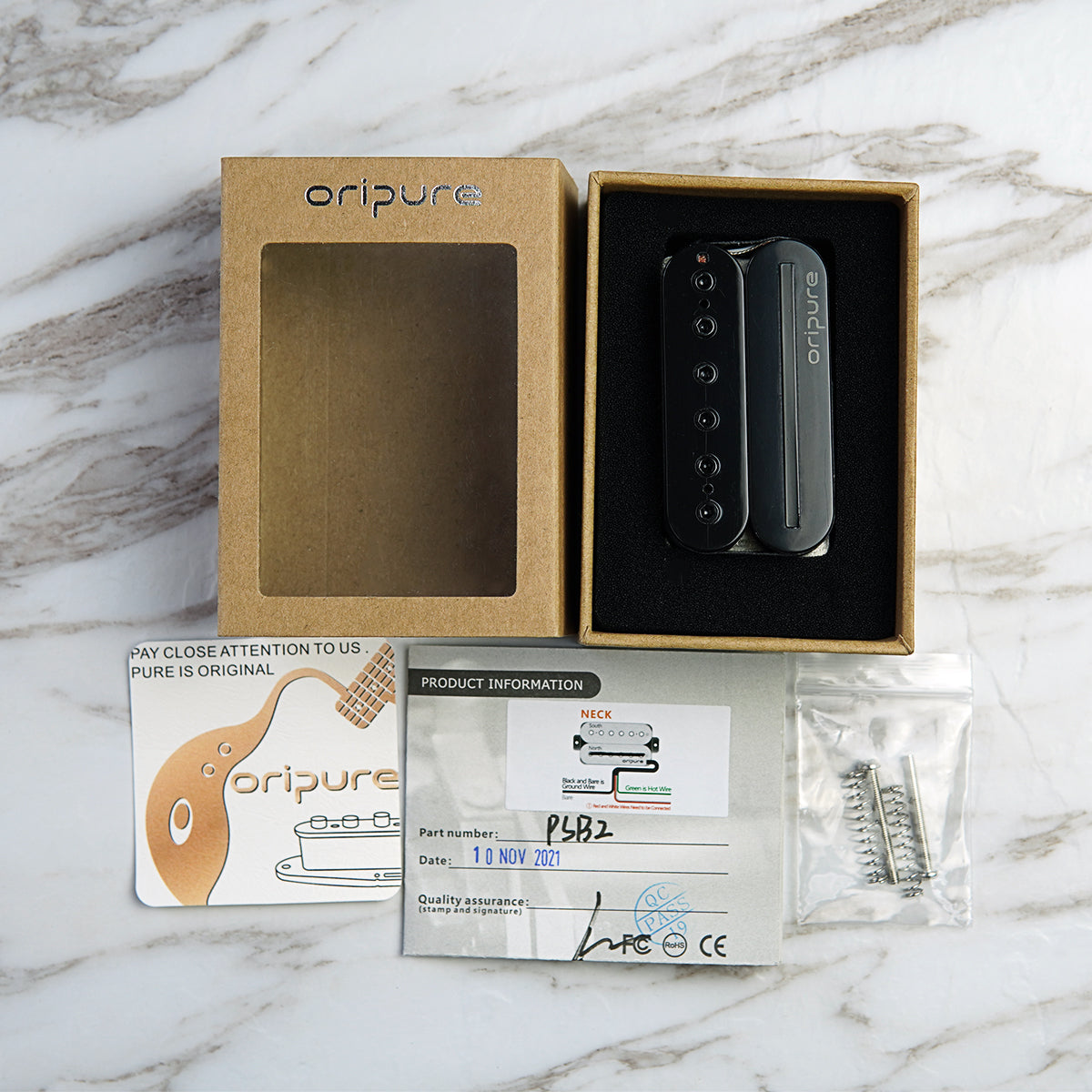

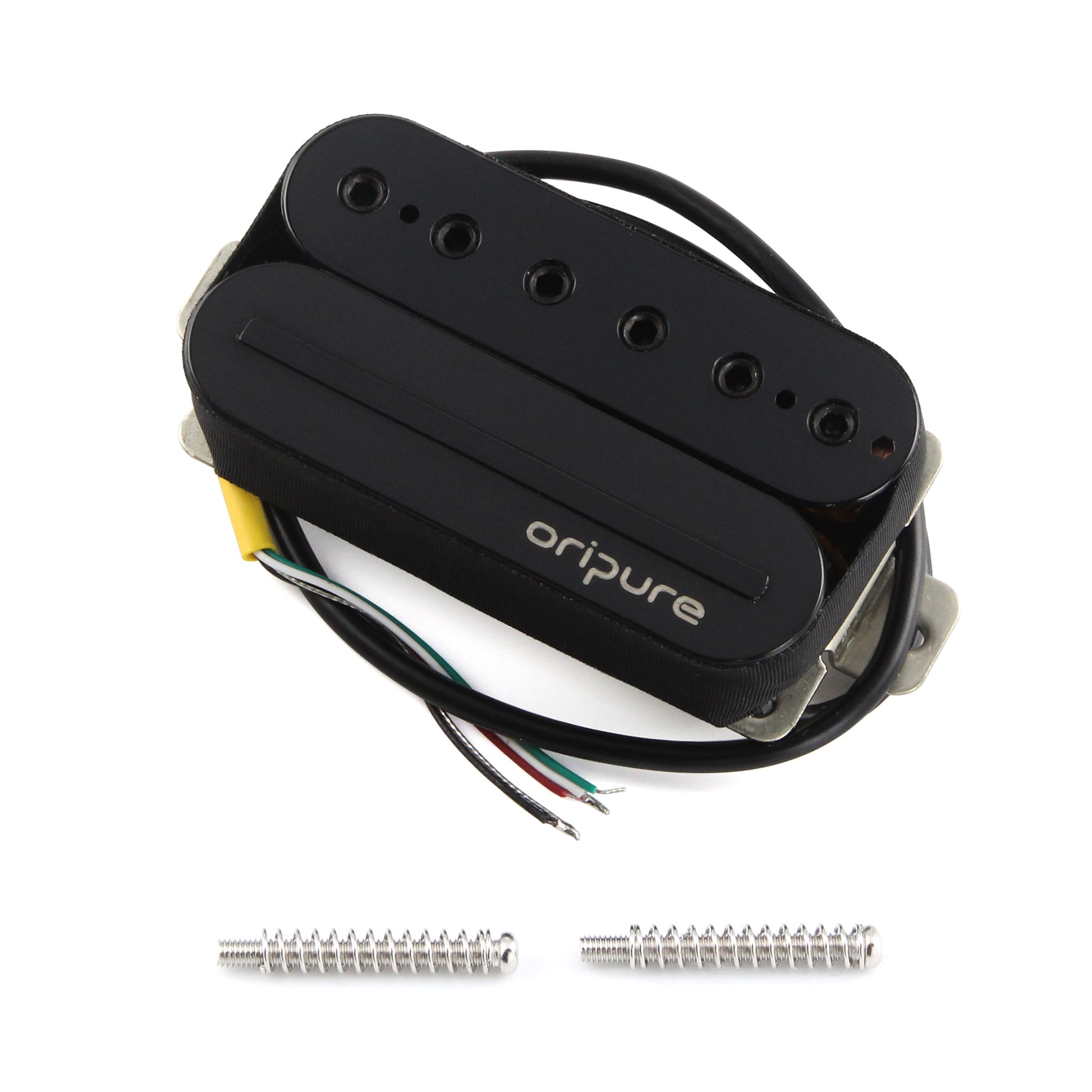

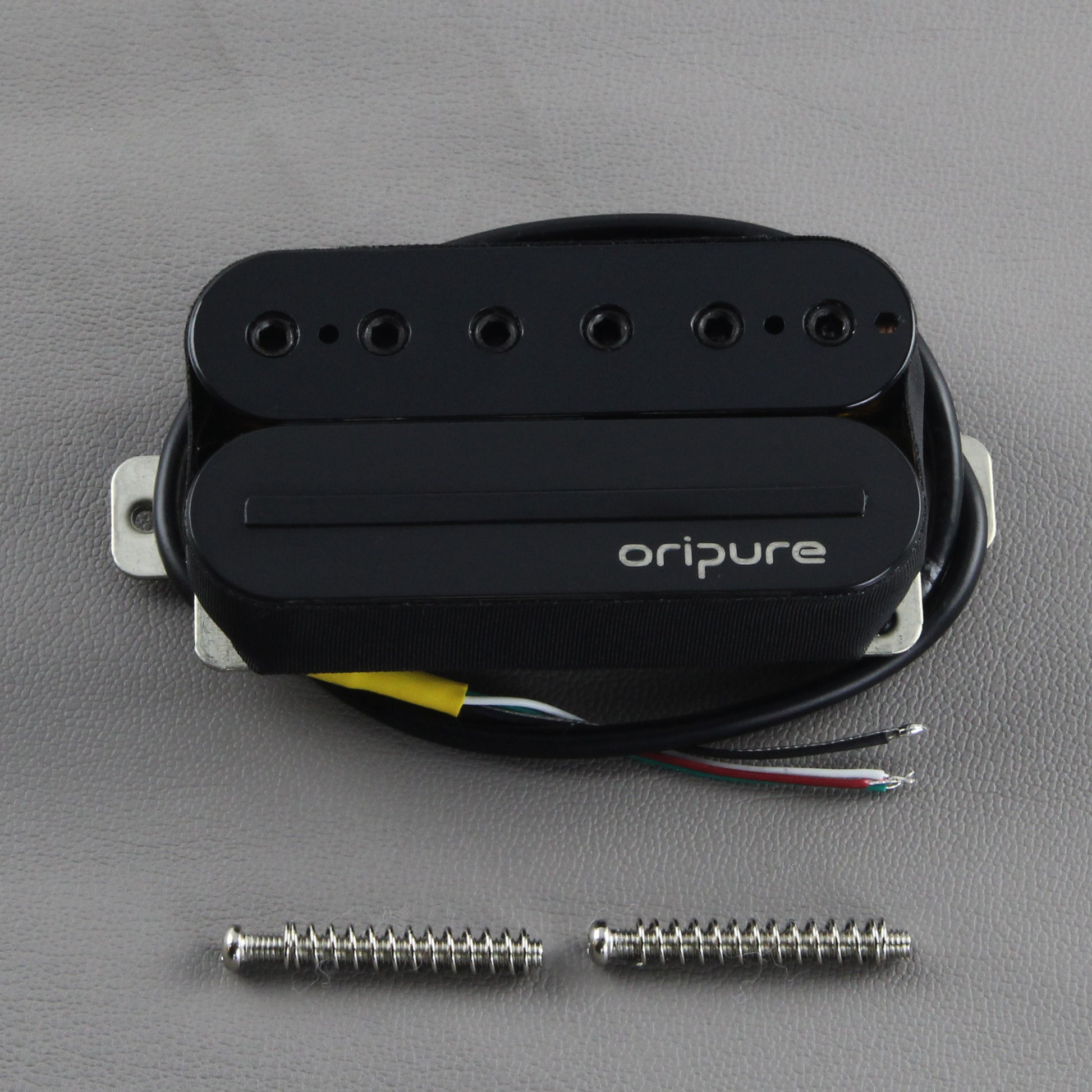

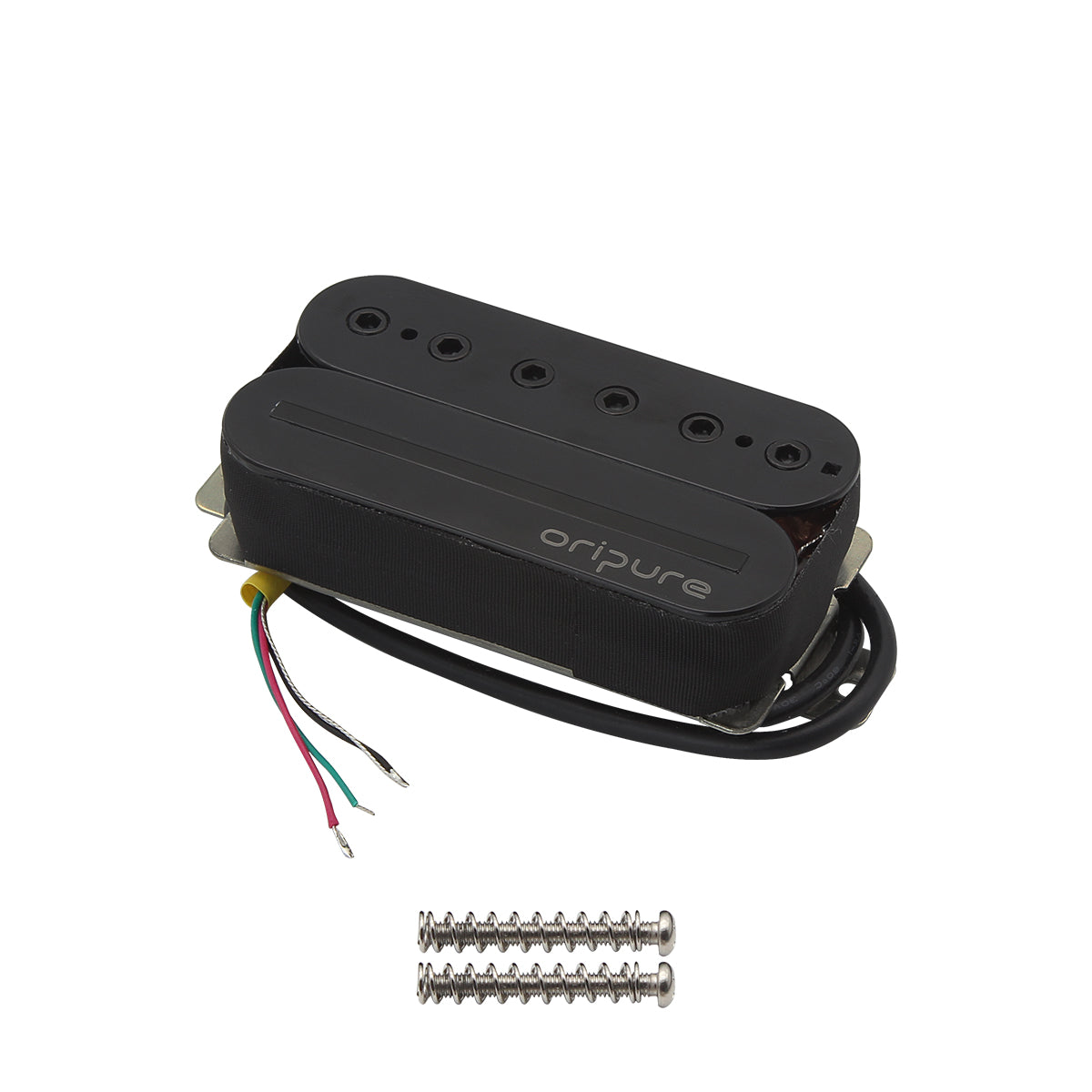

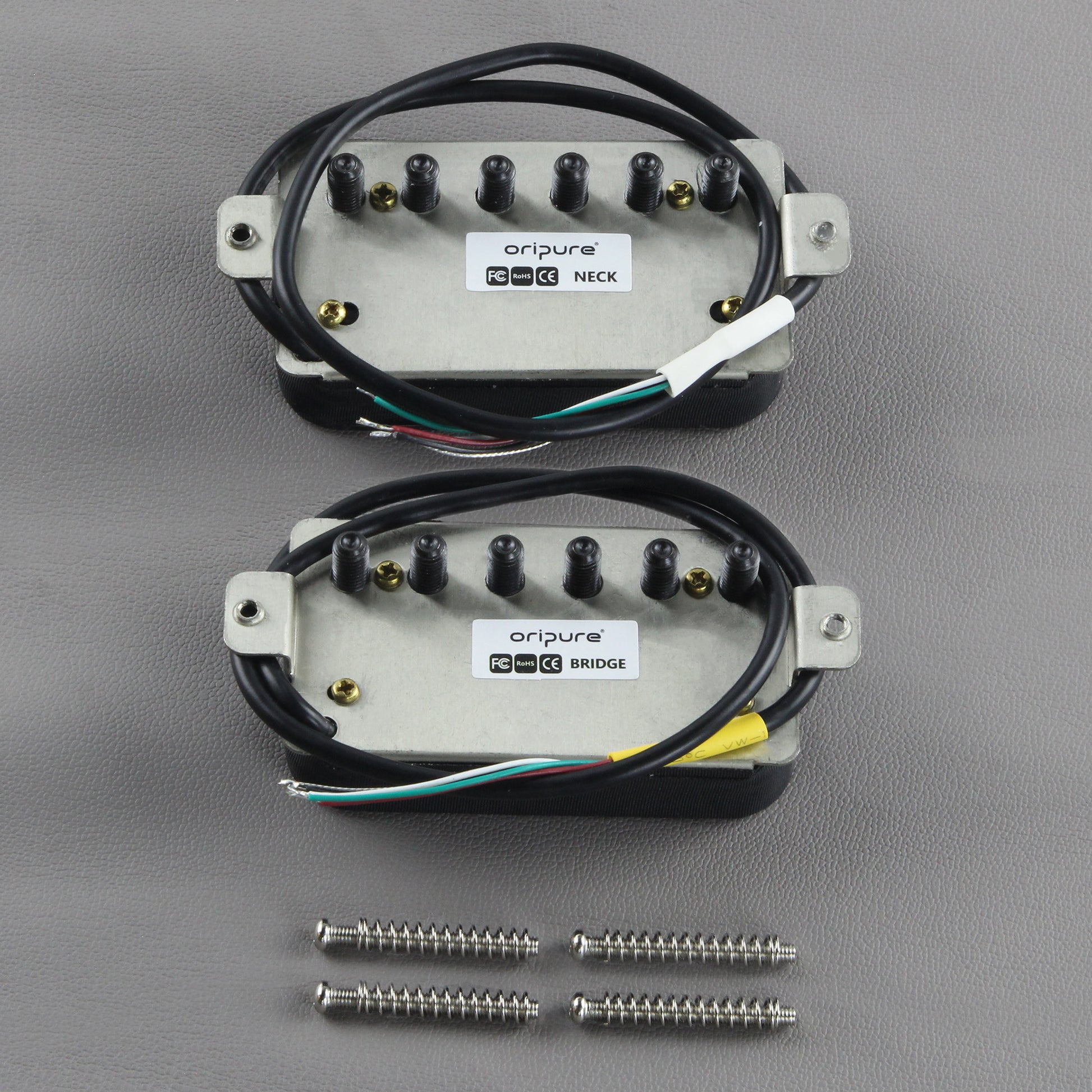

Package Includes:

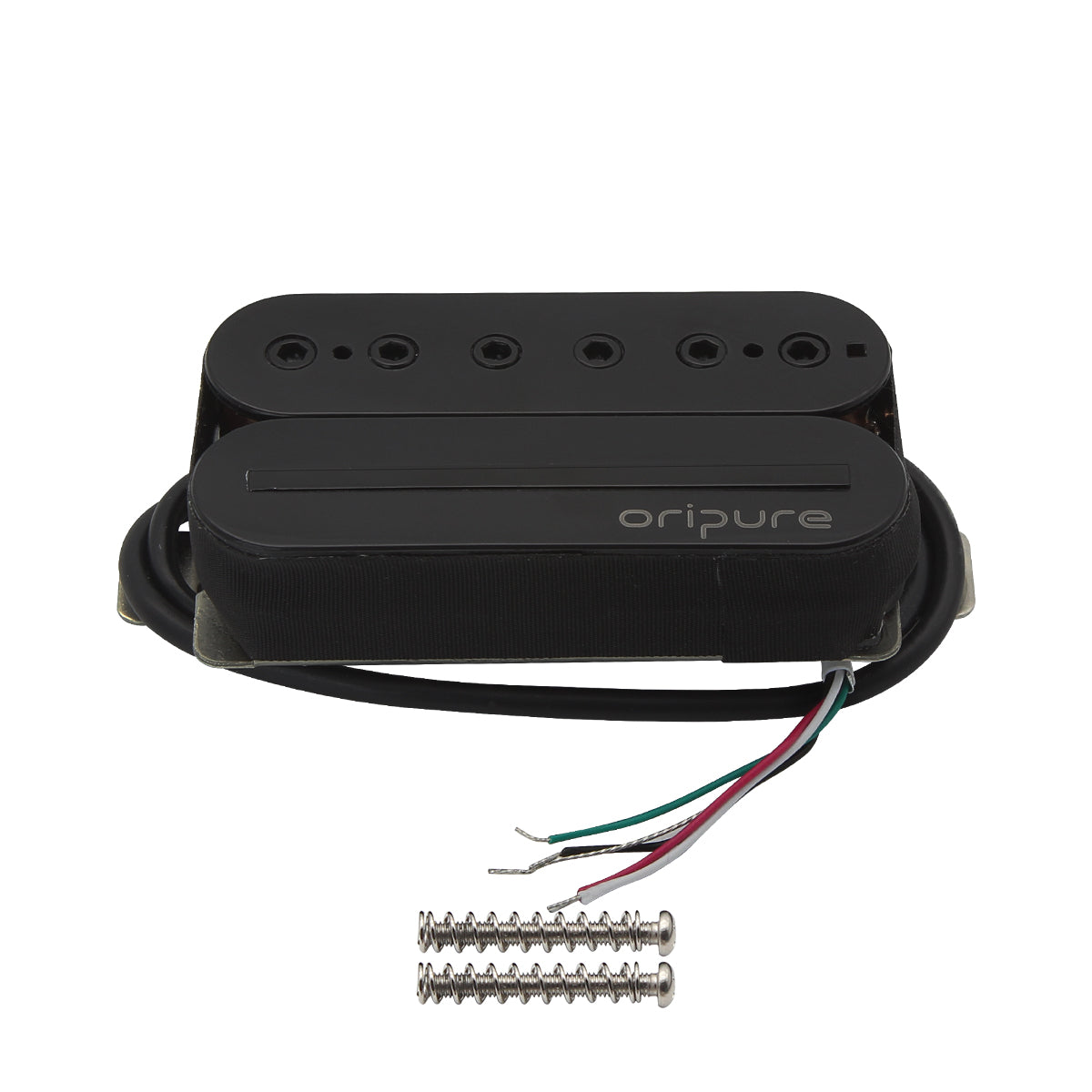

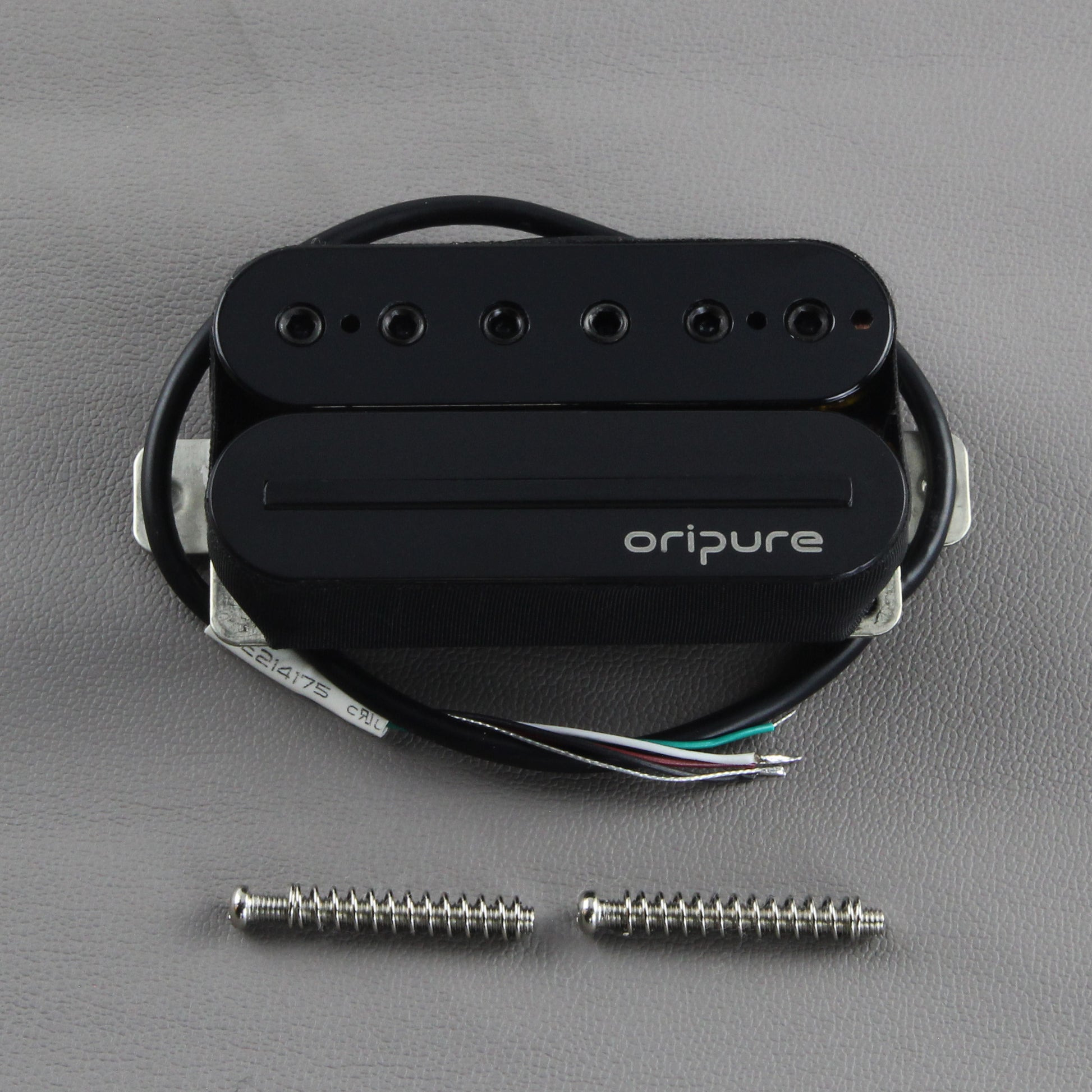

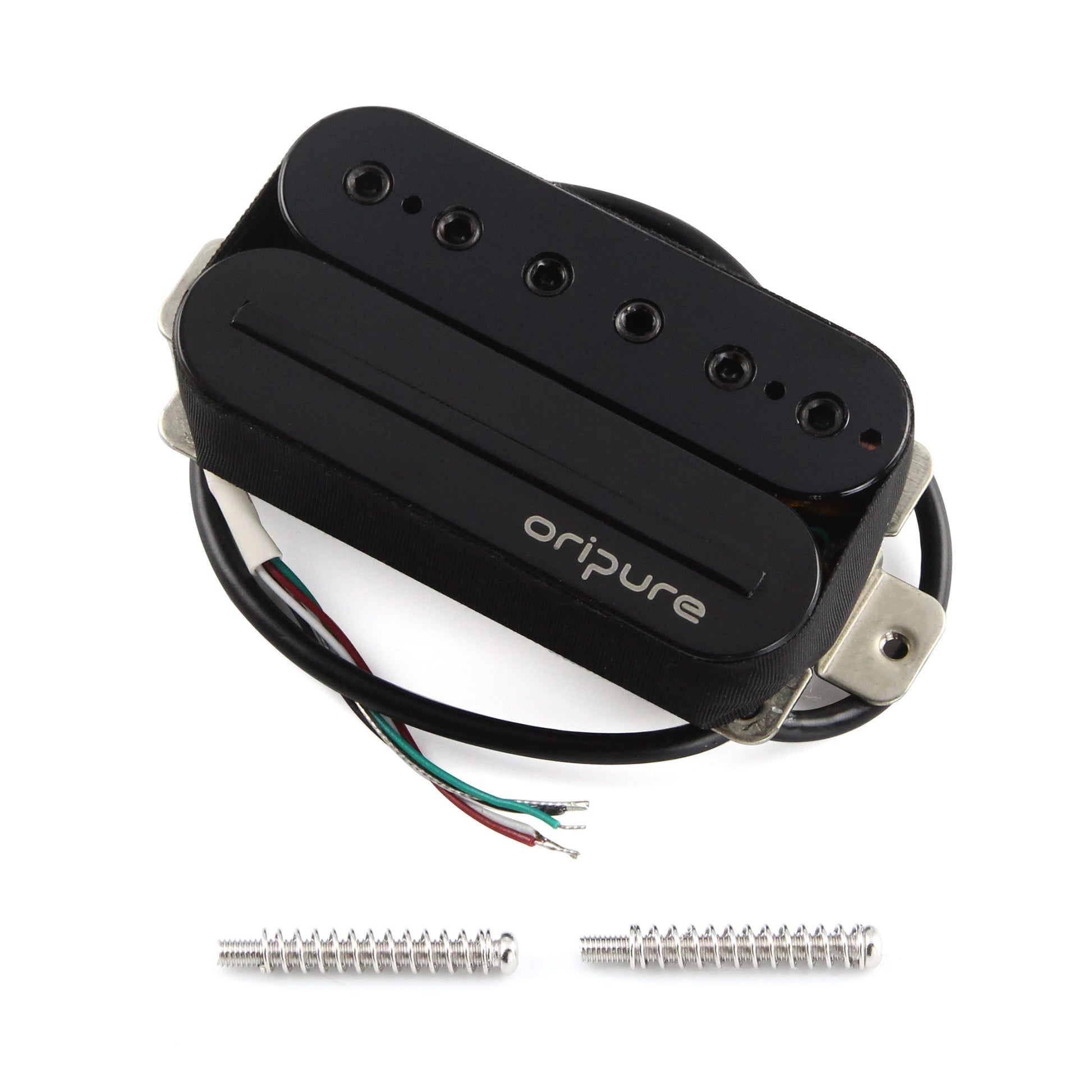

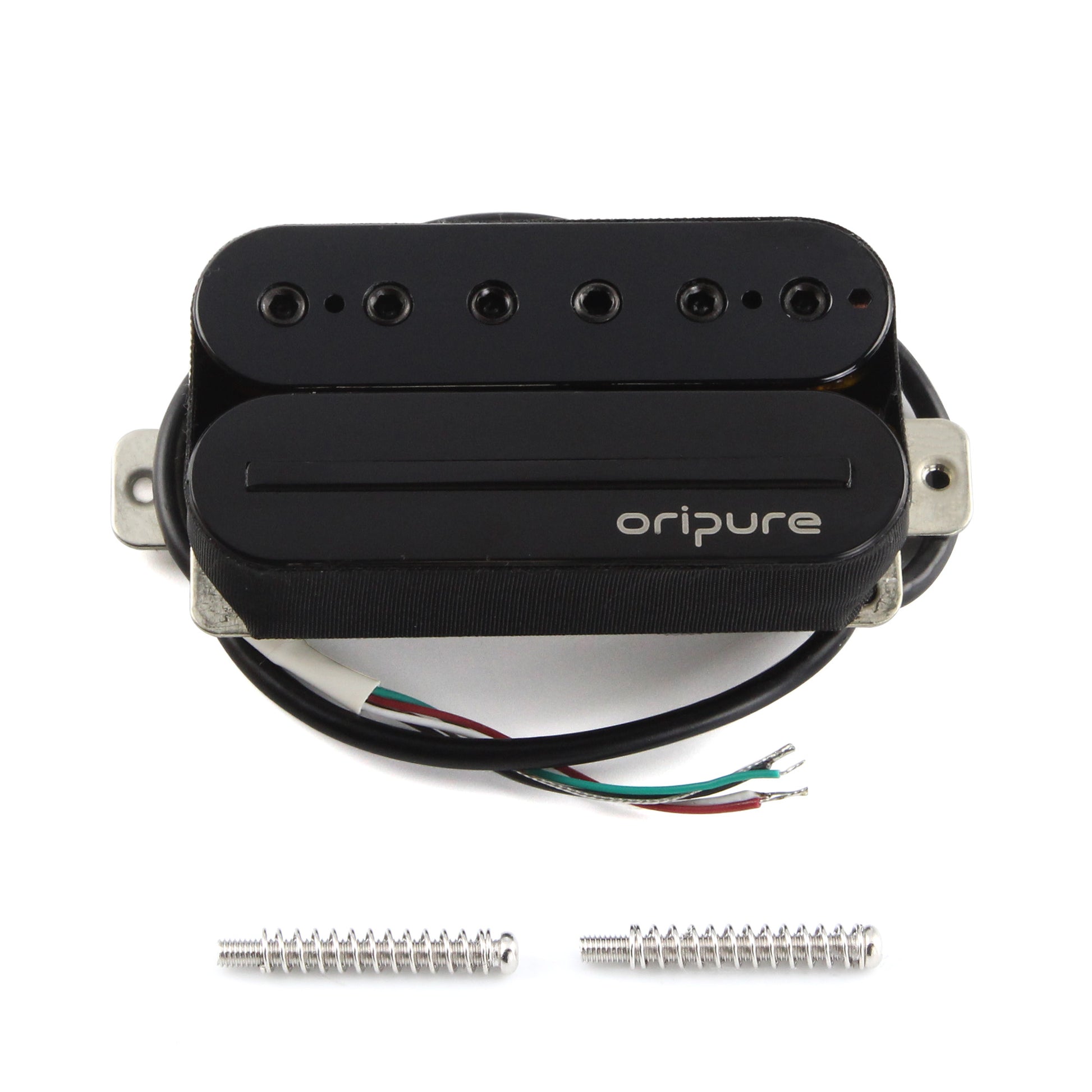

1 × pickup (Neck or Bridge)
2 × Mounting screws
2 × Springs
